Description

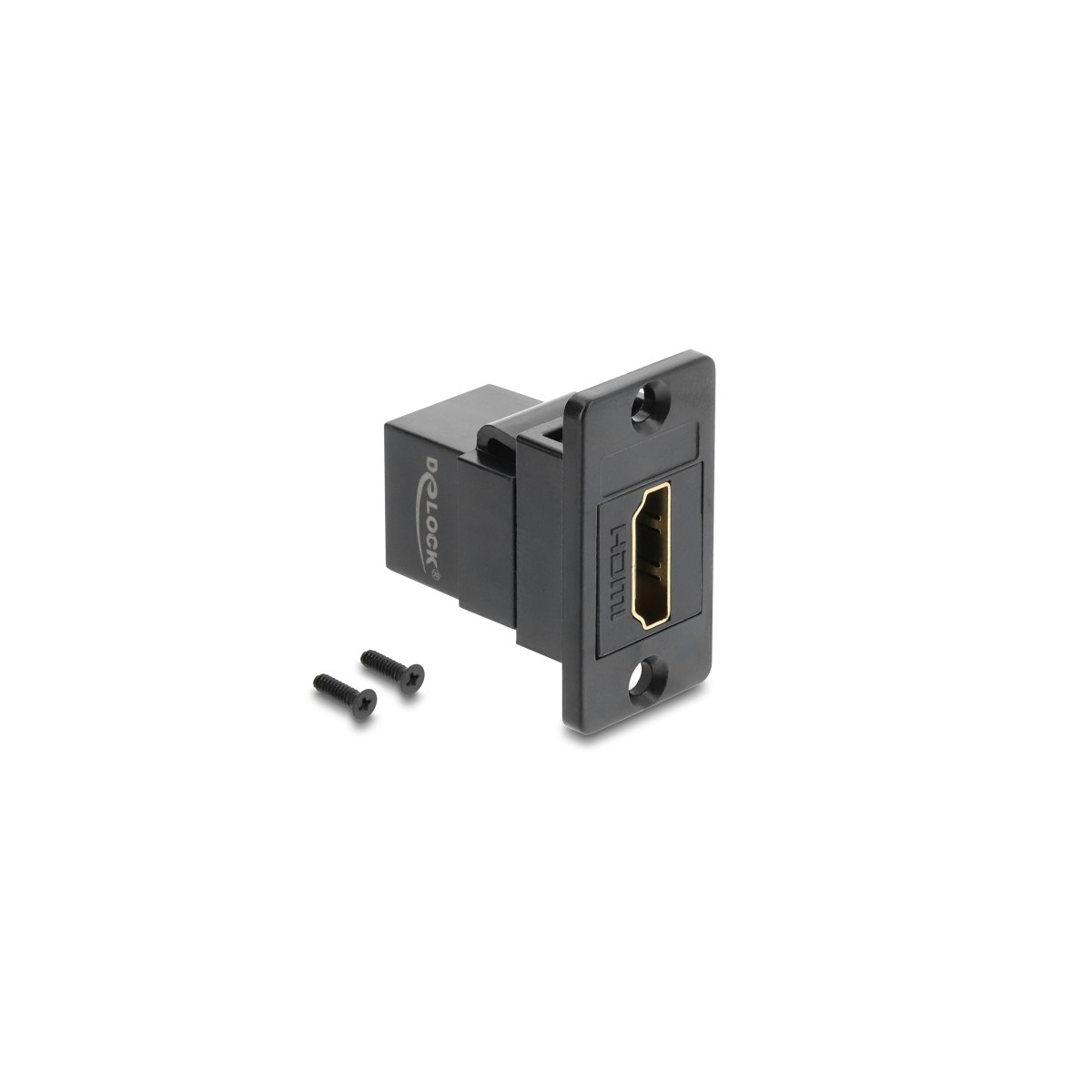

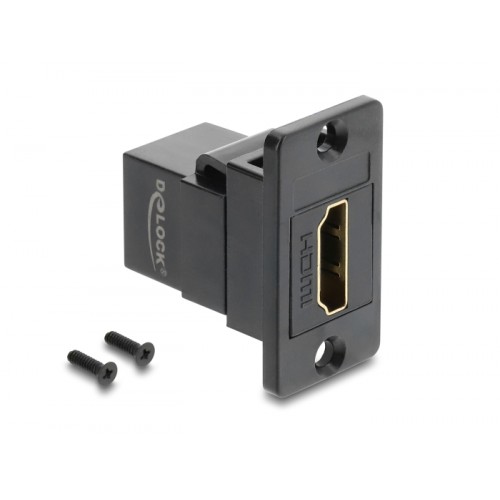

This panel mount by Delock can be used to extend an HDMI connection and can be installed in e.g. a housing or device.
Specification
• Connectors: 2 x HDMI-A female
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 28.8 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
This panel mount by Delock can be used to extend an HDMI connection and can be installed in e.g. a housing or device.
Specification
• Connectors: 2 x HDMI-A female
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 28.8 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
