Description

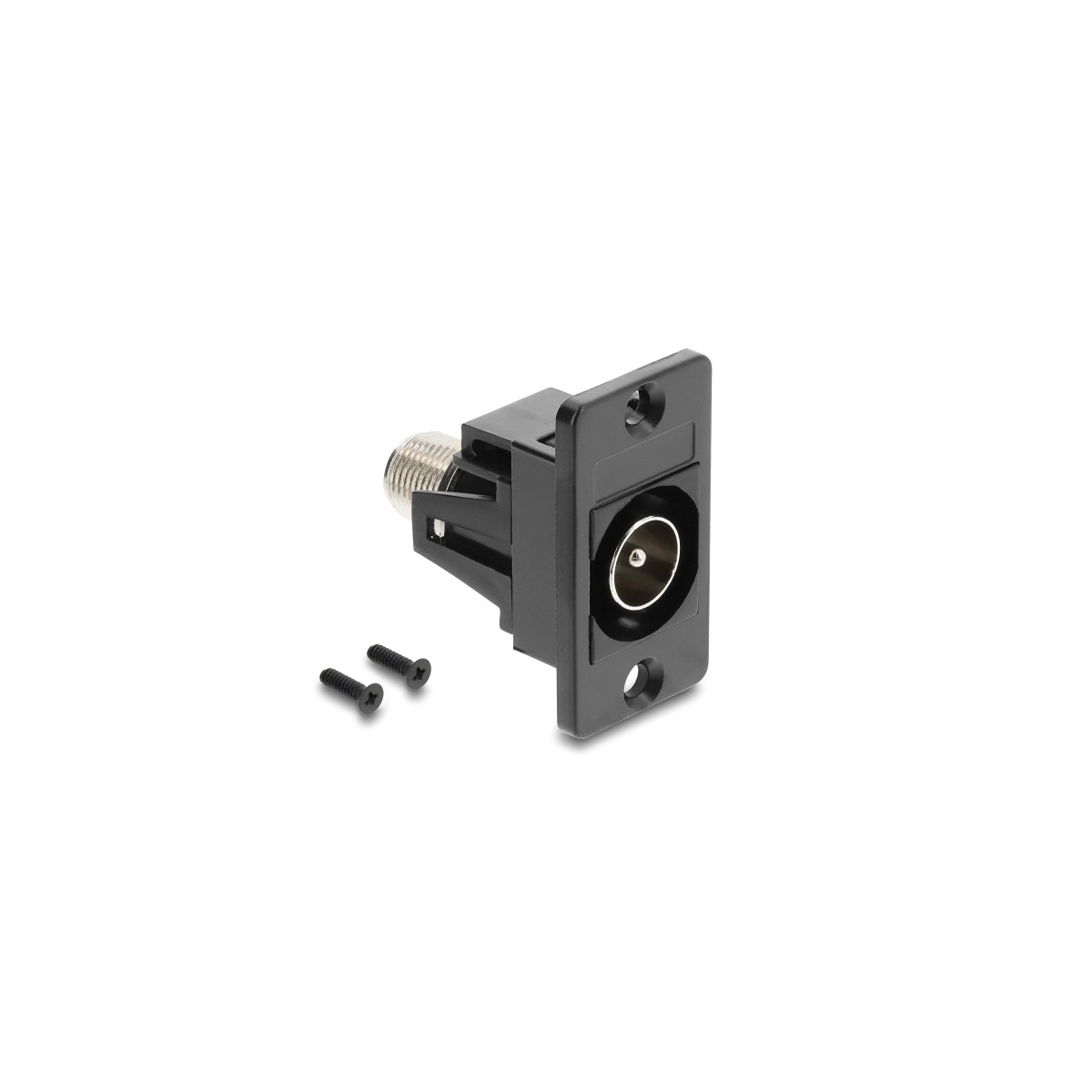

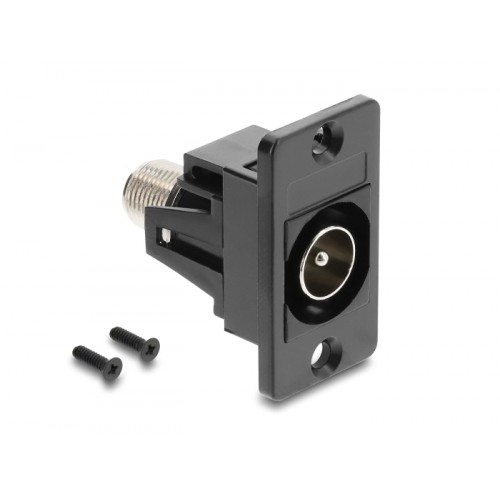

This module by Delock can be used to connect antenna cables and can be installed in e.g. a housing or device.
Specification
• Connectors:
1 x IEC 60169-2 (coax) male
1 x F female
• Impedance: 75 Ohm
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 34.0 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
This module by Delock can be used to connect antenna cables and can be installed in e.g. a housing or device.
Specification
• Connectors:
1 x IEC 60169-2 (coax) male
1 x F female
• Impedance: 75 Ohm
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 34.0 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
4043619911974
