Delock 19″ 1U Patch Panel 24 port Cat.6 with LED and strain relief rail unshielded black

Description
The 19″ patch panel (1U) with 24 Cat.6 RJ45 ports by Delock serves as a central distribution point for structured network cabling. The cables are securely connected via LSA connectors on the rear, while the robust metal housing ensures stability in the network cabinet.

With LED indicator
The integrated LED status indicators on each port facilitate troubleshooting and enable quick identification of active connections. Ideal for professional IT infrastructures, server rooms and network cabinets.

With strain relief

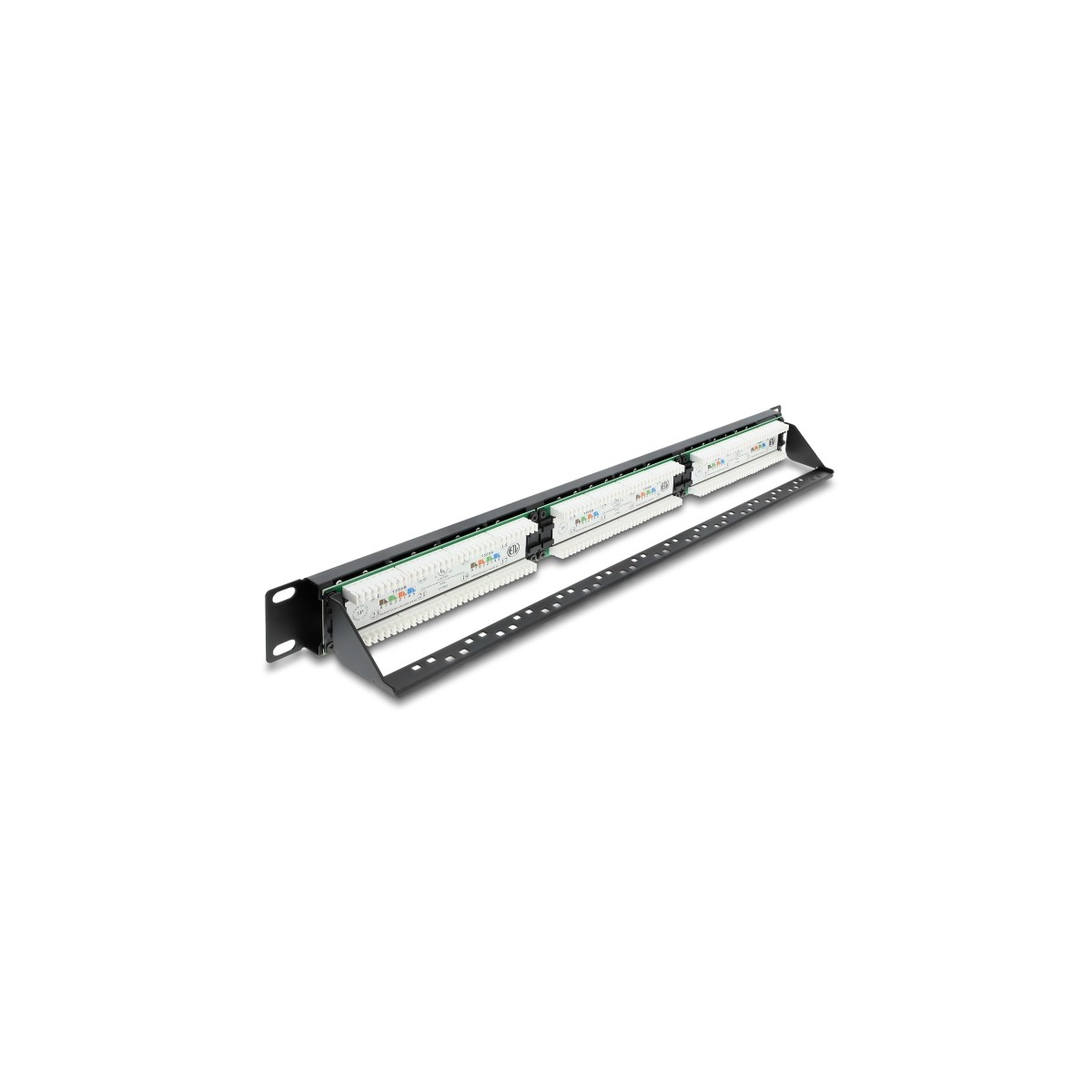

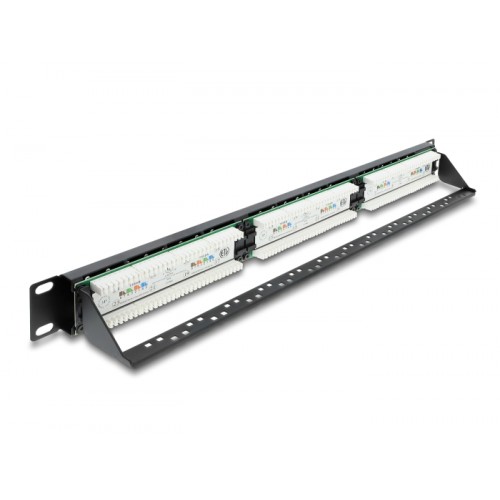

The strain relief rail secures the network cables in place with cable ties, relieves strain on the LSA connections and ensures neat and stable cable routing.

Specification
• Connectors:
24 x RJ45 jack
24 x LSA

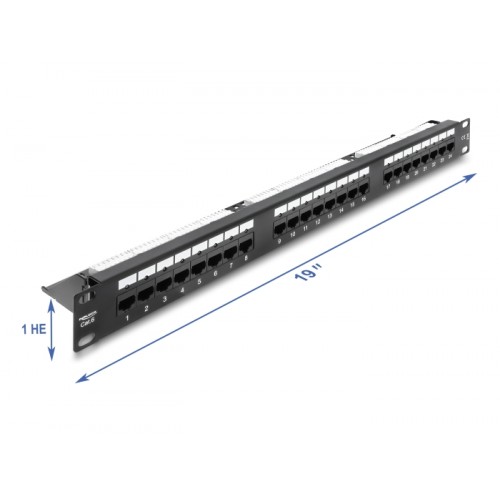

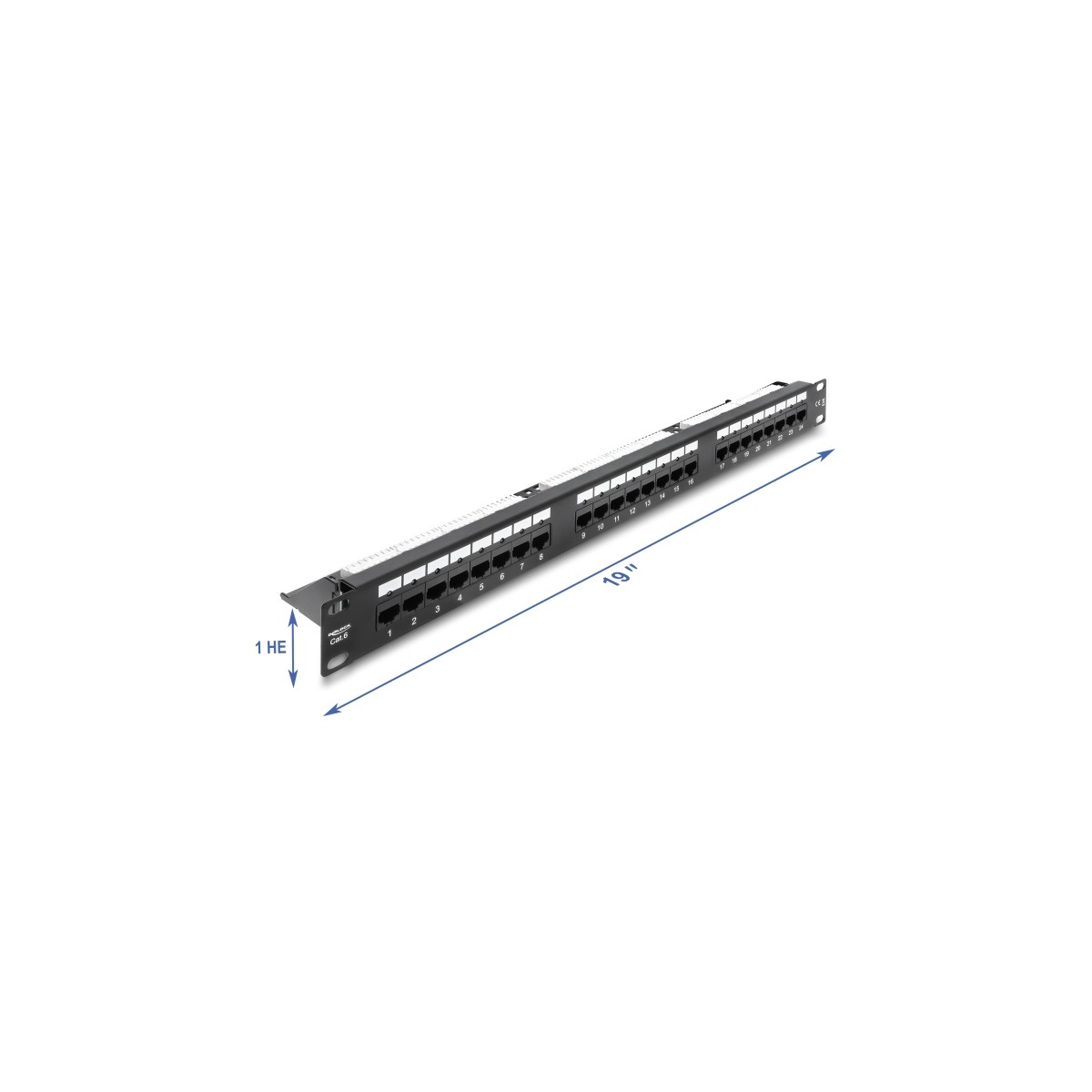

• For mounting in 19″ network cabinet, 1U
• Cat.6 specification
• Unshielded
• LED status indicator per port
• With strain relief
• With port numbering
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): ca. 482.6 x 84.0 x 44.5 mm

System requirements


Package content
• 19″ patch panel

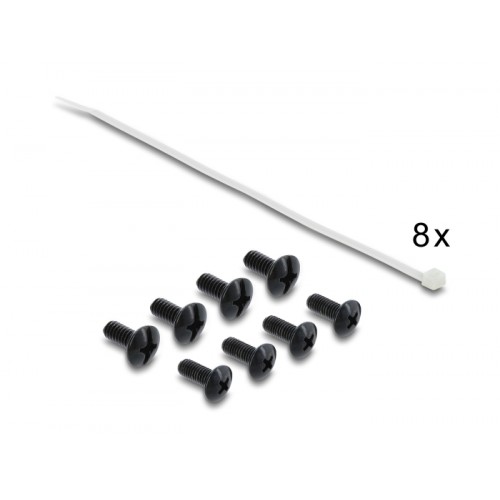

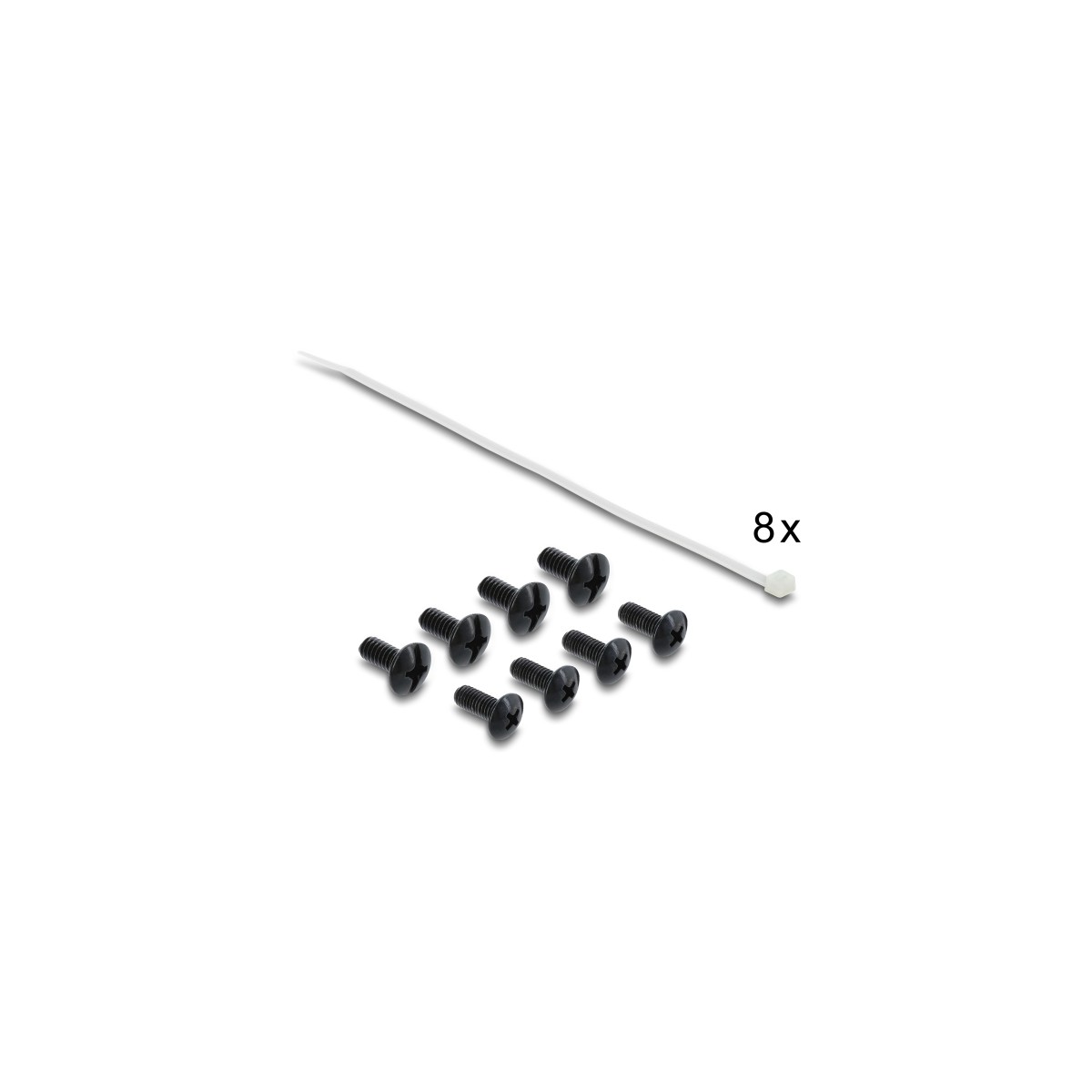

• Mounting material
