Description

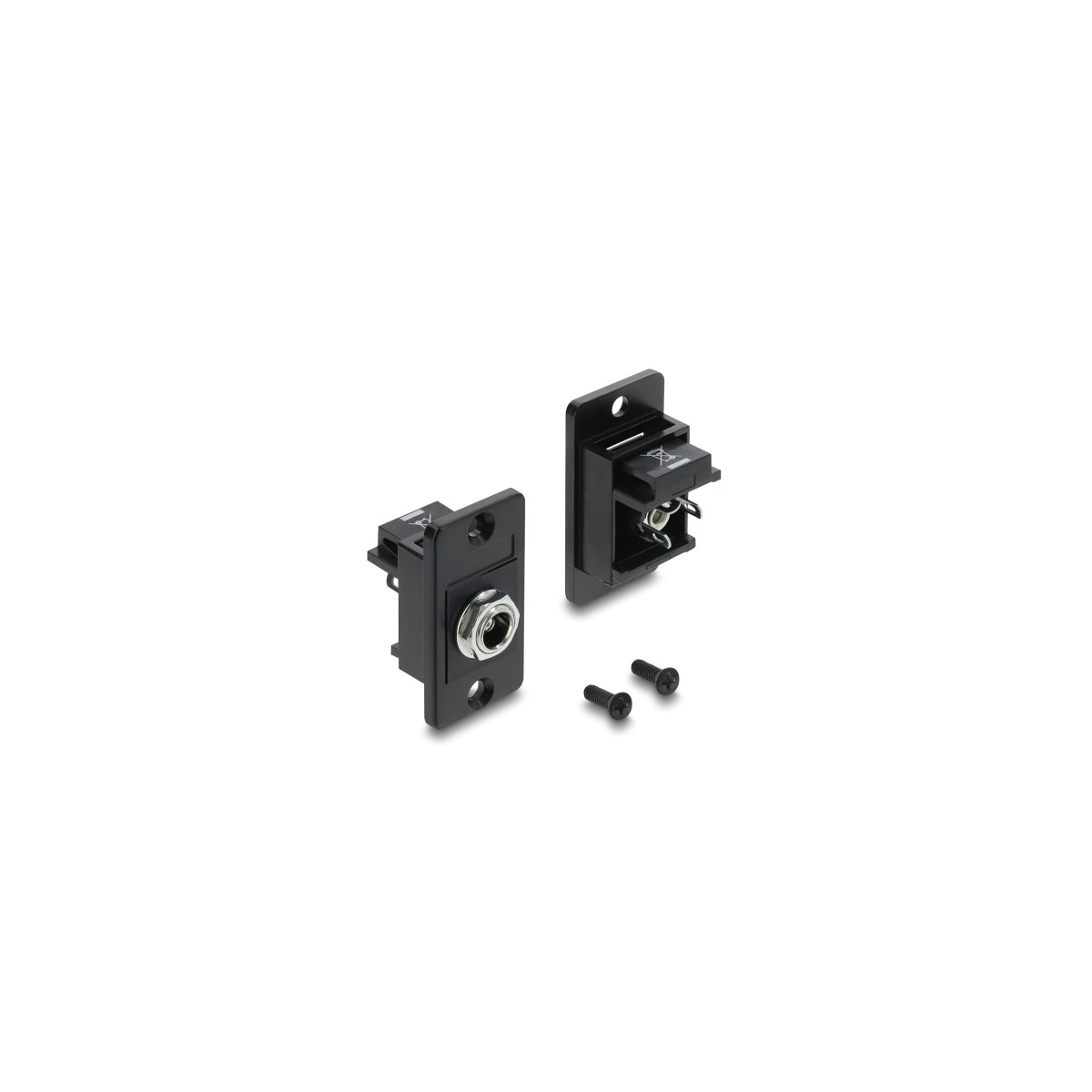

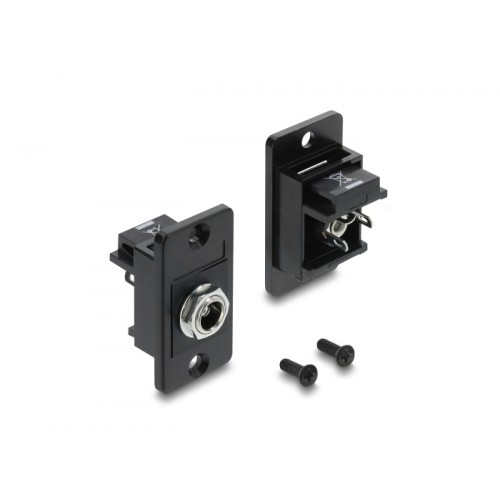

This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification
• Connectors:
1 x DC 5.5 x 2.5 mm female
3 x solder connection
• Power rating: 30 V / 3 A
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 20.7 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
This DC female bulkhead by Delock can be installed or cabled in a housing or a device in order to supply it with power.
Specification
• Connectors:
1 x DC 5.5 x 2.5 mm female
3 x solder connection
• Power rating: 30 V / 3 A
• Integrated name plate
• Panel cut-out (WxH): ca. 16.8 x 22.3 mm
• Countersink for conical screws, distance ca. 28.9 mm
• Mounting hole diameter: ca. 3.3 mm
• Screw type: #4-40 UNC
• Material: zinc diecast / plastic
• Colour: black
• Dimensions (LxWxH): 20.7 x 19.1 x 35.5 mm
System requirements
Package content
• Panel Mount
4043619911868
