Description

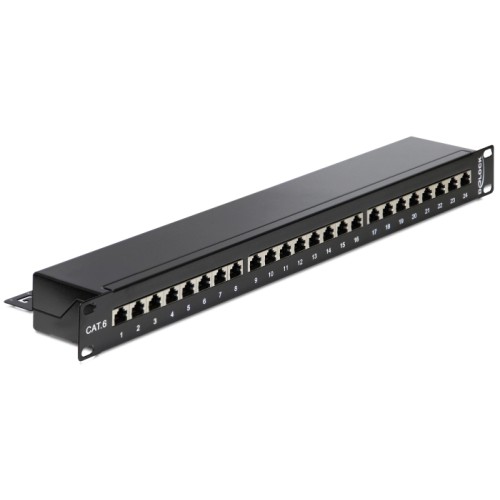

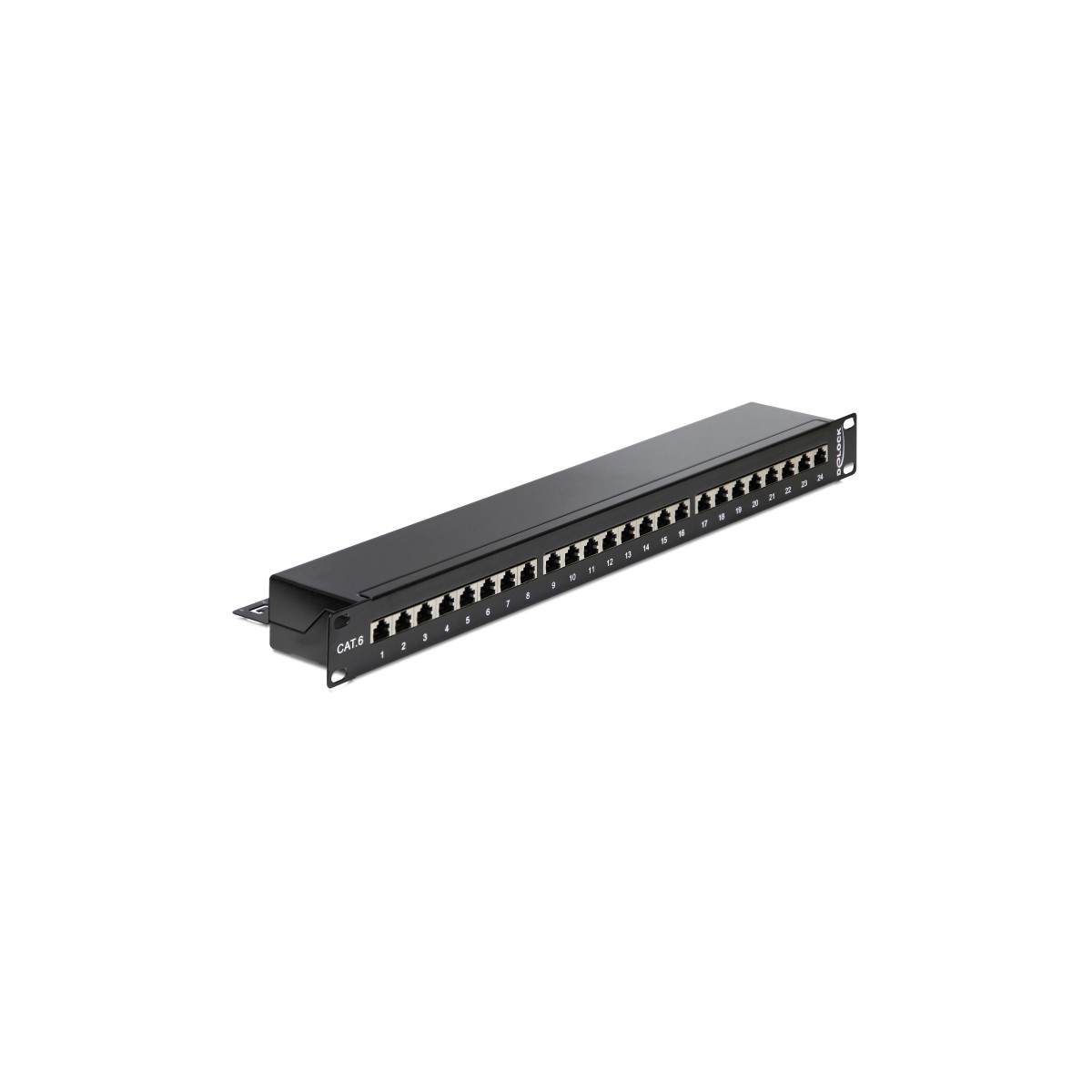

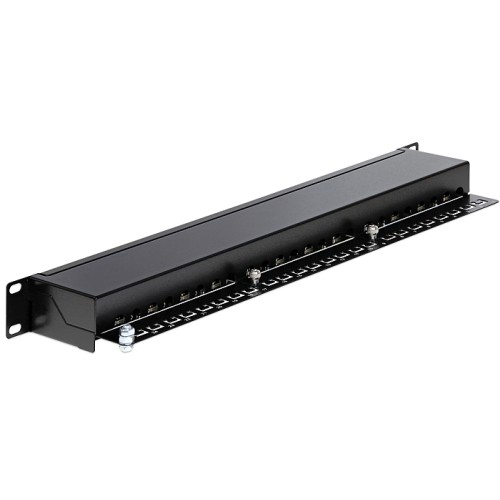

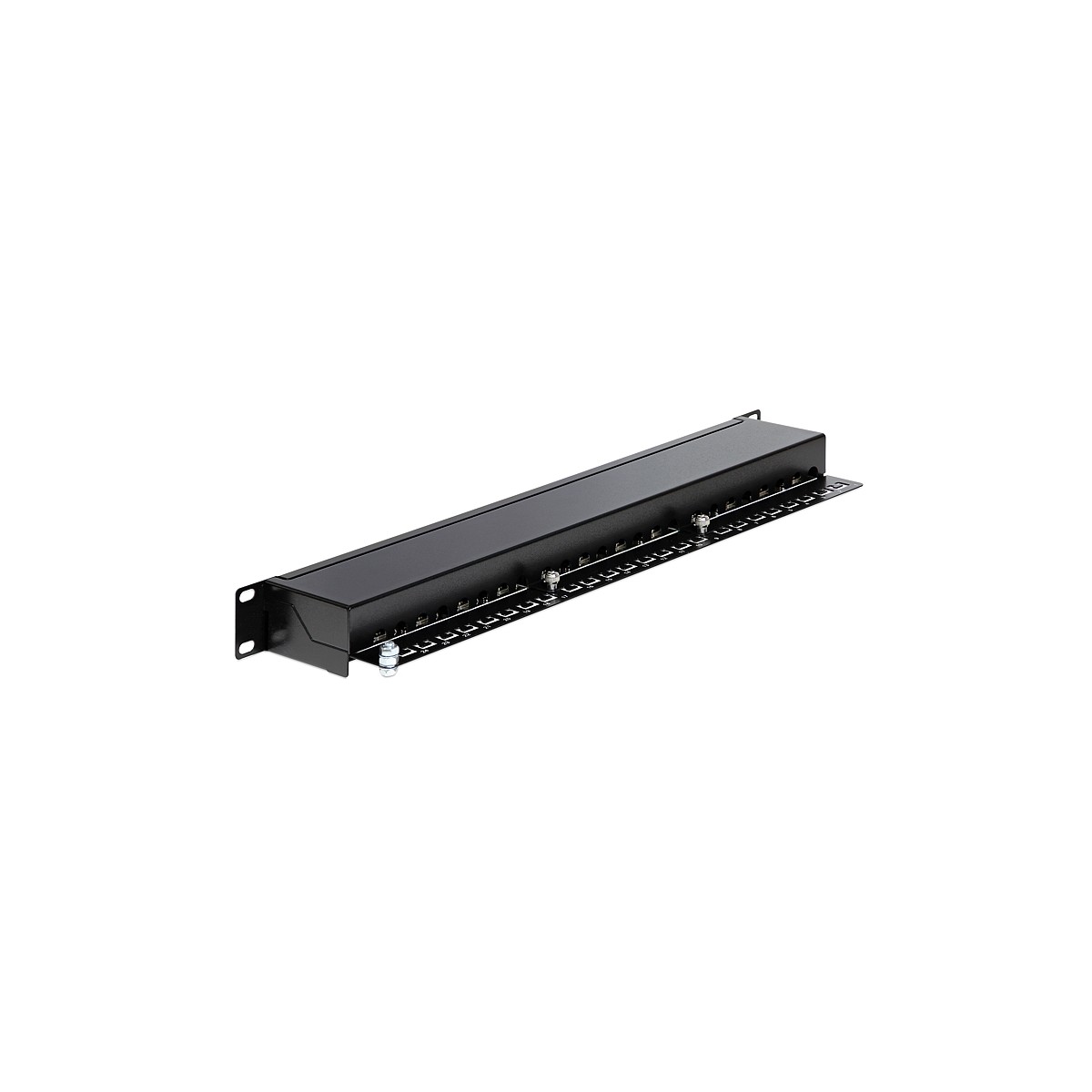

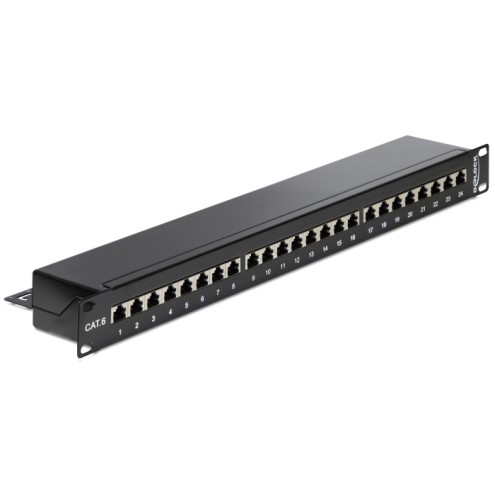

This Patch Panel by Delock can be mounted in a 19″ rack. At the LSA blocks you can install up to 24 network cables with a punch down tool.
Specification
• Connectors:
external: 24 x RJ45 jack

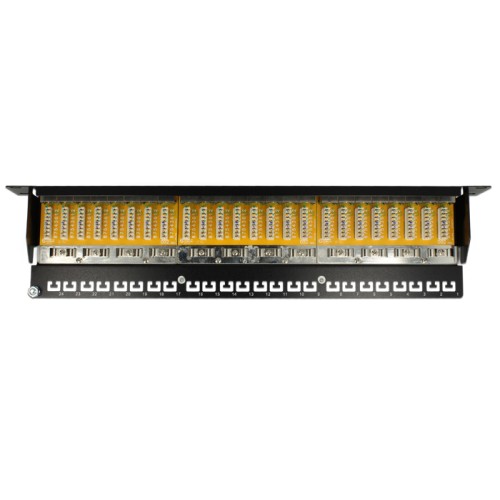

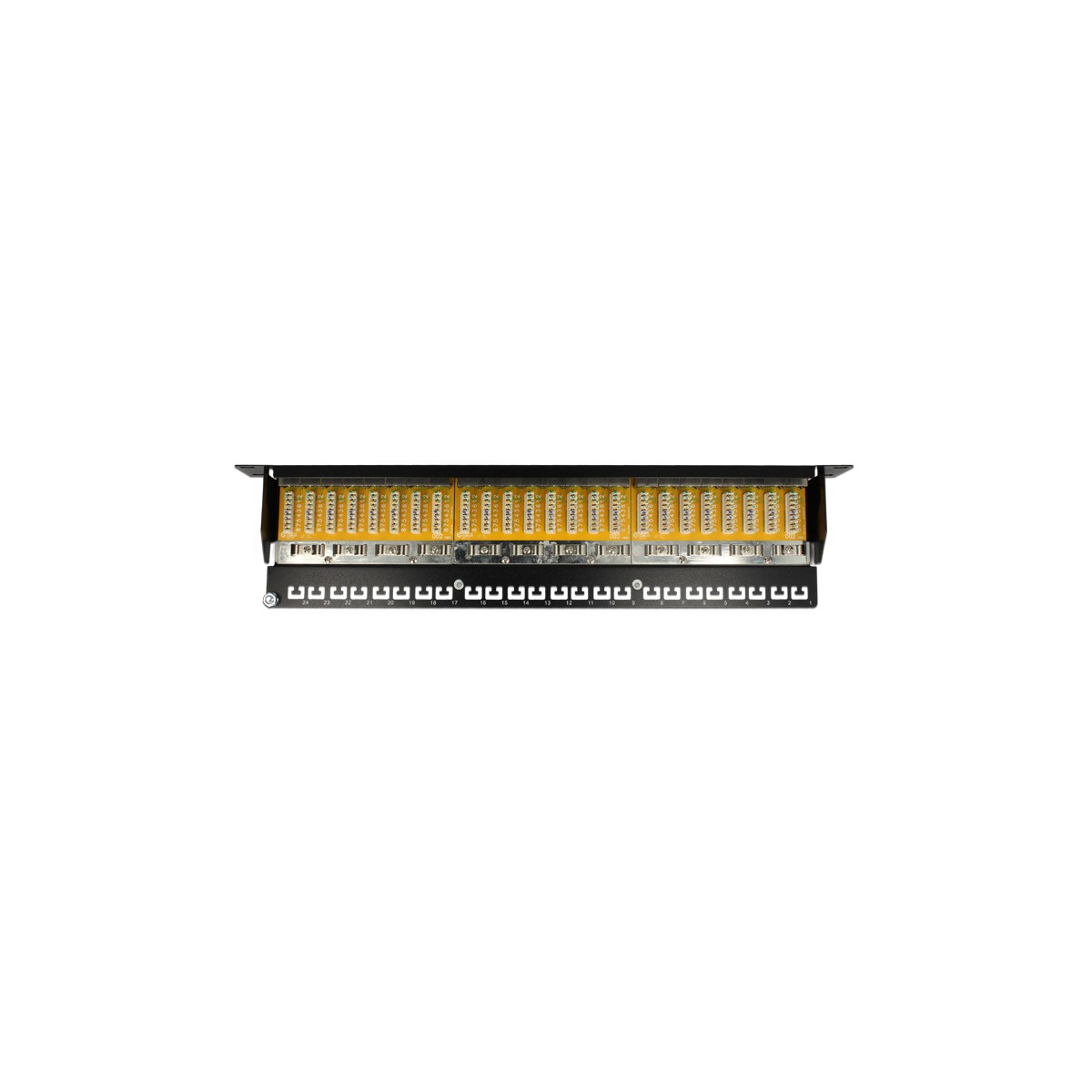

internal: LSA block
• For mounting in 19″ racks, 1 U
• Cable routing 180°
• Shielded (Cat.6)
• Compliant with Cat.6 Class E requirements of ISO/IEC 11801, EN 50173,
Cat.6 of ANSI/TIA 568 B.2-1
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 ~ 26 AWG)
• For solid or stranded wire
• Metal housing
• Colour: jet black RAL 9005
• Dimensions (LxWxH): ca. 483 x 109 x 44 mm
System requirements
Package content
• 19″ Patch Panel
• Cable ties
This Patch Panel by Delock can be mounted in a 19″ rack. At the LSA blocks you can install up to 24 network cables with a punch down tool.
Specification
• Connectors:
external: 24 x RJ45 jack
internal: LSA block
• For mounting in 19″ racks, 1 U
• Cable routing 180°
• Shielded (Cat.6)
• Compliant with Cat.6 Class E requirements of ISO/IEC 11801, EN 50173,
Cat.6 of ANSI/TIA 568 B.2-1
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 ~ 26 AWG)
• For solid or stranded wire
• Metal housing
• Colour: jet black RAL 9005
• Dimensions (LxWxH): ca. 483 x 109 x 44 mm
System requirements
Package content
• 19″ Patch Panel
• Cable ties
