Description

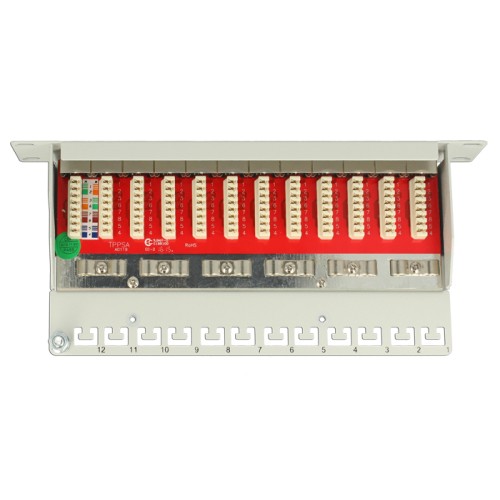

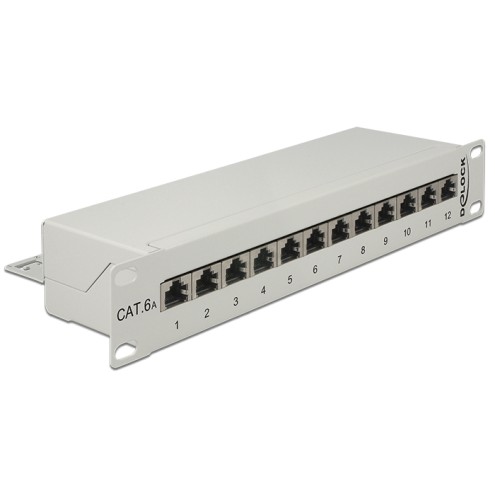

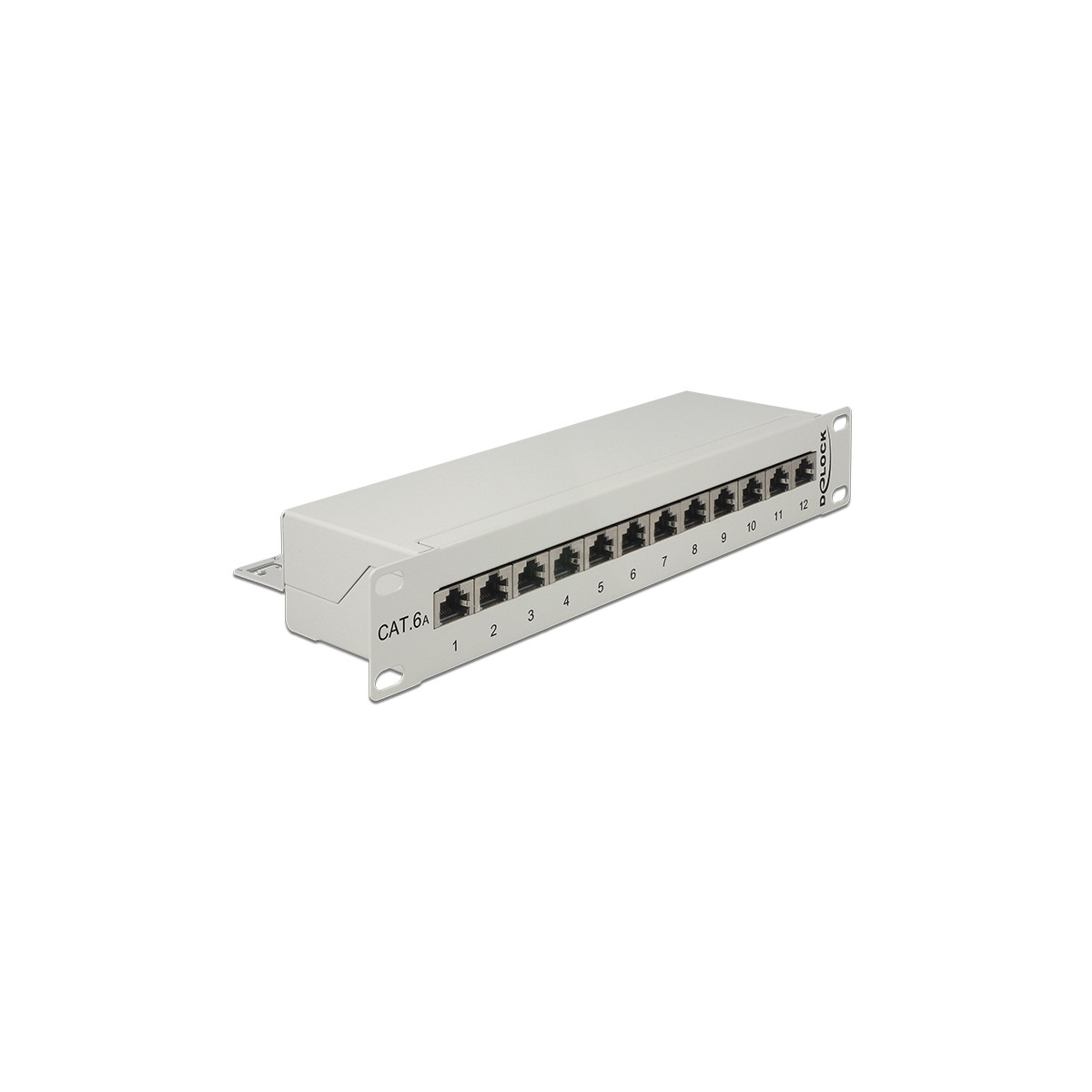

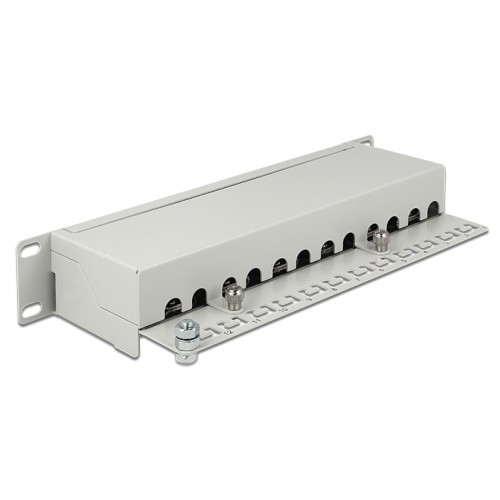

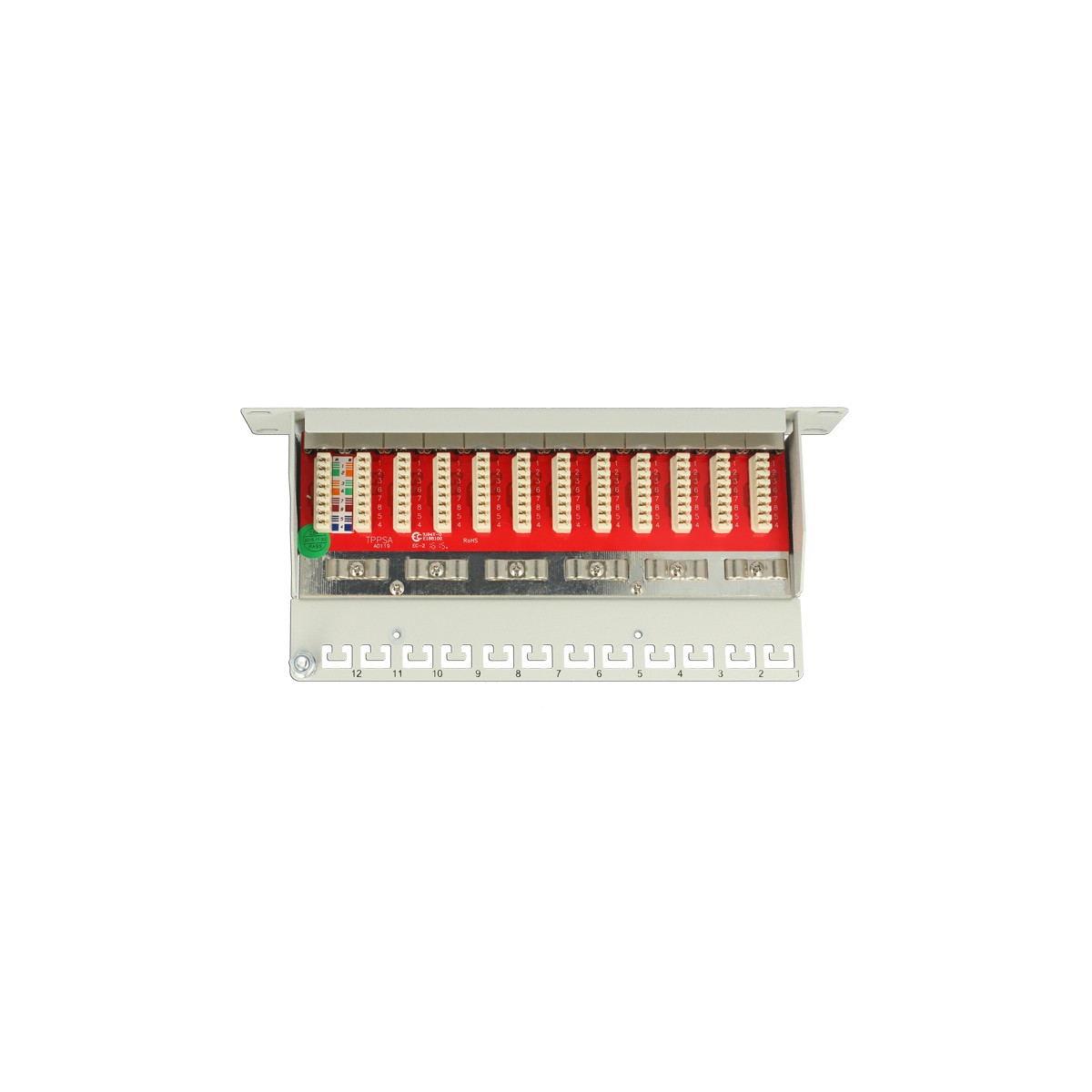

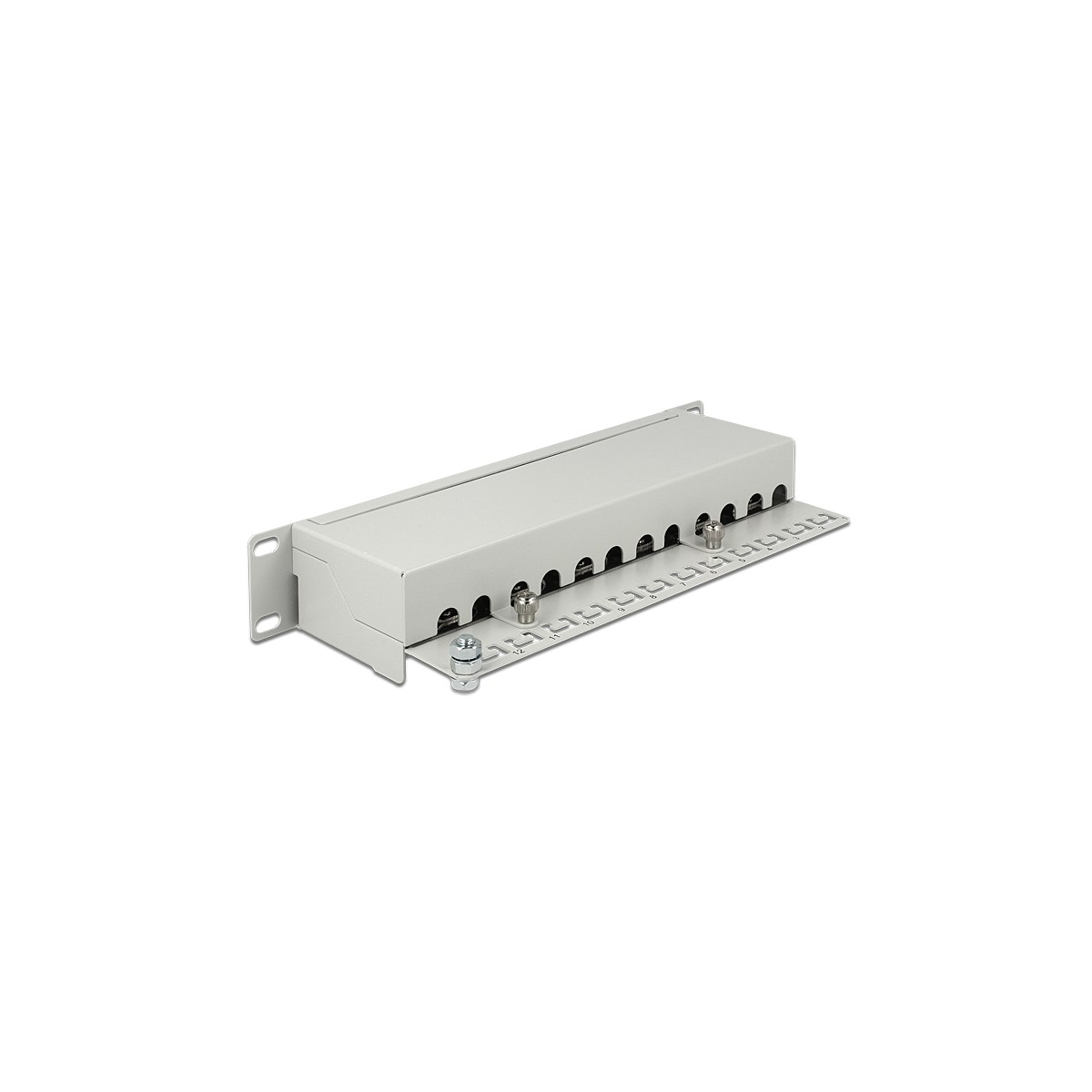

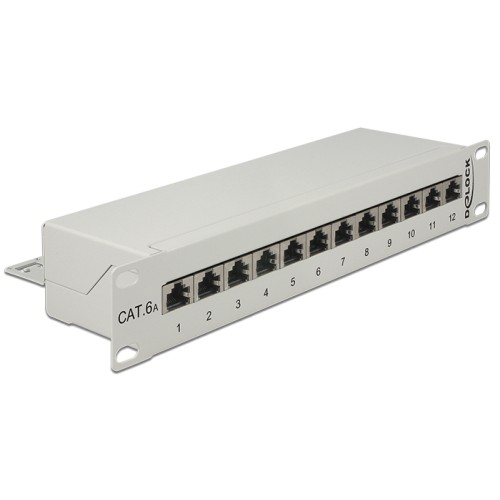

This Patch Panel by Delock can be mounted in a 10″ rack. At the LSA blocks you can install up to 12 network cables with a punch down tool.
Specification
• Connectors:
external: 12 x RJ45 jack
internal: LSA block
• For mounting in 10″ racks, 1U
• Cable routing 180°
• Shielded
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 26 AWG)
• For solid or stranded wire
• Metal housing
• Colour: light grey RAL 7035
• Dimensions (LxWxH): ca. 254 x 109 x 44 mm
System requirements
Package content
• 10″ Patch Panel
• Cable ties
This Patch Panel by Delock can be mounted in a 10″ rack. At the LSA blocks you can install up to 12 network cables with a punch down tool.
Specification
• Connectors:
external: 12 x RJ45 jack
internal: LSA block
• For mounting in 10″ racks, 1U
• Cable routing 180°
• Shielded
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 26 AWG)
• For solid or stranded wire
• Metal housing
• Colour: light grey RAL 7035
• Dimensions (LxWxH): ca. 254 x 109 x 44 mm
System requirements
Package content
• 10″ Patch Panel
• Cable ties
