Description

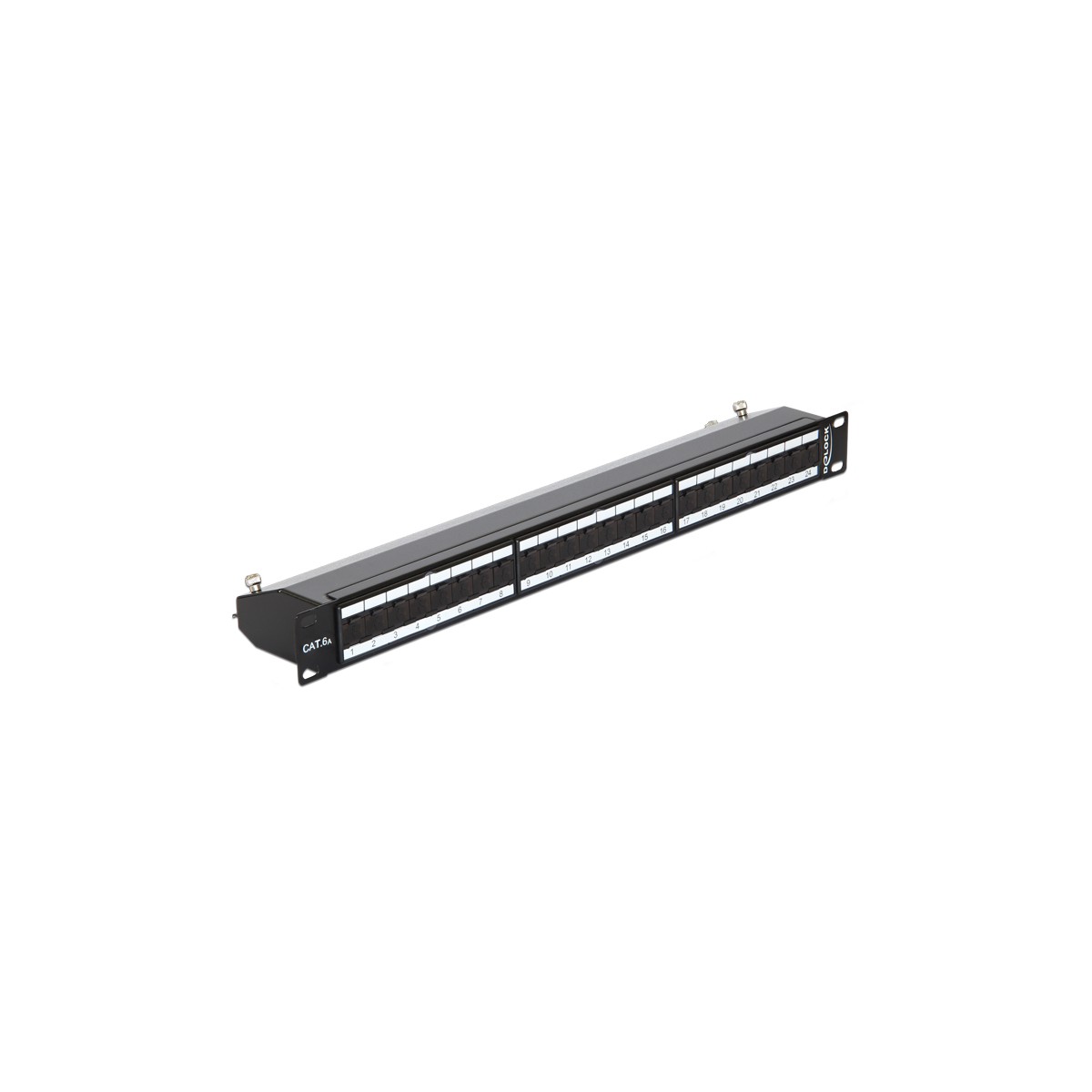

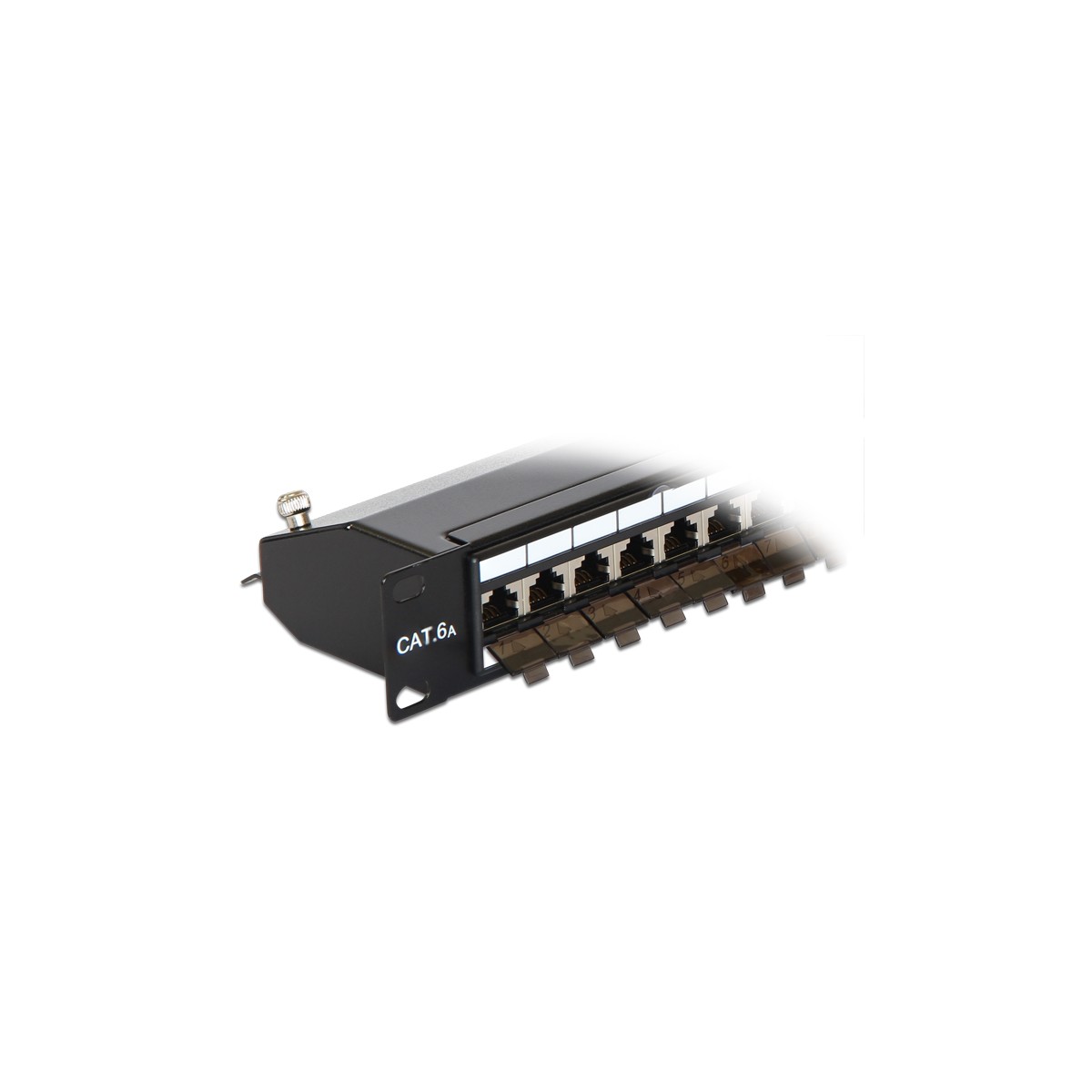

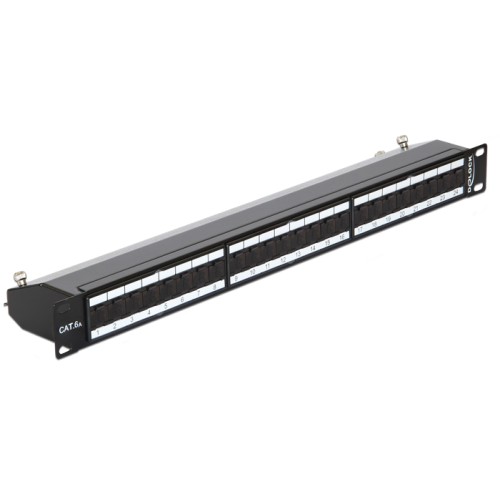

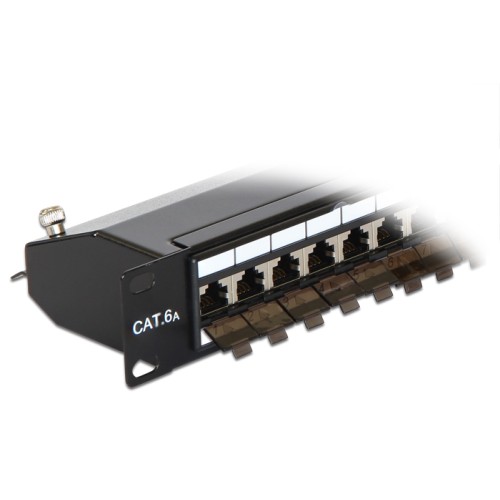

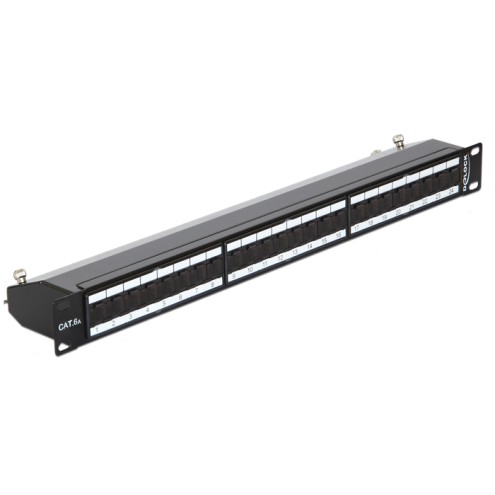

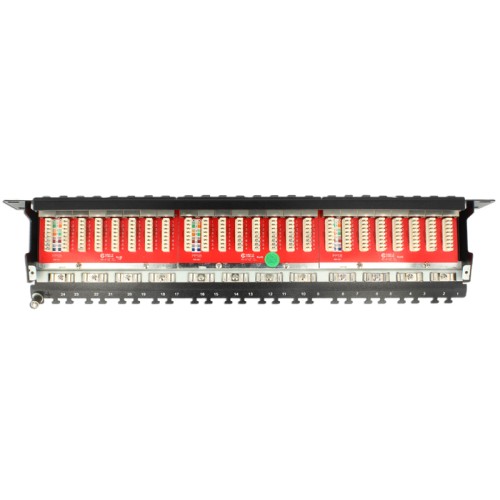

This Patch Panel by Delock can be mounted in a 19″ rack. At the LSA blocks you can install up to 24 network cables with a punch down tool.
Specification
• Connectors:
external: 24 x RJ45 jack with dust cover

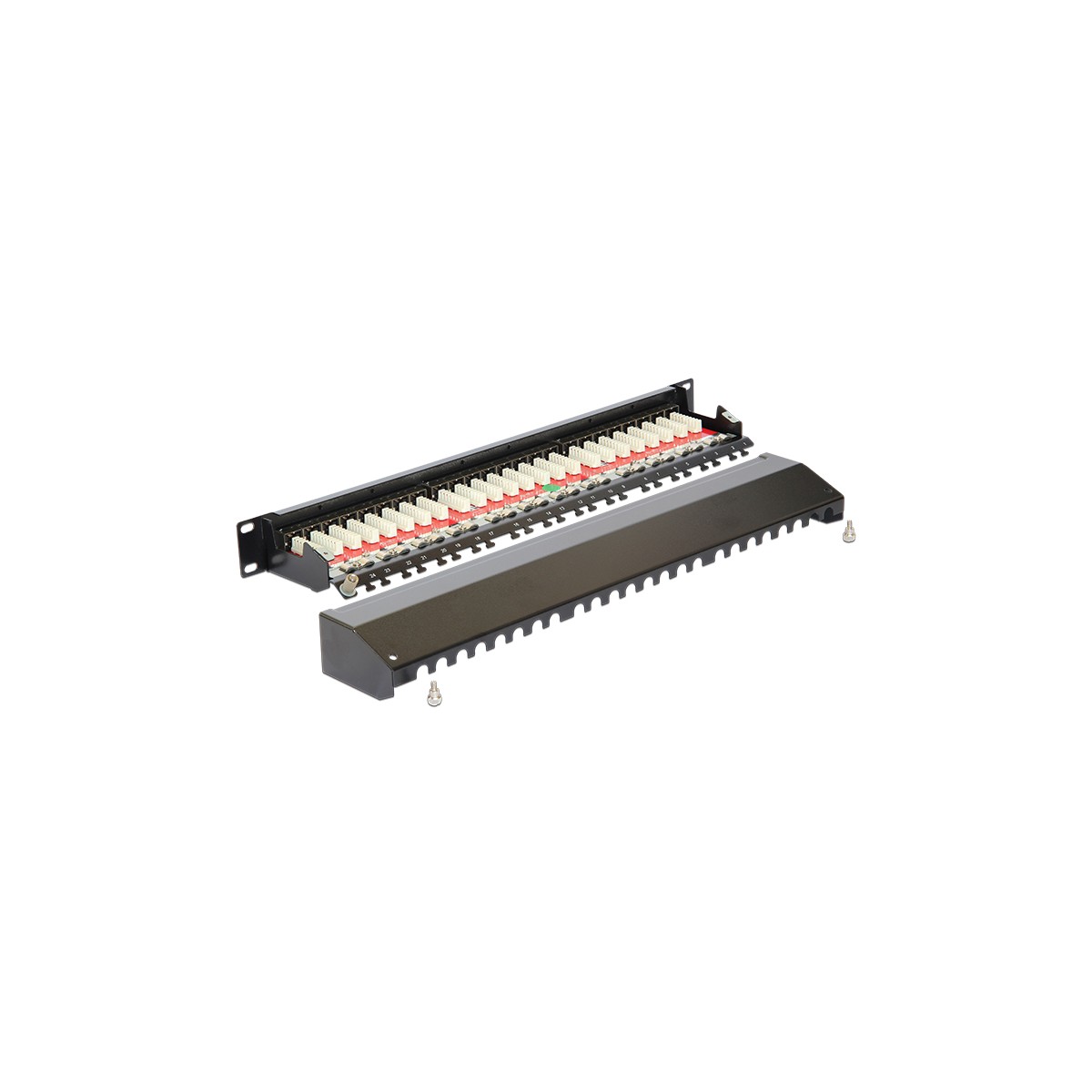

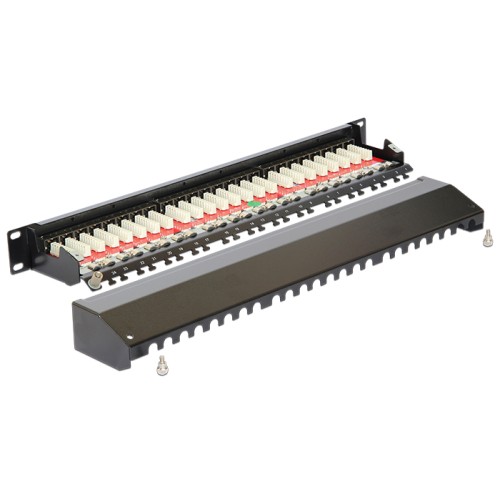

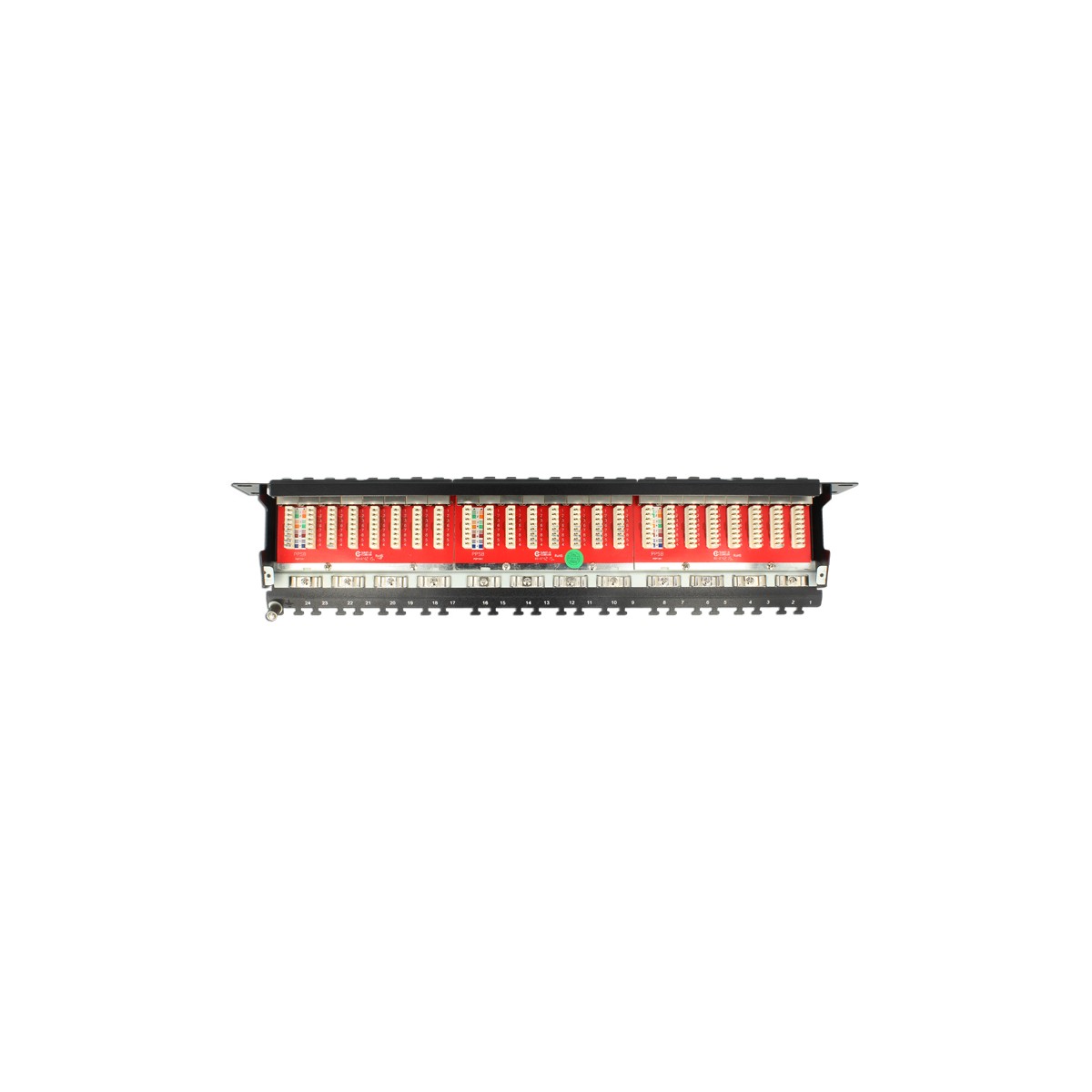

internal: LSA block
• For mounting in 19″ racks, 1U
• Cable routing 180°
• Shielded (Cat.6)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 26 AWG)
• For solid or stranded wire
• Metal housing
• Printed name plate
• Colour: jet black RAL 9005
• Dimensions (LxWxH): ca. 483 x 109 x 44 mm
System requirements
Package content
• 19″ Patch Panel
• Cable ties
• Ground wire
• User manual
