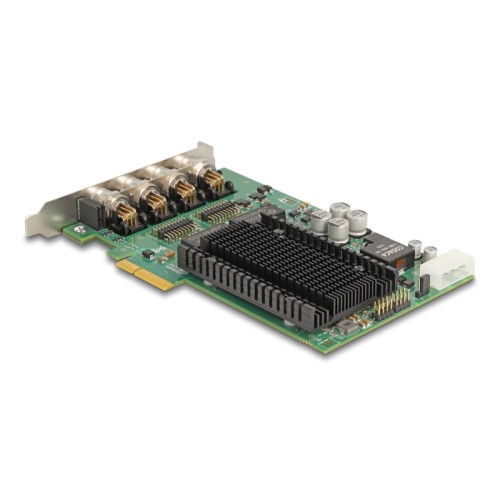

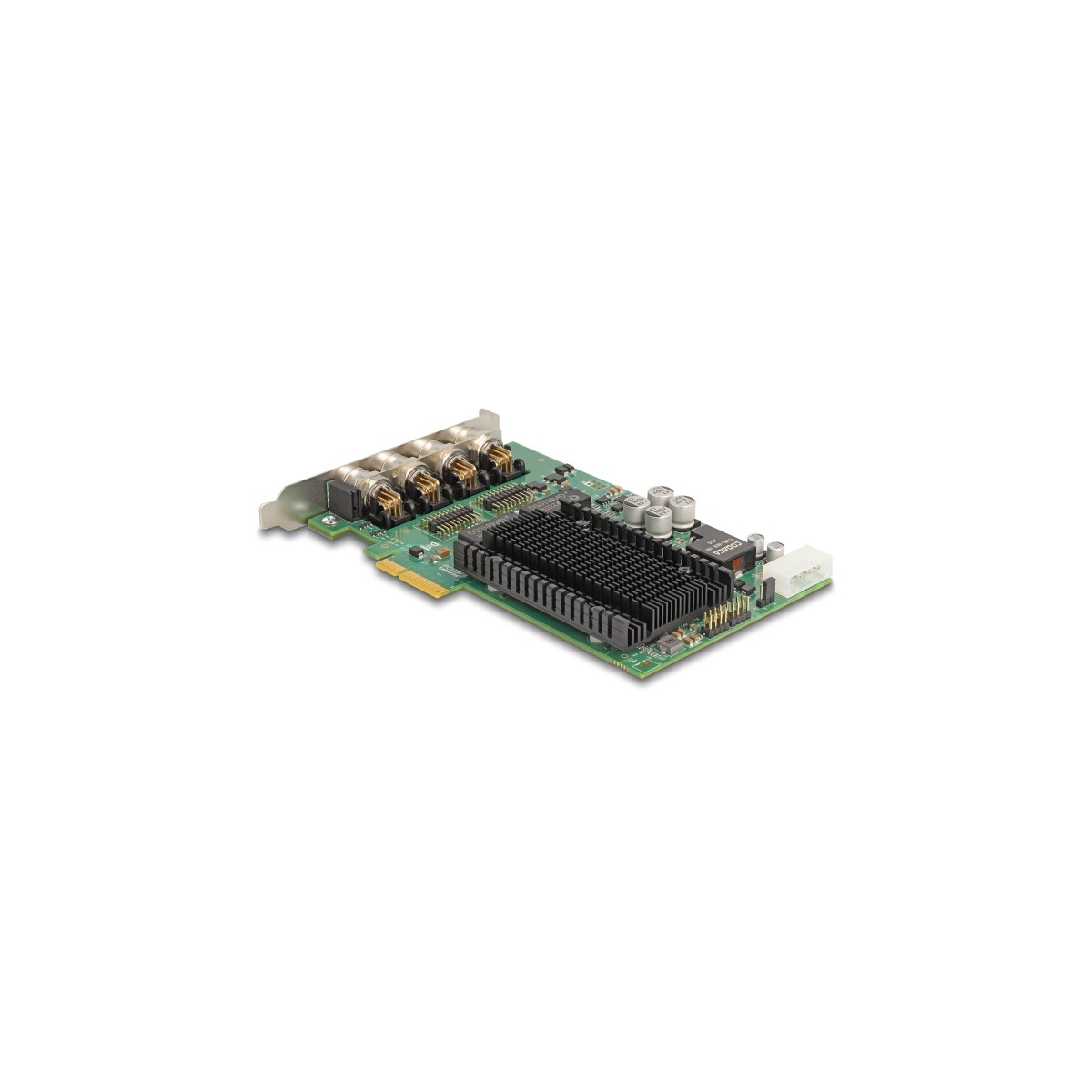

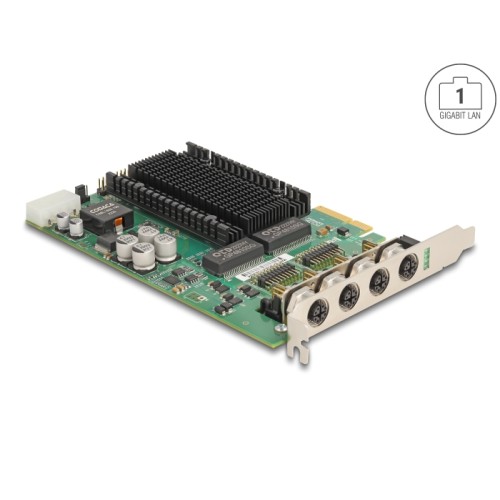

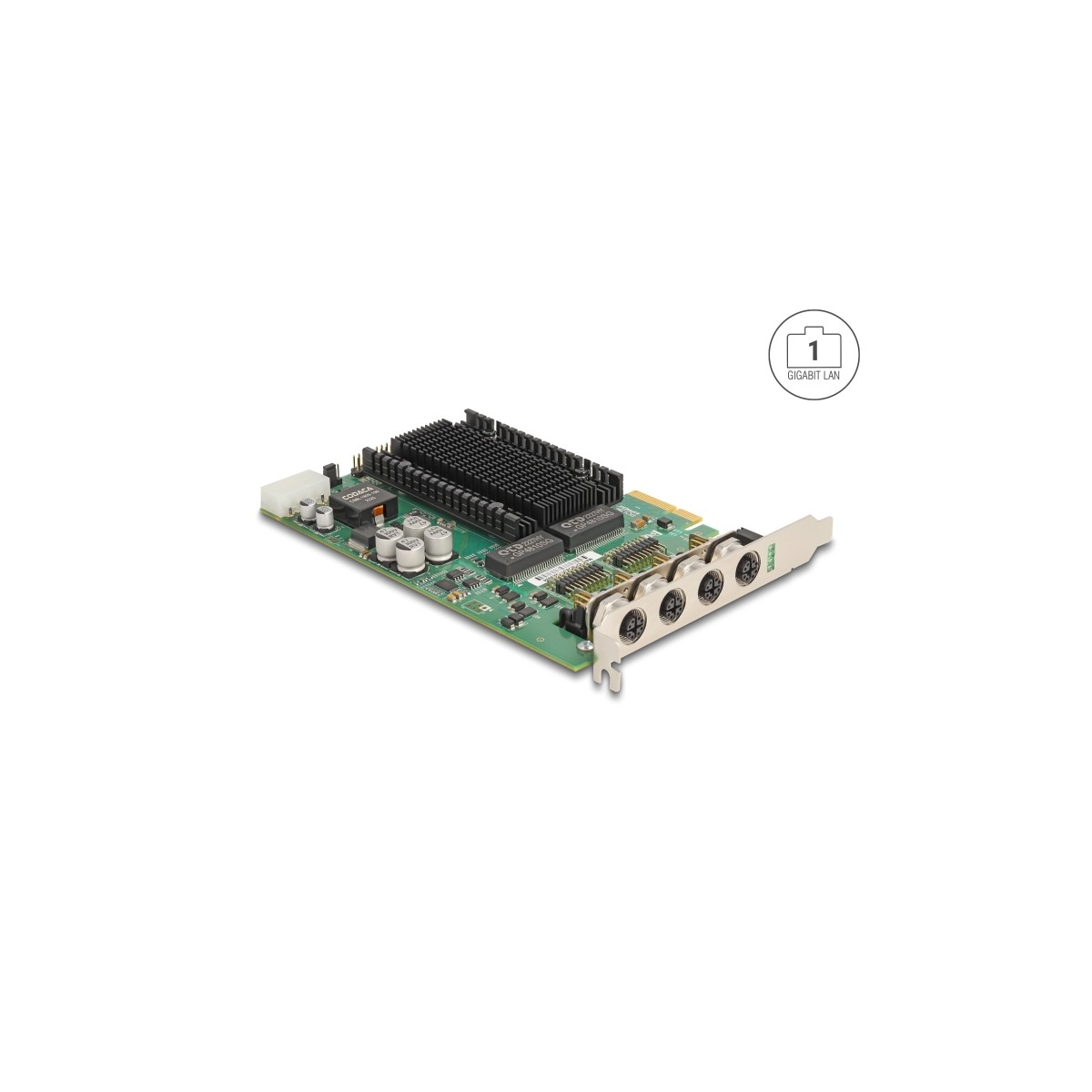

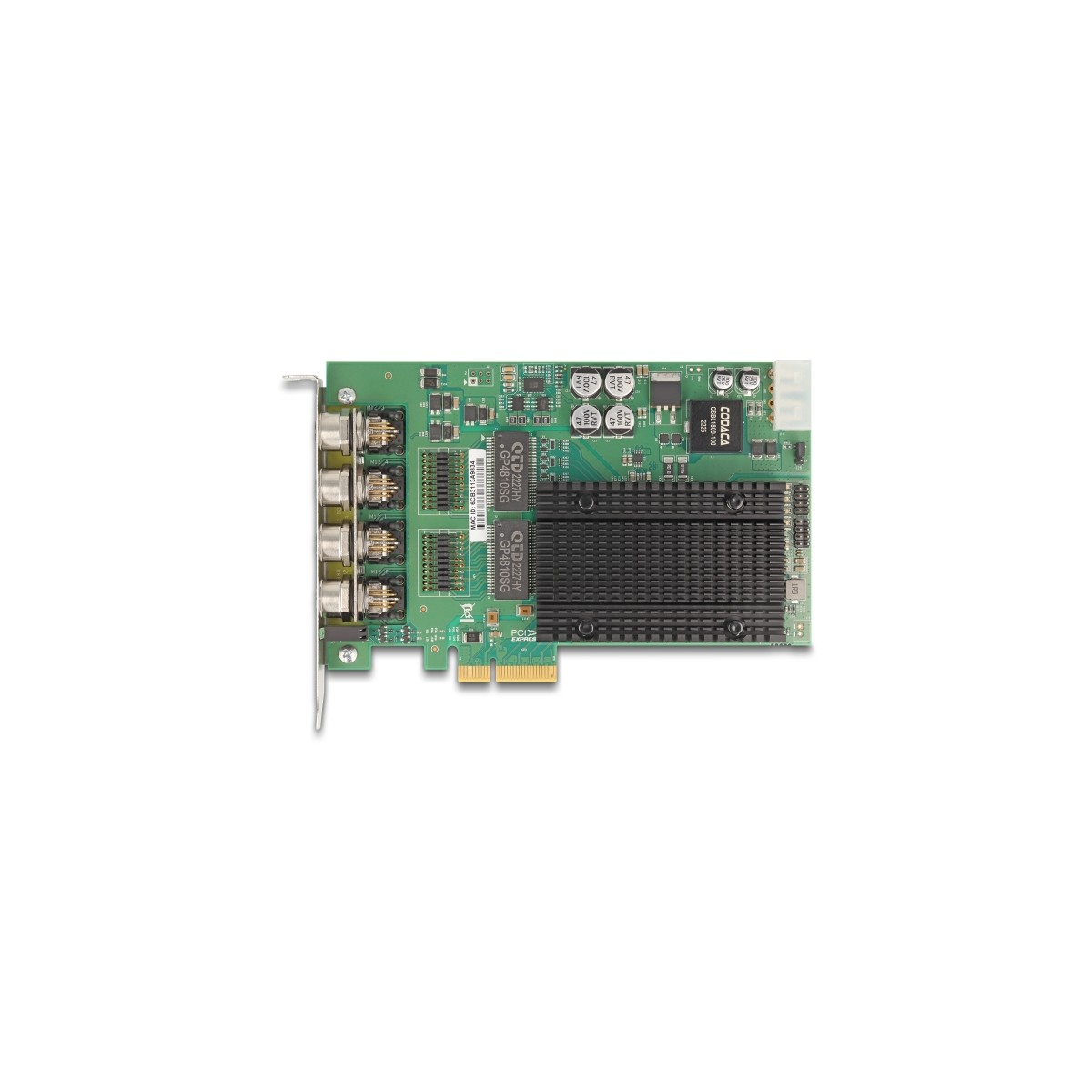

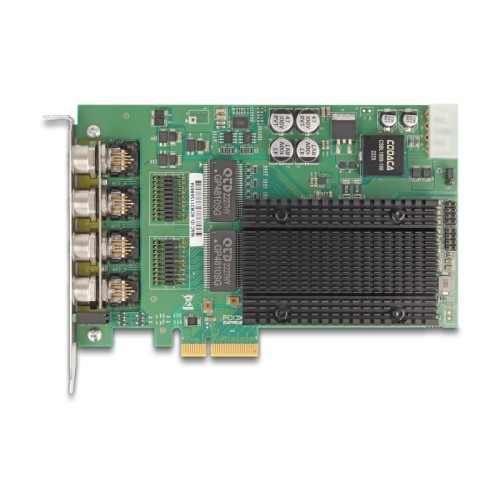

Delock PCI Express x4 Network Card Gigabit LAN 4 x M12 with PoE+ i350

Description
The PCI Express card by Delock offers four network ports with a data transfer rate up to 1000 Mbps. This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

PoE support
The M12 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

Specification
• Connectors:
external:
4 x M12 female 8 pin X-coded
internal:
1 x PCI Express x4, V2.1
1 x 4 pin power connector
• Chipset: Intel i350
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
PCI Express x4 up to 16 Gbps
• Suitable for Gigabit Ethernet vision systems
• Output power: 30 W per port, max. 120 W total
• Supports IEEE 1588 PTP
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• LED indicator for link and activity

System requirements
• Windows 10/10-64/11
• PC with one free PCI Express slot

Package content
• PCI Express card
• User manual
