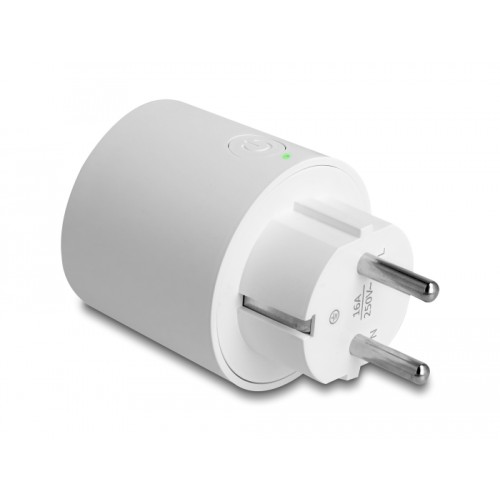

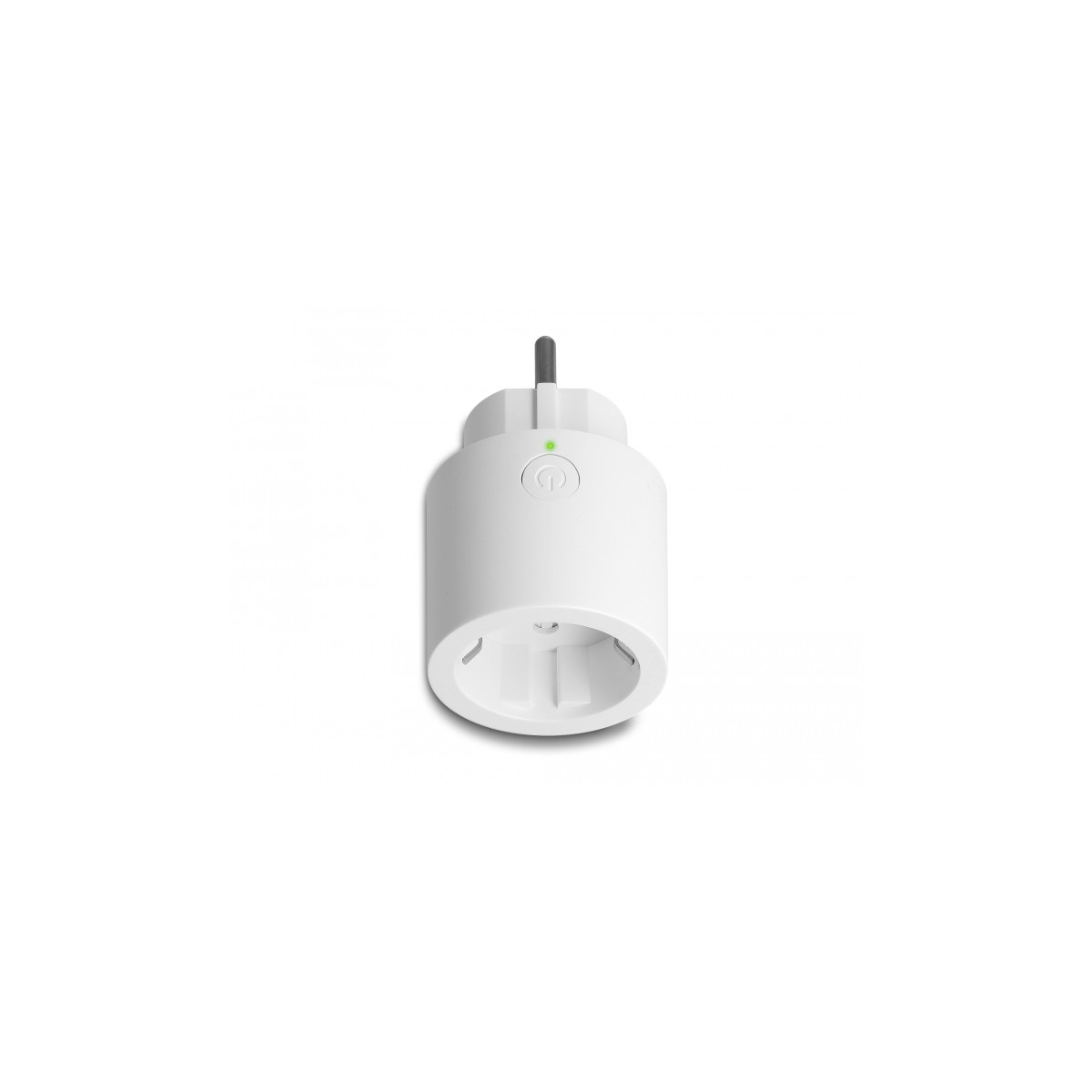

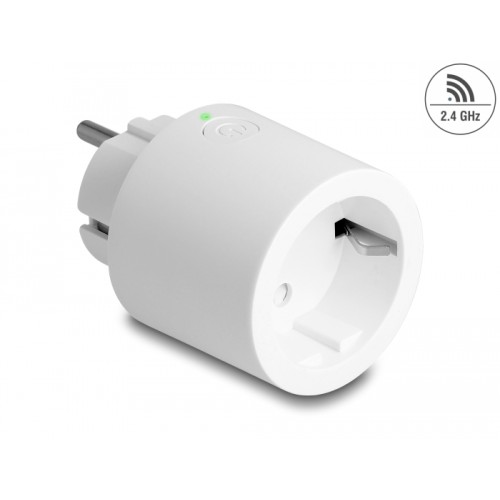

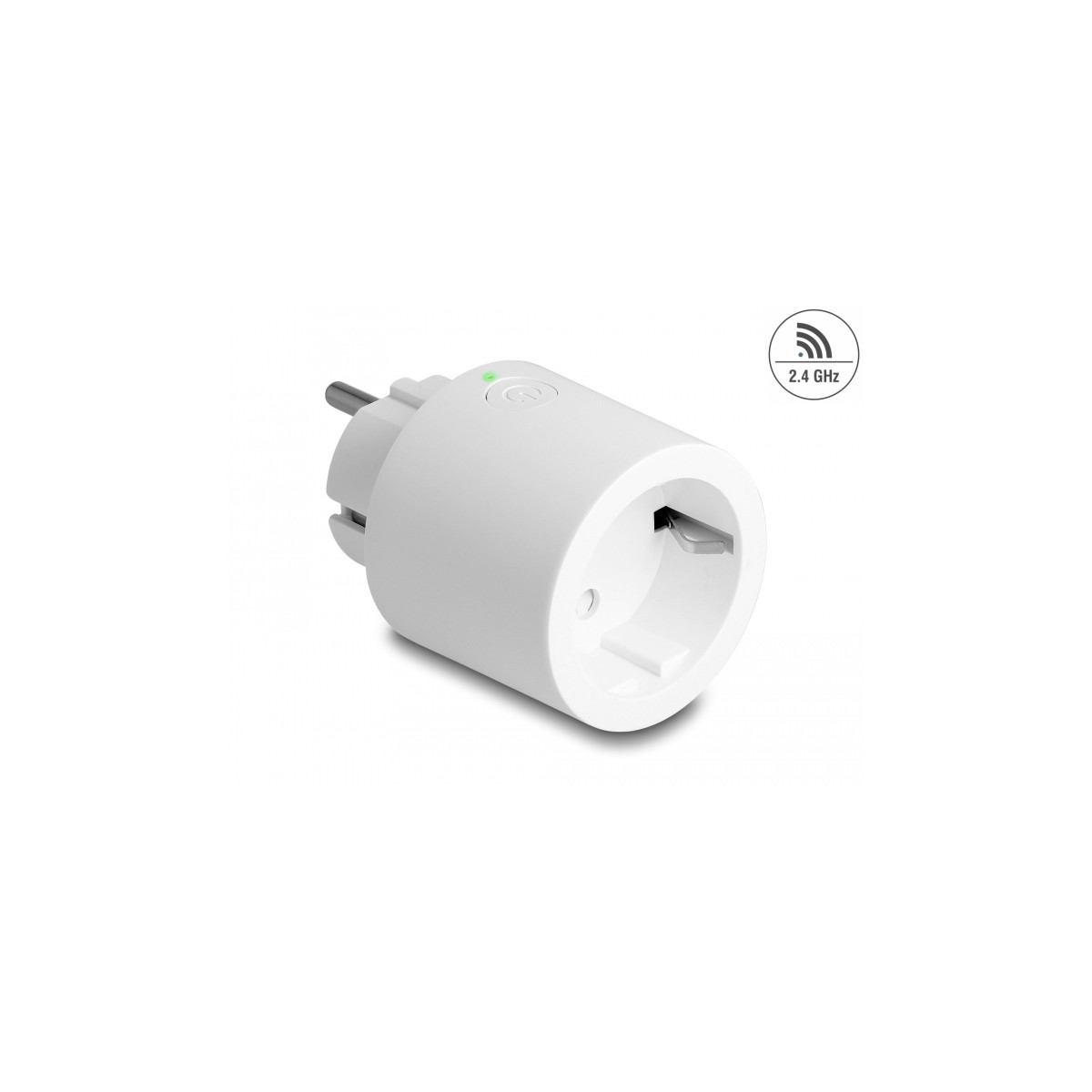

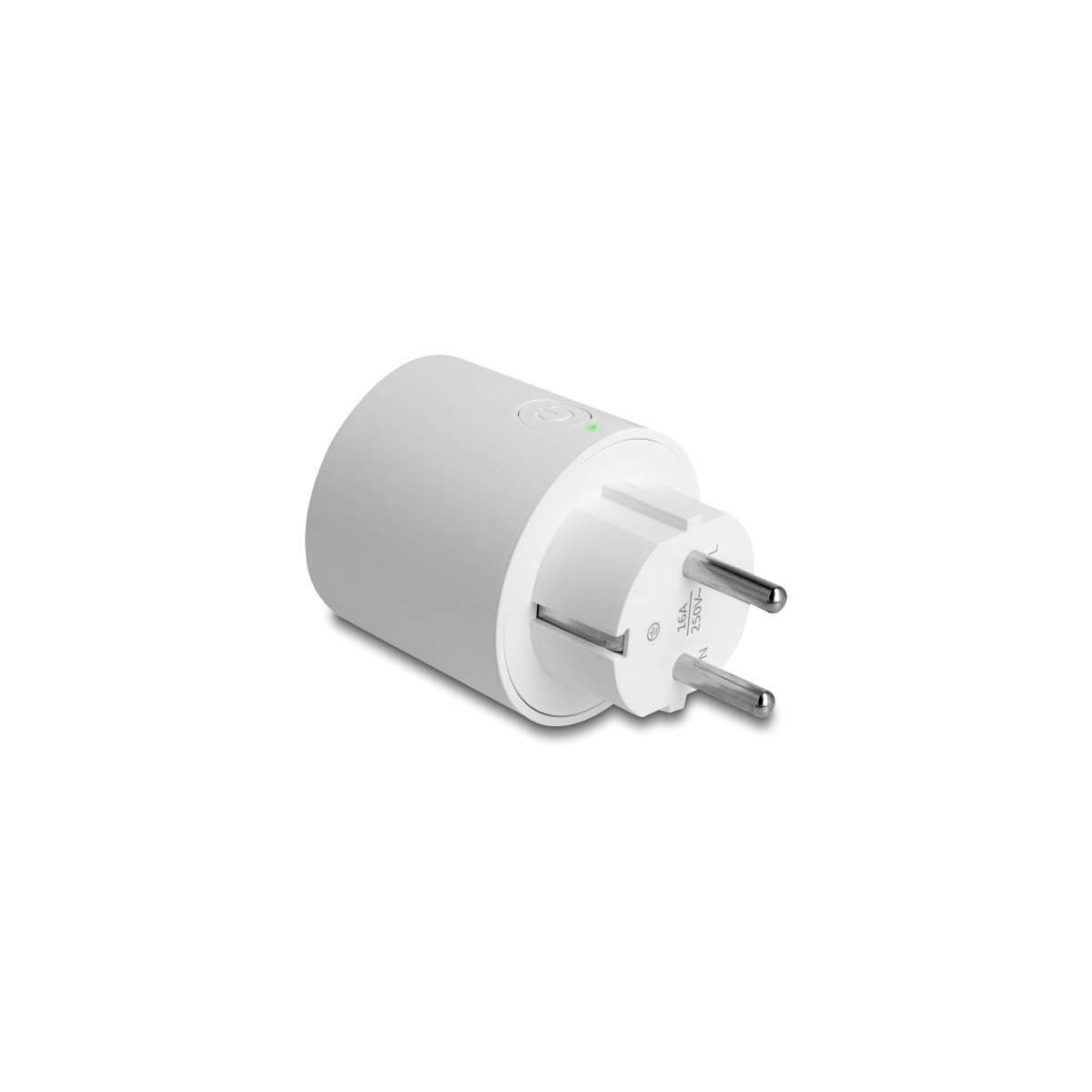

Delock WLAN Power Socket Switch MQTT with energy monitoring

Description
This power socket switch by Delock can be controlled via button or WLAN. With the installed Tasmota firmware, the switch can be easily integrated into existing systems for home automation, IoT or M2M. With the help of the web interface, the power socket can be controlled without having to rely on the cloud or an app.

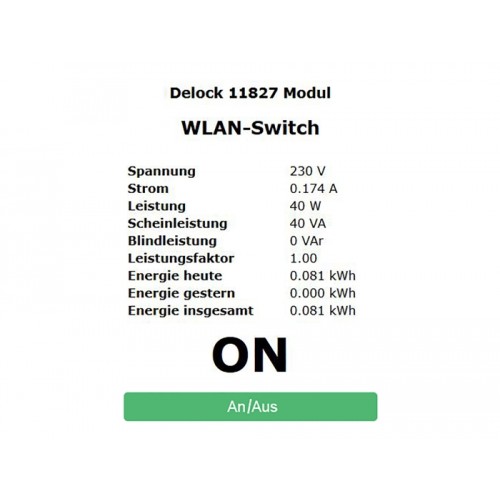

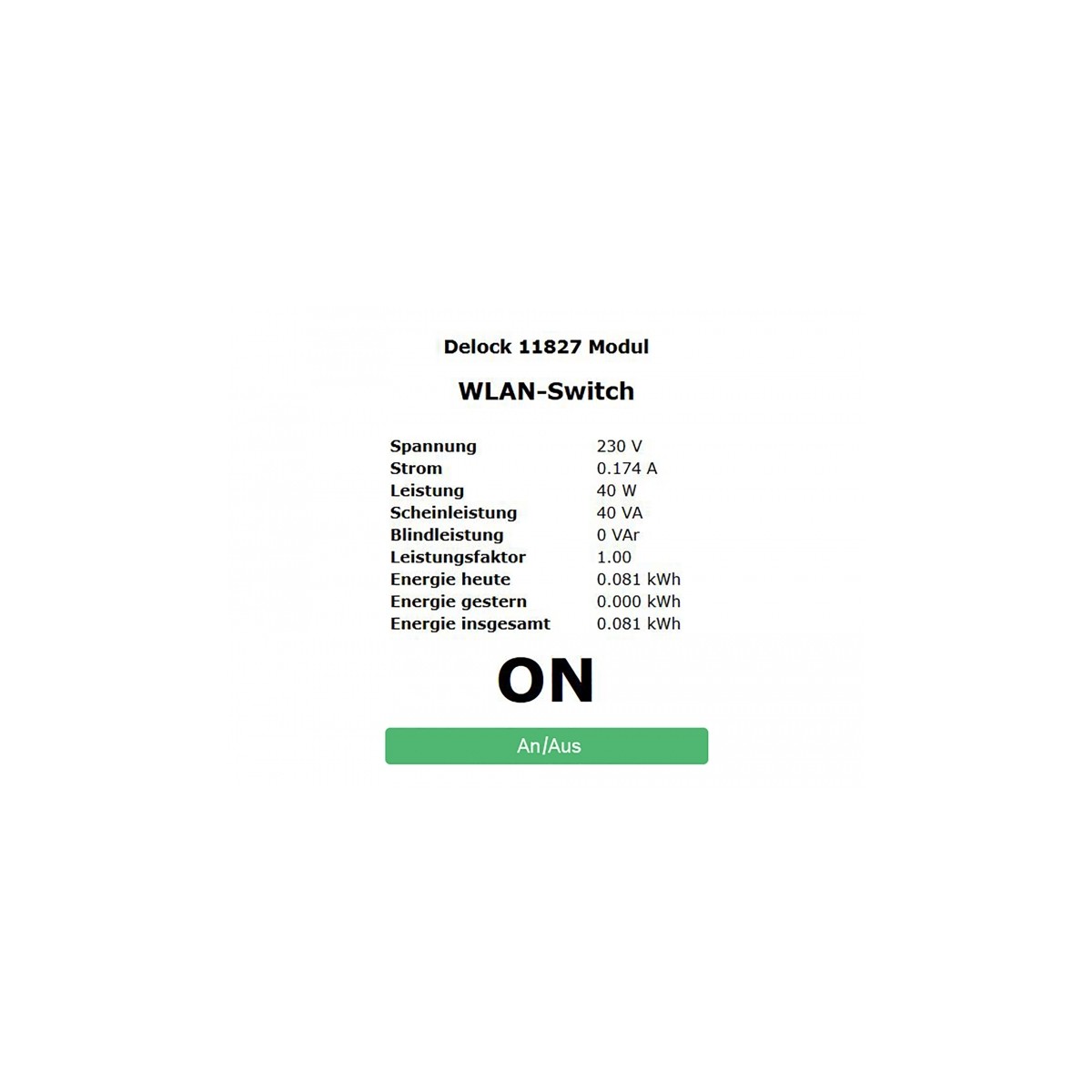

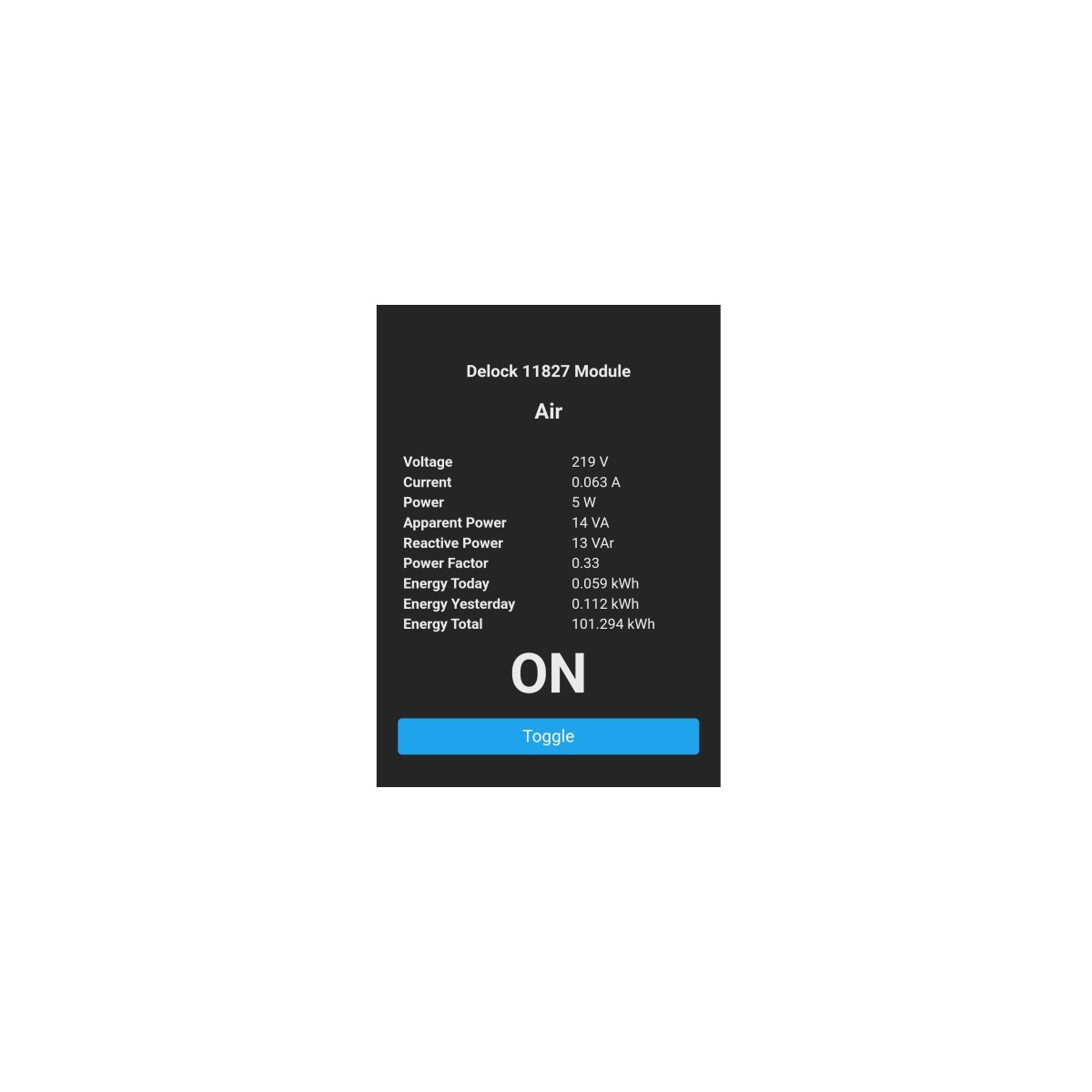

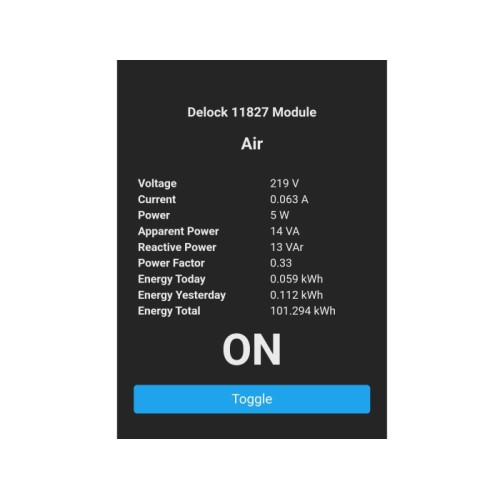

Monitoring energy consumption
At a glance, the current energy consumption at the socket can be determined. This allows energy efficiency and cost to be assessed, and unusual operating conditions can be detected.

Specification
• Connectors:
1 x plug CEE 7/4
1 x socket CEE 7/3
• Switch button with 2-colour LED indicator
• Web interface
• Programmable timer control
• Energy monitoring:
Voltage, amperage and power
Consumption in kilowatt hours
• Supports MQ Telemetry Transport (MQTT), Domoticz, Home Assistant
• Supports Alexa
• Chipset: ESP8285
• Compatible with IEEE 802.11b/g/n
• Frequency range: 2412 - 2472 MHz
• Transmission power (EIRP) 2.4 GHz: max. 100 mW
• Suitable for indoor use
• Power consumption: max. 1.5 W
• Input voltage: 230 V
• Current: max. 16 A
• Output power: max. 2500 W
• Dimensions without plug: diameter ca. 51 mm, height ca. 45 mm

System requirements
• WLAN Gateway

Package content
• WLAN power socket switch
• User manual
