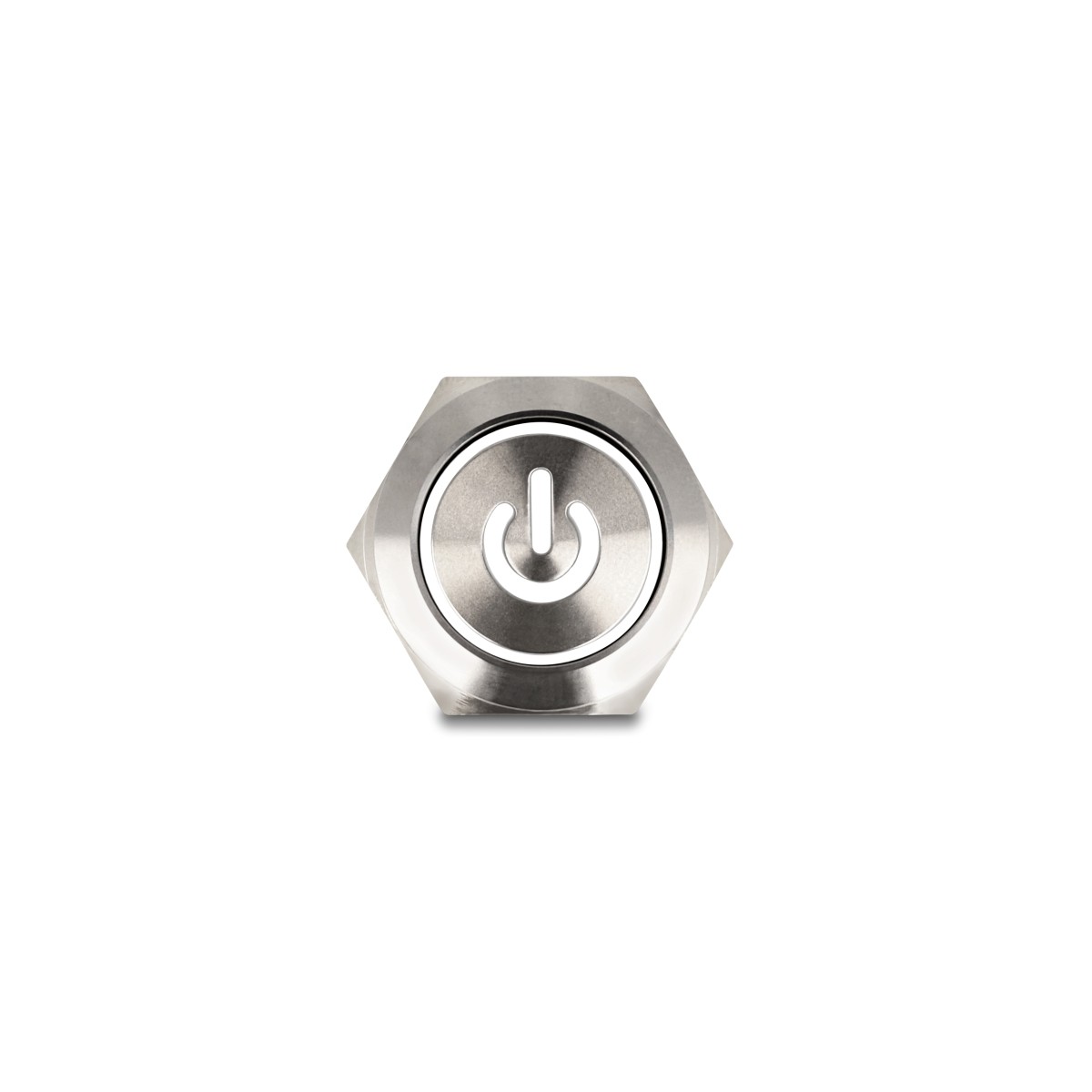

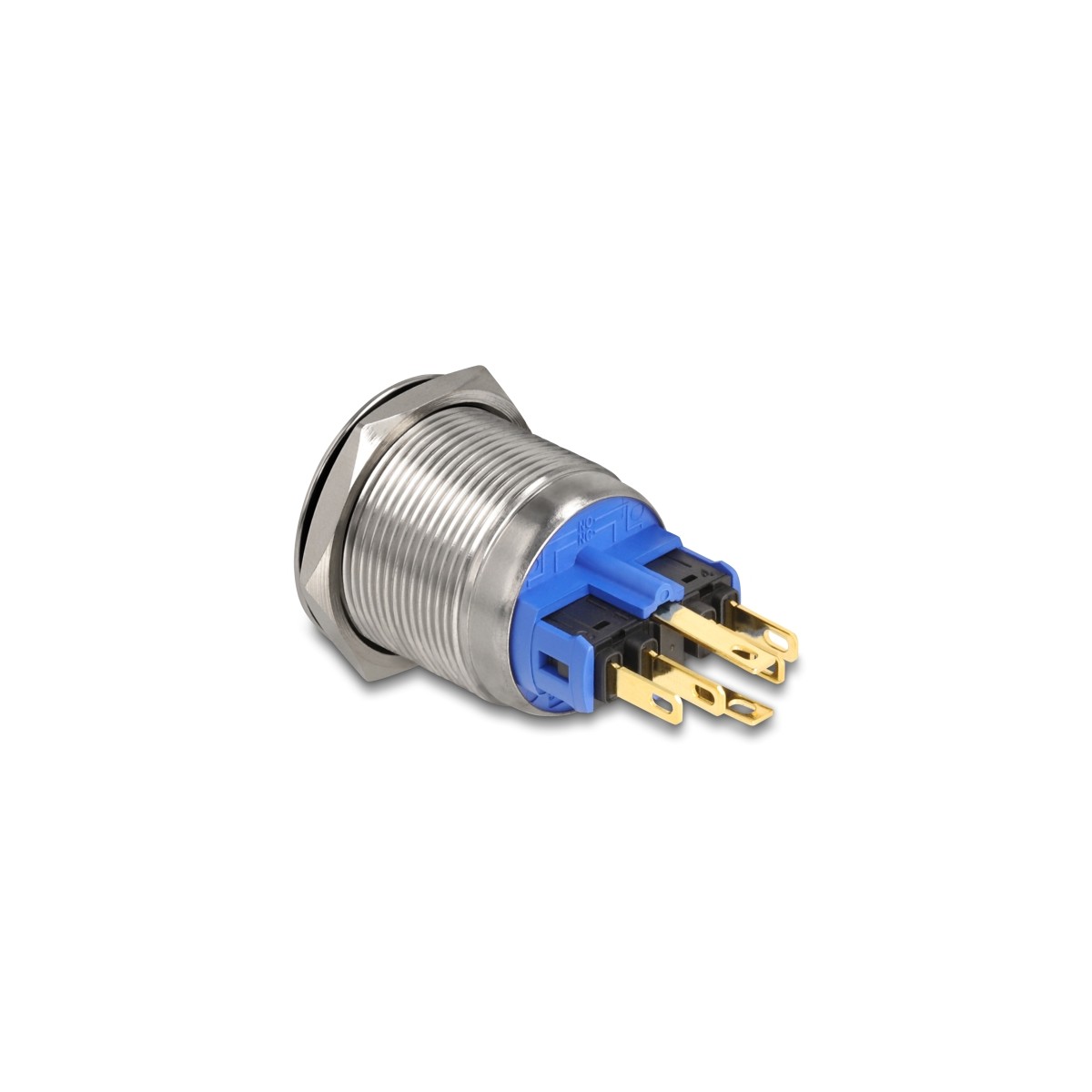

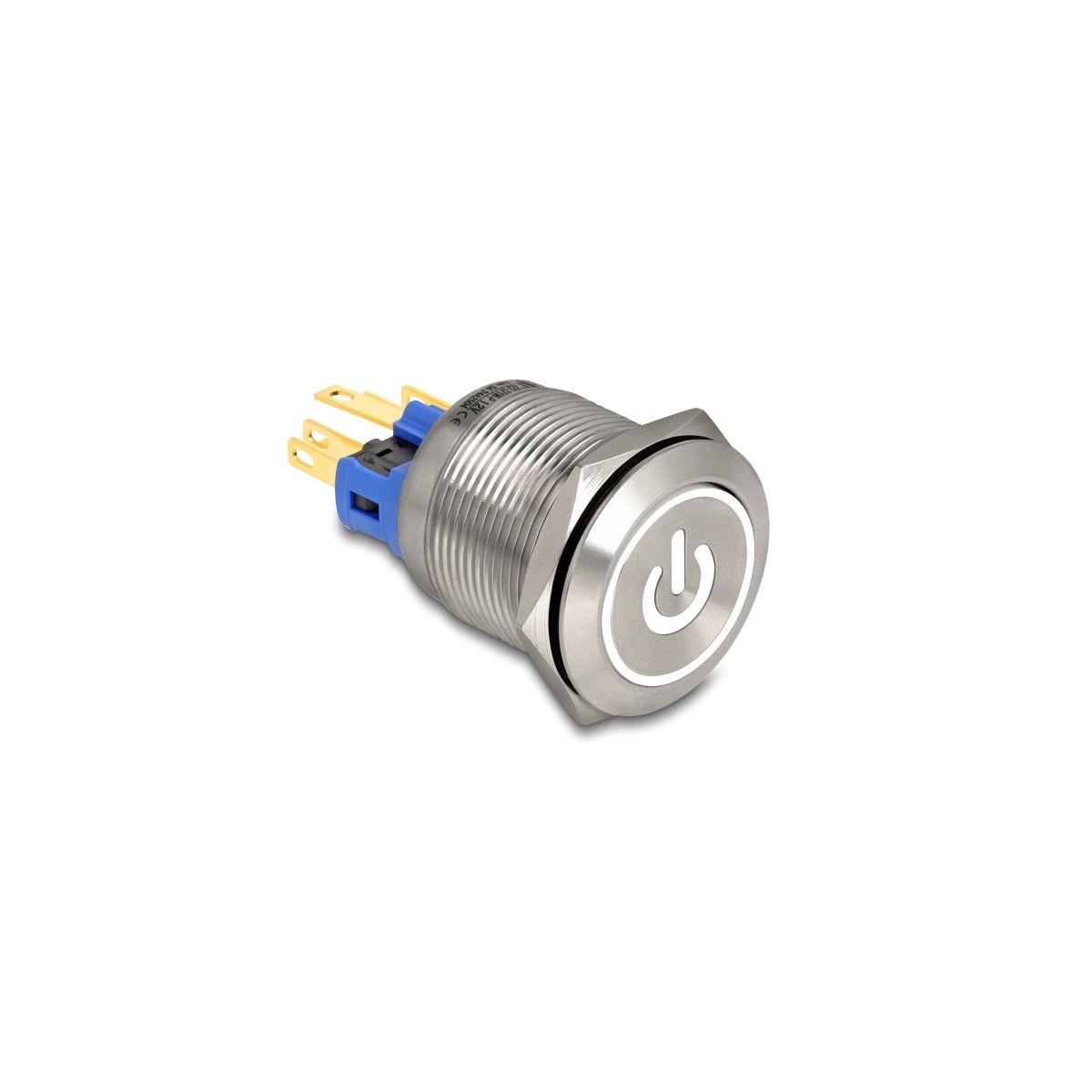

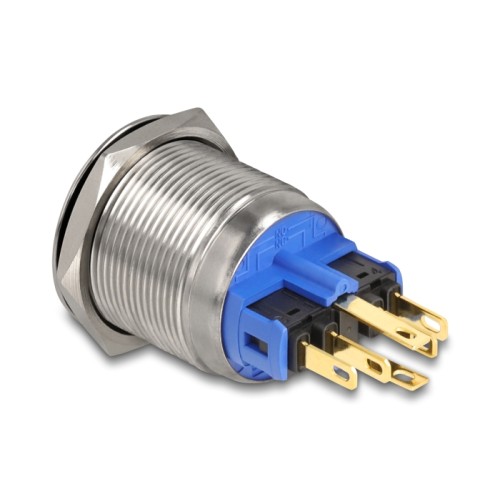

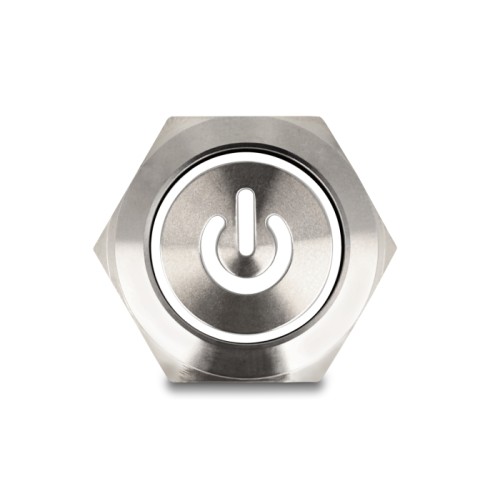

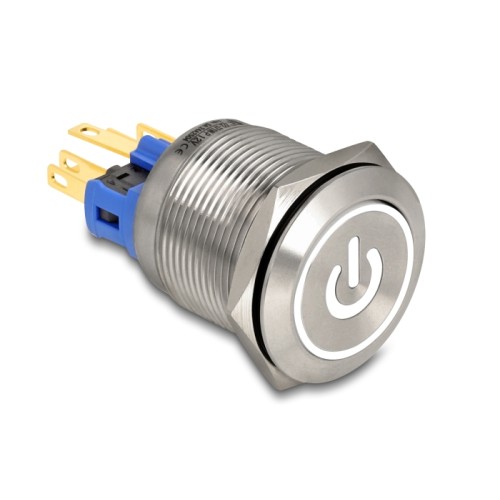

Delock Push Switch for Installation 22 mm 6 x solder connection LED white power symbol + ring

Description
This push switch by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector.

Switch
Unlike a button, a switch remains in its position after being actuated. Examples of switches are toggle switches, rotary switches or slide switches. The light switch is probably the best-known example.


The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

Please Note
The installation should only be carried out by qualified electricians in compliance with the usual national power supply guidelines.
Grounding is necessary for low-voltage systems to ensure the safety and functionality of the system.


Specification
• Connectors:
6 x solder connection
• Switch type: 2NO + 2NC
• Switching voltage: AC 230 V~ / 3 A
• Number of contacts: 6
• Function: latching
• Actuator: flat
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: ca. 22 mm
• Hexagon nut spanner width: 25 mm
• Mounting depth: ca. 39 mm
• Thread size: M22
• LED lighting: white
• LED voltage: 12 V
• LED type: power symbol + ring
• Material: stainless steel nickel plated
• Mechanical life: 1,000,000 cycles
• Electrical service life: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): ca. 40 x 30 mm

System requirements


Package content
• Push switch
