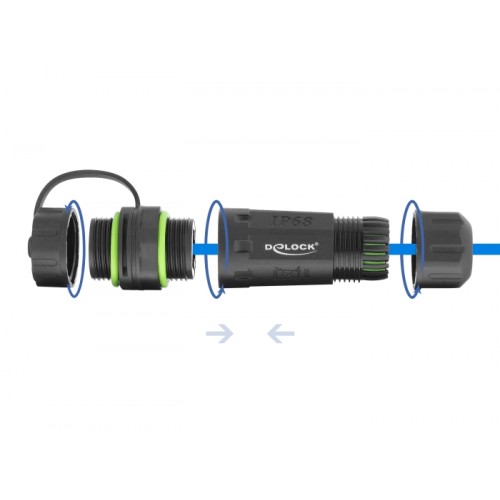

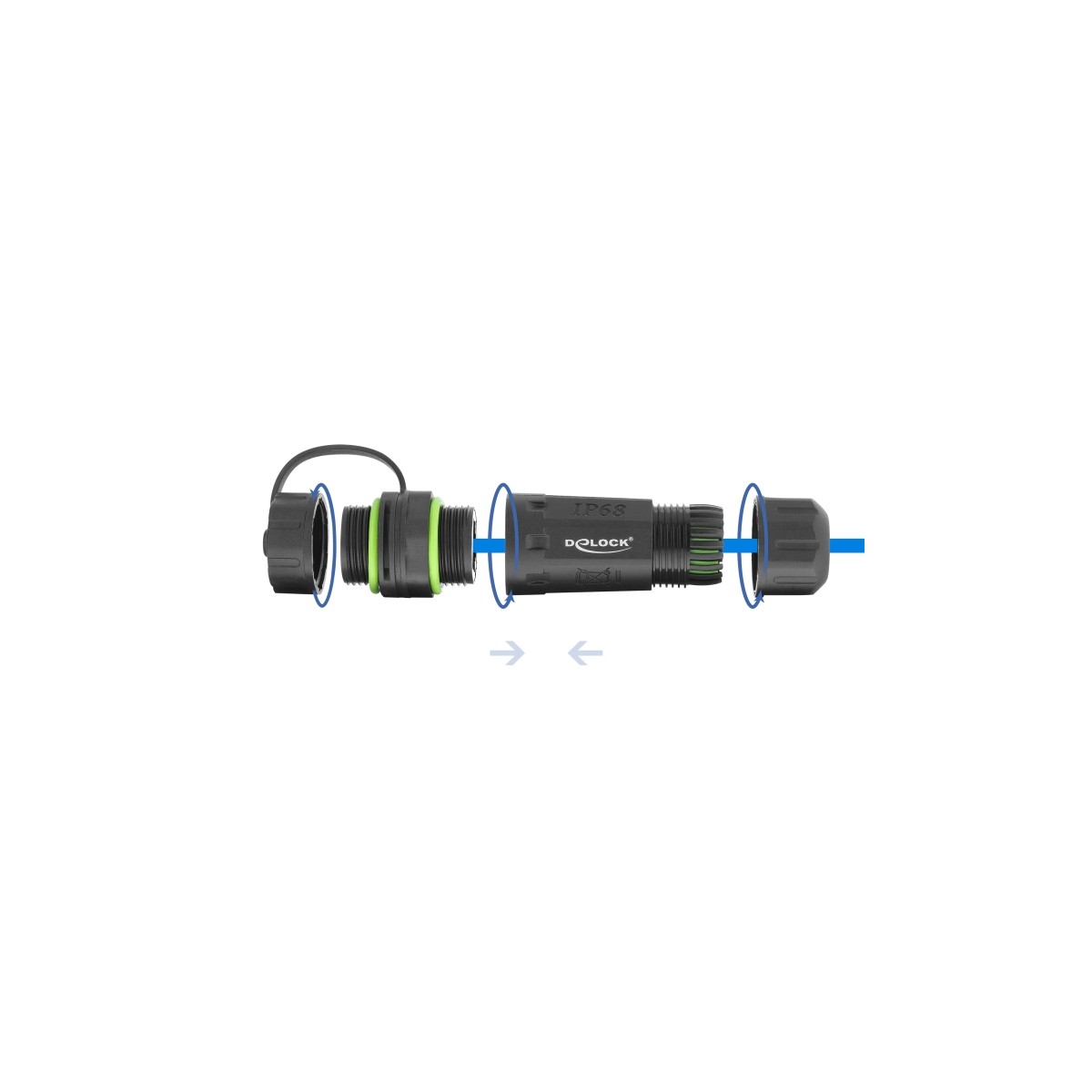

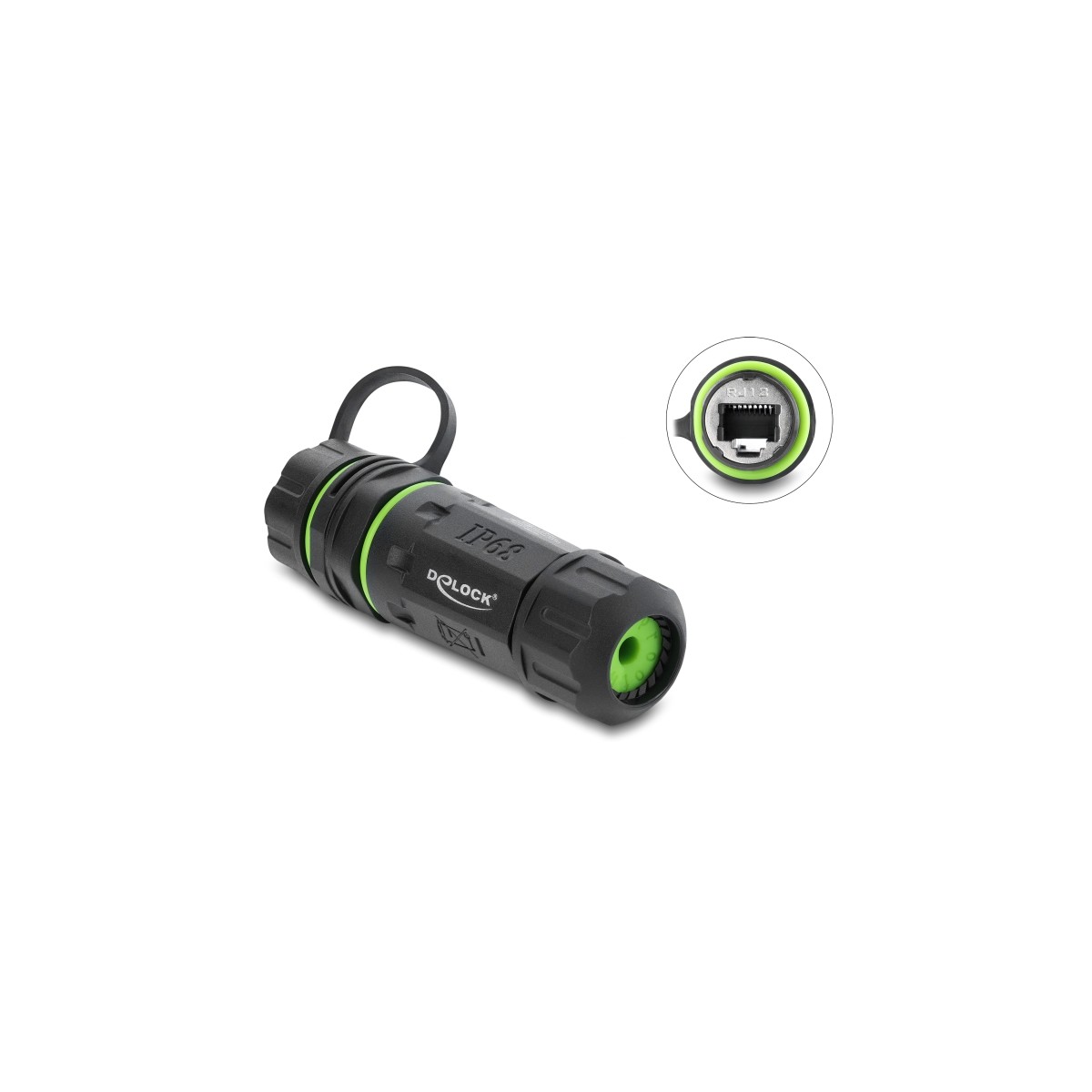

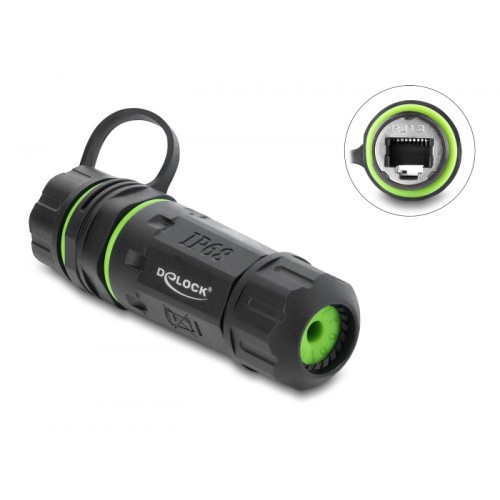

Delock Cable Connector RJ12 jack to RJ12 jack with M20 x 1.5 mm thread with protective cap and housing IP68 dust and waterproof
87176
Description
This cable connector by Delock can be used to connect or extend two RJ12 telephone cables and is ideal for outdoor use.
With additional housing
The housing can be screwed to the female port and enables a waterproof connection, e.g. outdoors.
IP68 dust and waterproof
The sealing cap protects the RJ12 female port from moisture, damage and dirt in outdoor areas when not in use.
Specification
• Connectors:
1 x RJ12 jack (6P/6C)
1 x RJ12 jack (6P/6C)
• Thread size: M20 x 1.5 mm
• Built-in hole Ø: 20.8 mm
• 1:1 connected
• Shielded
• Silicone sealing ring green
• With sealing cap and housing
• Protection class: IP68
• For cable diameter from 4.5 - 7.5 mm
• Operating temperature: -40 °C ~ 105 °C
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 75 x 26 x 26 mm
System requirements
Package content
• Cable connector
This cable connector by Delock can be used to connect or extend two RJ12 telephone cables and is ideal for outdoor use.
With additional housing
The housing can be screwed to the female port and enables a waterproof connection, e.g. outdoors.
IP68 dust and waterproof
The sealing cap protects the RJ12 female port from moisture, damage and dirt in outdoor areas when not in use.
Specification
• Connectors:
1 x RJ12 jack (6P/6C)
1 x RJ12 jack (6P/6C)
• Thread size: M20 x 1.5 mm
• Built-in hole Ø: 20.8 mm
• 1:1 connected
• Shielded
• Silicone sealing ring green
• With sealing cap and housing
• Protection class: IP68
• For cable diameter from 4.5 - 7.5 mm
• Operating temperature: -40 °C ~ 105 °C
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 75 x 26 x 26 mm
System requirements
Package content
• Cable connector
4043619871766
