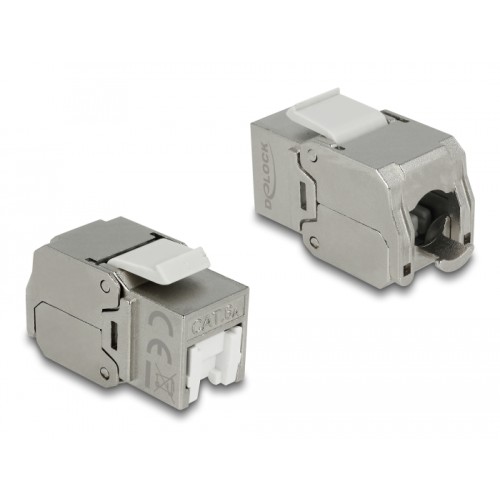

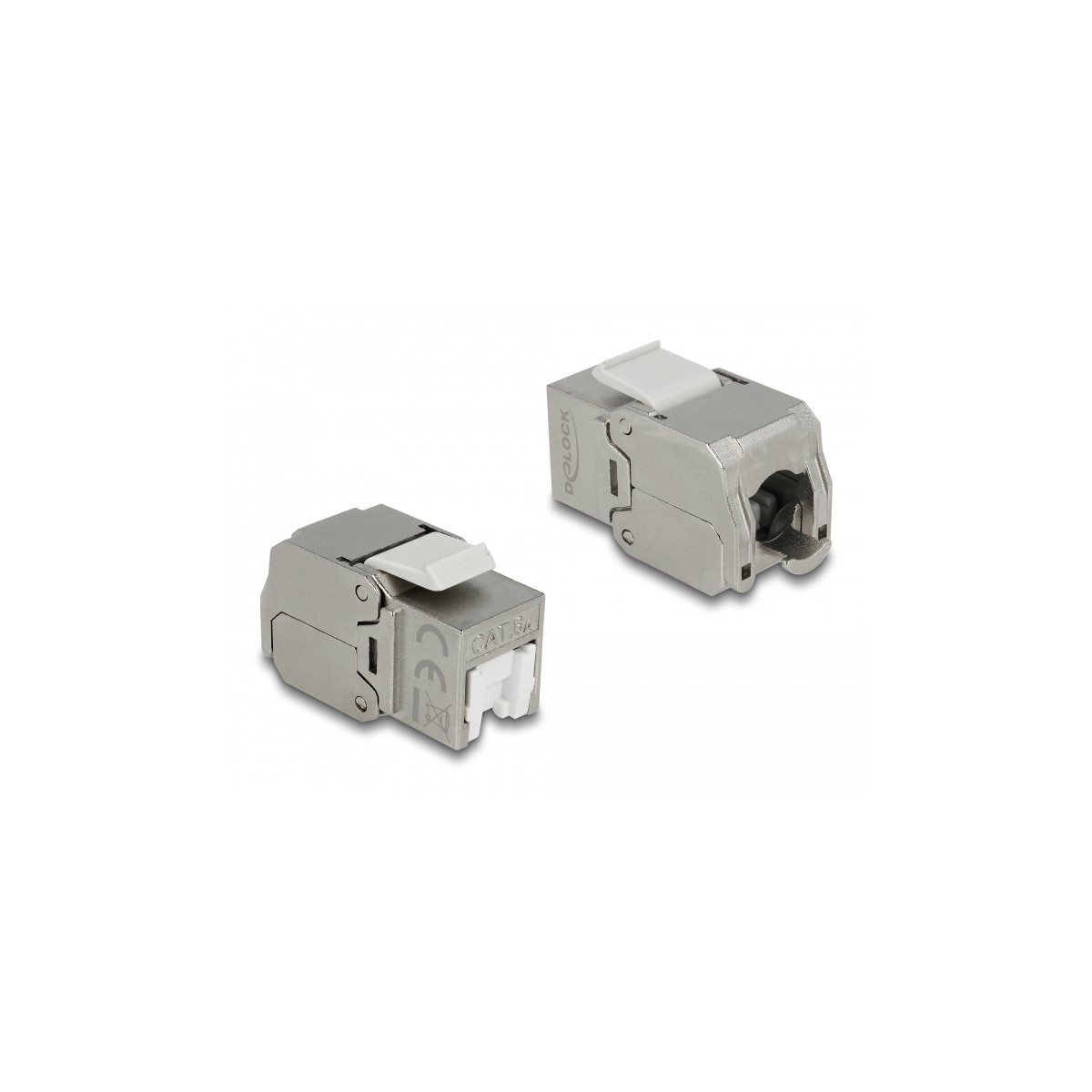

Delock Keystone Module RJ45 jack LSA Cat.6A STP dust cover
86385
Nuovo
Description
This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

Specification
• Connectors:
external: 1 x RJ45 jack
internal: 1 x LSA block
• Dust cover
• Shielded (STP)
• Material: zinc die cast
• Compliant with Cat.6A requirements of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Dimensions (LxWxH): ca. 37,8 x 16,8 x 22,5 mm
System requirements
Package content
• Keystone module

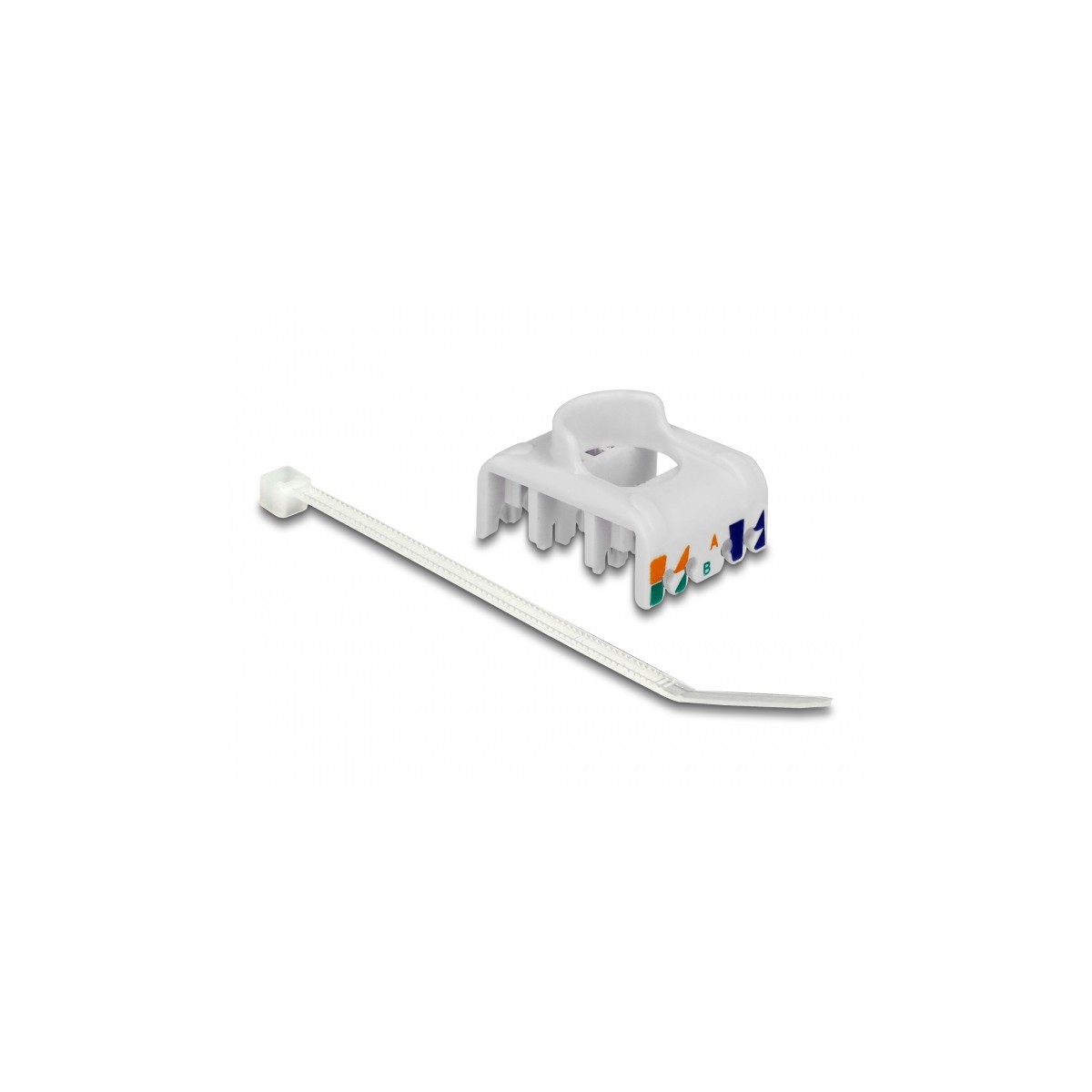

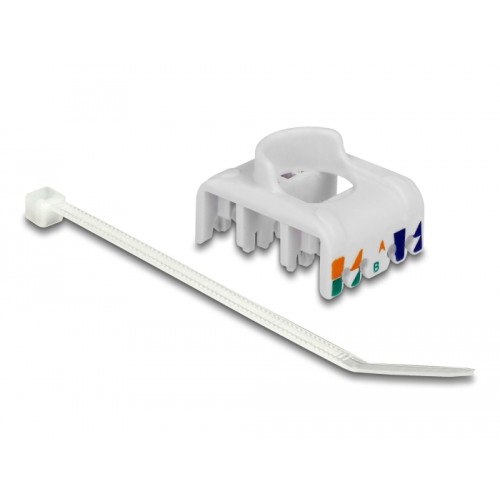

• Cable manager
• Zip-tie
This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

Specification
• Connectors:
external: 1 x RJ45 jack
internal: 1 x LSA block
• Dust cover
• Shielded (STP)
• Material: zinc die cast
• Compliant with Cat.6A requirements of ANSI/TIA 568-C.2
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Dimensions (LxWxH): ca. 37,8 x 16,8 x 22,5 mm
System requirements
Package content
• Keystone module
• Cable manager
• Zip-tie
Nuovo
4043619863853
