Description
With this shield clamp by Delock a cable with a diameter of 5 - 11 mm can be attached to a 10 mm busbar. The clamp can also be used as an EMC shield. In this case, unwanted electrical or electromagnetic effects are dissipated from the busbar.
Application

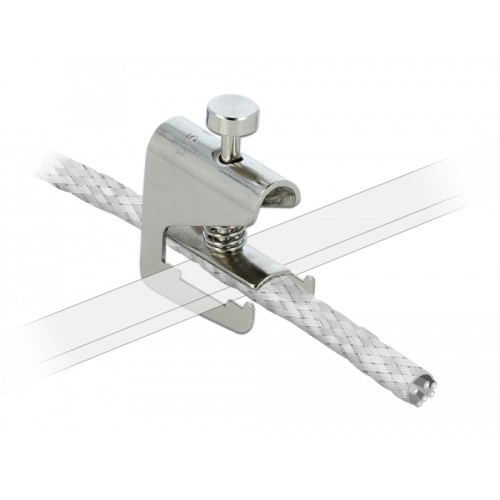

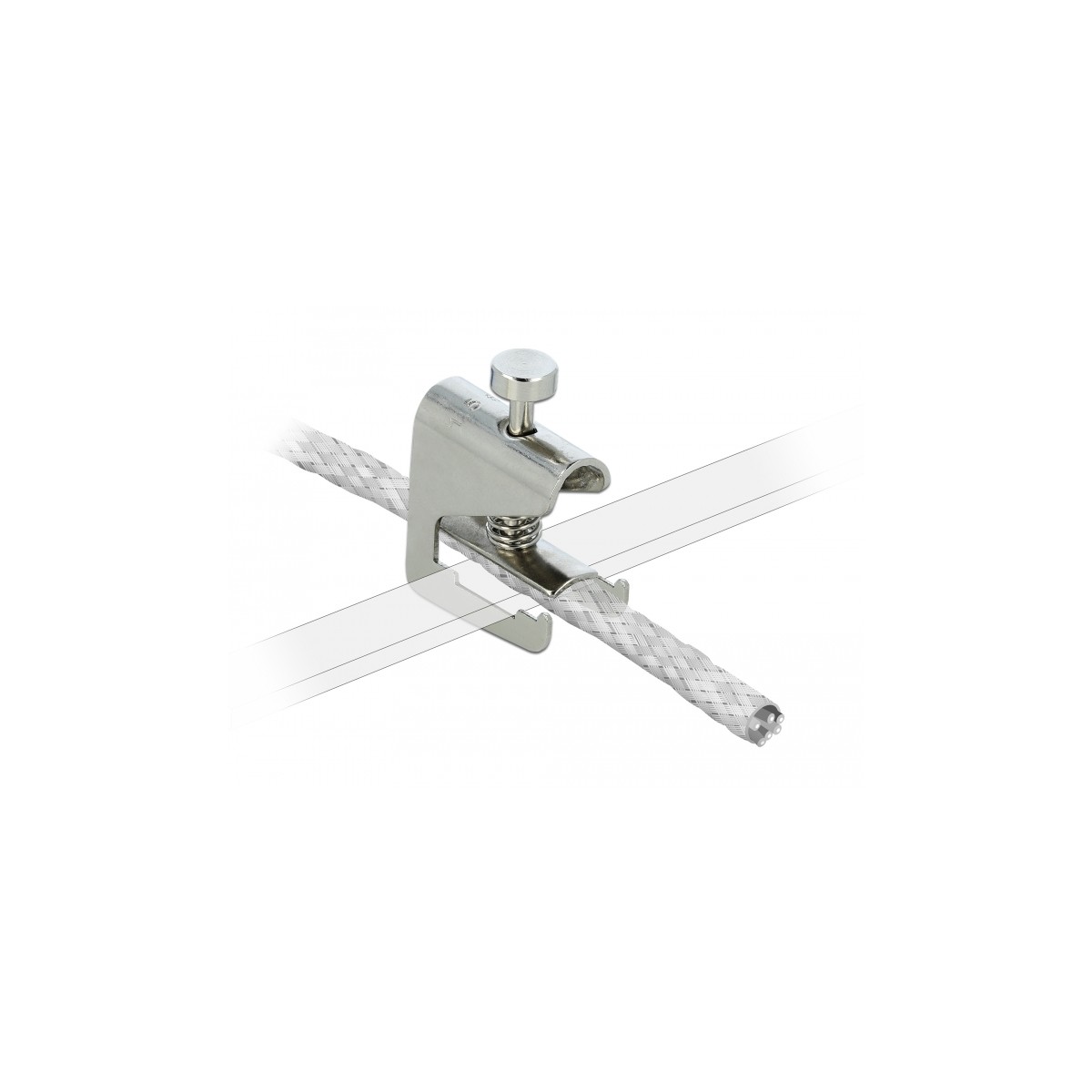

To fasten a cable to the shield clamp, the spring must be pushed up and the cable is securely clamped into the clamp.
Specification
• Busbar mounting: 10 mm
• Cable diameter:
min.: 5 mm
max.: 11 mm
• Material: metal
• Dimensions (LxWxH): ca. 36 x 25 x 17 mm
System requirements
• Busbar 10 mm
Package content
• Shield clamp
With this shield clamp by Delock a cable with a diameter of 5 - 11 mm can be attached to a 10 mm busbar. The clamp can also be used as an EMC shield. In this case, unwanted electrical or electromagnetic effects are dissipated from the busbar.
Application
To fasten a cable to the shield clamp, the spring must be pushed up and the cable is securely clamped into the clamp.
Specification
• Busbar mounting: 10 mm
• Cable diameter:
min.: 5 mm
max.: 11 mm
• Material: metal
• Dimensions (LxWxH): ca. 36 x 25 x 17 mm
System requirements
• Busbar 10 mm
Package content
• Shield clamp
