Description

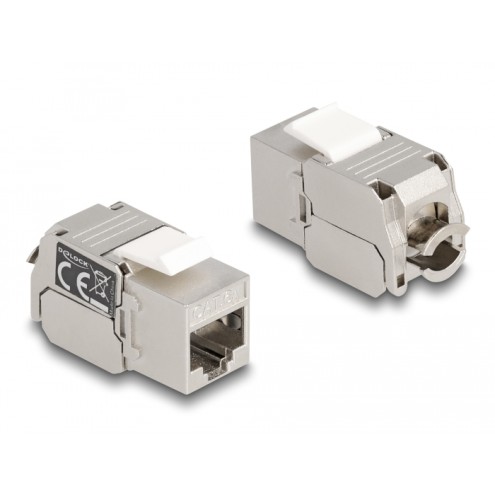

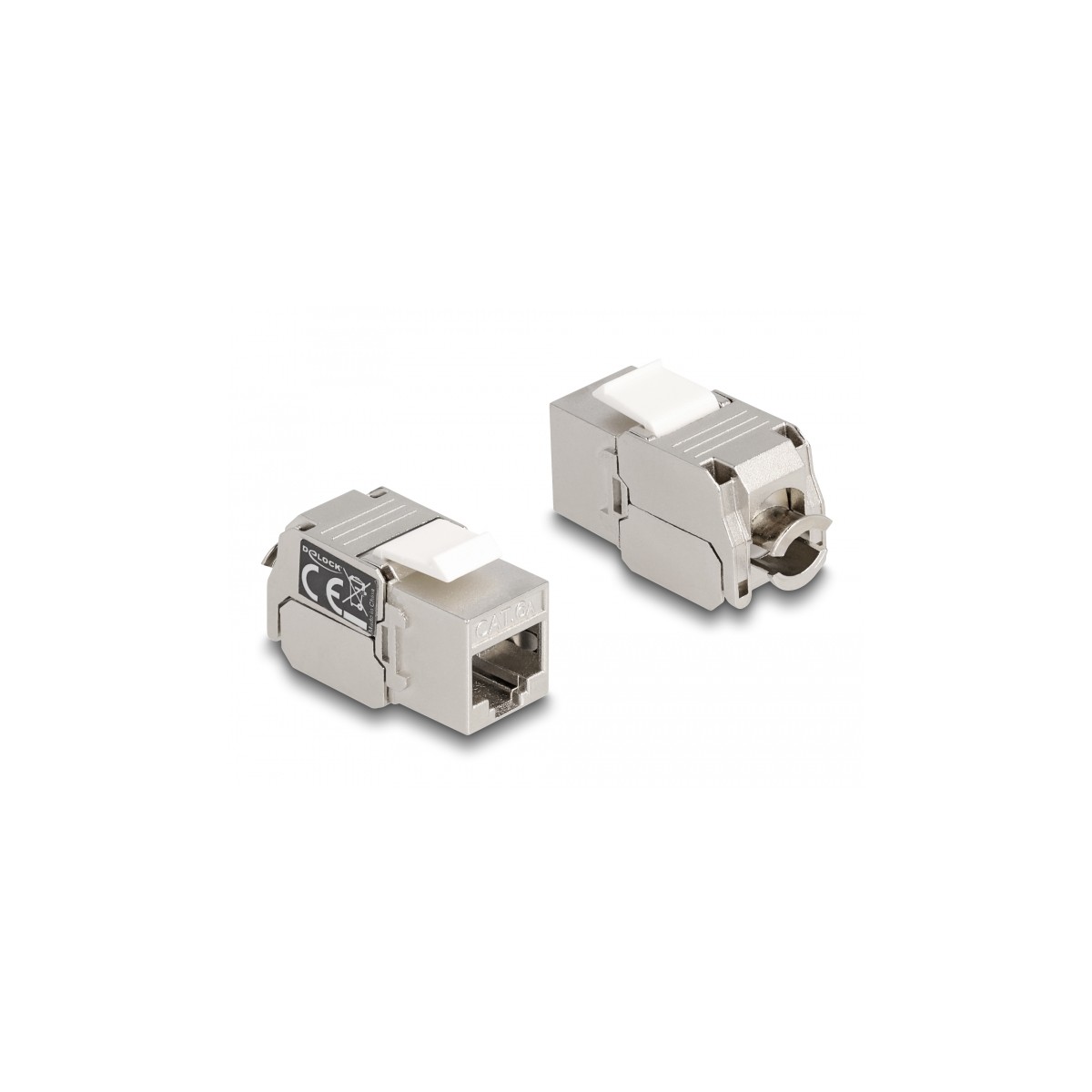

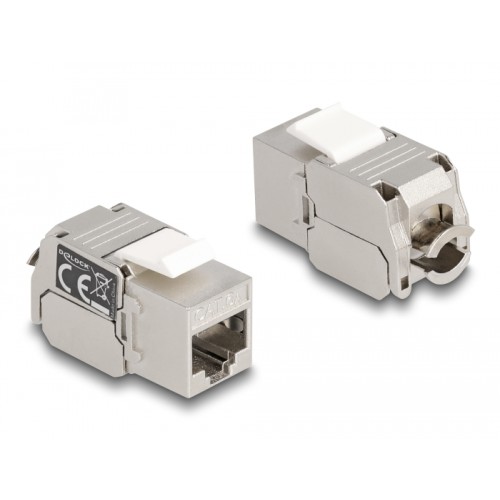

This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.
With LED
An LED is integrated into the Keystone module to make it easier to find the module in a patch panel by using a cable tester. Depending on the cable tester, the LED lights up green or red.
Specification
• Connectors:
1 x RJ45 jack (8P/8C) >

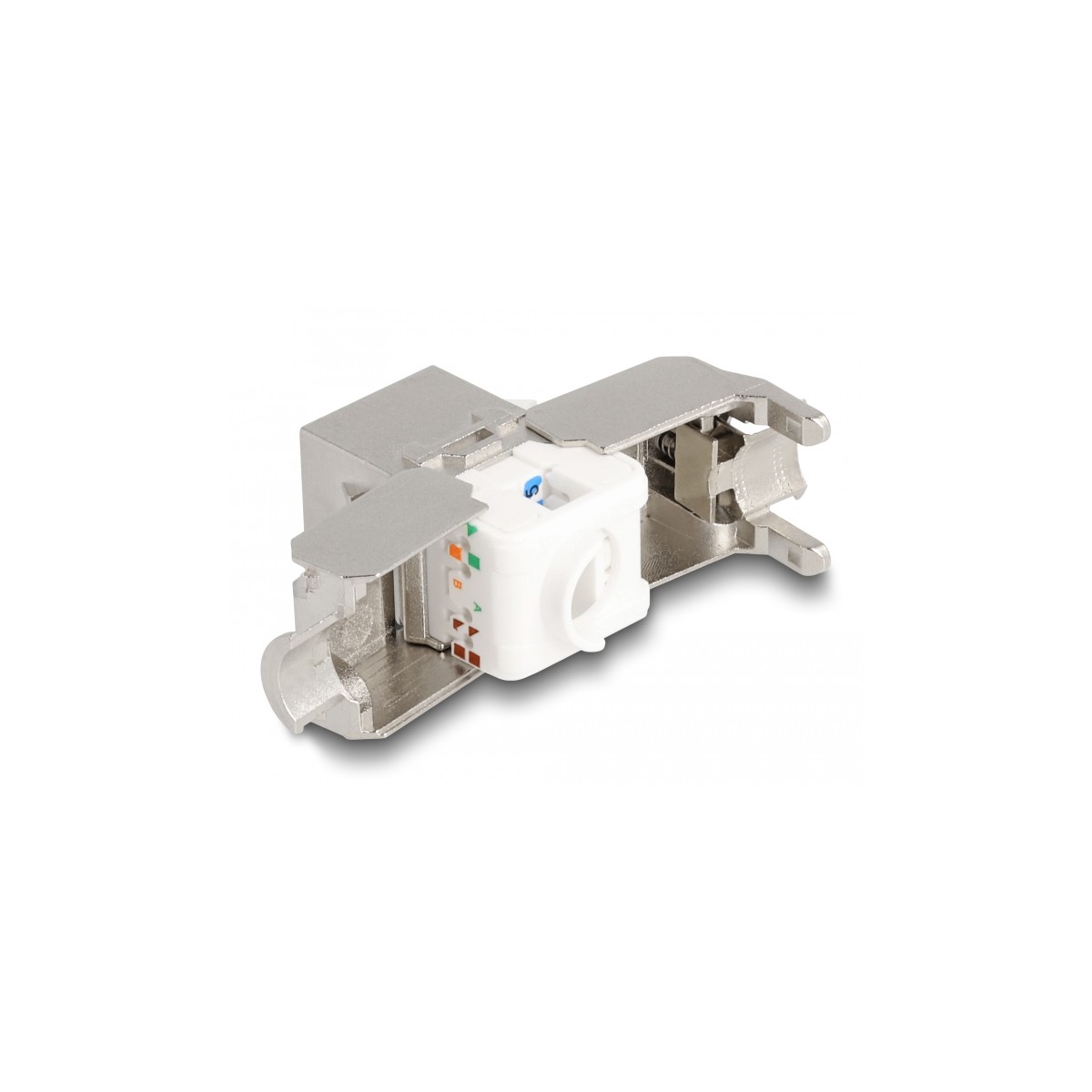

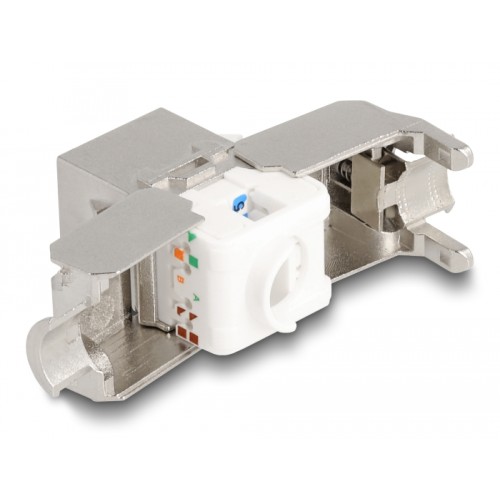

1 x LSA 180° (toolfree)
• Cat.6A specification

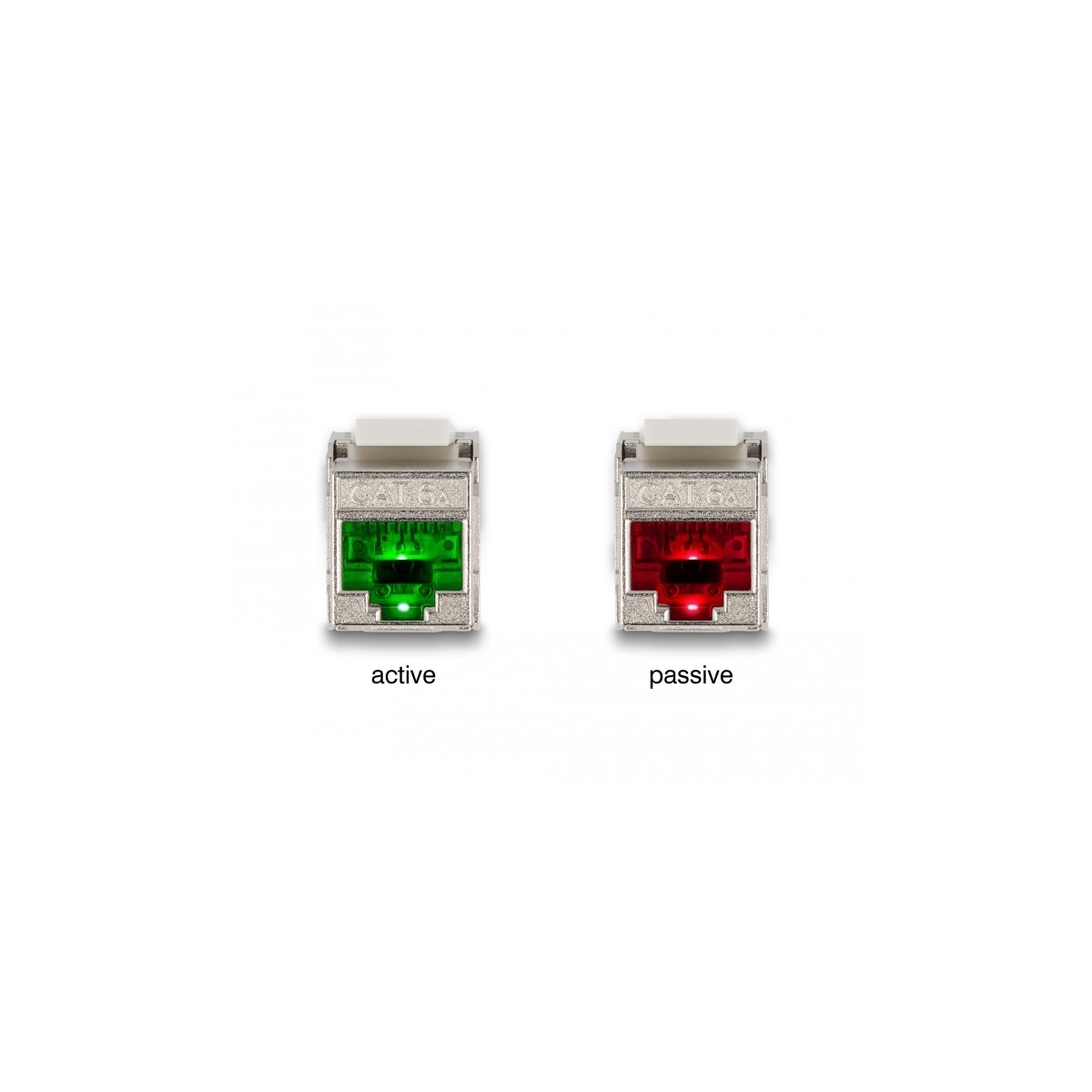

• LED indicator: green (active) / red (passive)
• Shielded (STP)
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 38 x 20 x 16 mm
System requirements
Package content
• Keystone module

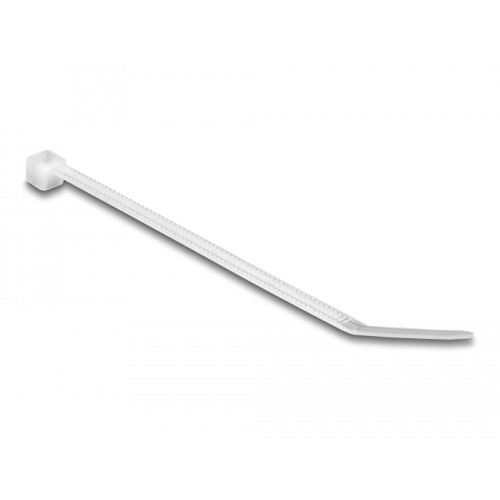

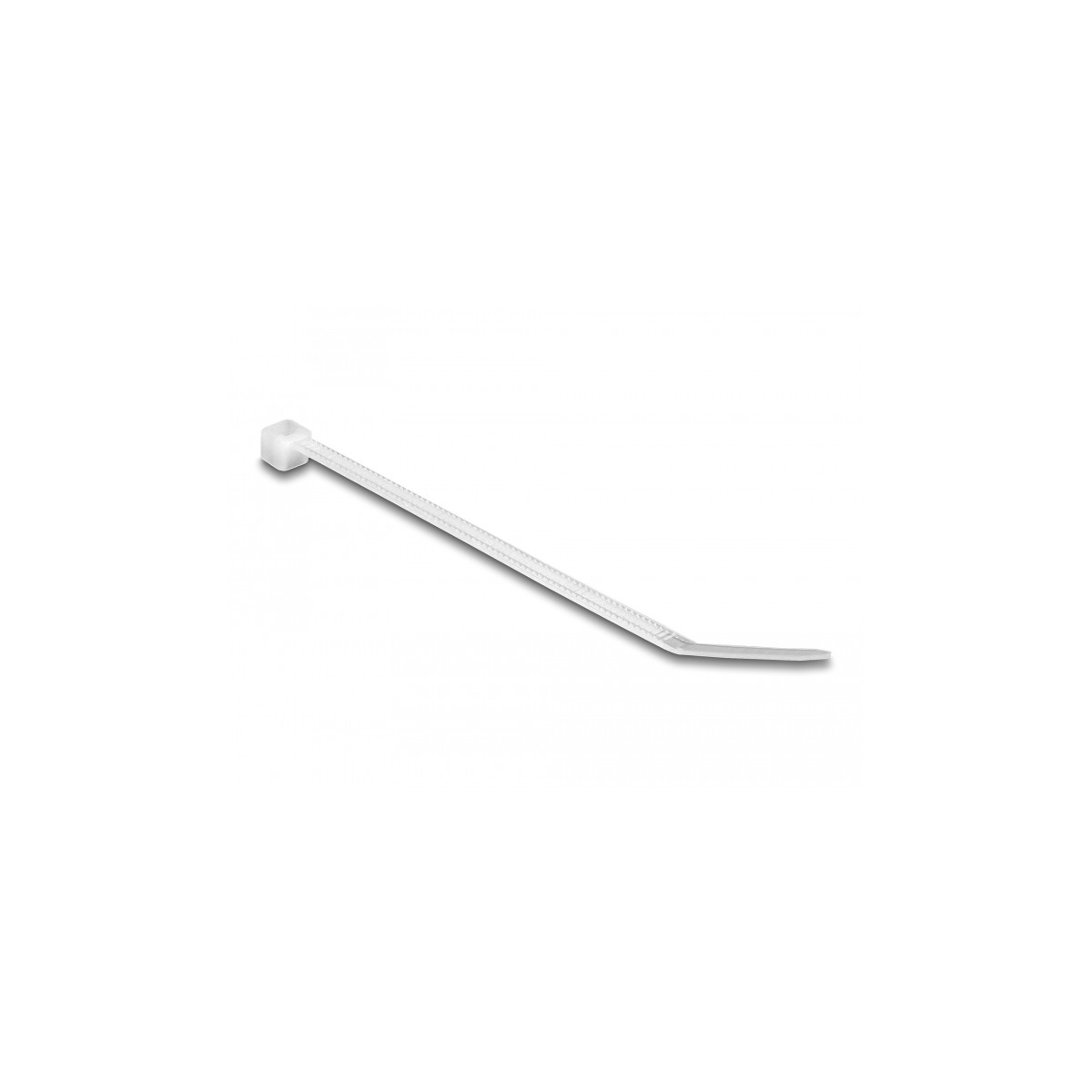

• Zip-tie
This module by Delock can be used to connect a network cable and is suitable for easy snap-in mounting in various holders, such as keystone patch panels, face plates or surface-mount boxes.
With LED
An LED is integrated into the Keystone module to make it easier to find the module in a patch panel by using a cable tester. Depending on the cable tester, the LED lights up green or red.
Specification
• Connectors:
1 x RJ45 jack (8P/8C) >
1 x LSA 180° (toolfree)
• Cat.6A specification
• LED indicator: green (active) / red (passive)
• Shielded (STP)
• TIA-568A/B pinout
• For solid or stranded wire (24 - 22 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Material: zinc diecast / plastic
• Colour: silver / white
• Dimensions (LxWxH): ca. 38 x 20 x 16 mm
System requirements
Package content
• Keystone module
• Zip-tie
