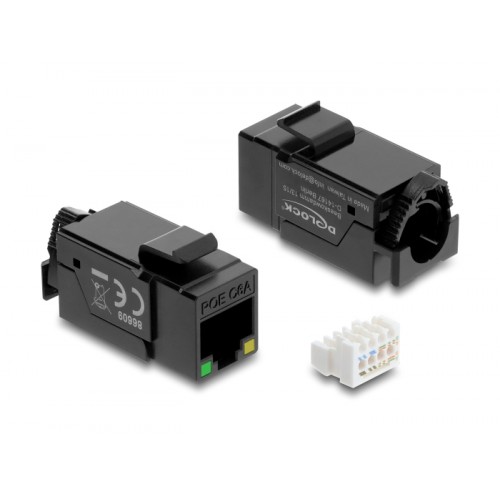

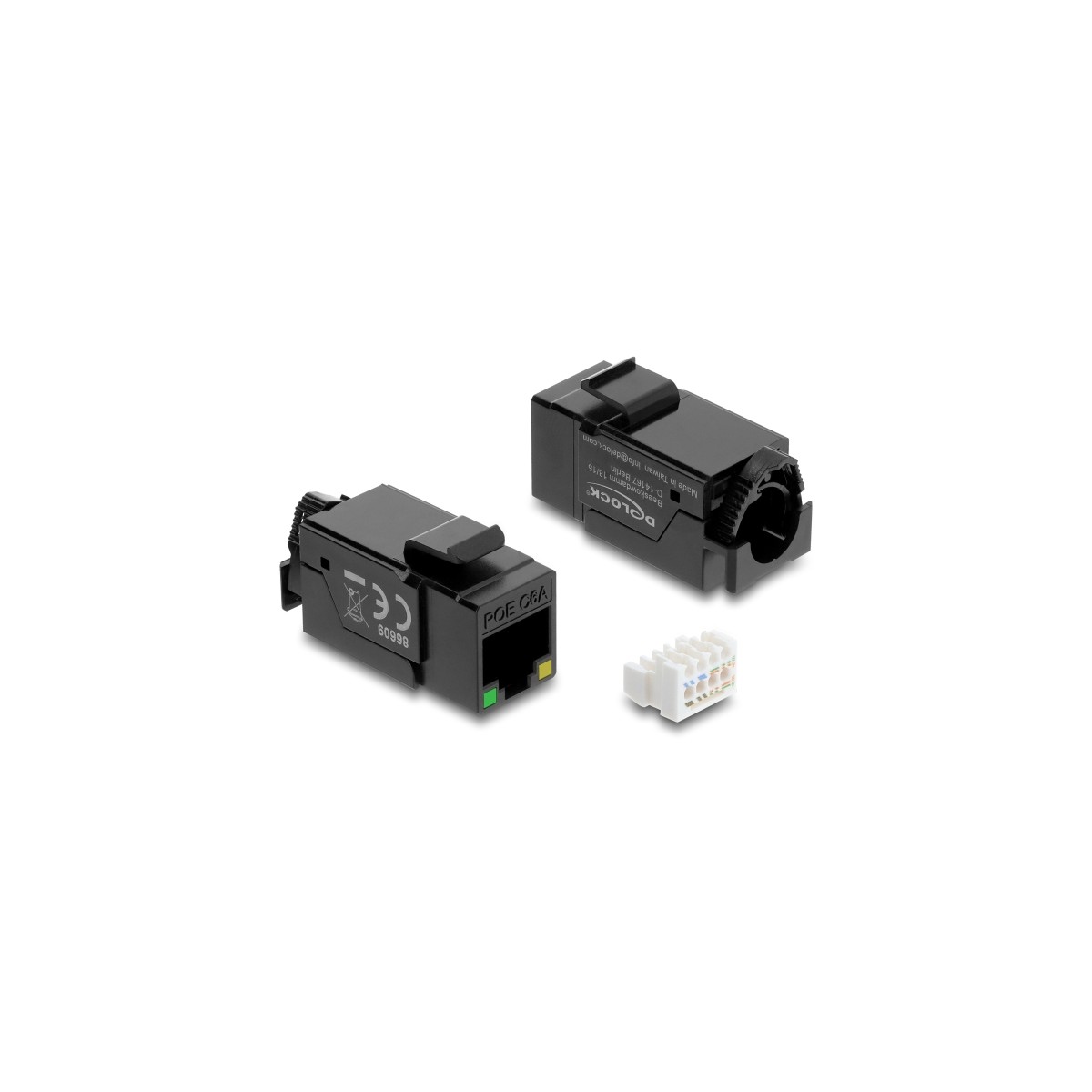

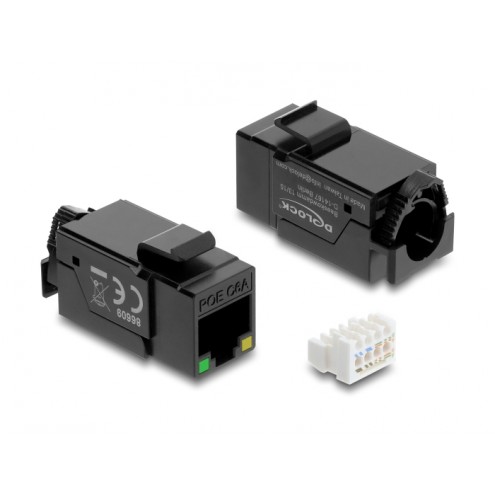

Delock Keystone Module RJ45 jack Cat.6A UTP with PoE LED

Description
This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

PoE detection and identification

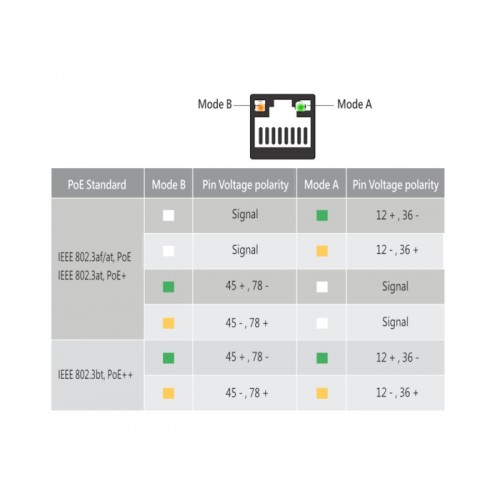

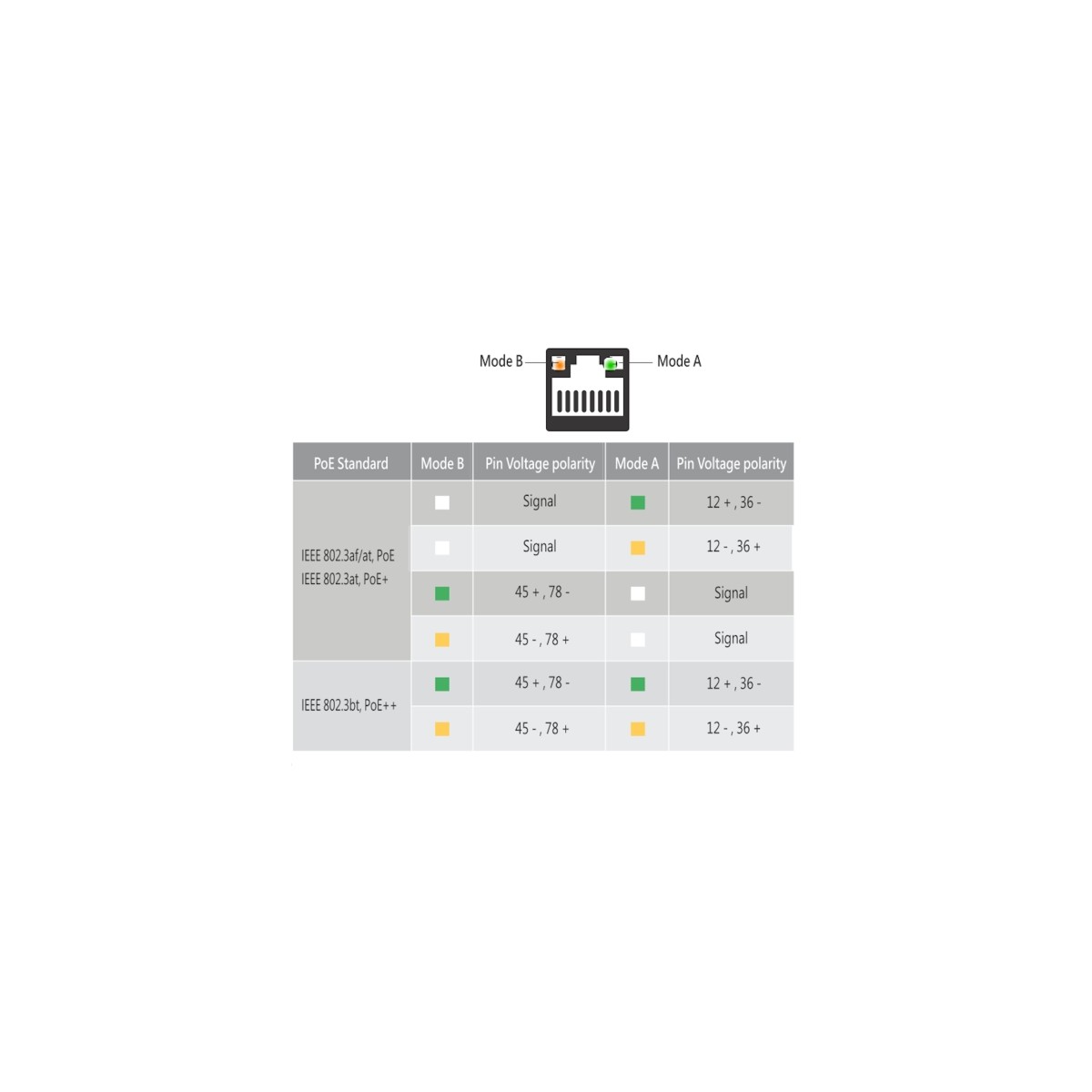

The RJ45 module with PoE indicator is the ideal solution for professional network environments, where fast and reliable detection of Power-over-Ethernet (PoE) is required. The integrated LEDs indicate the presence and type of PoE power supply.

Cable tie-free
On the back of the module there is a locking clip with which the network cable can be fixed and fastened without cable ties.

Specification
• Connectors:
1 x RJ45 jack (8P/8C)
1 x LSA (toolfree)
• Cat.6A specification
• Unshielded (UTP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1 and EN 60603-7-41, ANSI/TIA 568.2-D
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For cable diameter from 5.0 - 8.5 mm
• Mounting without cable ties
• For Keystone ports with 19.2 x 14.9 mm
• Operating temperature: -40 °C ~ 68 °C
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 37.5 x 16.4 x 22.0 mm

System requirements


Package content
• Keystone module
• Cable manager
• User manual
