Description

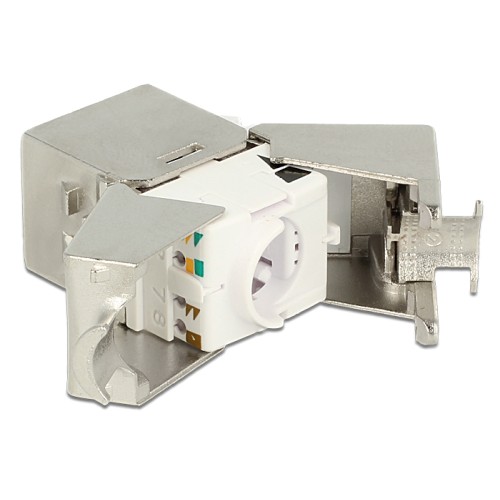

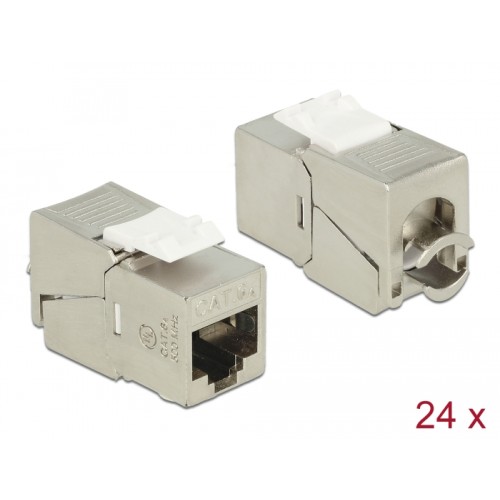

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.
Specification
• Connectors:
external:
1 x RJ45 jack (8P/8C) >
internal:
LSA (toolfree)
• Cat.6A specification
• Shielded (STP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
• Material: zinc diecast
• TIA-568A/B pinout
• For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
• For Keystone ports with 19.2 x 14.9 mm
• Dimensions (LxWxH): ca. 35.3 x 14.5 x 22.0 mm
System requirements
Package content
• 24 x Keystone module
• 24 x cable manager
• 24 x cable tie
• User manual
