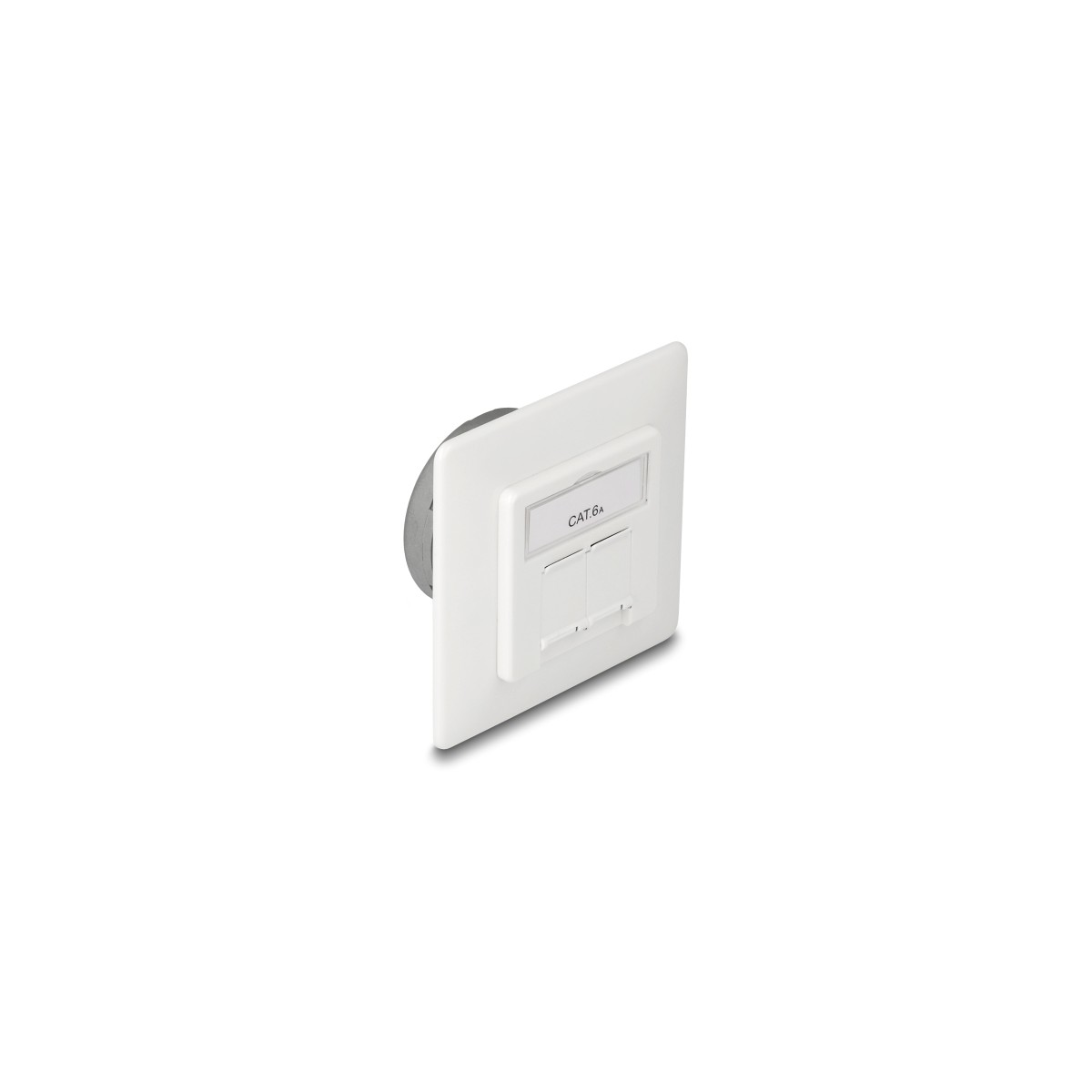

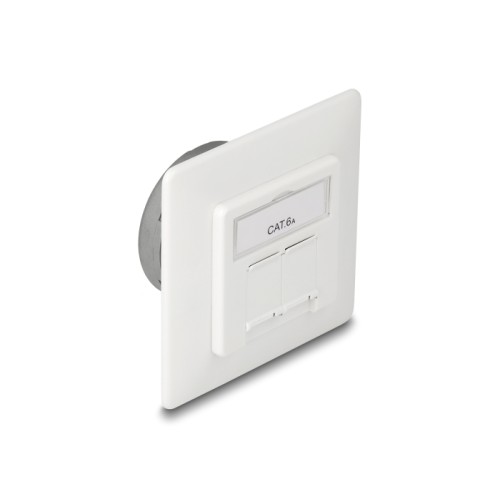

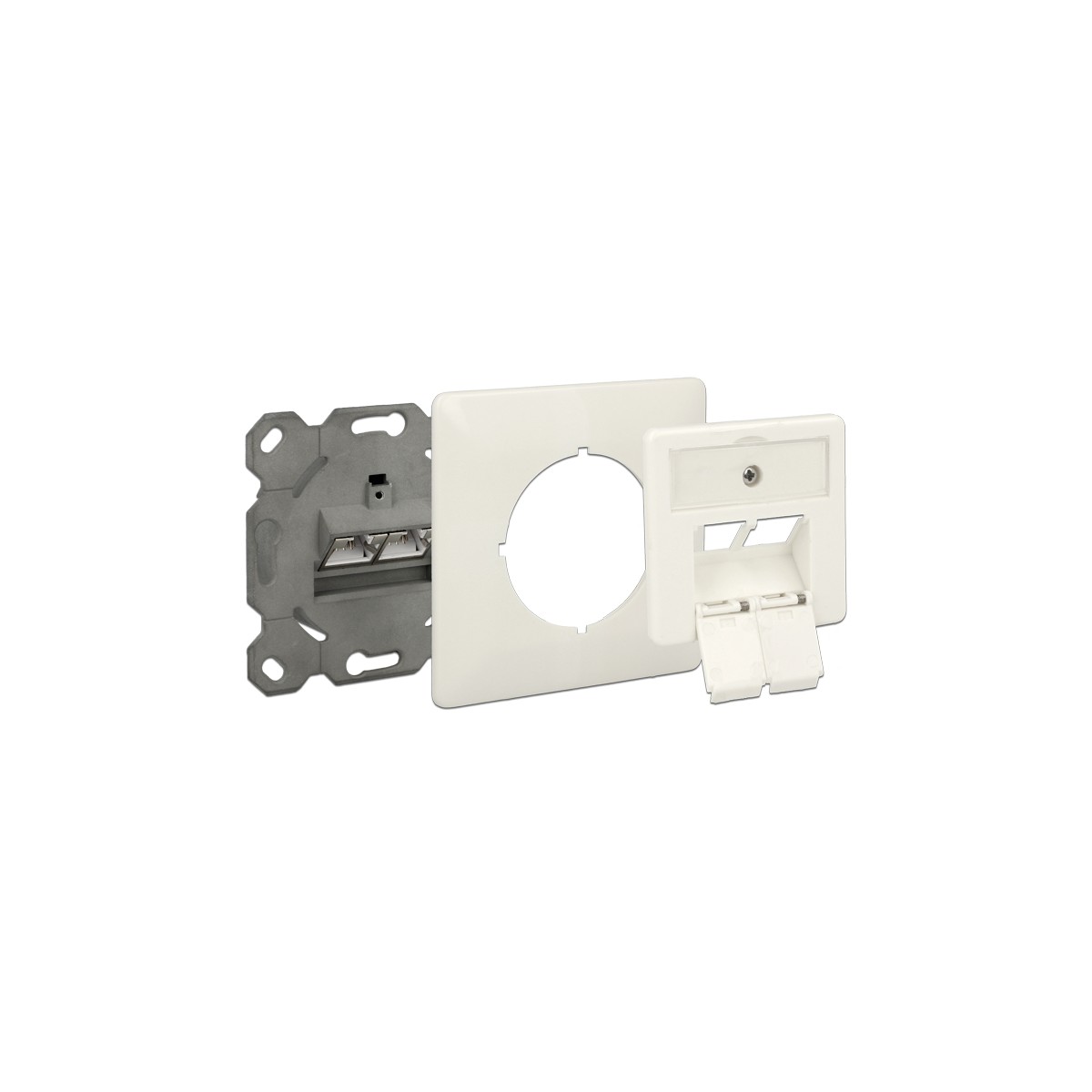

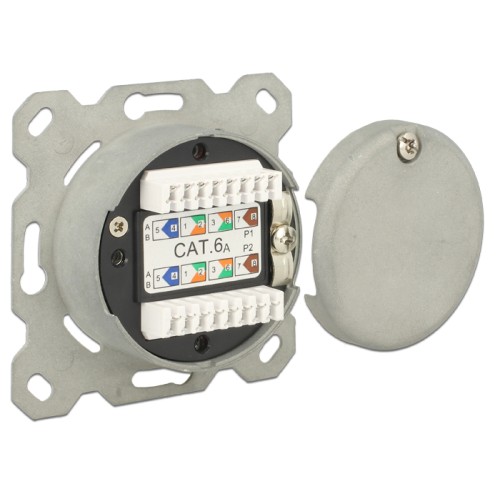

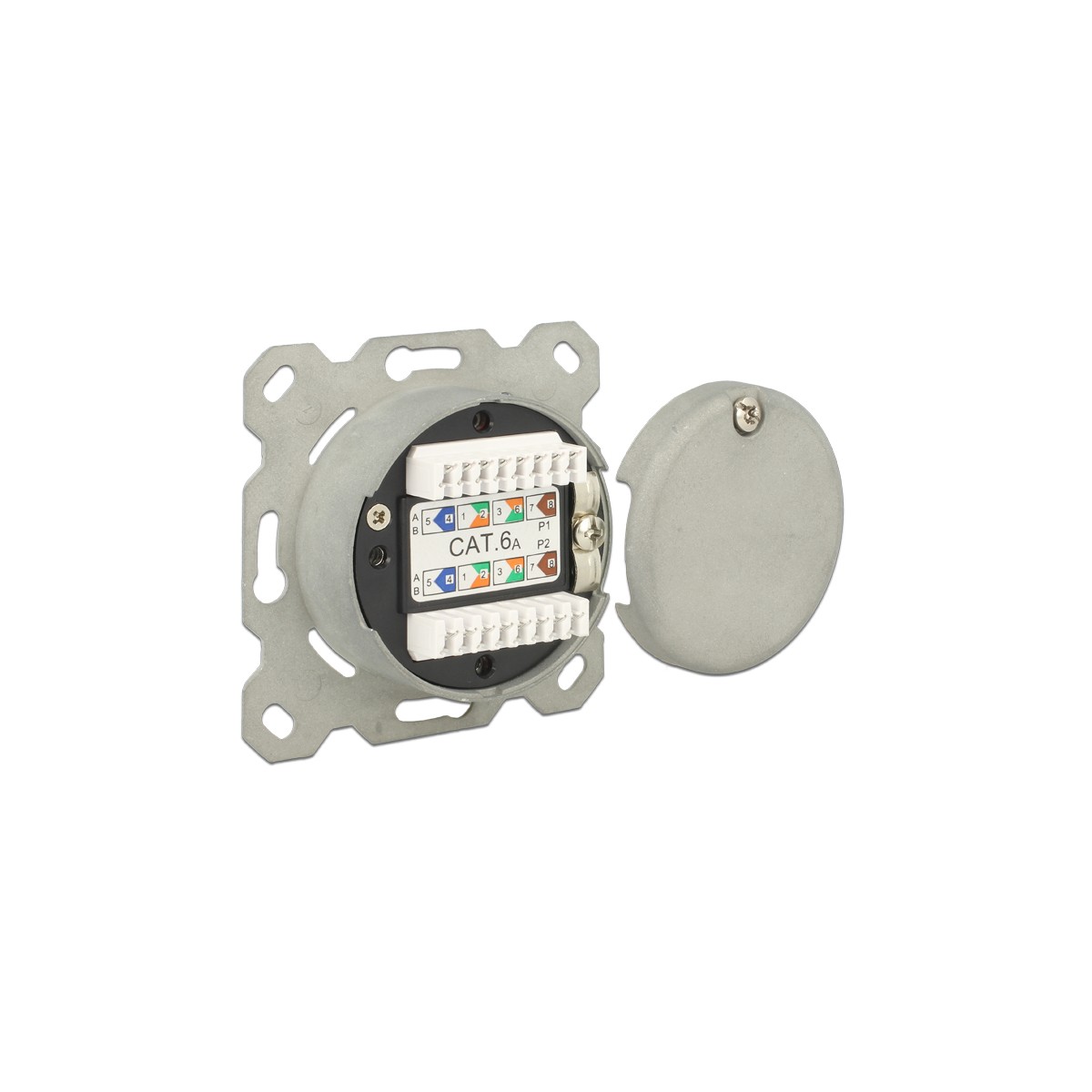

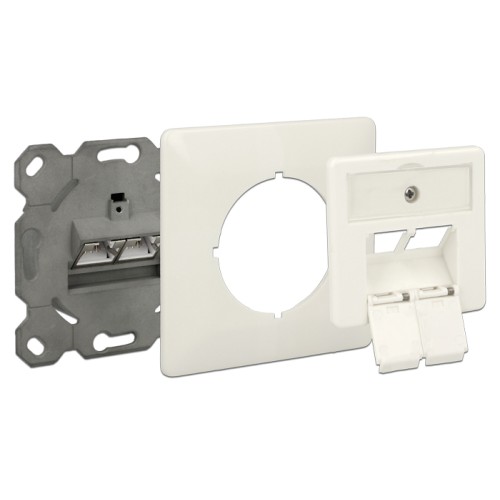

Delock Modular Wall Outlet flush mount 2 Port Cat.6A LSA
86195
Nuovo
Description
This network wall outlet by Delock can be installed in-wall or on a back box with 60 mm mounting holes. The LSA blocks can be used with a punch down tool, the horizontal cable feed allows a flexible installation.
Specification
• Connectors:
external: 2 x RJ45 jack
internal: 2 x LSA block
• Cat.6A specification
• Shielded (STP)
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 24 AWG)
• Material: zinc die cast
• Integrated name plate
• Design suitable central plate 50 x 50 mm
• Mounting holes 60 mm
• Colour: pure white RAL 9010
• Dimensions (LxWxH): ca. 80 x 80 x 39 mm
System requirements
Package content
• Modular Wall Outlet
• 2 screws
This network wall outlet by Delock can be installed in-wall or on a back box with 60 mm mounting holes. The LSA blocks can be used with a punch down tool, the horizontal cable feed allows a flexible installation.
Specification
• Connectors:
external: 2 x RJ45 jack
internal: 2 x LSA block
• Cat.6A specification
• Shielded (STP)
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 24 AWG)
• Material: zinc die cast
• Integrated name plate
• Design suitable central plate 50 x 50 mm
• Mounting holes 60 mm
• Colour: pure white RAL 9010
• Dimensions (LxWxH): ca. 80 x 80 x 39 mm
System requirements
Package content
• Modular Wall Outlet
• 2 screws
