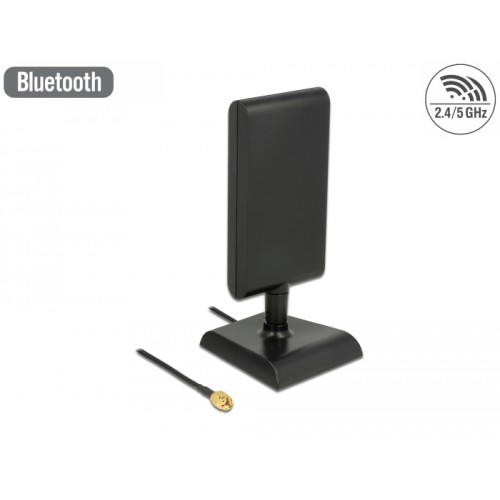

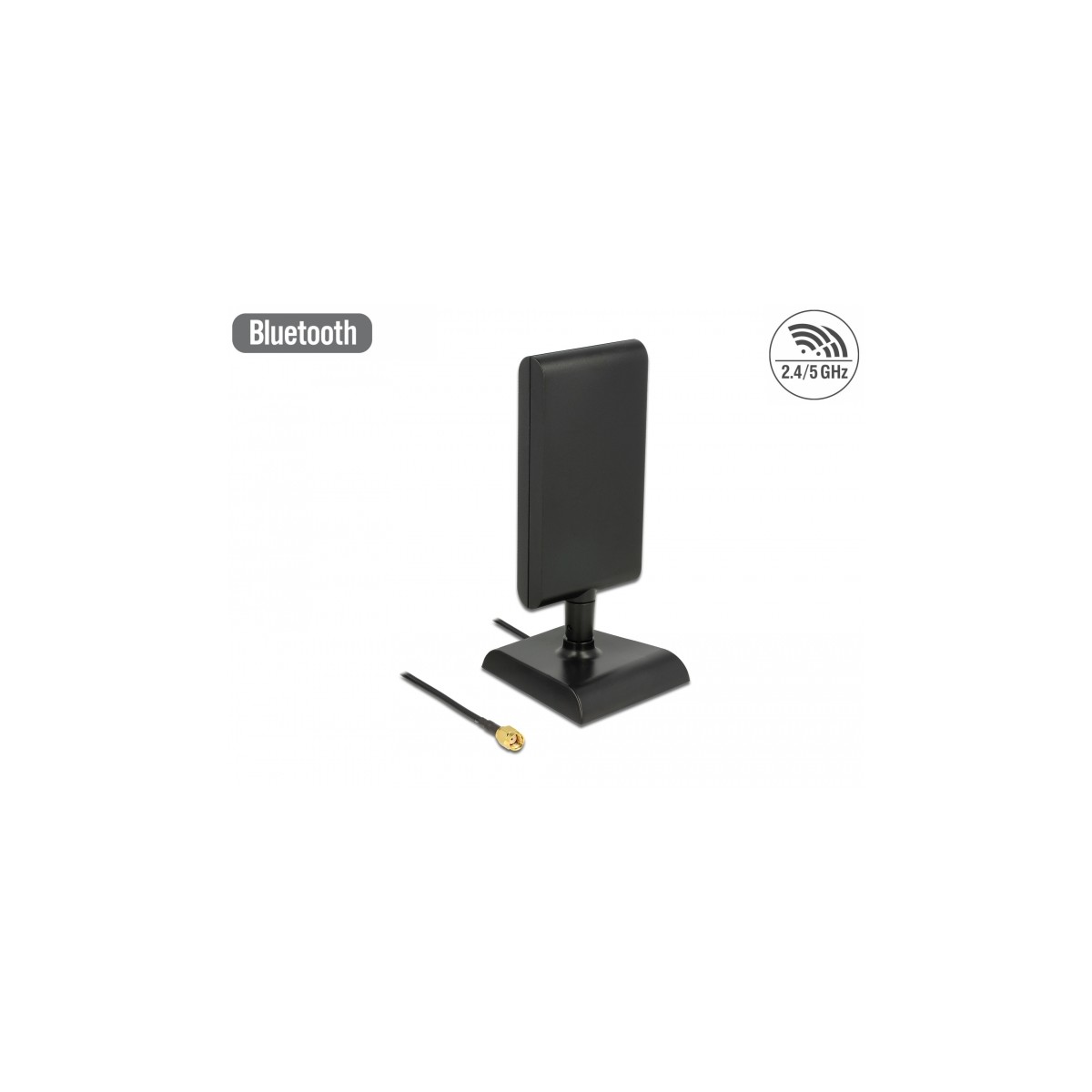

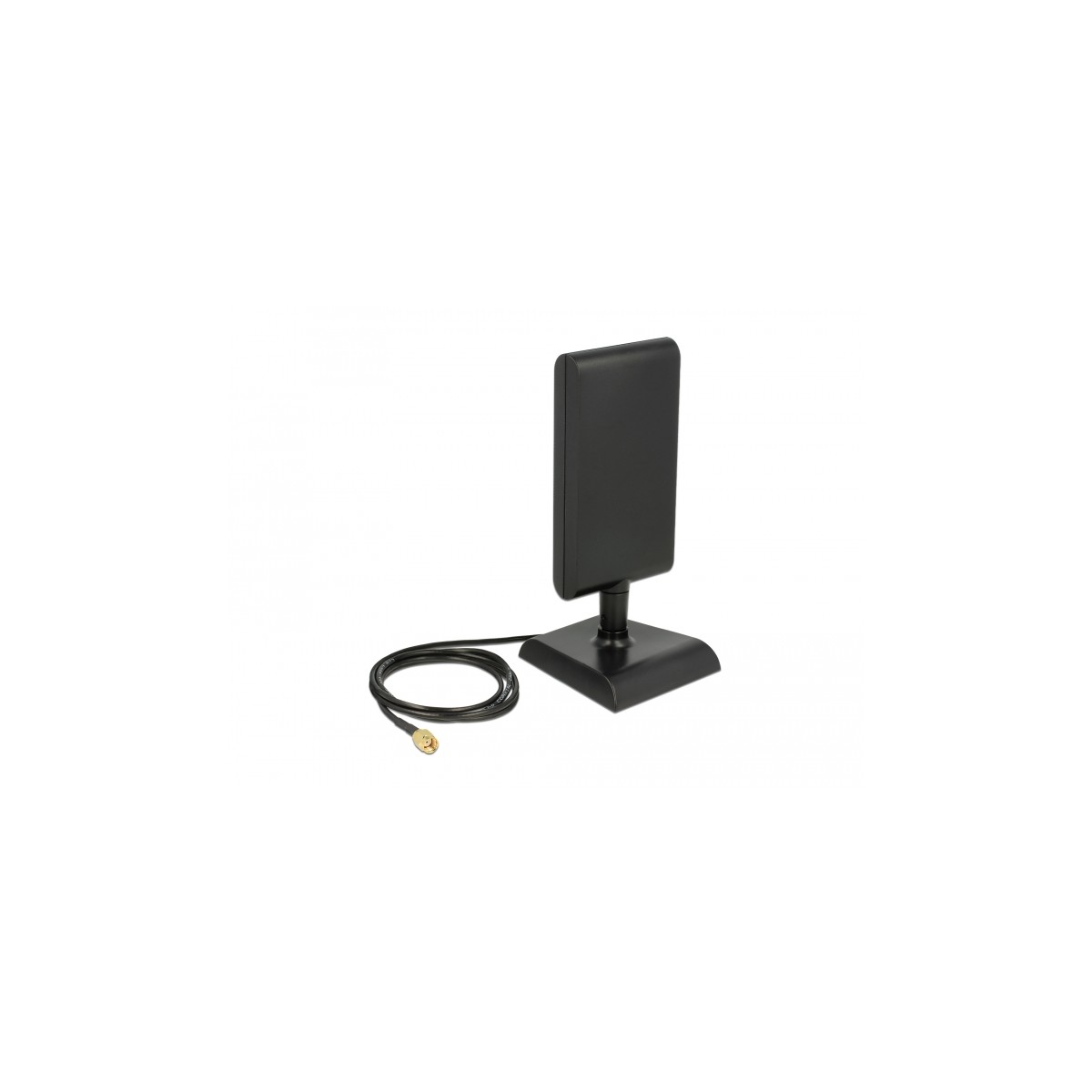

Delock WLAN 802.11 ac/a/h/b/g/n Antenna RP-SMA plug 6 - 9 dBi directional with magnetic base and connection cable (ULA 100, 1 m)
89590
Nuovo
Description
This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.
Specification
• Connector: 1 x RP-SMA plug
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.875 GHz
• Compatible to Bluetooth
• Antenna gain:
6 dBi @ 2.400 - 2.500 GHz
9 dBi @ 5.150 - 5.875 GHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• HBW horizontal beamwidth: 55°
• VBW vertical beamwidth: 24°
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
magnetic on the bottom
rubberized bottom
wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable attenuation: 1.4 dB @ 2.5 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m
• Dimensions:
antenna (LxWxH): ca. 162 x 66 x 18 mm
base (LxWxH): ca. 80 x 77 x 15 mm
System requirements
• Device with a free RP-SMA jack
Package content
• WLAN antenna
This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.
Specification
• Connector: 1 x RP-SMA plug
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.875 GHz
• Compatible to Bluetooth
• Antenna gain:
6 dBi @ 2.400 - 2.500 GHz
9 dBi @ 5.150 - 5.875 GHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• HBW horizontal beamwidth: 55°
• VBW vertical beamwidth: 24°
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
magnetic on the bottom
rubberized bottom
wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable attenuation: 1.4 dB @ 2.5 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m
• Dimensions:
antenna (LxWxH): ca. 162 x 66 x 18 mm
base (LxWxH): ca. 80 x 77 x 15 mm
System requirements
• Device with a free RP-SMA jack
Package content
• WLAN antenna
Nuovo
4043619895908
