Description

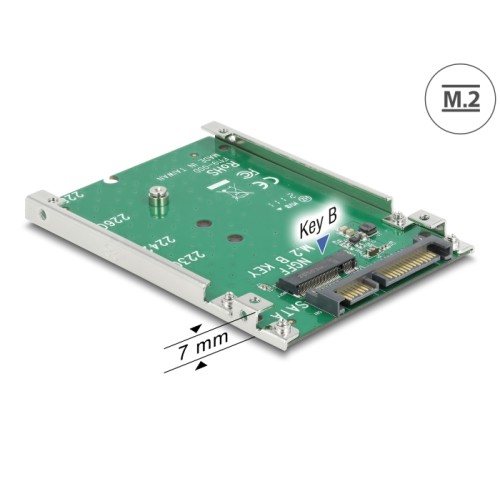

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be used as a replacement for a 2.5″ HDD. The converter will be installed into the system internally through a SATA 22 pin interface.
Specification

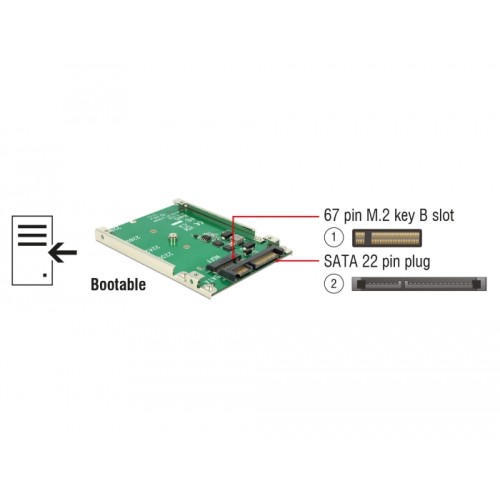

• Connectors:
1 x SATA 22 pin plug >
1 x 67 pin M.2 key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA

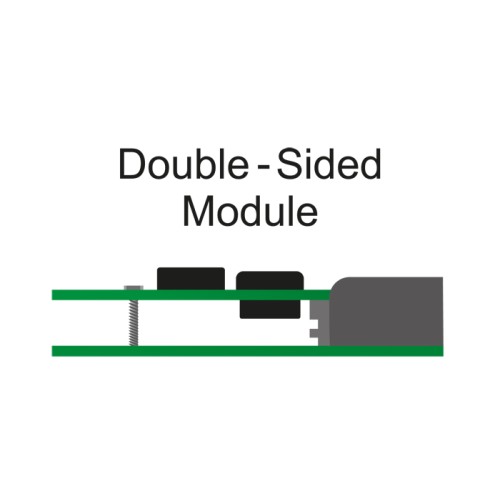

• Maximum height of the components on the module: 1.5 mm, application of
double-sided assembled modules supported
• Bootable
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
System requirements
• A free SATA 22 pin interface
Package content
• Converter

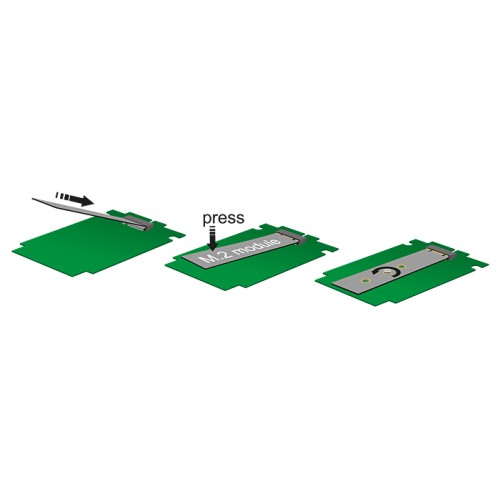

• 1 x fixing screw for M.2 module

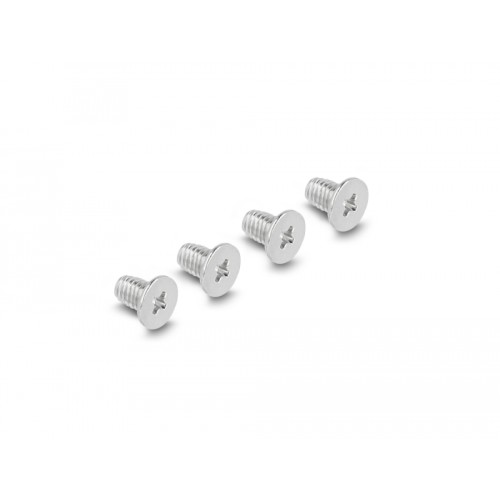

• 4 x screws for frame
• User manual
This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be used as a replacement for a 2.5″ HDD. The converter will be installed into the system internally through a SATA 22 pin interface.
Specification
• Connectors:
1 x SATA 22 pin plug >
1 x 67 pin M.2 key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of
double-sided assembled modules supported
• Bootable
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
System requirements
• A free SATA 22 pin interface
Package content
• Converter
• 1 x fixing screw for M.2 module
• 4 x screws for frame
• User manual
