Description

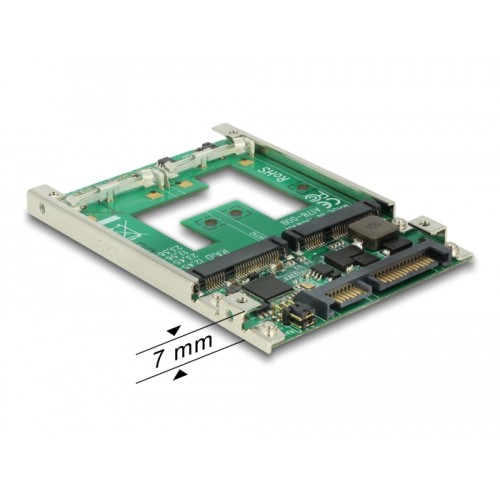

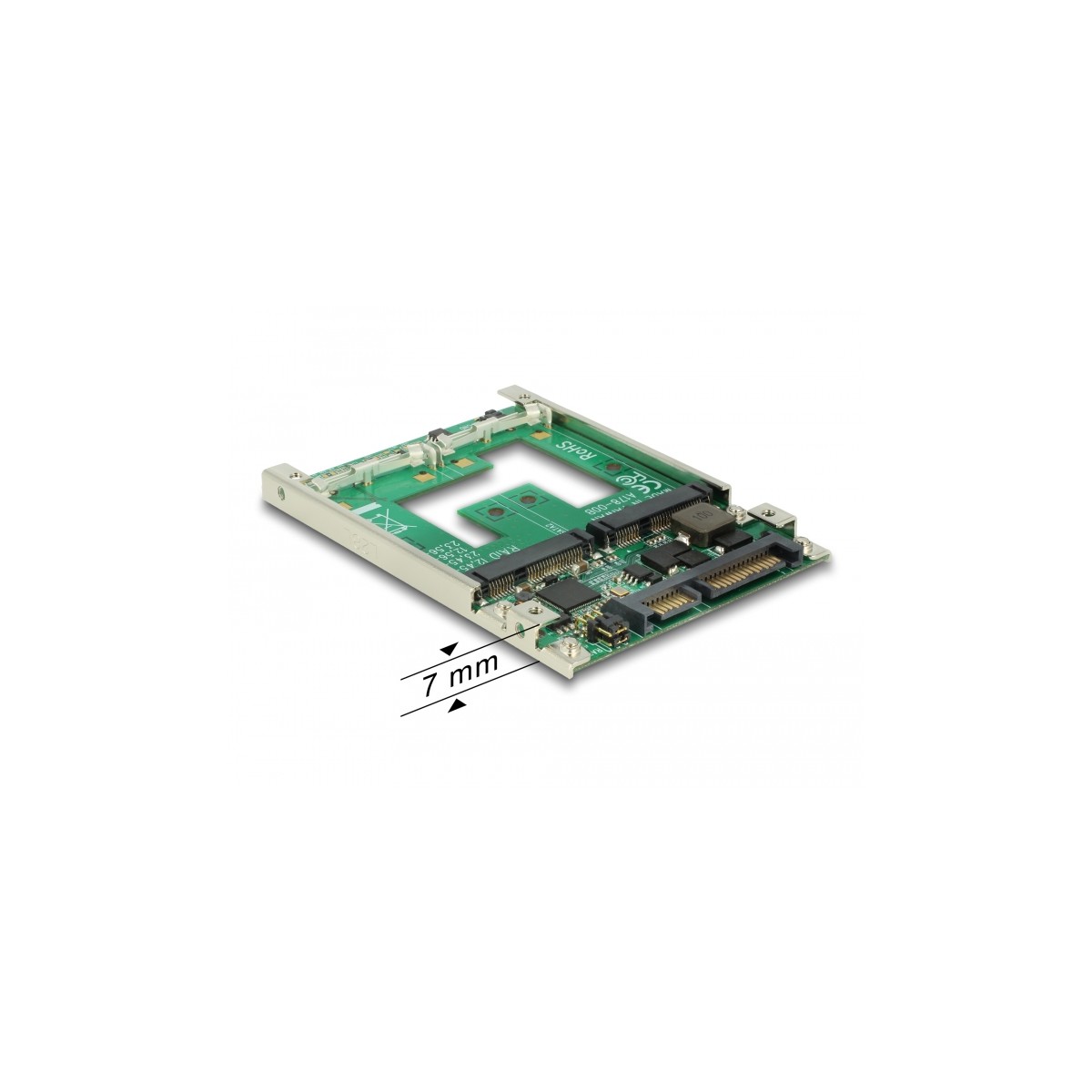

This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface.
Please Note
The SMART function is not supported. JBOD is only supported on SATA controllers with port multiplier function.
Specification
• Connector:
1 x 22 pin SATA male
2 x mSATA slots (full size)
1 x jumper for RAID mode
• Form factor: 2.5″
• For 3.3 V mSATA memory
• Also half size modules fit in
• Supports RAID 0, 1, JBOD, SPAN, Mirror
• Supports Port Multiplier (not supported for SATA 1.5 Gb/s)
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
System requirements
• A free SATA 22 pin interface
Package content
• Converter incl. metal frame
• 4 x screws
• User manual
This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface.
Please Note
The SMART function is not supported. JBOD is only supported on SATA controllers with port multiplier function.
Specification
• Connector:
1 x 22 pin SATA male
2 x mSATA slots (full size)
1 x jumper for RAID mode
• Form factor: 2.5″
• For 3.3 V mSATA memory
• Also half size modules fit in
• Supports RAID 0, 1, JBOD, SPAN, Mirror
• Supports Port Multiplier (not supported for SATA 1.5 Gb/s)
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
System requirements
• A free SATA 22 pin interface
Package content
• Converter incl. metal frame
• 4 x screws
• User manual
