Description

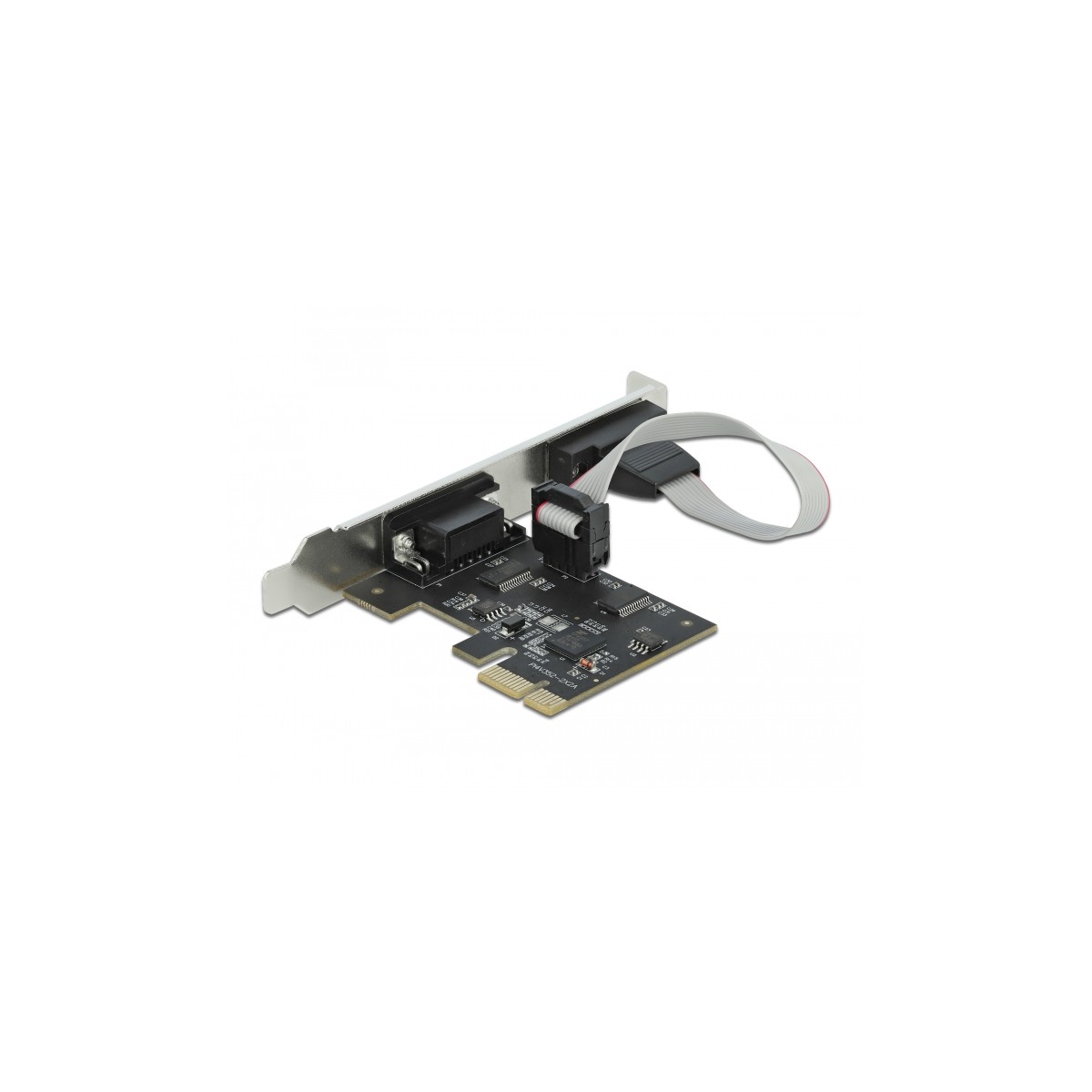

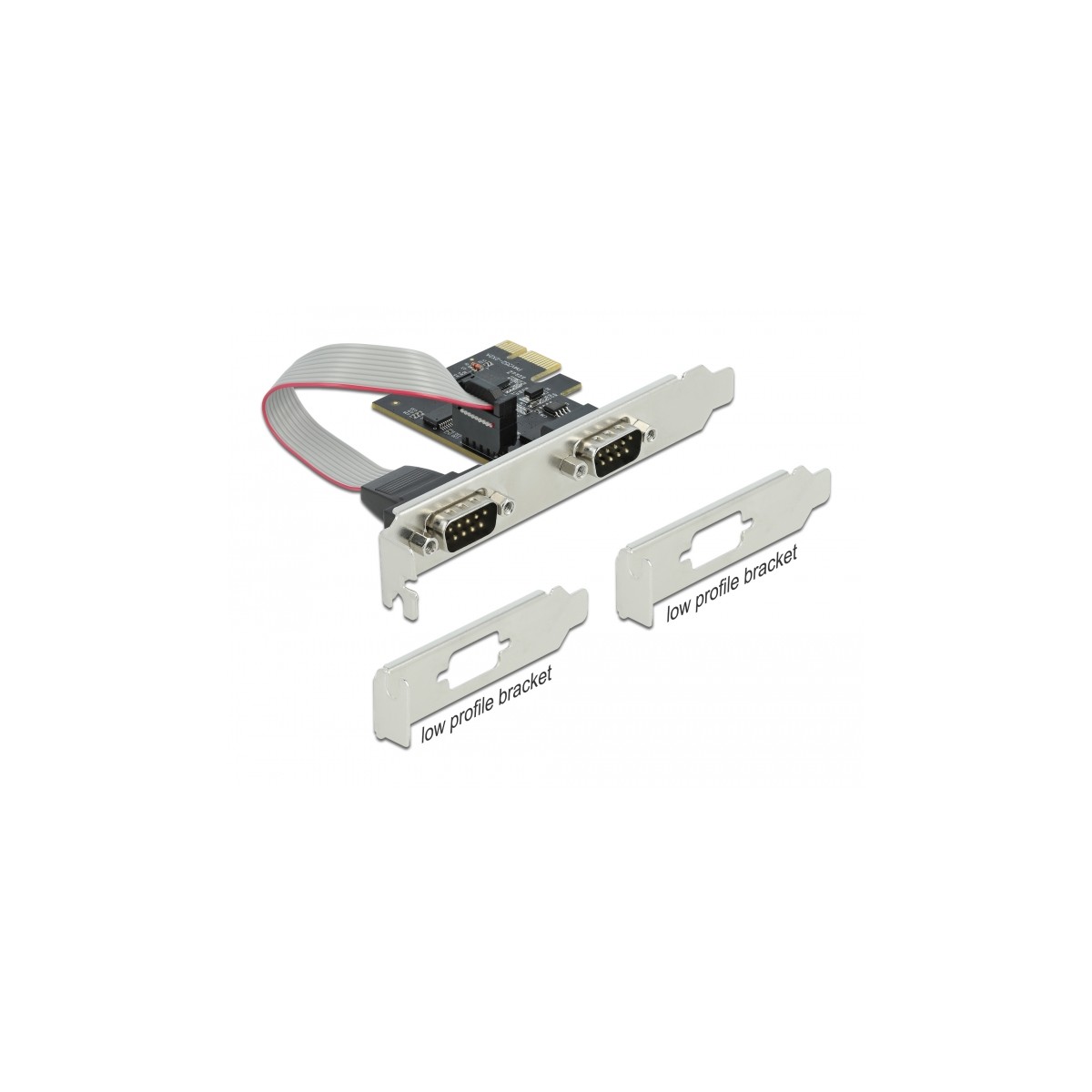

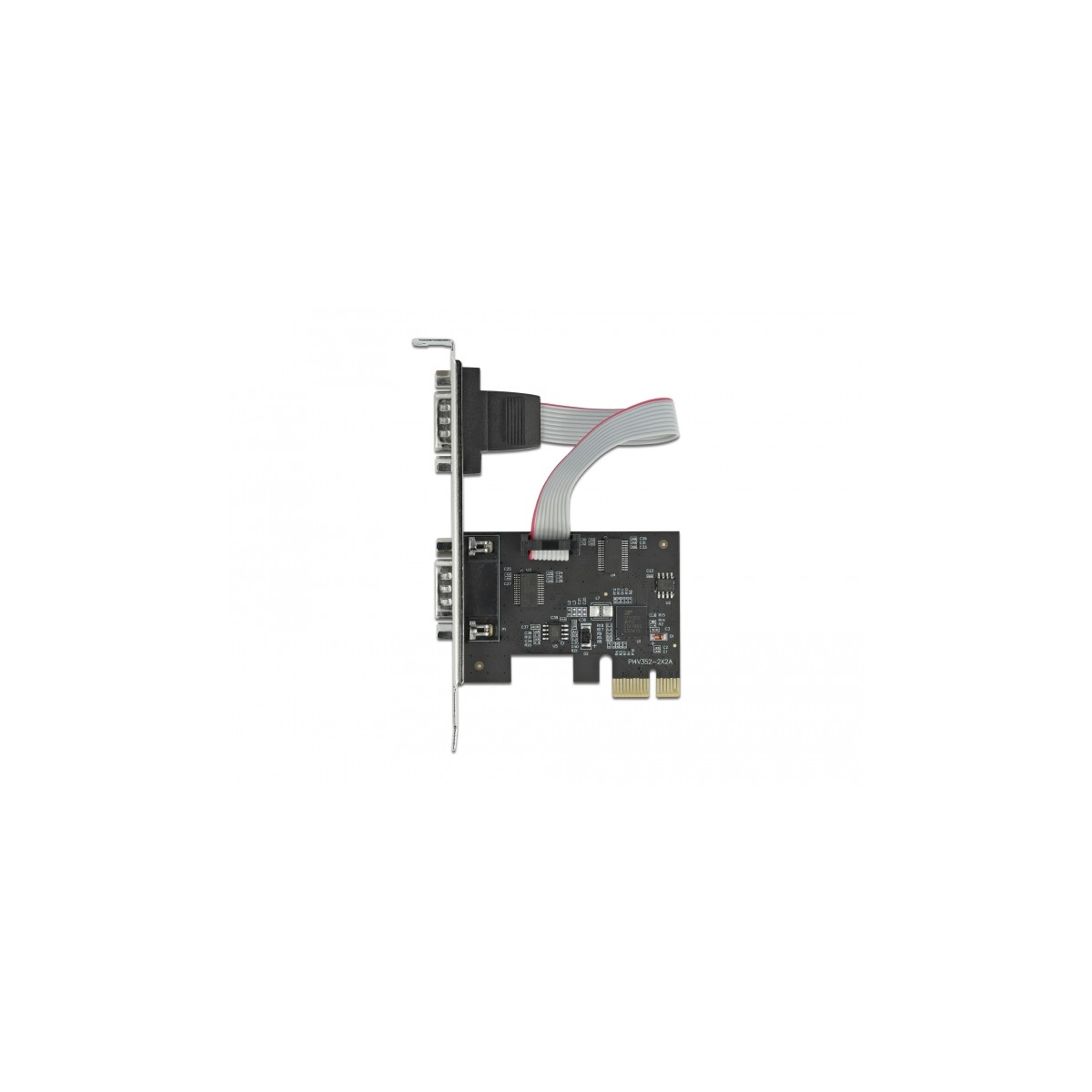

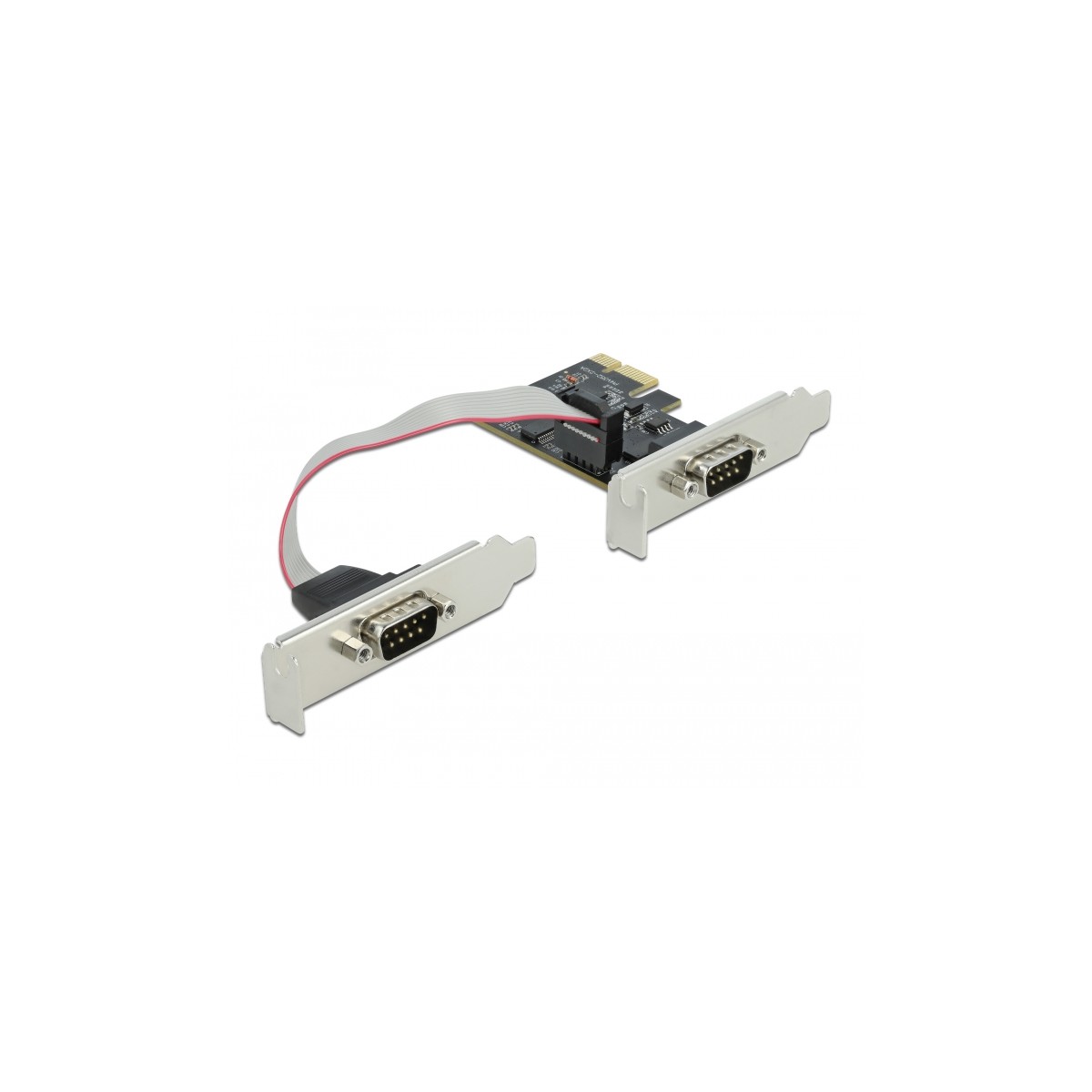

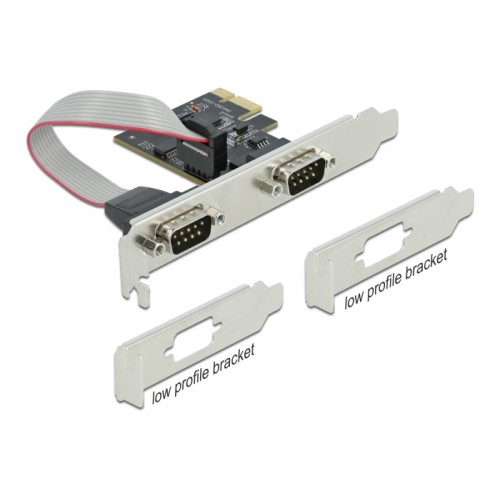

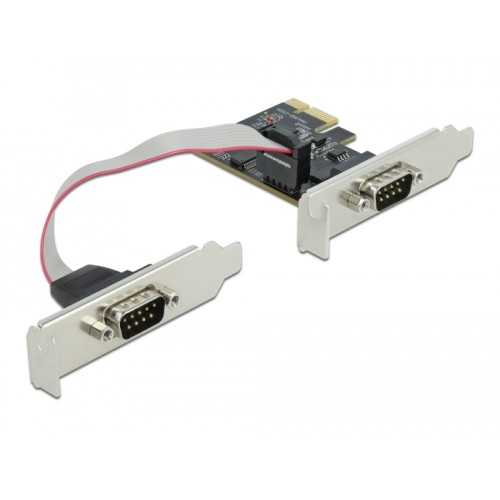

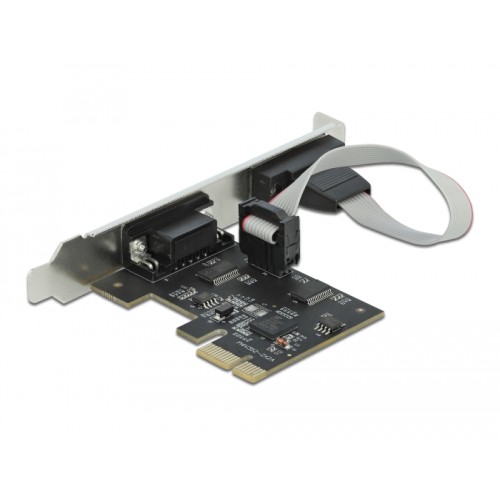

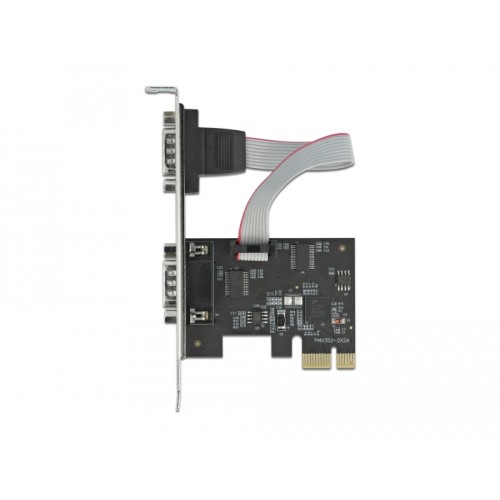

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: MaxLinear XR17V352
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Dimensions (LxW): ca. 64 x 45 mm
System requirements
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: MaxLinear XR17V352
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Dimensions (LxW): ca. 64 x 45 mm
System requirements
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
