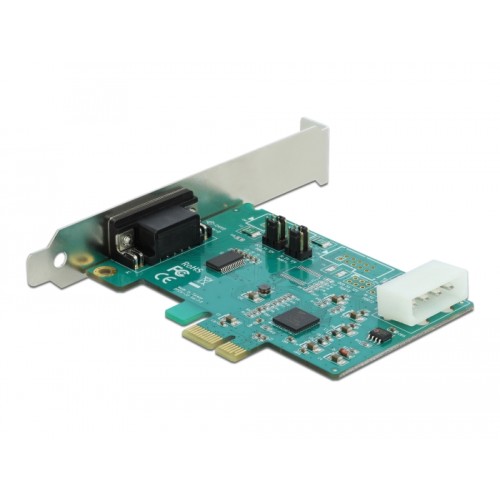

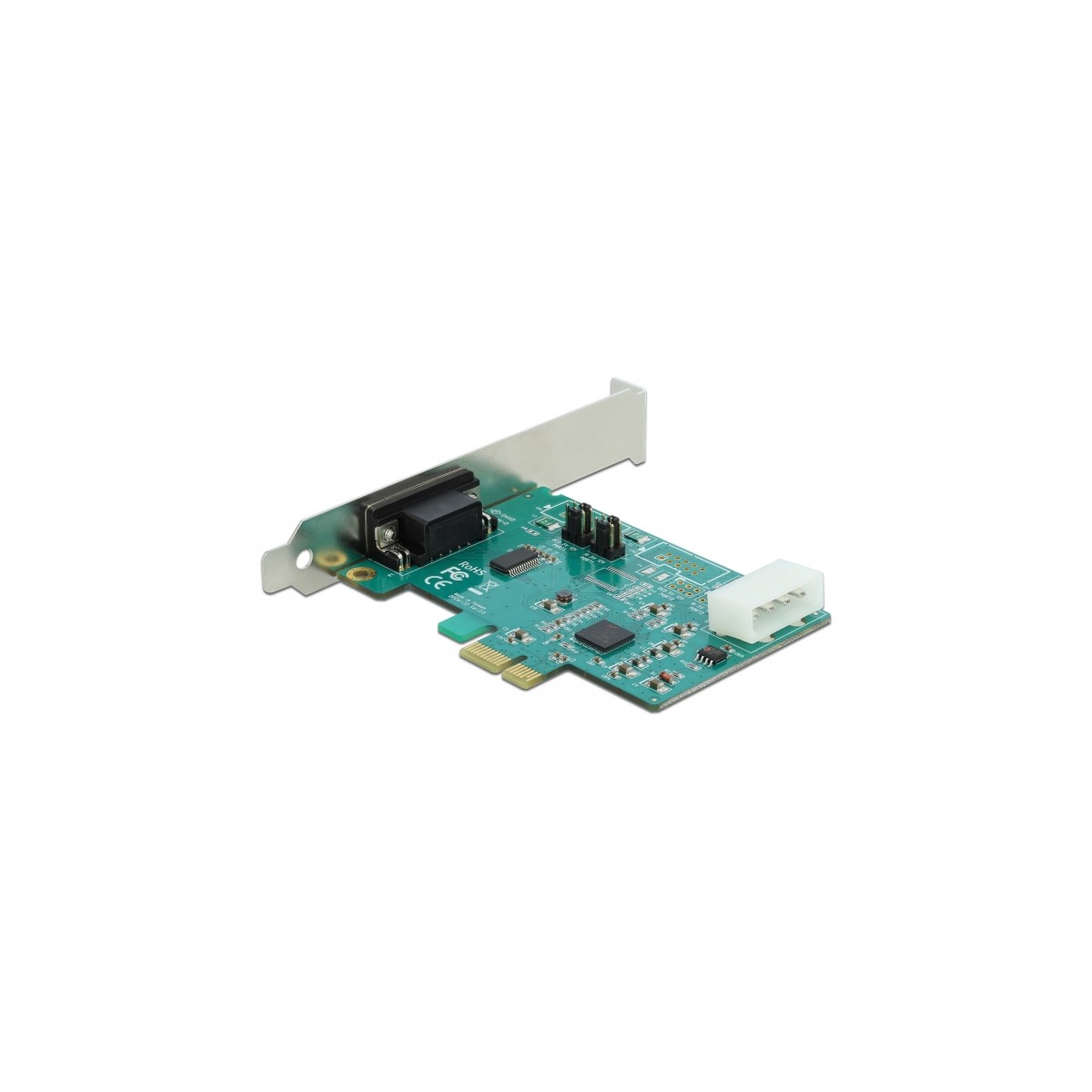

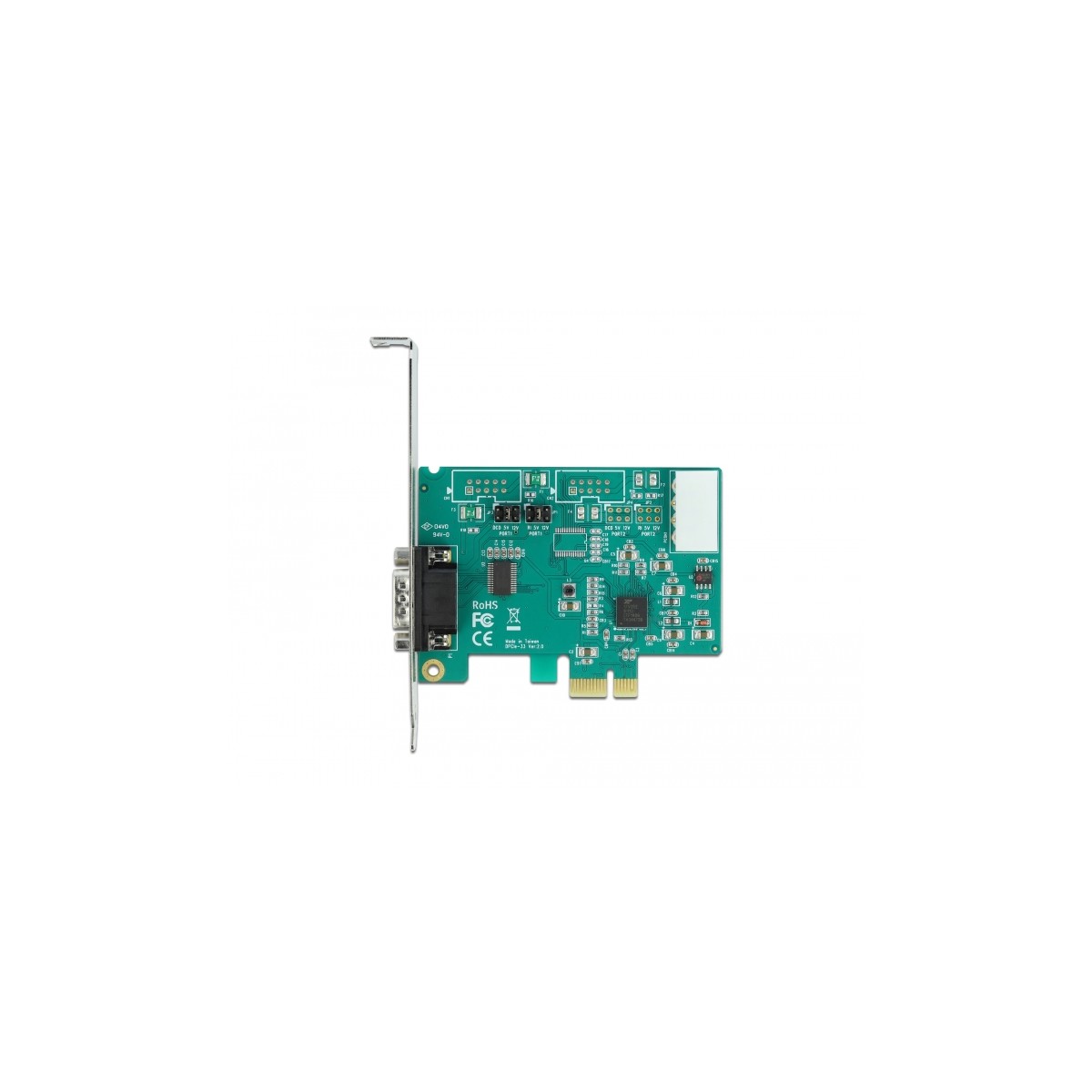

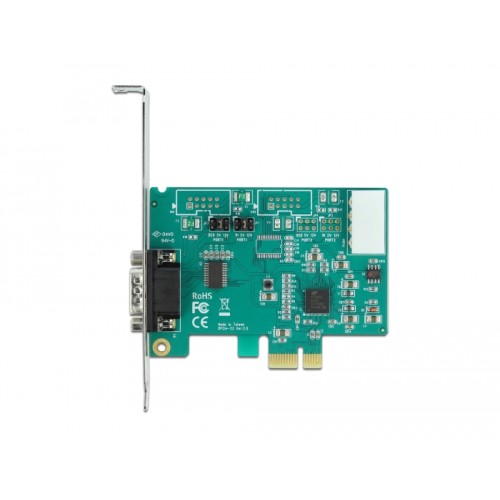

Delock PCI Express x1 Card to 1 x Serial RS-232 High Speed 921K with Voltage supply
89333
Nuovo
Description
The Delock PCI Express card expands your system by one High Speed RS-232 port. Use this card for applications like data logging, machine control systems, automation, development or communication. By the extensive surge protection and the wide temperature range this card can be used in the industrial area. Connected devices can be supplied with voltage of 5 V or 12 V optionally.
Specification
• Chipset: Exar 17V352
• Connector:
external:
1 x Serial RS-232 D-Sub 9 Pin male
internal:
1 x PCI Express x1, V2.0
1 x 4 pin Molex power connector
• Baud rate: up to 921.6 Kb/s
• Compatible to 16C550 UART
• FIFO 256 Byte
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS / CTS, XON / XOFF
• Selectable voltage supply 5 V / 12 V on RI of pin 9 and DCD of pin 1
• Electrical power per port: 2.5 watt (5 V / 0.5 A)
• Electrical power per port: 6 watt (12 V / 0.5 A)

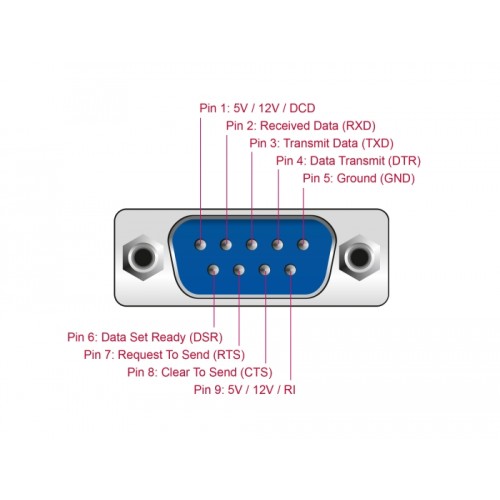

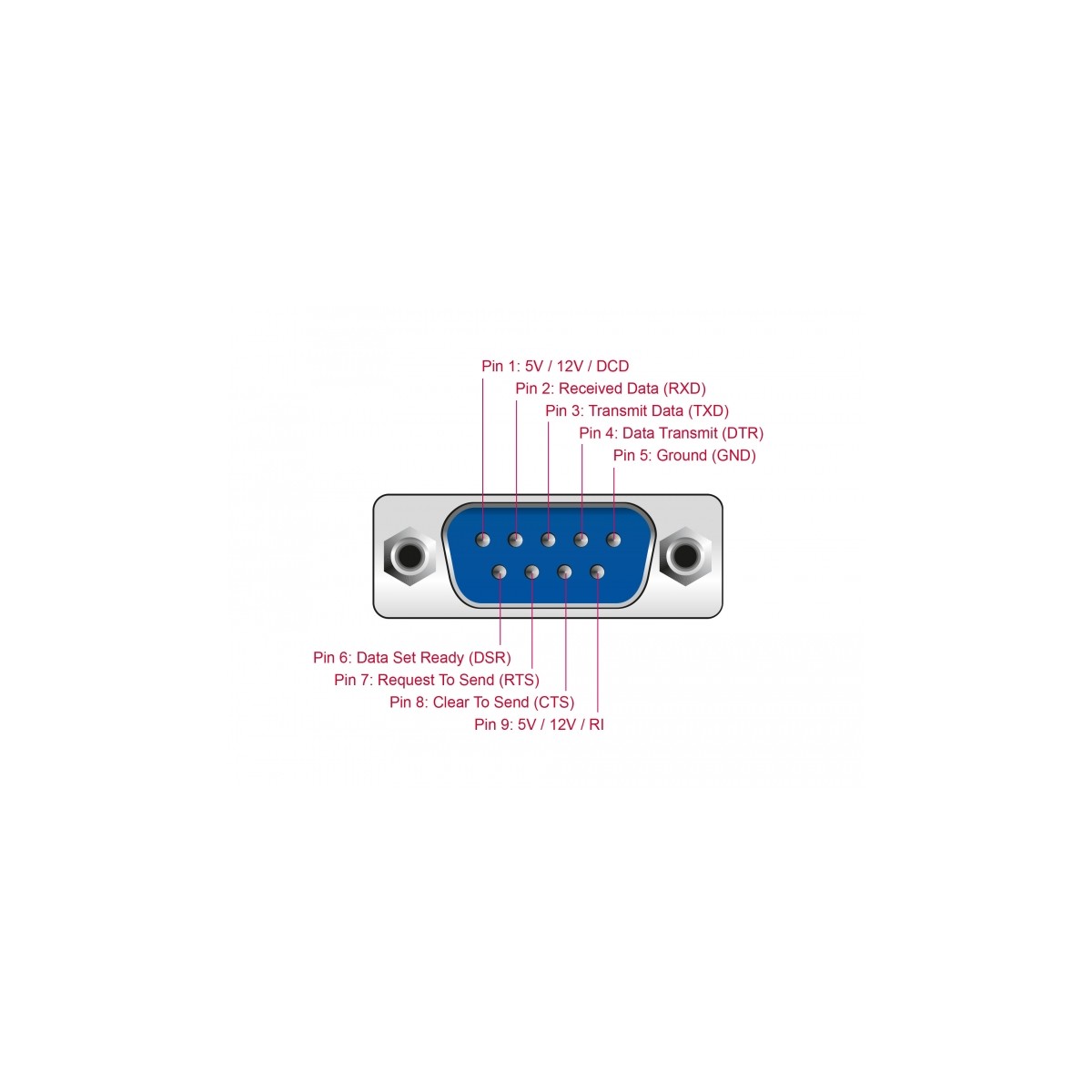

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Operating temperature: -30 °C ~ +75 °C
• Storage temperature: -40 °C ~ +85 °C
• Ambient relative humidity max. 95 % (non-condensing)
• 15 kV ESD protection for all signals
• I/O address and IRQ assigned by the system
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6
• PC with a free PCI Express slot
• Power supply with a free Molex power connector
Package content
• PCI Express card

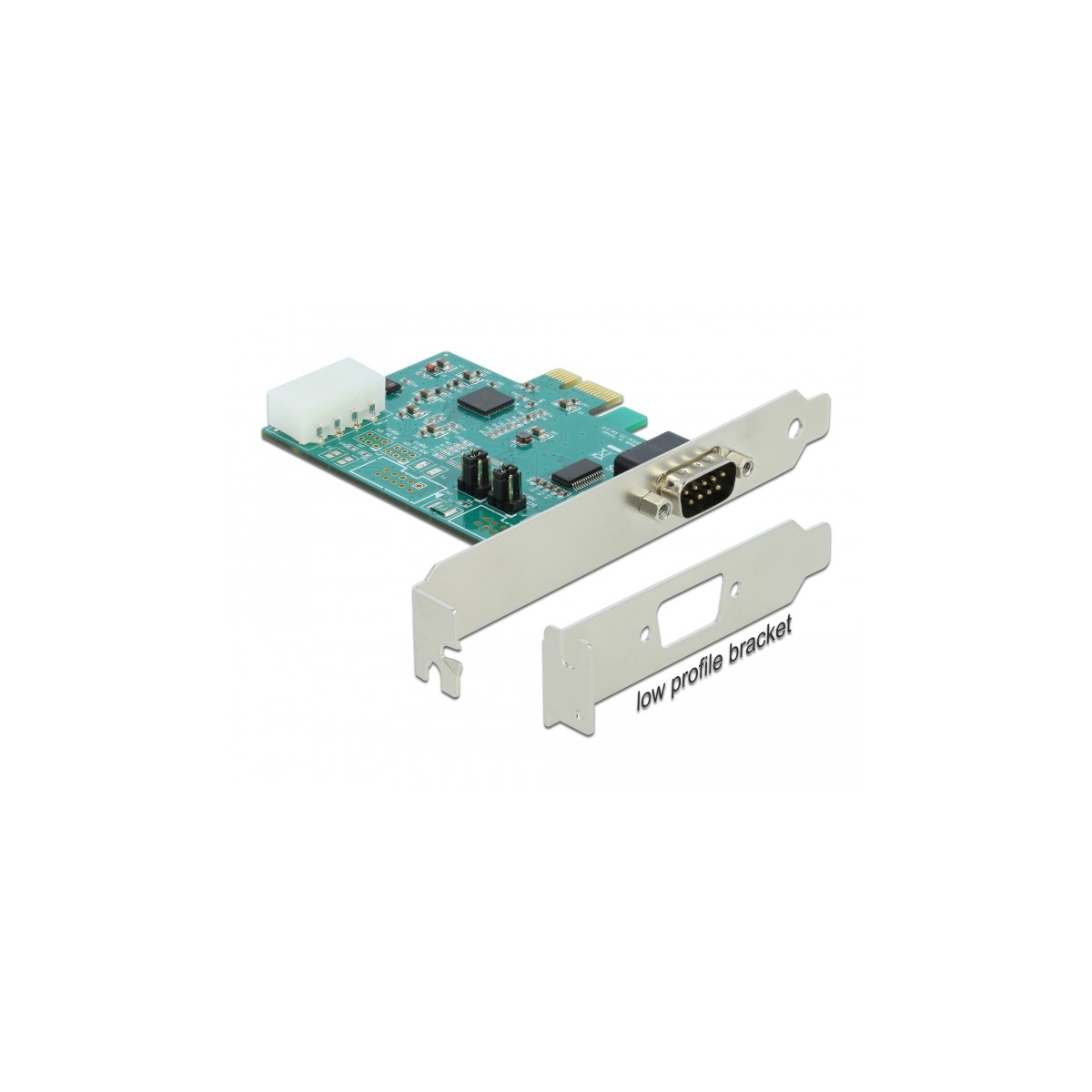

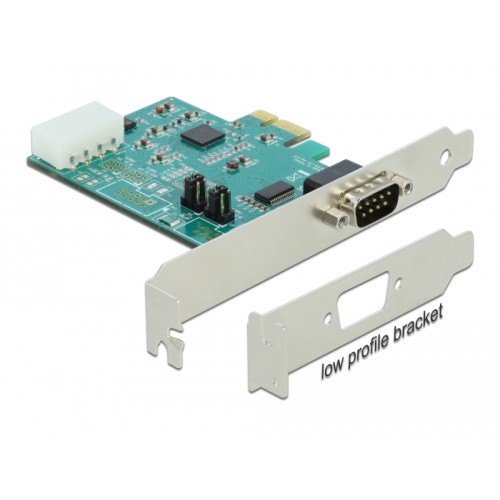

• Low profile bracket
• Driver CD
• User manual
