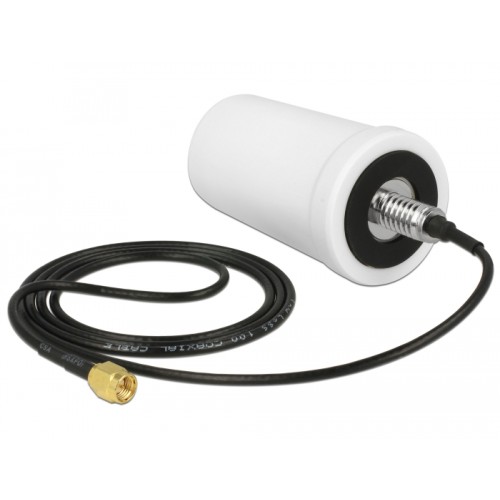

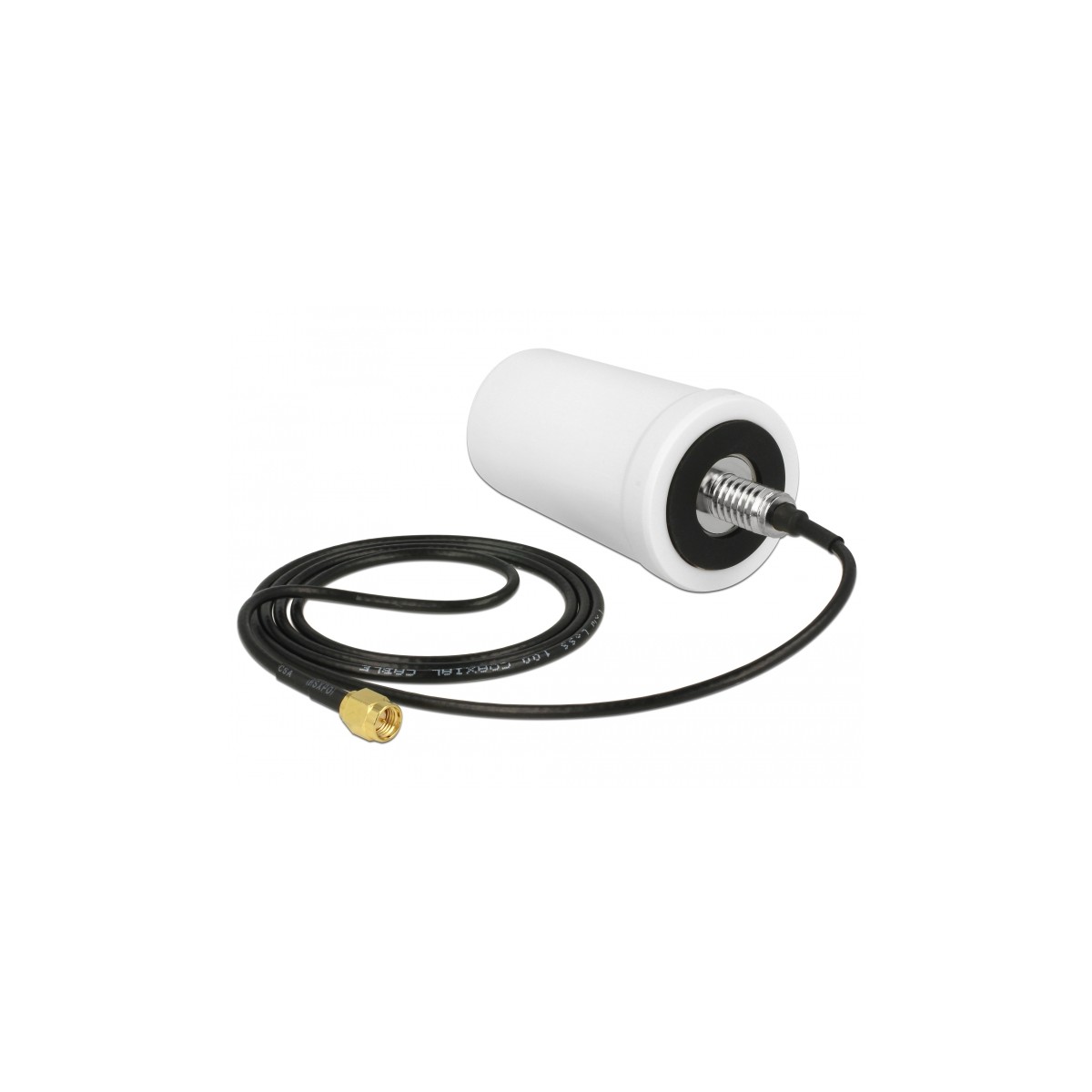

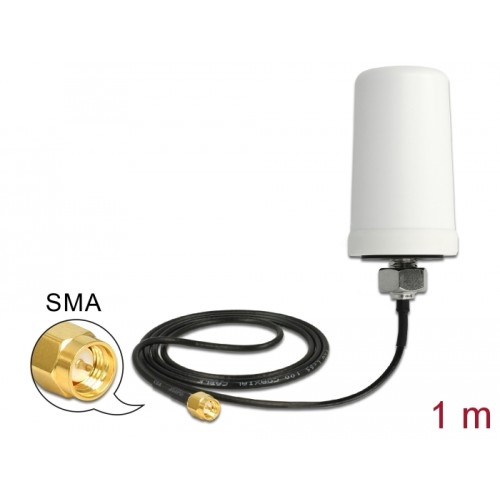

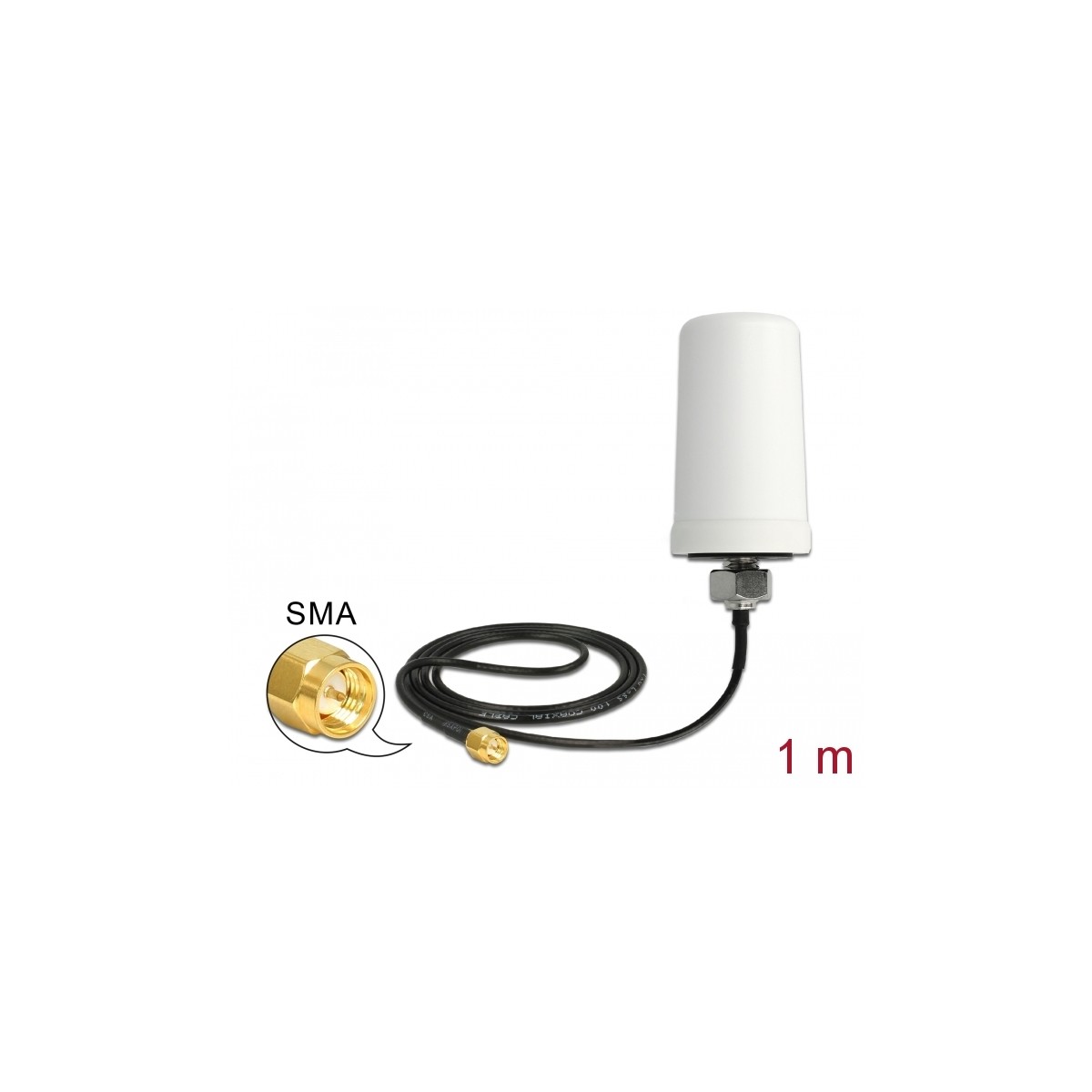

Delock LTE Antenna SMA plug 1.7 - 2.0 dBi ULA100 1 m omnidirectional fixed outdoor white
12545
Nuovo
Description
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification
• Connector: 1 x SMA plug
• Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
• GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT,
TETRA
• Antenna gain:
698 - 960 MHz: 1.7 dBi
1710 - 2170 MHz: 1.7 dBi
2300 - 2700 MHz: 2.0 dBi
• VSWR:
698 - 960 MHz: 6.0
1710 - 2170 MHz: 2.5
2300 - 2700 MHz: 2.5
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.8 mm
• Cable attenuation: 0.98 dB @ 1500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connectors: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification
• Connector: 1 x SMA plug
• Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
• GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT,
TETRA
• Antenna gain:
698 - 960 MHz: 1.7 dBi
1710 - 2170 MHz: 1.7 dBi
2300 - 2700 MHz: 2.0 dBi
• VSWR:
698 - 960 MHz: 6.0
1710 - 2170 MHz: 2.5
2300 - 2700 MHz: 2.5
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.8 mm
• Cable attenuation: 0.98 dB @ 1500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connectors: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
Nuovo
4043619125456
