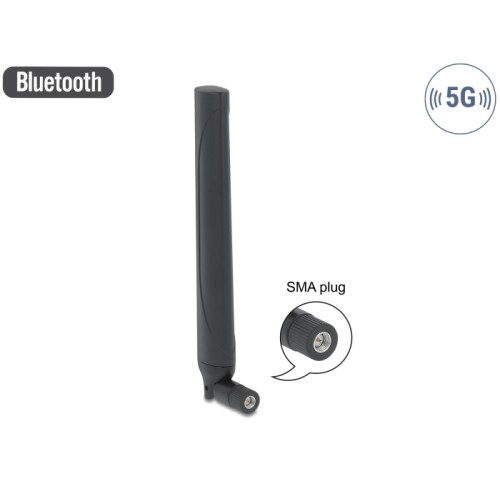

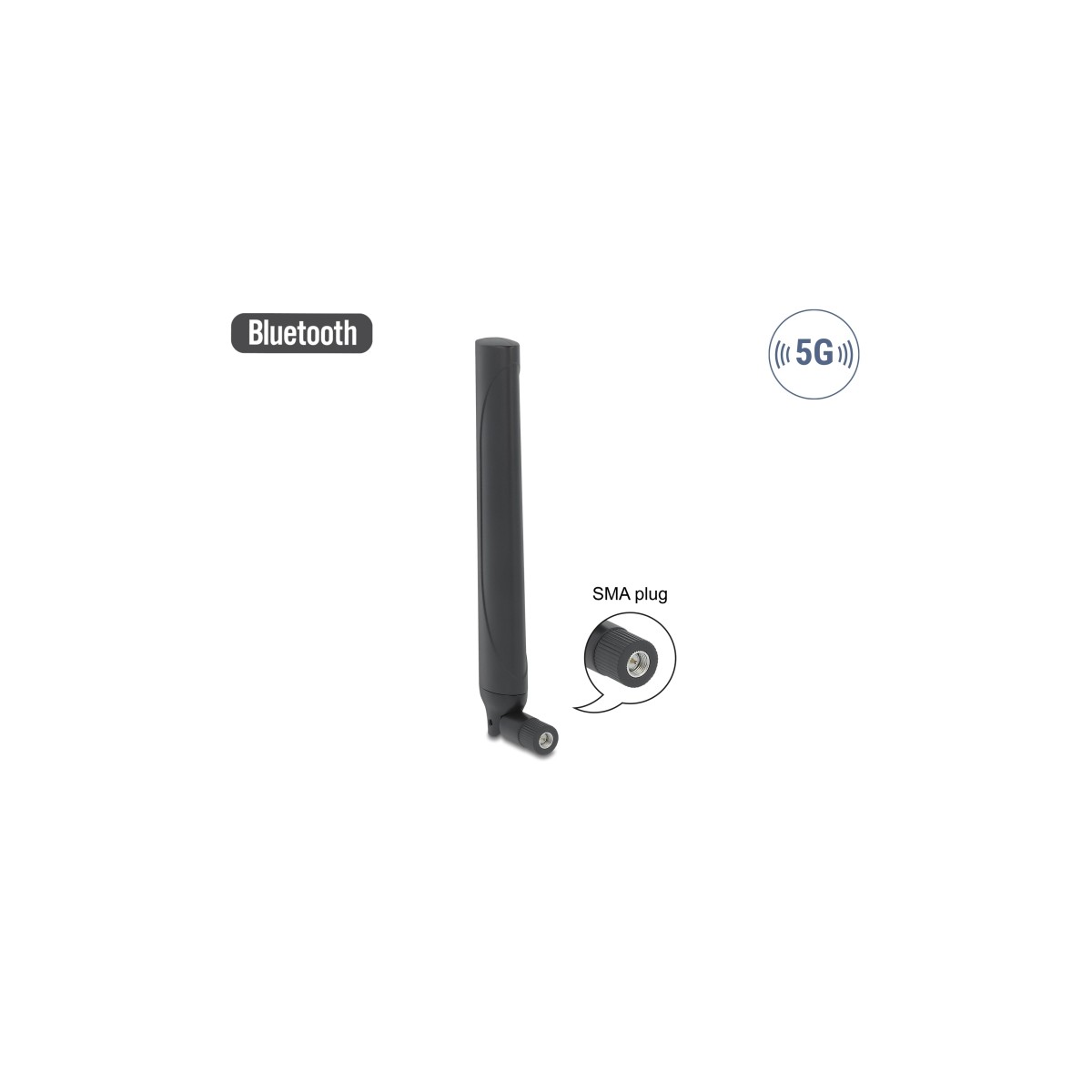

Delock 5G LTE Antenna SMA plug -0.5 - 2.3 dBi omnidirectional with tilt joint black
12633
Nuovo
Description
This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.
Specification
• Connector: 1 x SMA plug
• GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
617 - 798 MHz
803 - 960 MHz
1452 - 1496 MHz
1710 - 2270 MHz
2300 - 2690 MHz
3300 - 3800 MHz
4200 - 5000 MHz
• Antenna gain: -0.53 - 2.3 dBi
• Impedance: 50 Ohm
• VSWR: 4.0 - 3.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 197.00 x 28.00 x 13.50 mm
System requirements
• Device with a free SMA connector
Package content
• Antenna
