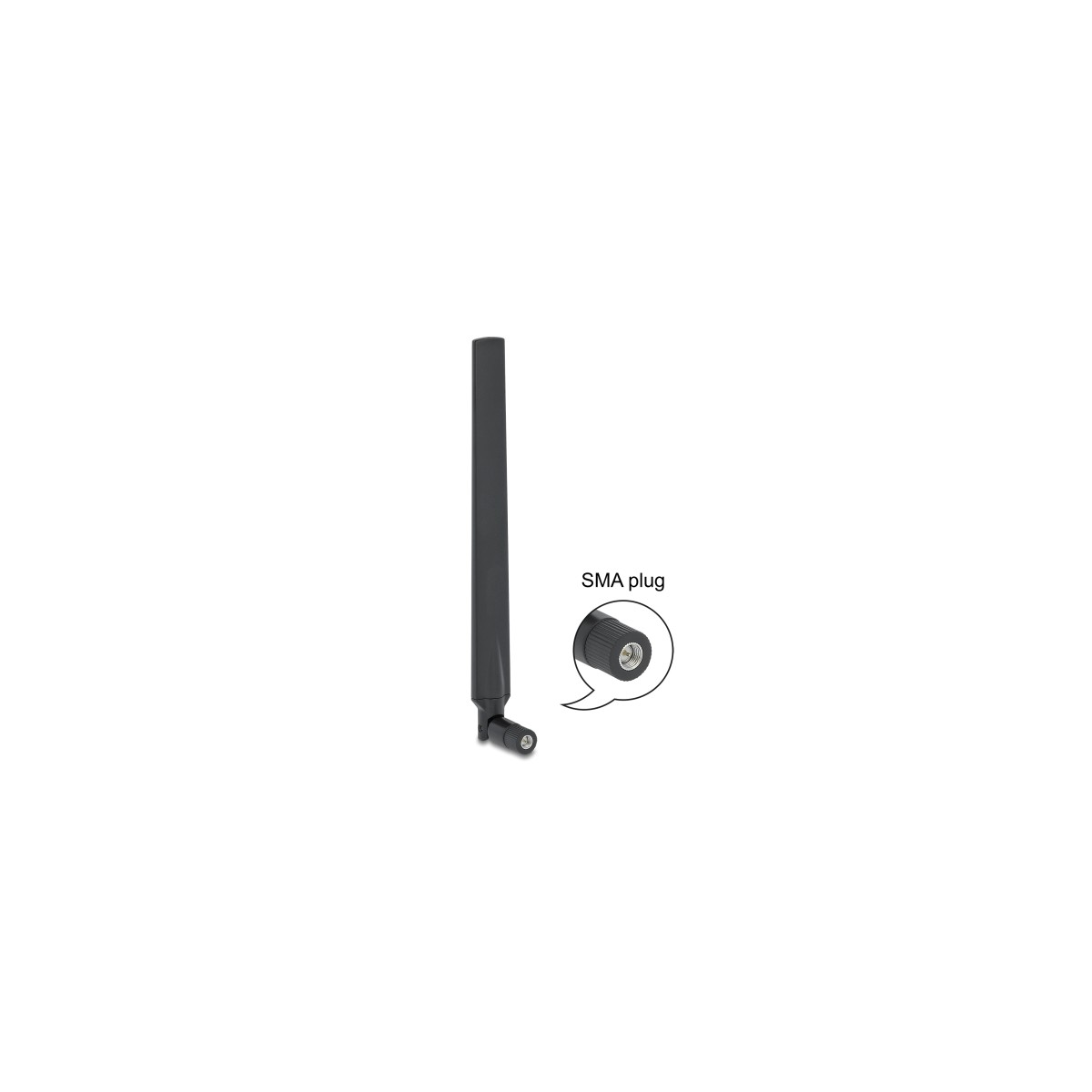

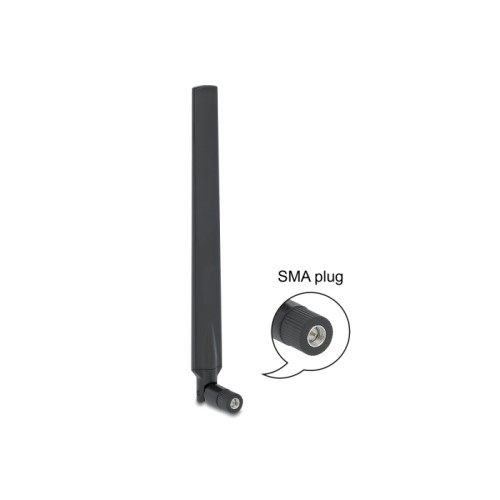

Delock LTE Antenna SMA plug 1.9 - 2.3 dBi omnidirectional with tilt joint black
12635
Nuovo
Description
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
Specification
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
698 - 791 MHz
824 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
• Antenna gain: 1.9 - 2.3 dBi
• Impedance: 50 Ohm
• VSWR: 2.5 - 4.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 231.10 x 21.60 x 5.50 mm
System requirements
• Device with a free SMA connector
Package content
• Antenna
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
Specification
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
698 - 791 MHz
824 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
• Antenna gain: 1.9 - 2.3 dBi
• Impedance: 50 Ohm
• VSWR: 2.5 - 4.0
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Dimensions (LxWxH): ca. 231.10 x 21.60 x 5.50 mm
System requirements
• Device with a free SMA connector
Package content
• Antenna
