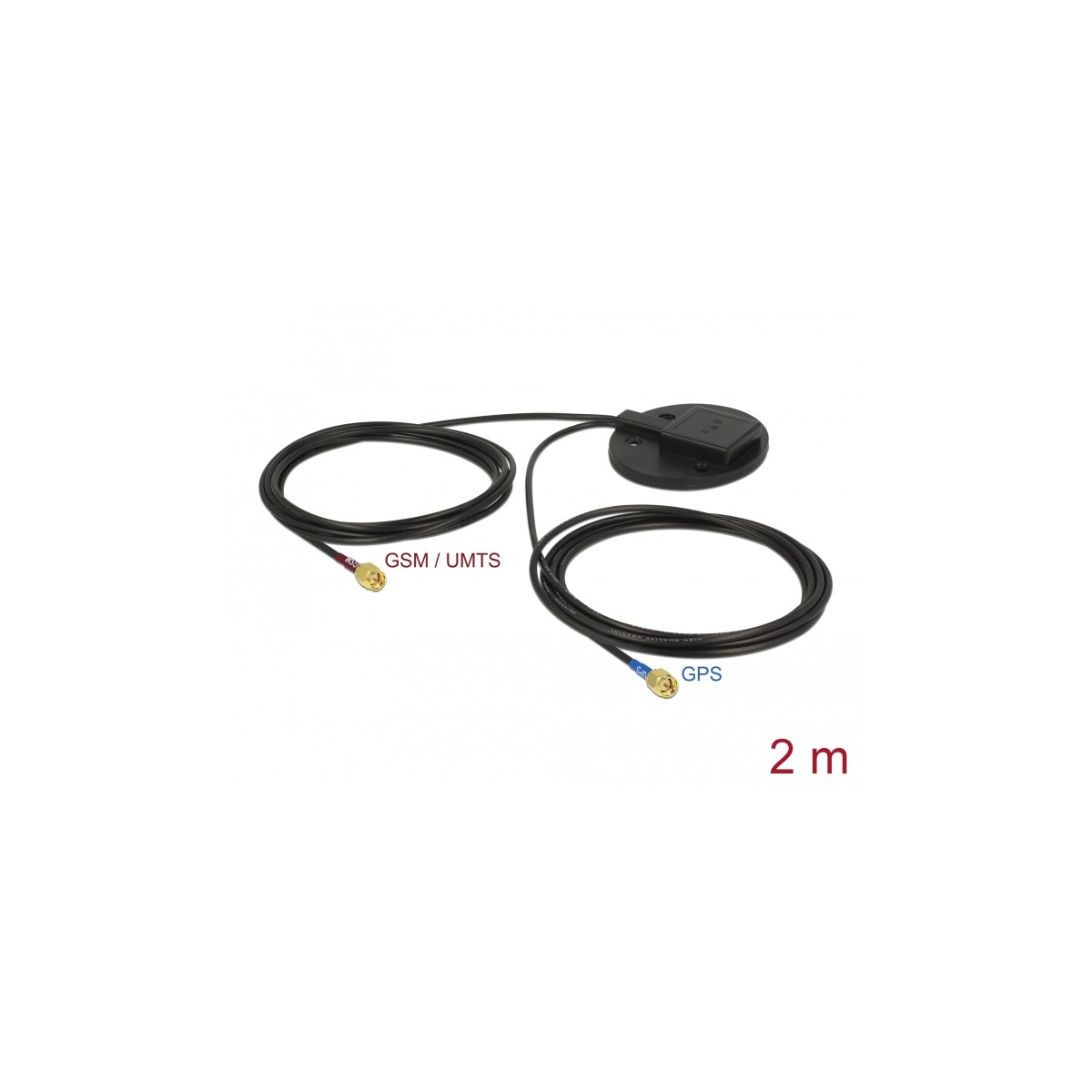

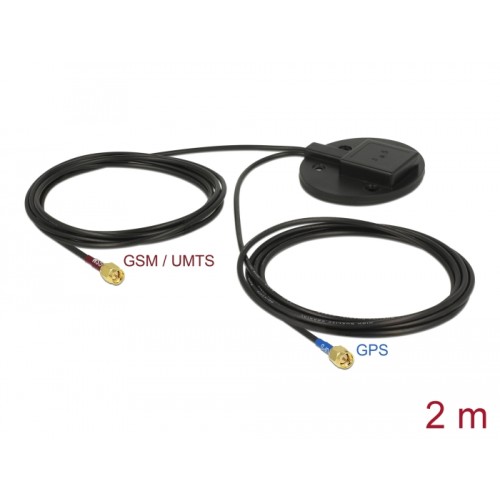

Navilock Multiband GNSS UMTS GSM LTE SMA 28 dBi / 2 dBi 2 x 2 m RG-174 Antenna omnidirectional mounting plate
89489
Nuovo
Description
This multi-band antenna by Navilock has two physically separated transmitting and receiving units. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS. One PIFA antenna for GSM / UMTS / LTE is responsible for transmitting and receiving in these ranges.
Specification
• Connectors: 2 x SMA plug
• GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Antenna gain: 3 dBi
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Gain: 28 dBi
Noise figure: 1.5 dB
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
Impedance: 50 Ohm
• LTE GSM UMTS:
Frequency range:
0.824 - 0.960 GHz
1.710 - 2.170 GHz
LTE Band: 1-6/ 8-10/ 19/ 25/ 33-37/ 39
GSM / UMTS / ZigBee / Z-Wave
Antenna gain: 2 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: none
• Screw assembly
• Colour: black
• Dimension (ØxH): ca. 77 x 14 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation:
1.5 dBi @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 2 m
System requirements
• Device with free SMA connectors
Package content
• Multiband antenna
This multi-band antenna by Navilock has two physically separated transmitting and receiving units. The GPS patch antenna receives the signals of the Global Navigation Satellite System GPS. One PIFA antenna for GSM / UMTS / LTE is responsible for transmitting and receiving in these ranges.
Specification
• Connectors: 2 x SMA plug
• GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Antenna gain: 3 dBi
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Gain: 28 dBi
Noise figure: 1.5 dB
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
Impedance: 50 Ohm
• LTE GSM UMTS:
Frequency range:
0.824 - 0.960 GHz
1.710 - 2.170 GHz
LTE Band: 1-6/ 8-10/ 19/ 25/ 33-37/ 39
GSM / UMTS / ZigBee / Z-Wave
Antenna gain: 2 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: none
• Screw assembly
• Colour: black
• Dimension (ØxH): ca. 77 x 14 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation:
1.5 dBi @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 2 m
System requirements
• Device with free SMA connectors
Package content
• Multiband antenna
