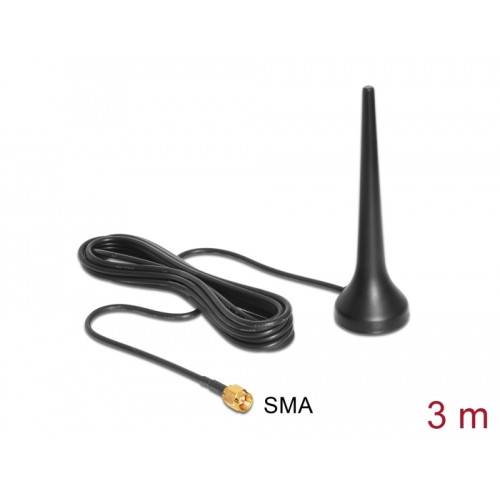

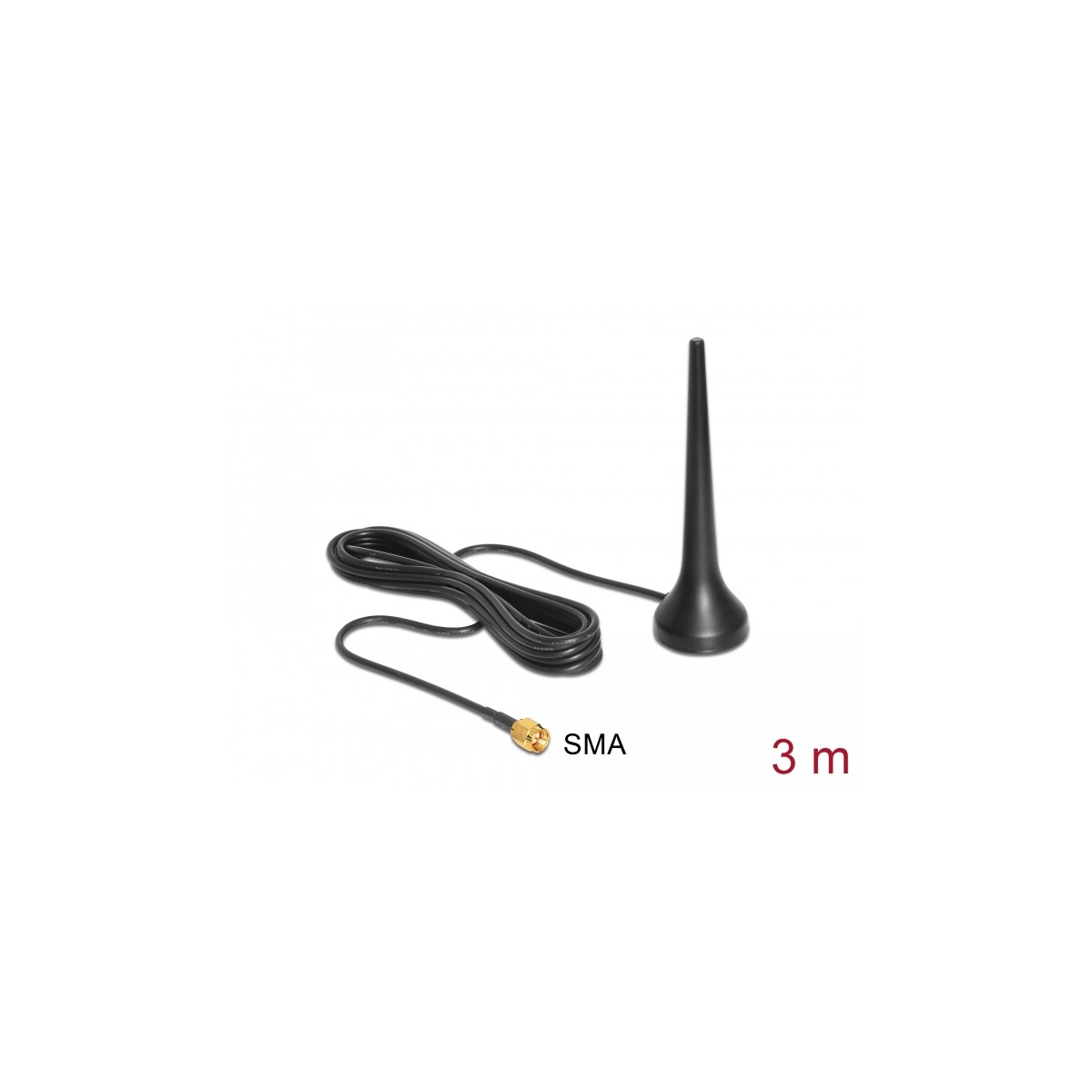

Delock GSM UMTS Sixband Antenna SMA 0 dBi omnidirectional with magnetic base fixed black
88690
Nuovo
Description
This GSM UMTS LTE antenna by Delock allows the use of different frequency bands indoors.
Specification
• Connector: 1 x SMA plug
• Frequency range: 824 - 960 / 1710 - 1990 - 2200 / 2400 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear vertical
• VSWR: 2.0
• Operation temperature: -10 °C ~ 75 °C
• Antenna housing: ABS
• Colour: black
• Antenna length: 103.30 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,8 dB @ 1.8 GHz per meter
• Cable diameter: 2.7 mm
• Diameter magnetic base: 32 mm
• Cable length incl. connector: ca. 3 m
System requirements
• Device with free SMA connector
Package content
• GSM UMTS antenna
This GSM UMTS LTE antenna by Delock allows the use of different frequency bands indoors.
Specification
• Connector: 1 x SMA plug
• Frequency range: 824 - 960 / 1710 - 1990 - 2200 / 2400 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear vertical
• VSWR: 2.0
• Operation temperature: -10 °C ~ 75 °C
• Antenna housing: ABS
• Colour: black
• Antenna length: 103.30 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,8 dB @ 1.8 GHz per meter
• Cable diameter: 2.7 mm
• Diameter magnetic base: 32 mm
• Cable length incl. connector: ca. 3 m
System requirements
• Device with free SMA connector
Package content
• GSM UMTS antenna
Nuovo
4043619886906
