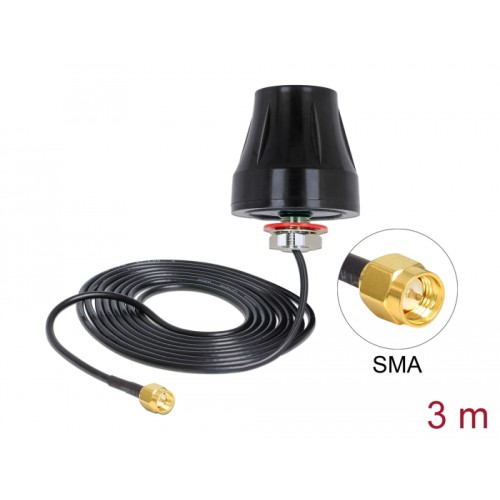

Delock LTE Antenna SMA 2 dBi 3 m RG-174 omnidirectional black outdoor
88749
Nuovo
Description
This LTE antenna can be installed indoors or outdoors and is suitable for all listed bands of LTE. The antenna is fully compatible with GSM, UMTS, WLAN 2.4 GHz, ZigBee, Z-Wave and Bluetooth.
Specification
• Gain: 2 dBi
• Polarisation: linear vertical
• Impedanz: 50 Ohm
• VSWR:
2.0 max. @ 694~960 MHz/ 1710~2170 MHz
3.0 max. @ 2400~2700 MHz
• Dimension:
height: 48 mm
diameter: 50 mm
• Screw mounting 12 mm central hole
• Cable length: 3 m
• Cable type: RG-174
• Cable attenuation: ca. 1 dB/m @ 1 GHz
• Connector: SMA plug
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• IP 67
System requirements
Package content
• LTE antenna
• Nut, washer
This LTE antenna can be installed indoors or outdoors and is suitable for all listed bands of LTE. The antenna is fully compatible with GSM, UMTS, WLAN 2.4 GHz, ZigBee, Z-Wave and Bluetooth.
Specification
• LTE Band: 1-10, 12-20, 23, 25-30, 33-41, 44
• Frequenzy range: 694 - 960 MHz, 1710 - 2700 Mhz
• GSM: 710/750/810/850/1800/1900
• GSM: 710/750/810/850/1800/1900
• P-GSM: 900
• R-GSM: 900
• T-GSM: 810/900
• UMTS: Band I-X/XII-XIV/XIX
• WLAN 2,4 GHz
• ZigBee
• Z-Wave
• Bluetooth• Gain: 2 dBi
• Polarisation: linear vertical
• Impedanz: 50 Ohm
• VSWR:
2.0 max. @ 694~960 MHz/ 1710~2170 MHz
3.0 max. @ 2400~2700 MHz
• Dimension:
height: 48 mm
diameter: 50 mm
• Screw mounting 12 mm central hole
• Cable length: 3 m
• Cable type: RG-174
• Cable attenuation: ca. 1 dB/m @ 1 GHz
• Connector: SMA plug
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• IP 67
System requirements
Package content
• LTE antenna
• Nut, washer
