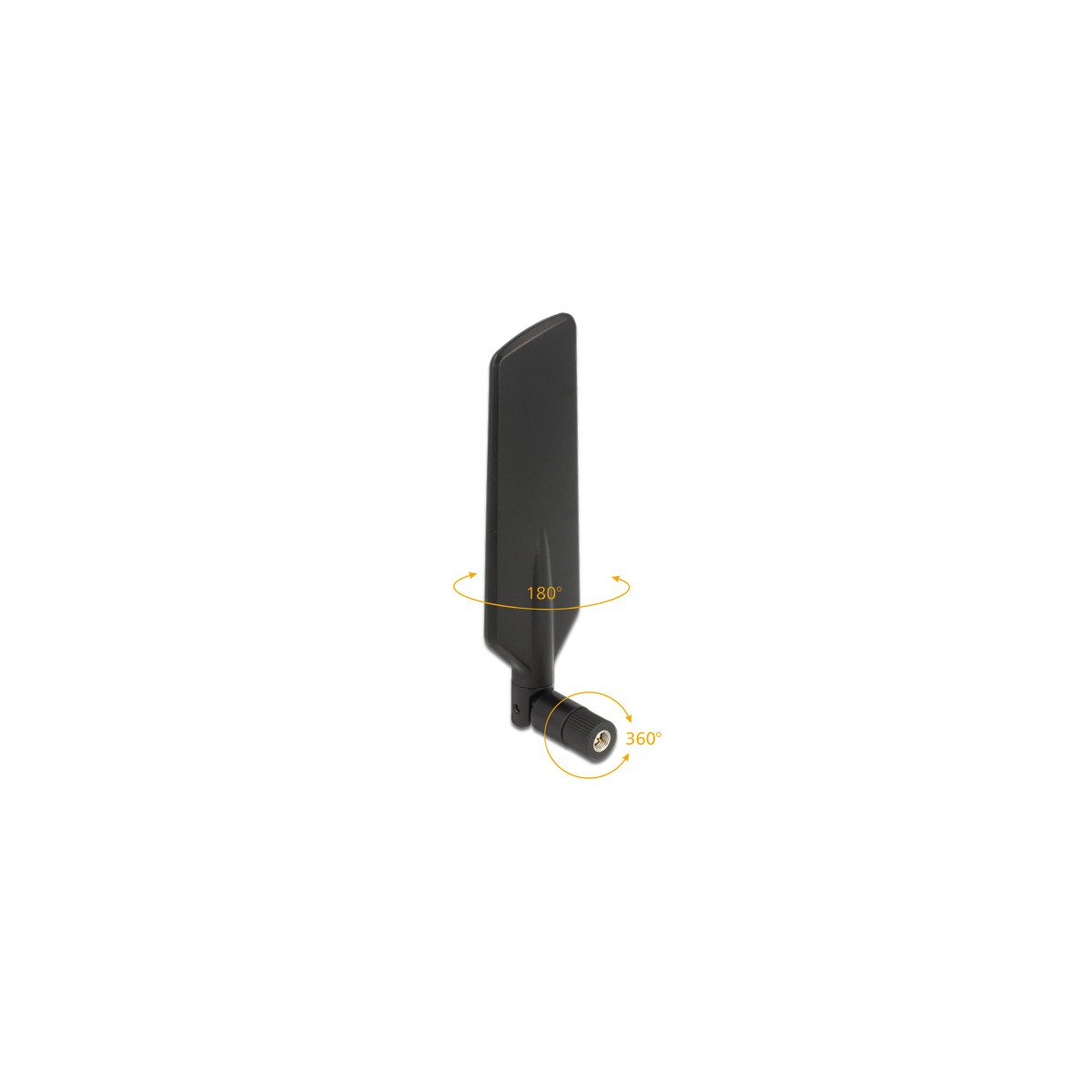

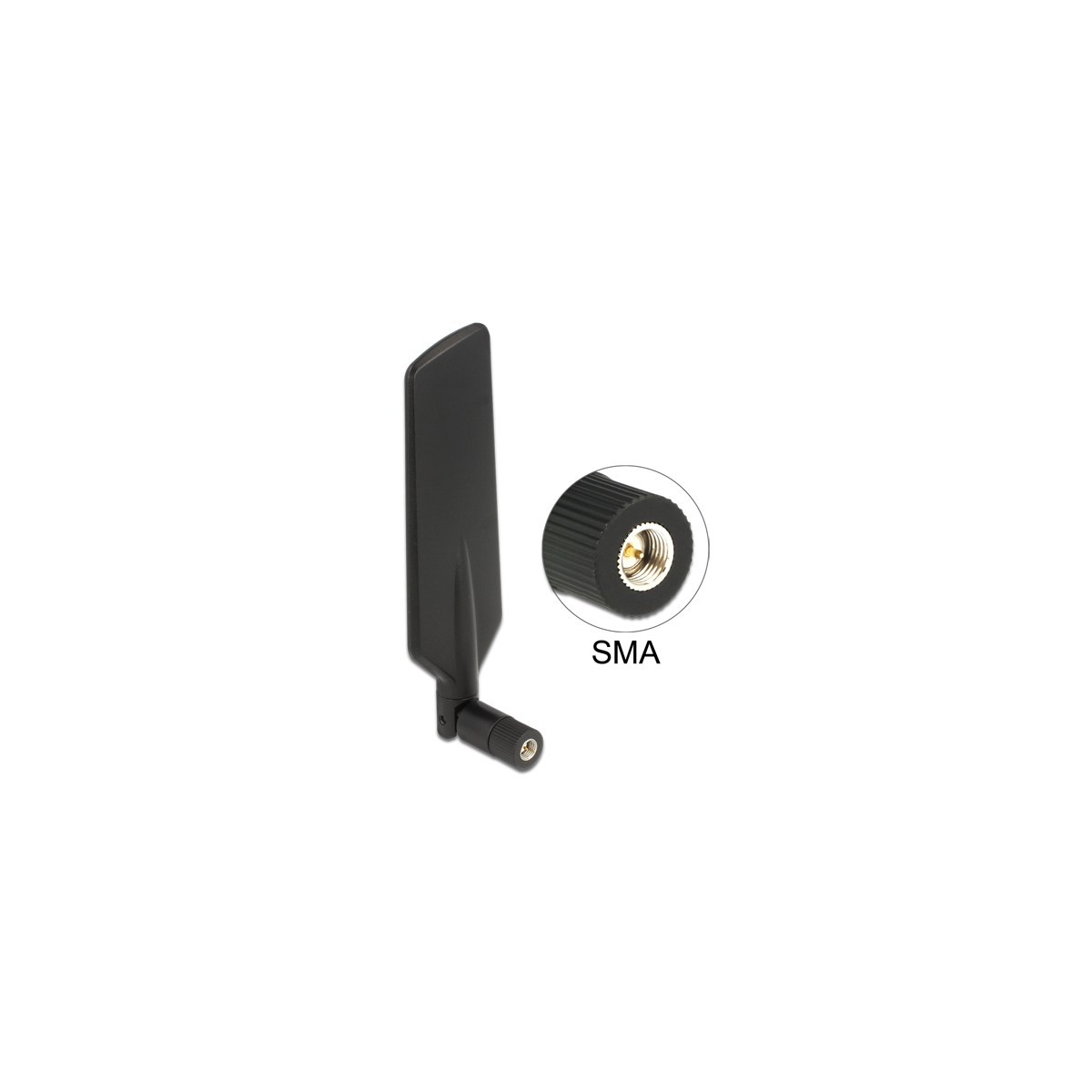

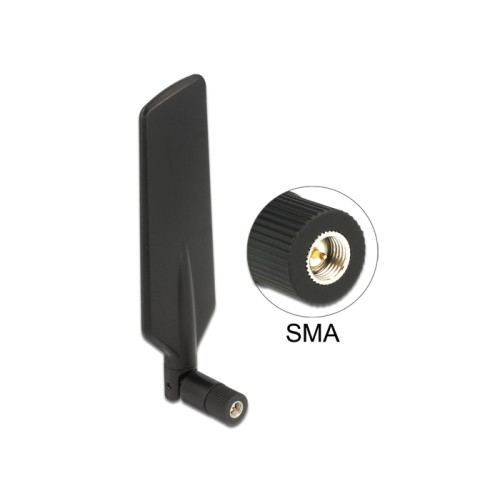

Delock LTE Antenna SMA plug 0.5 - 3 dBi omnidirectional rotatable with tilt joint black
88978
Nuovo
Description
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
Specification
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 0.5 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 3.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Dimensions (LxWxH): ca. 156.16 x 39.78 x 13.50 mm
• Diameter SMA: ca. 13.5 mm
System requirements
• Device with a free SMA connector
Package content
• LTE antenna
This LTE antenna by Delock allows the usage of different LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
Specification
• Connector: 1 x SMA plug
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 0.5 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 3.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Dimensions (LxWxH): ca. 156.16 x 39.78 x 13.50 mm
• Diameter SMA: ca. 13.5 mm
System requirements
• Device with a free SMA connector
Package content
• LTE antenna
Nuovo
4043619889785
