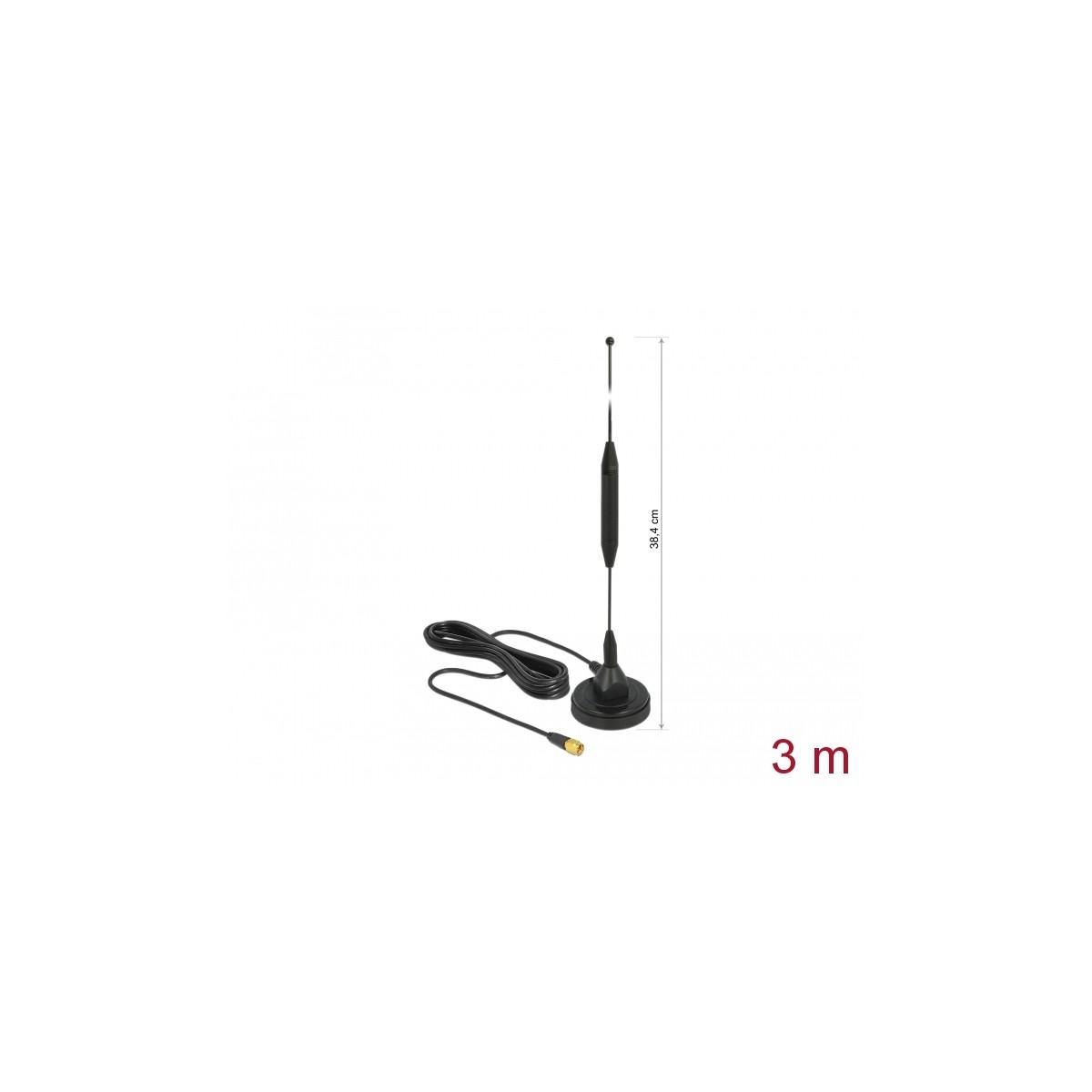

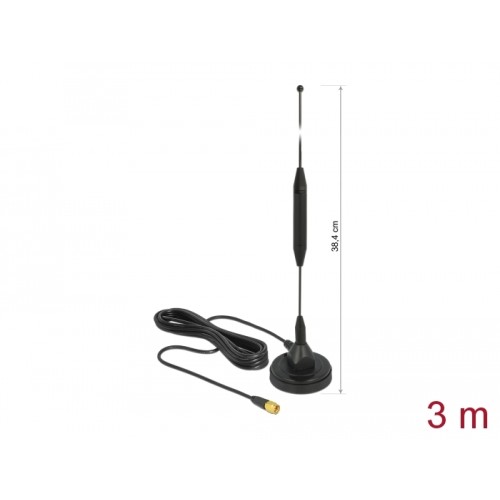

Delock GSM Antenna SMA plug 3.5 dBi fixed omnidirectional with magnetic base and connection cable RG-174 3 m outdoor black
12423
Nuovo
Description
This GSM antenna by Delock allows the usage of different GSM bands inside and outside. It is completely compatible to GSM, UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range:
824 - 960 MHz
1710 - 2200 MHz
• UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3.5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Protection class: IP65
• Colour: black
• Antenna length including magnetic base: ca. 384.3 mm
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 50.0 mm
System requirements
• Device with a free SMA jack
Package content
• GSM antenna
This GSM antenna by Delock allows the usage of different GSM bands inside and outside. It is completely compatible to GSM, UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range:
824 - 960 MHz
1710 - 2200 MHz
• UMTS, ZigBee 868 MHz / 915 MHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3.5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Protection class: IP65
• Colour: black
• Antenna length including magnetic base: ca. 384.3 mm
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 50.0 mm
System requirements
• Device with a free SMA jack
Package content
• GSM antenna
Nuovo
4043619124237
