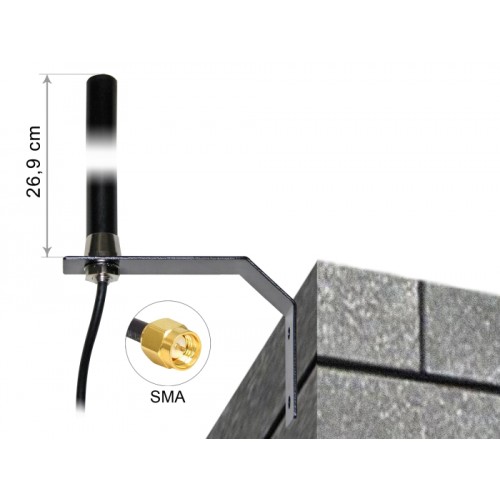

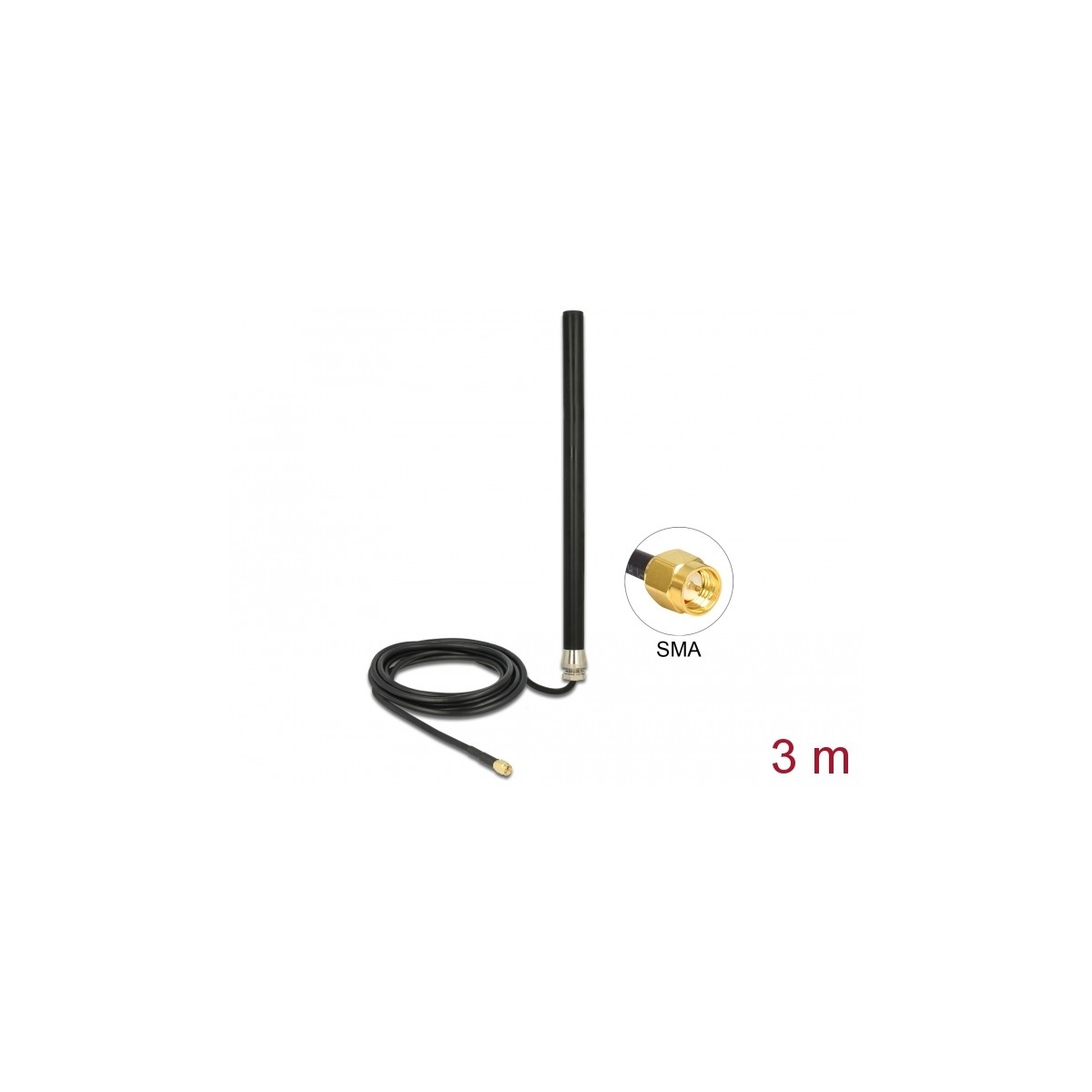

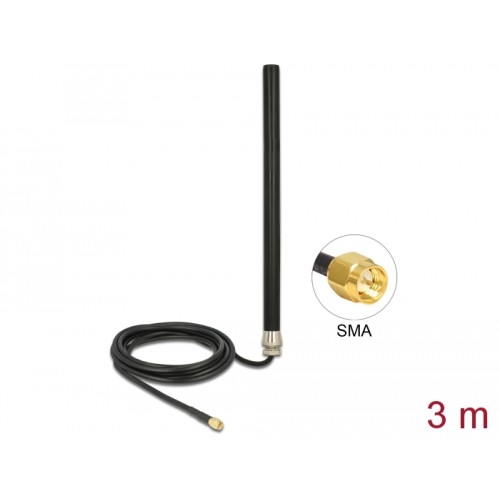

Delock LTE UMTS GSM Antenna SMA plug 3 dBi omnidirectional fixed with connection cable RG-58, 3 m wall mounting outdoor black
89529
Nuovo
Description
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range:
690 - 960 MHz
1710 - 2170 MHz
2400 - 2700 MHz
• ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Transmission power: max. 10 W
• Antenna type: rod antenna

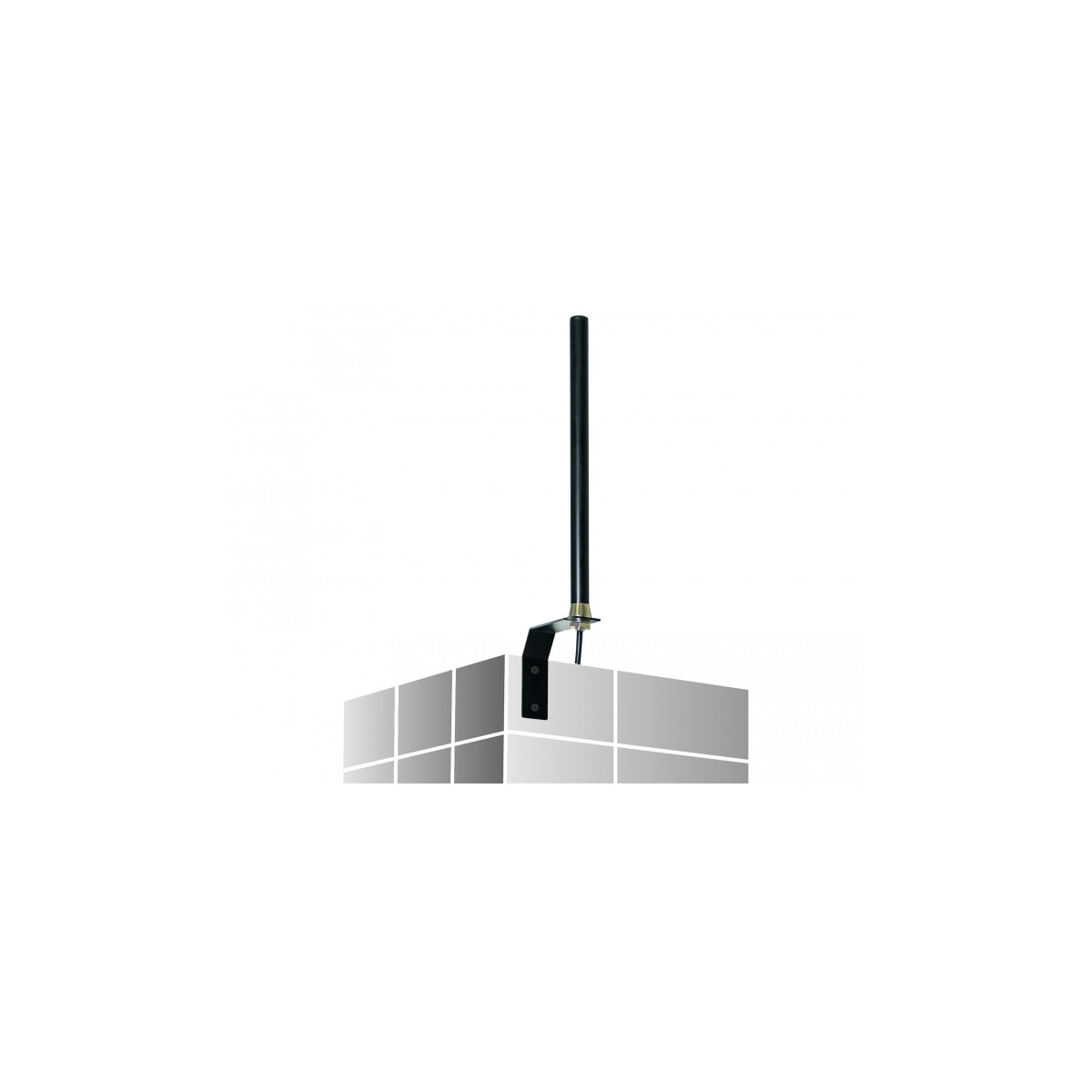

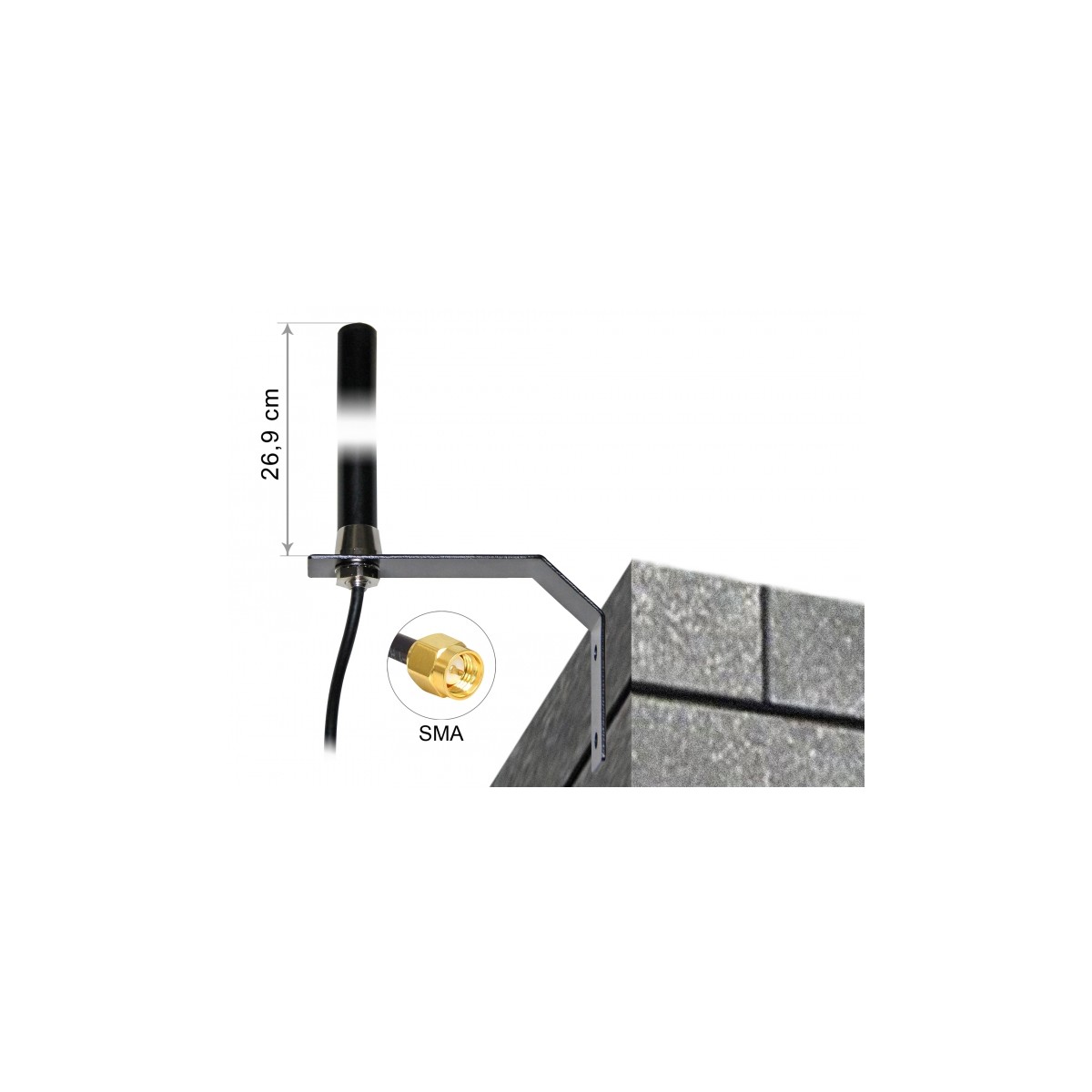

• Wall mounting brackets
• Operating temperature: -30 °C ~ 70 °C
• Housing material: plastic
• Base: metal
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable diameter: ca. 5 mm
• Cable attenuation: 0.57 dB @ 1 GHz per meter
• Cable length: ca. 3 m
• Dimensions (LxD): ca. 26.9 x 1.6 cm
System requirements
• Device with a free SMA jack
Package content
• Antenna
• Mounting brackets and screws
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range:
690 - 960 MHz
1710 - 2170 MHz
2400 - 2700 MHz
• ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Transmission power: max. 10 W
• Antenna type: rod antenna
• Wall mounting brackets
• Operating temperature: -30 °C ~ 70 °C
• Housing material: plastic
• Base: metal
• Colour: black
• Cable: coaxial
• Cable type: RG-58
• Cable colour: black
• Cable diameter: ca. 5 mm
• Cable attenuation: 0.57 dB @ 1 GHz per meter
• Cable length: ca. 3 m
• Dimensions (LxD): ca. 26.9 x 1.6 cm
System requirements
• Device with a free SMA jack
Package content
• Antenna
• Mounting brackets and screws
