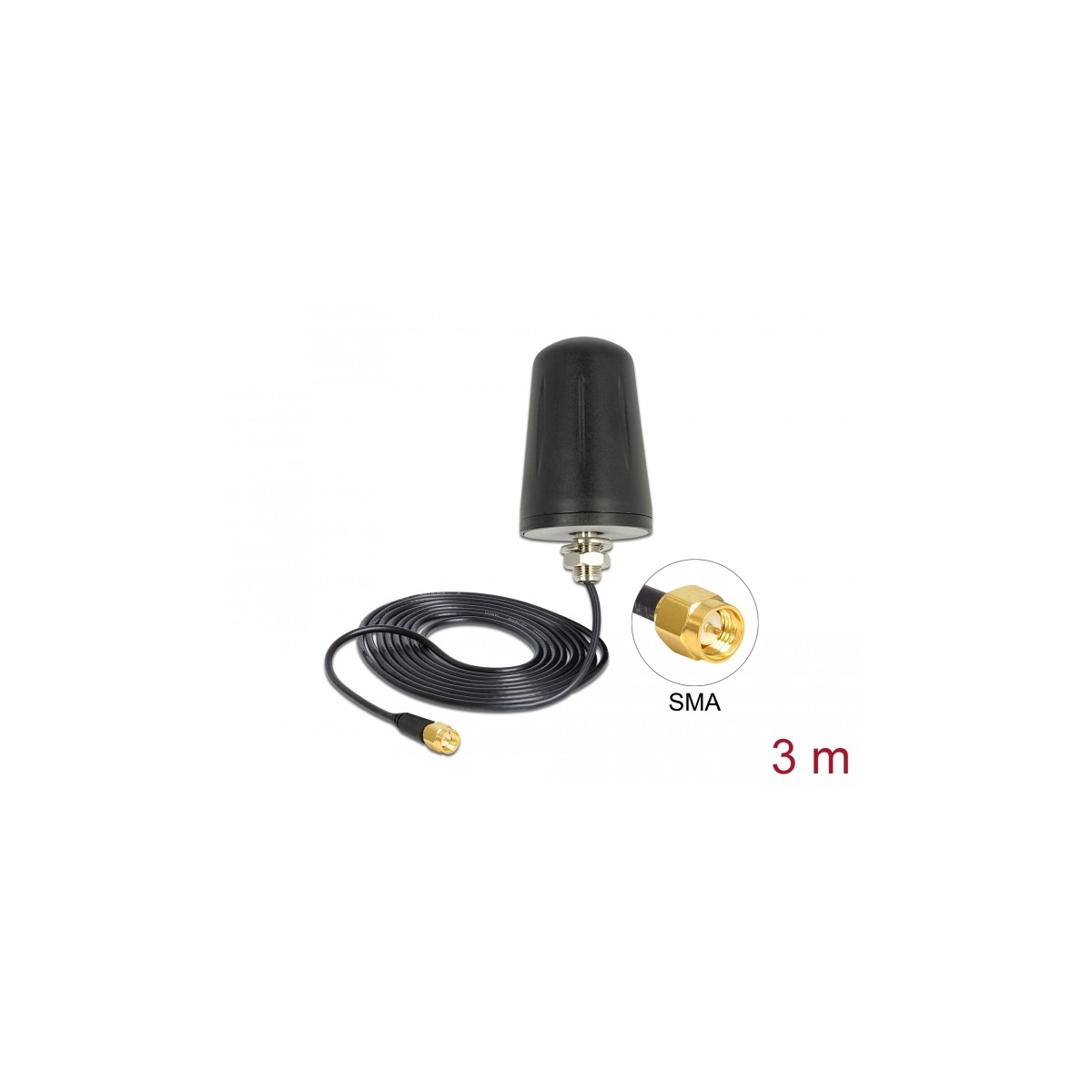

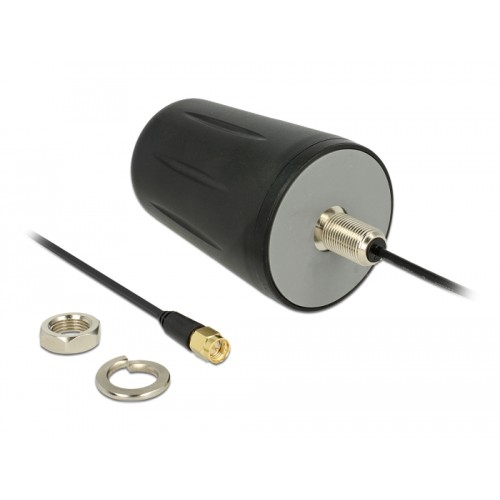

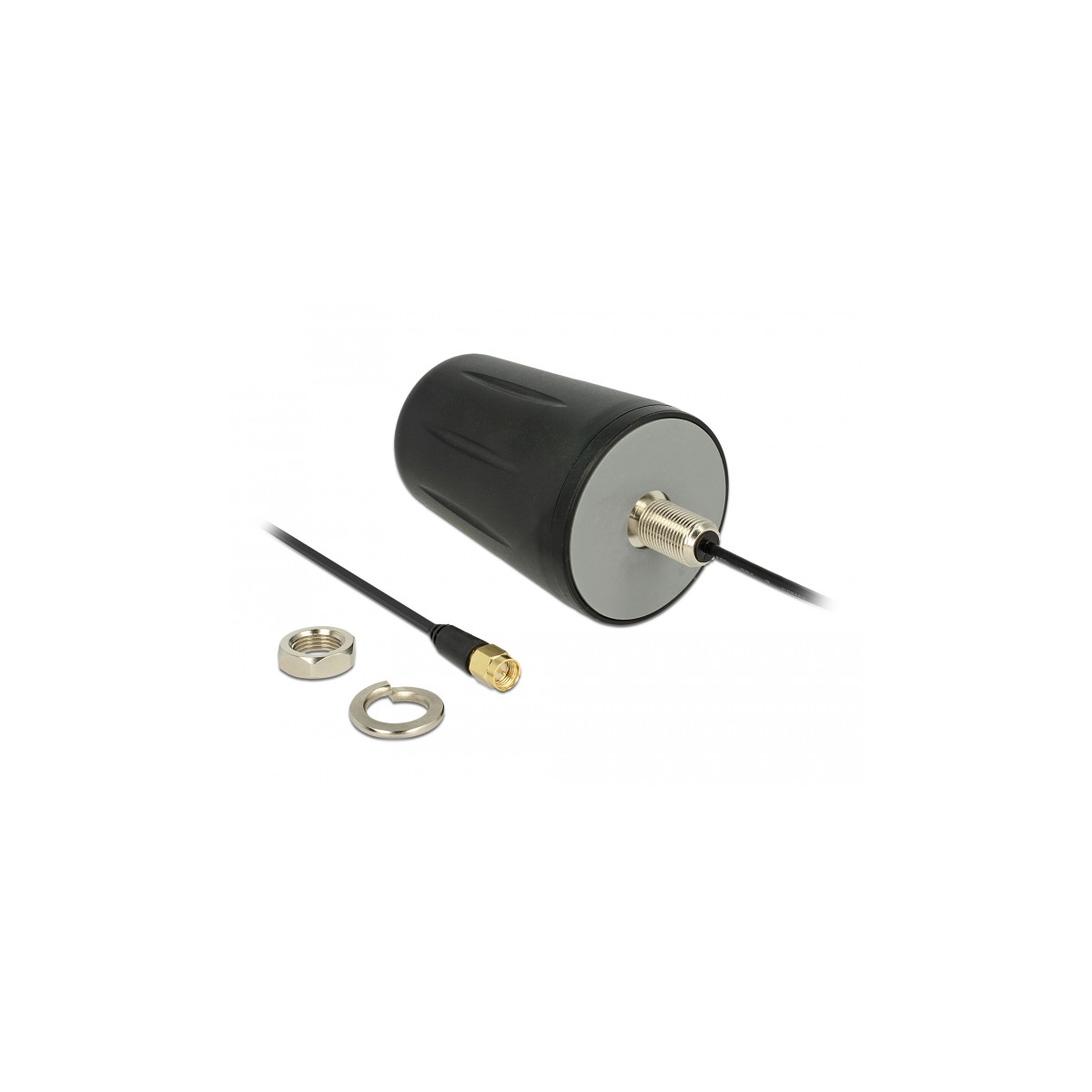

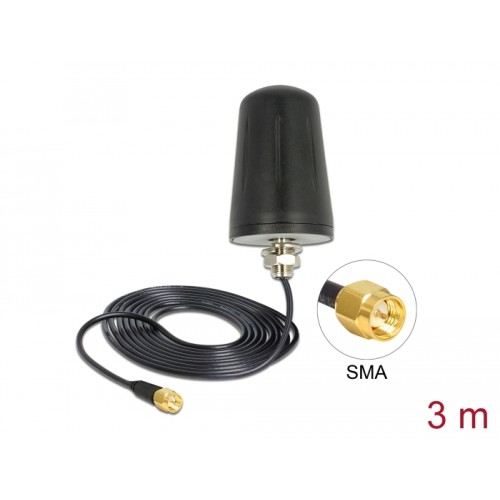

Delock LoRa Antenna 868 MHz SMA plug 0 dBi fixed omnidirectional with connection cable RG-174 3 m roof mounting outdoor black
89533
Nuovo
Description
This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors. It is completely compatible to ZigBee 868 MHz and Z-Wave 868 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing material: ABS UV resistant
• Screw mounting with 13.5 mm bore hole
• Thread length: 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.0 dB @ 868 MHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors. It is completely compatible to ZigBee 868 MHz and Z-Wave 868 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing material: ABS UV resistant
• Screw mounting with 13.5 mm bore hole
• Thread length: 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.0 dB @ 868 MHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
