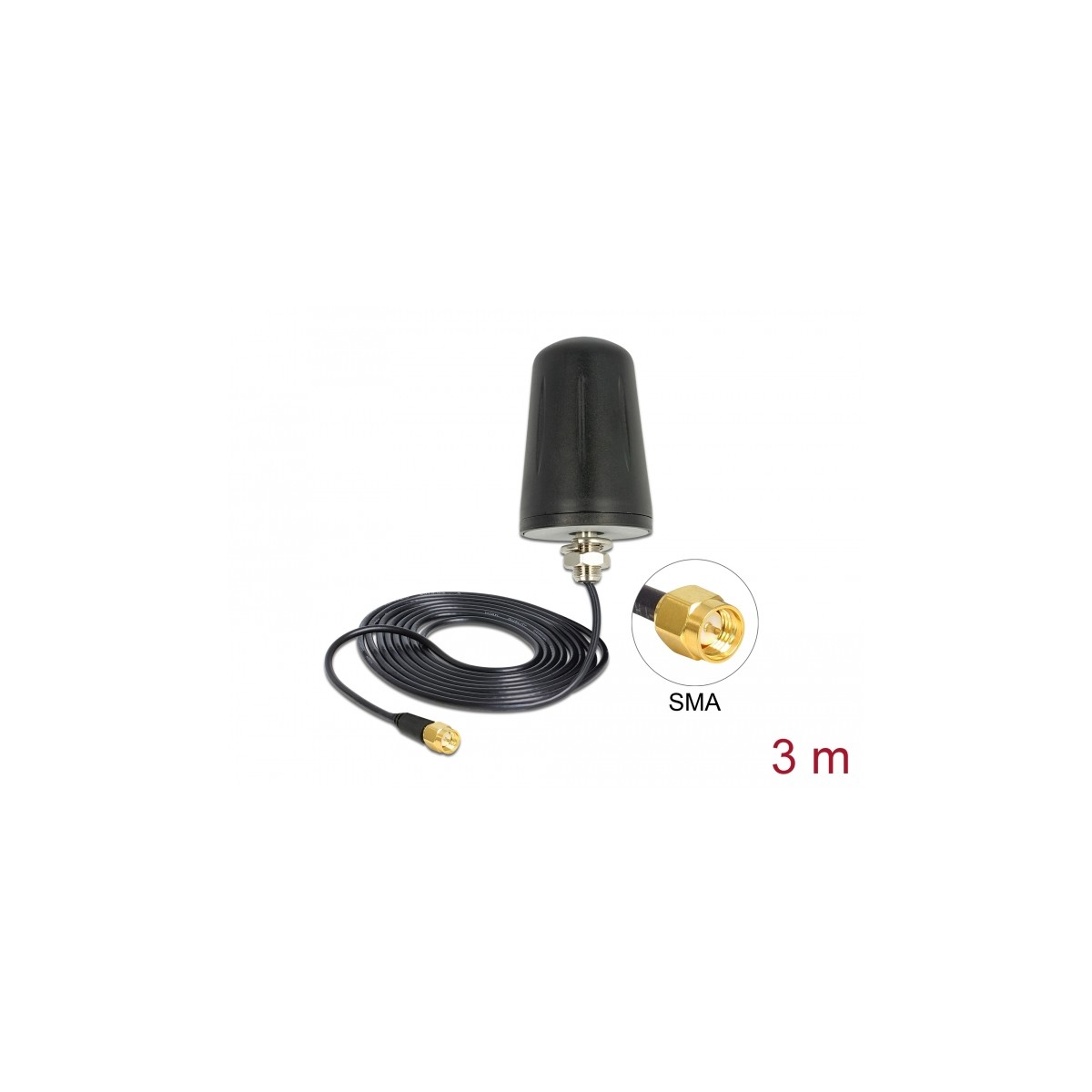

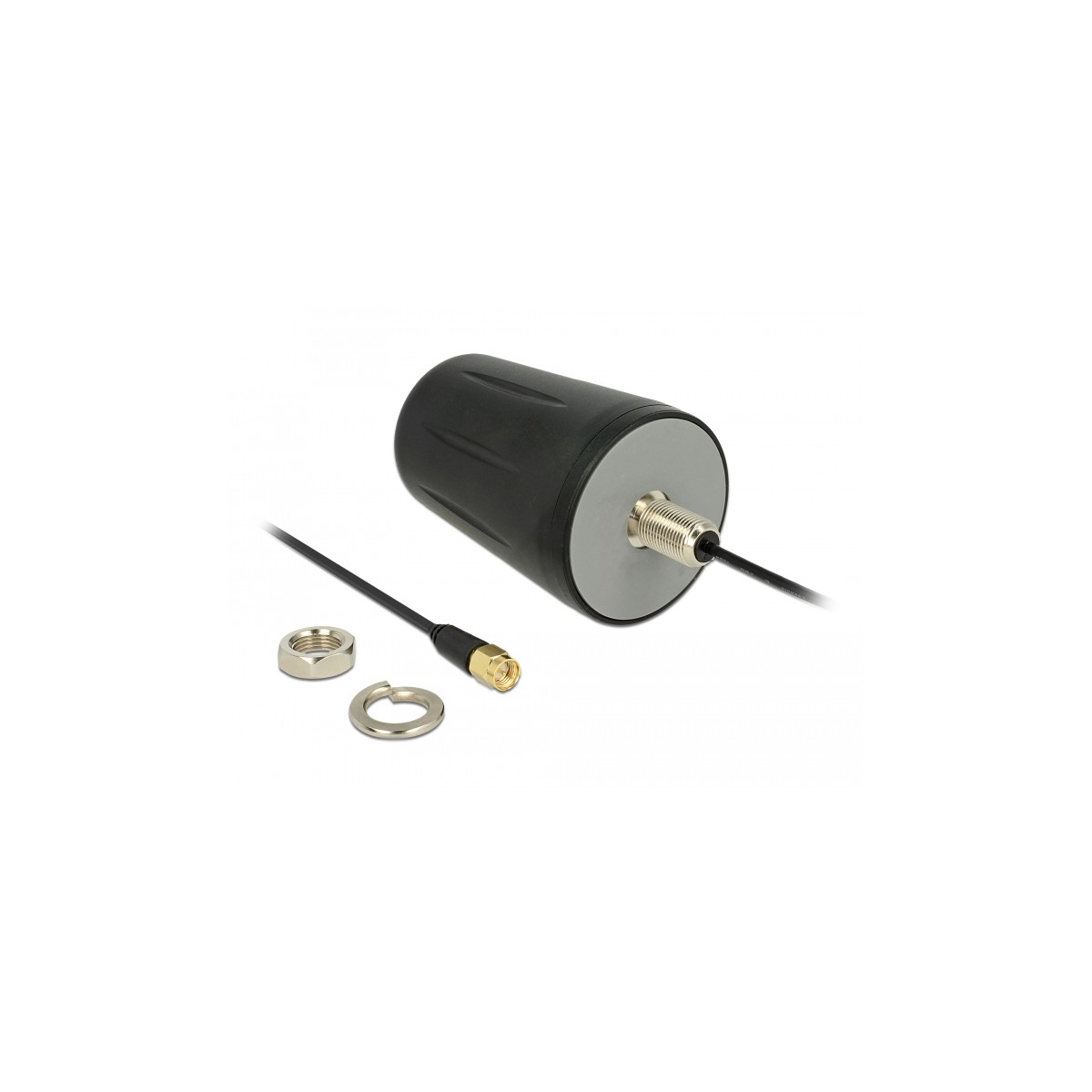

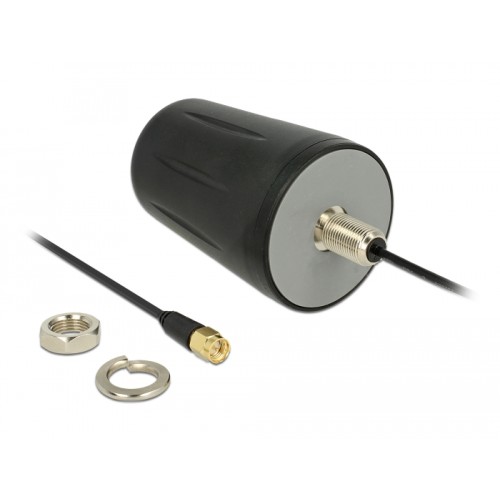

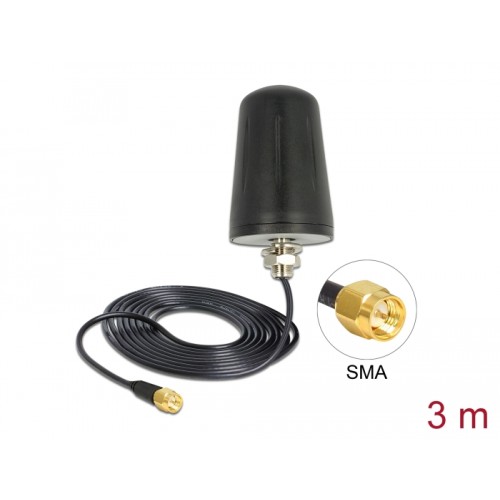

Delock WLAN 802.11 b/g/n Antenna SMA Plug 3 dBi omnidirectional with connection cable (RG-174, 3 m) roof mount outdoor black
89534
Nuovo
Description
This antenna by Delock allows the usage of the 2.4 GHz frequency range indoors and outdoors. It is completely compatible to Bluetooth and ZigBee 2.4 GHz.
Specification
• Connector: 1 x SMA plug
• Frequency range: 2.4 GHz - 2.5 GHz
• ZigBee 2.4 GHz, Bluetooth
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing: ABS UV resistant
• Screw mounting with 13.5 mm hole diameter
• Thread length: ca. 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
This antenna by Delock allows the usage of the 2.4 GHz frequency range indoors and outdoors. It is completely compatible to Bluetooth and ZigBee 2.4 GHz.
Specification
• Connector: 1 x SMA plug
• Frequency range: 2.4 GHz - 2.5 GHz
• ZigBee 2.4 GHz, Bluetooth
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing: ABS UV resistant
• Screw mounting with 13.5 mm hole diameter
• Thread length: ca. 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
