Description

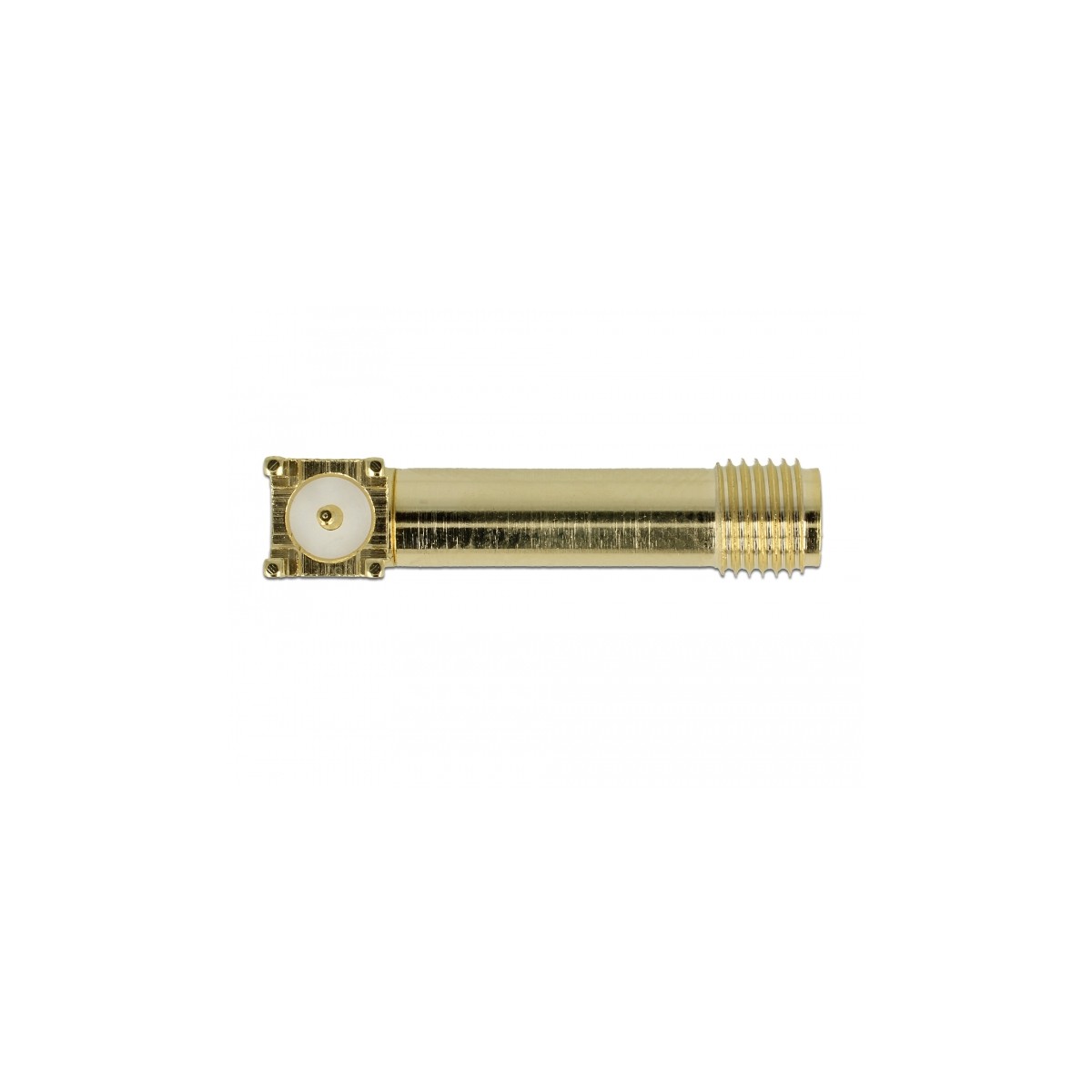

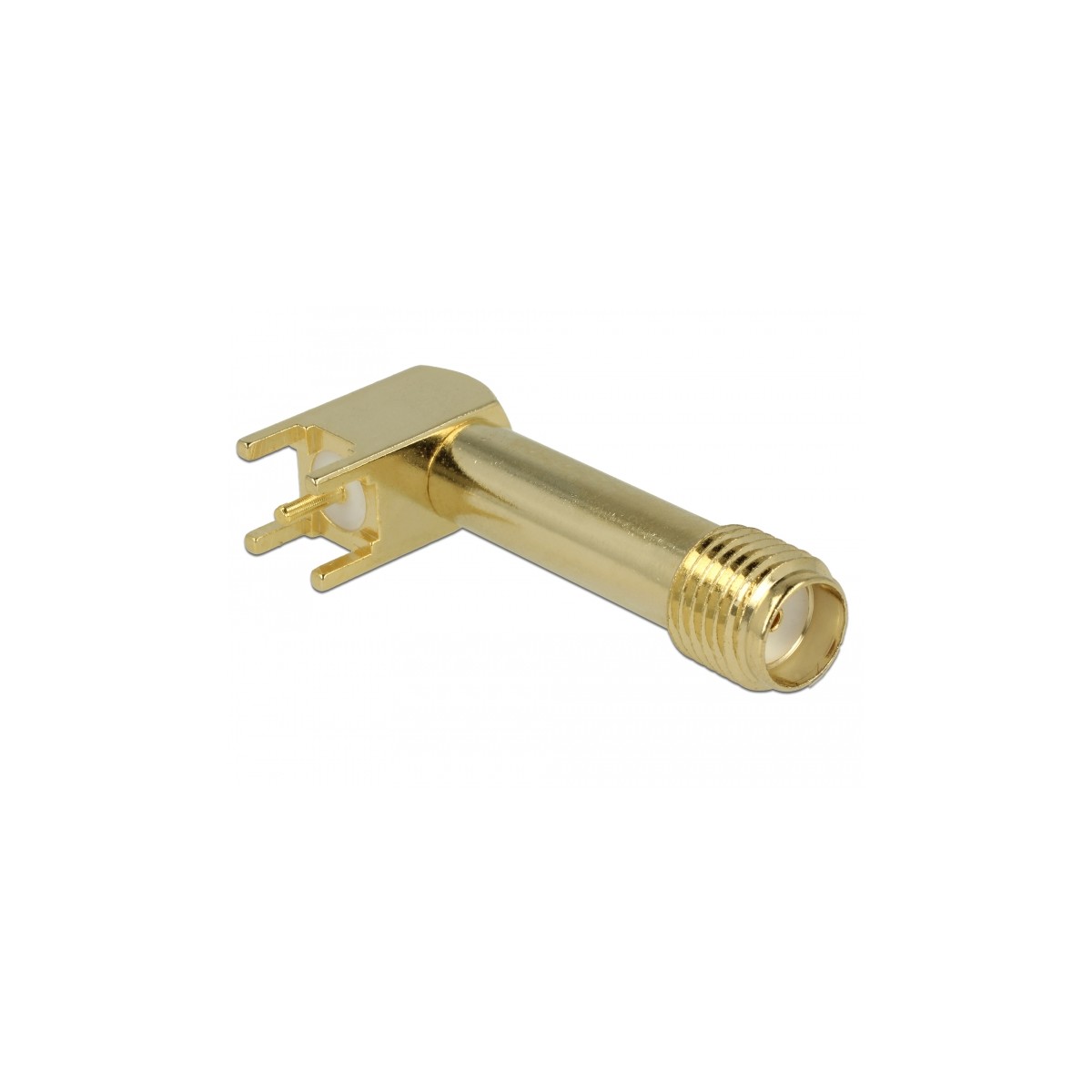

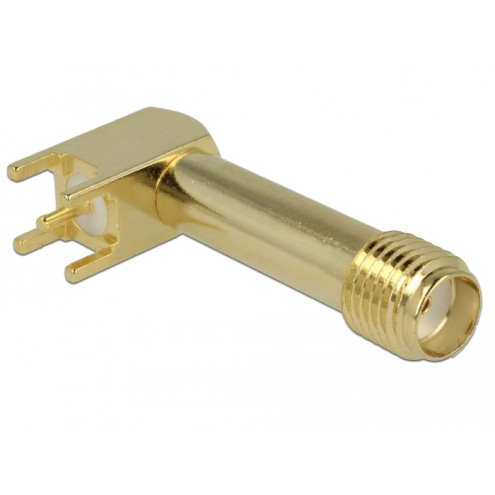

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA jack 90°
• Pin: Brass gold plated
• Insulator: PTFE
• Housing: Brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.5
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5.5 mm
• Operating temperature: -55 °C ~165 °C
• Withstand Voltage: 500V / 50Hz
• Material: brass gold platet
• Soldering: 5 solder joint
• Grid: 2,54 mm
• Dimensions (LxHxD): 25.0 x 12.2 x 5.2 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA jack 90°
• Pin: Brass gold plated
• Insulator: PTFE
• Housing: Brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.5
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5.5 mm
• Operating temperature: -55 °C ~165 °C
• Withstand Voltage: 500V / 50Hz
• Material: brass gold platet
• Soldering: 5 solder joint
• Grid: 2,54 mm
• Dimensions (LxHxD): 25.0 x 12.2 x 5.2 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
