Description

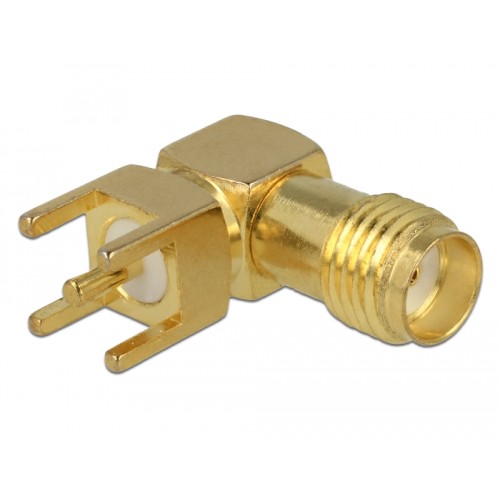

This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA Jack 90°
• Pin: brass gold plated
• Insulator: PTFE
• Housing: brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.2
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Operating temperature: -55 °C ~ 165 °C
• Withstand Voltage: 500V / 50Hz
• Soldering: 5 solder joint
• Dimensions (LxHxD): 15.3 x 14.0 x 6.0 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
This jack by Delock is suitable for soldering on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Specification
• Connector: 1 x SMA Jack 90°
• Pin: brass gold plated
• Insulator: PTFE
• Housing: brass gold plated
• Frequency range: 0 - 6 GHz
• Impedance: 50 Ohm
• VSWR: 1.2
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 5 mm
• Operating temperature: -55 °C ~ 165 °C
• Withstand Voltage: 500V / 50Hz
• Soldering: 5 solder joint
• Dimensions (LxHxD): 15.3 x 14.0 x 6.0 mm
System requirements
• Suitable board for mounting the SMA connector
Package content
• SMA Jack
