Delock 480 MHz Antenna SMA plug 90° 2.5 dBi fixed omnidirectional with magnetic base and connection cable RG-174 1.5 m outdoor b
89615
Nuovo
Description
This antenna by Delock allows the usage of the 480 MHz band indoors and outdoors.
Specification
• Connector: 1 x SMA plug 90°
• Frequency range: 480 MHz
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm

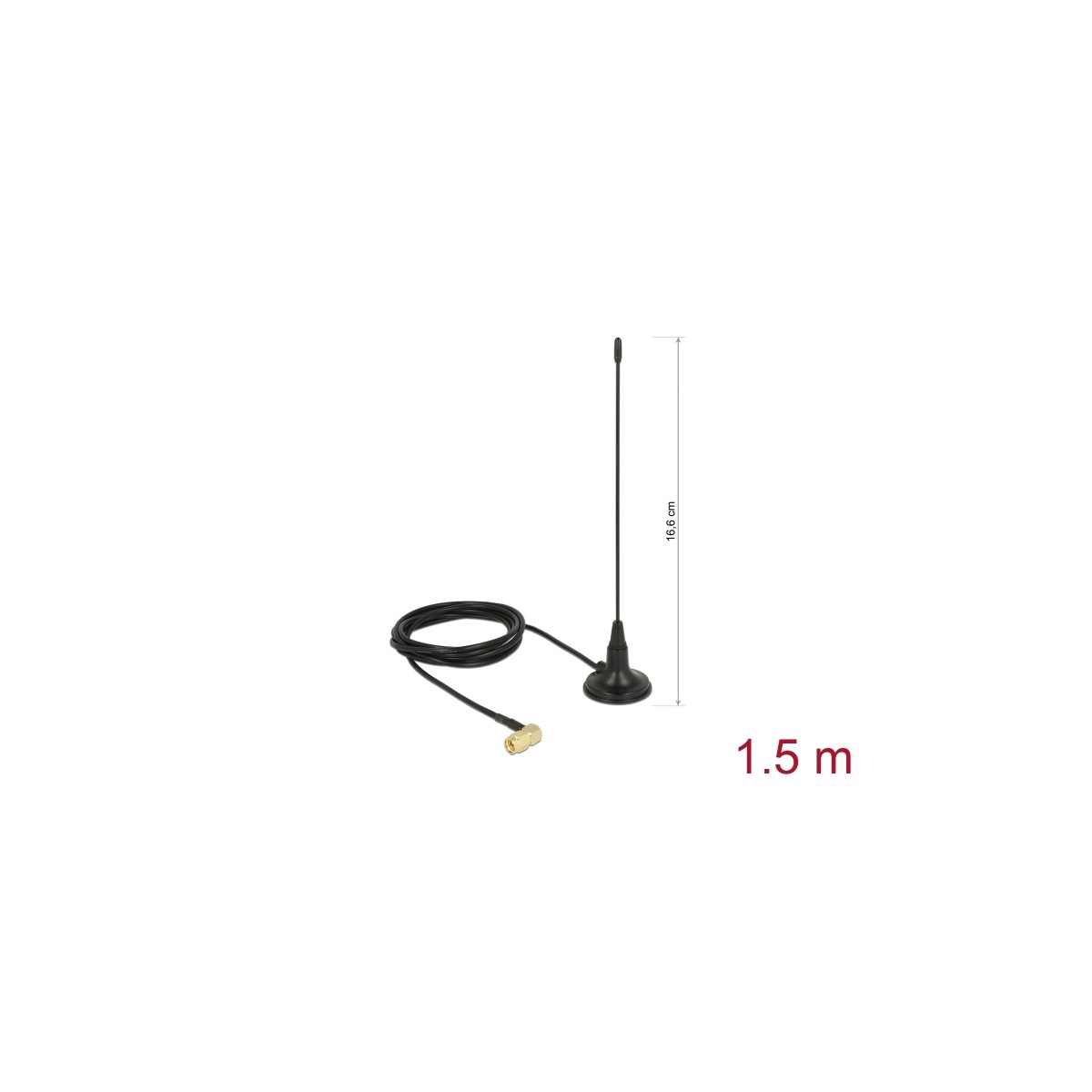

• Antenna length including magnetic base: ca. 16.6 cm
• Cable length incl. connector: ca. 1.5 m
• Diameter magnetic base: ca. 33.0 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
This antenna by Delock allows the usage of the 480 MHz band indoors and outdoors.
Specification
• Connector: 1 x SMA plug 90°
• Frequency range: 480 MHz
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Antenna length including magnetic base: ca. 16.6 cm
• Cable length incl. connector: ca. 1.5 m
• Diameter magnetic base: ca. 33.0 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
