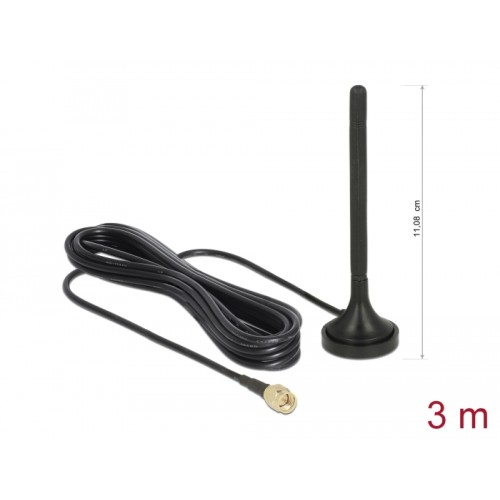

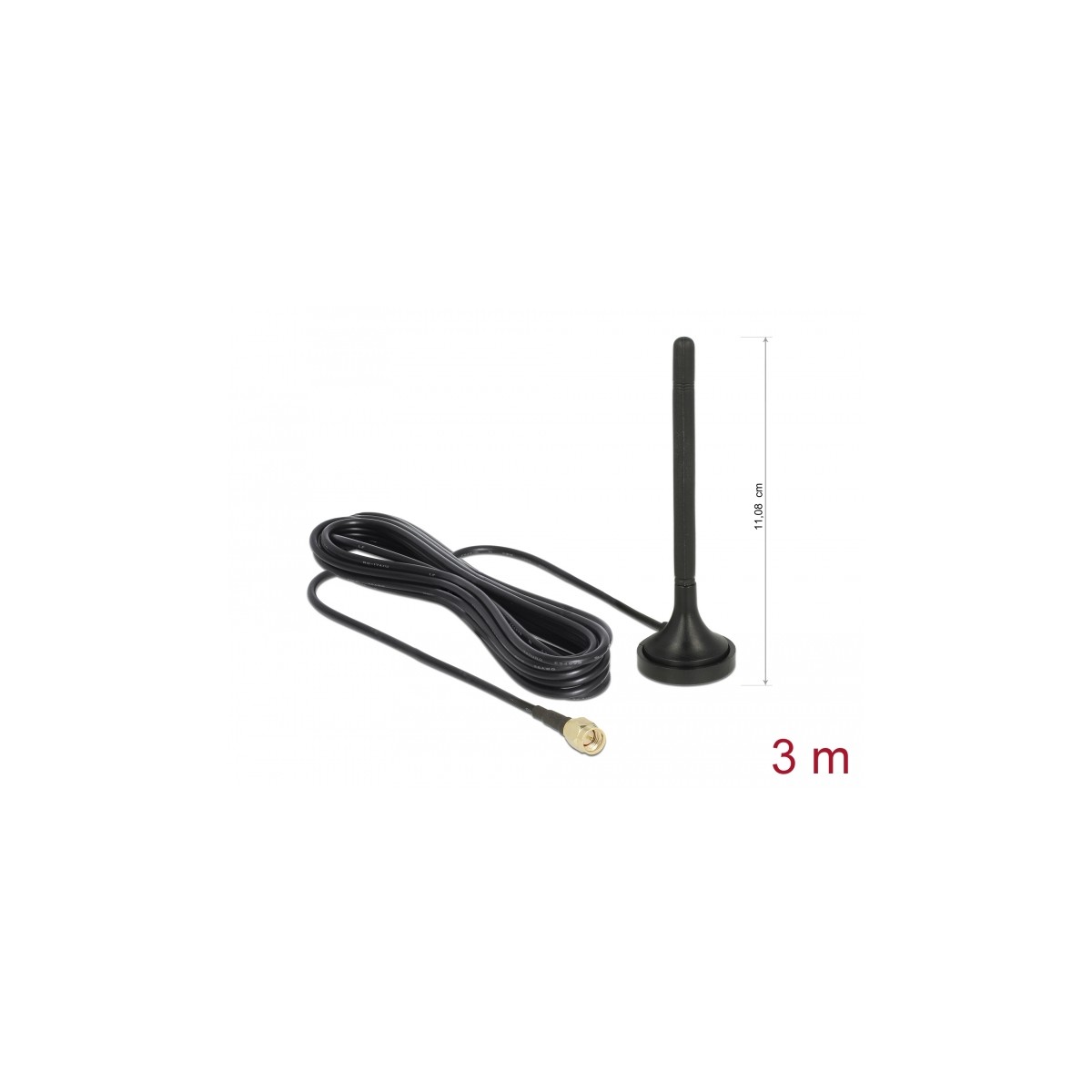

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with magnetic base and connection cable RG-174 3 m outdoor black
89618
Nuovo
Description
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to LTE, GSM, UMTS, ZigBee, DECT, Z-Wave and NB-IoT.
Specification
• Connector: 1 x SMA plug
• LTE, GSM, UMTS, ZigBee, DECT, NB-IoT, Z-Wave, LoRa
• Frequency range:
824 - 960 MHz
1710 - 2170 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Antenna length including magnetic base: ca. 110.8 mm
• Cable length incl. connectors: ca. 3.0 m
• Diameter magnetic base: ca. 32.8 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands indoors and outdoors. It is completely compatible to LTE, GSM, UMTS, ZigBee, DECT, Z-Wave and NB-IoT.
Specification
• Connector: 1 x SMA plug
• LTE, GSM, UMTS, ZigBee, DECT, NB-IoT, Z-Wave, LoRa
• Frequency range:
824 - 960 MHz
1710 - 2170 MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.9 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Antenna length including magnetic base: ca. 110.8 mm
• Cable length incl. connectors: ca. 3.0 m
• Diameter magnetic base: ca. 32.8 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
