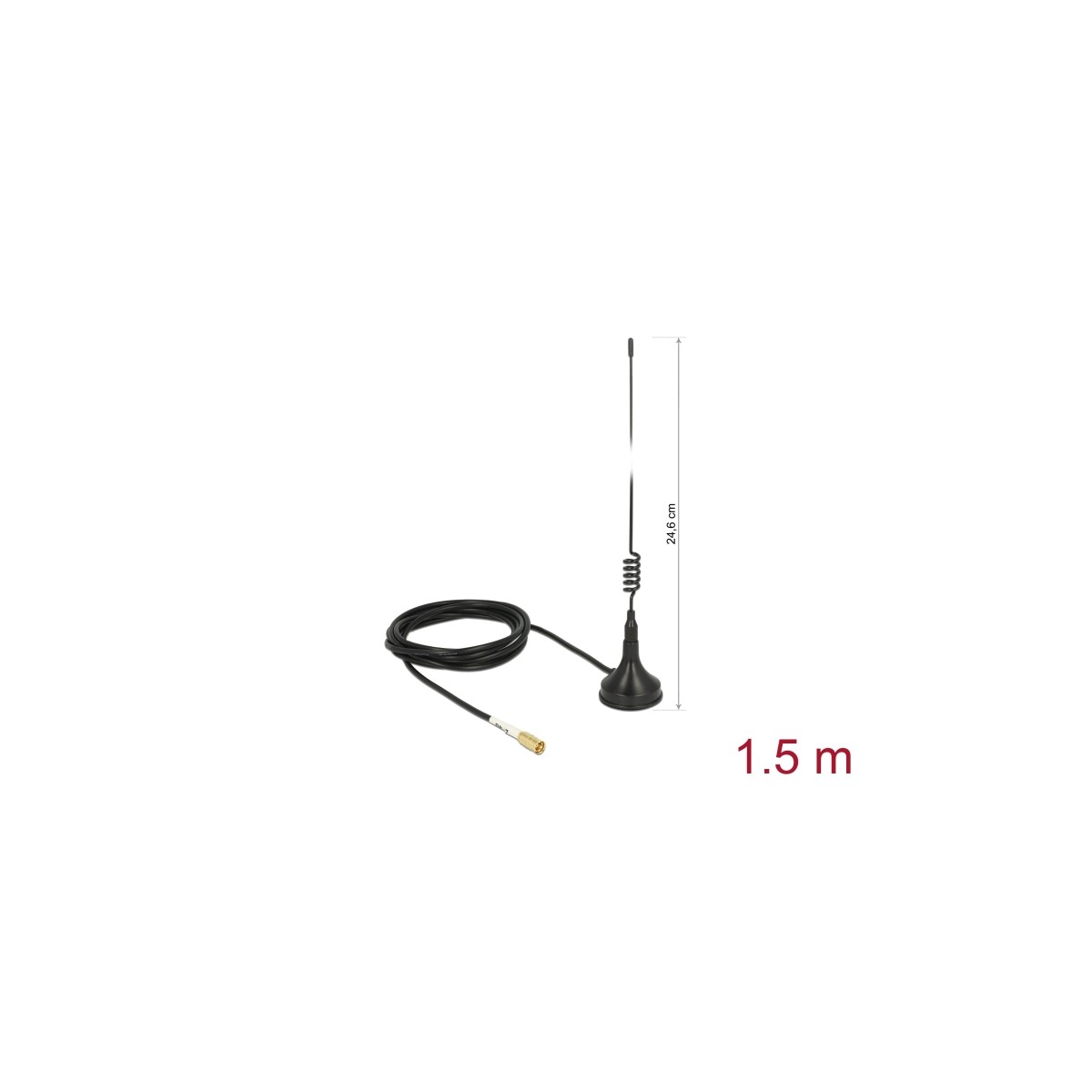

Delock WLAN 802.11 b/g/n Antenna SMB plug 2 dBi fixed omnidirectional with magnetic base and connection cable RG-174 1.5 m outdo
89612
Nuovo
Description
This antenna by Delock allows the usage of the 2.4 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4 GHz.
Specification
• Connector: 1 x SMB plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 1.5 m
• Antenna length including magnetic base: ca. 24.6 cm
• Diameter magnetic base: ca. 29.5 mm
System requirements
• Device with a free SMB jack
Package content
• Antenna
This antenna by Delock allows the usage of the 2.4 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4 GHz.
Specification
• Connector: 1 x SMB plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 1.5 m
• Antenna length including magnetic base: ca. 24.6 cm
• Diameter magnetic base: ca. 29.5 mm
System requirements
• Device with a free SMB jack
Package content
• Antenna
