Description

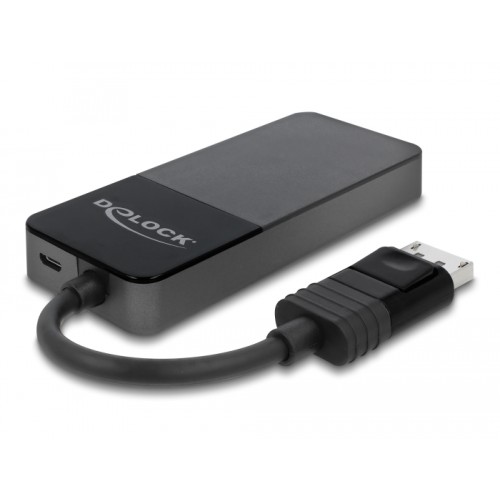

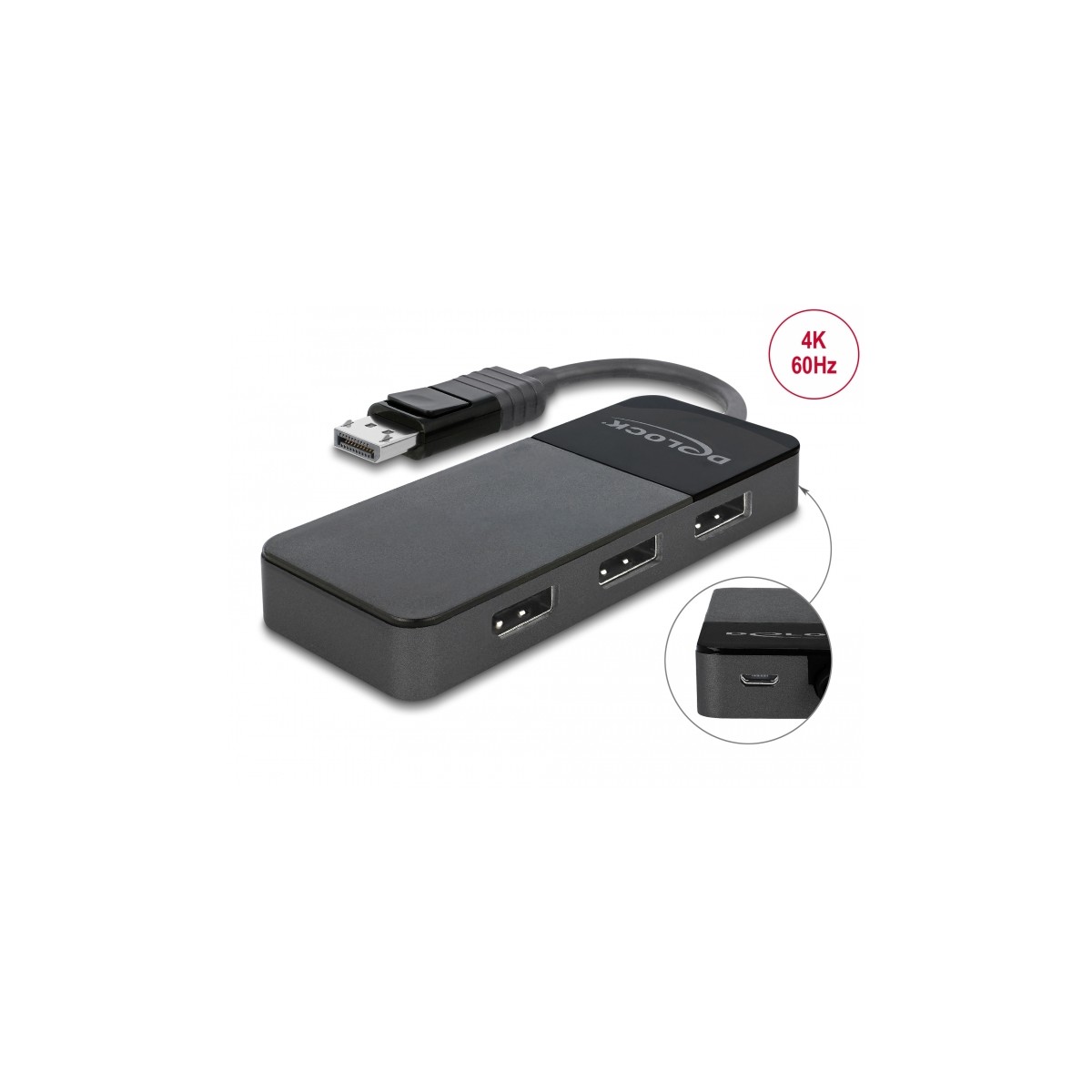

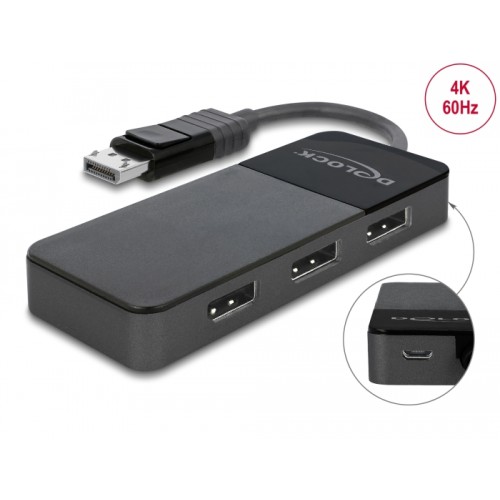

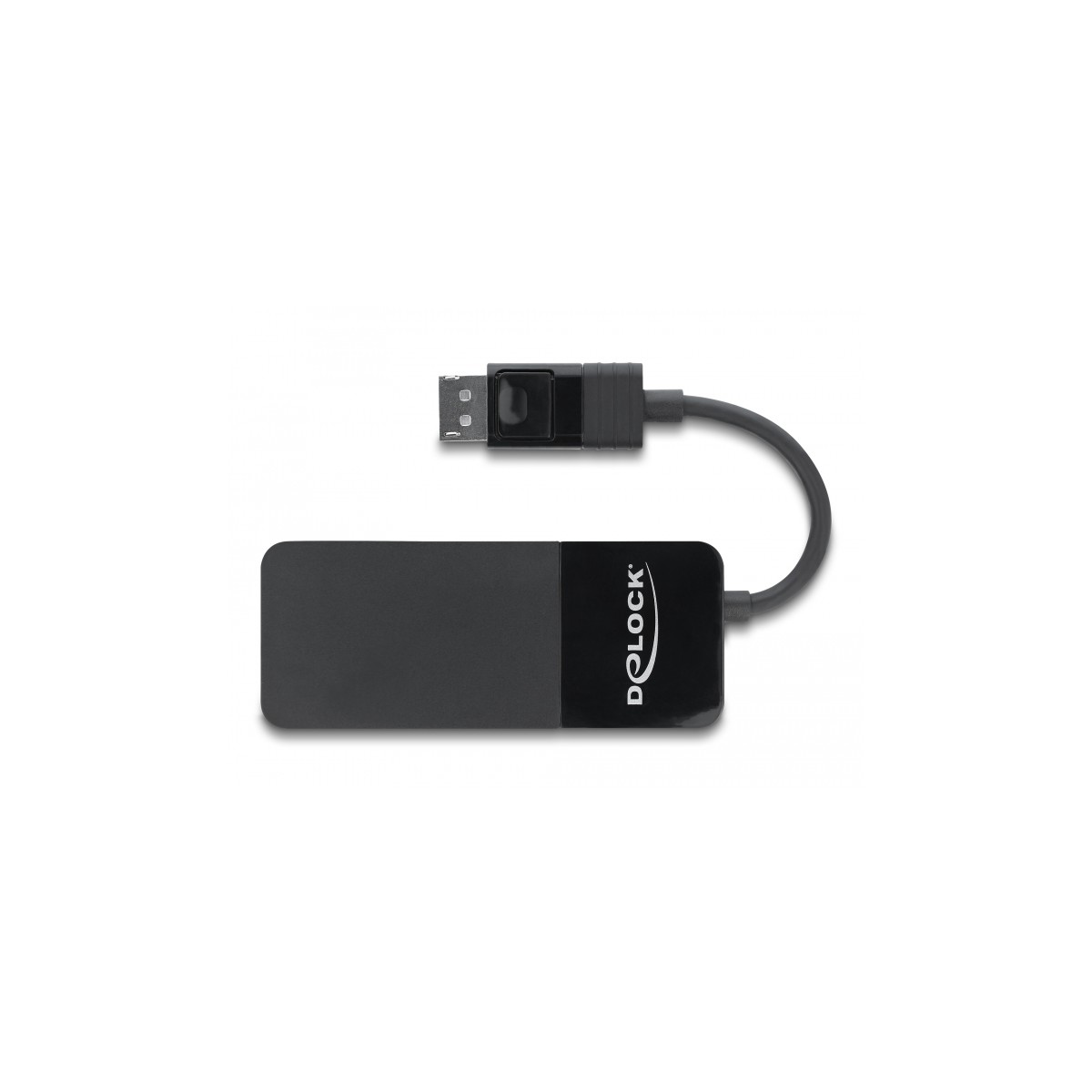

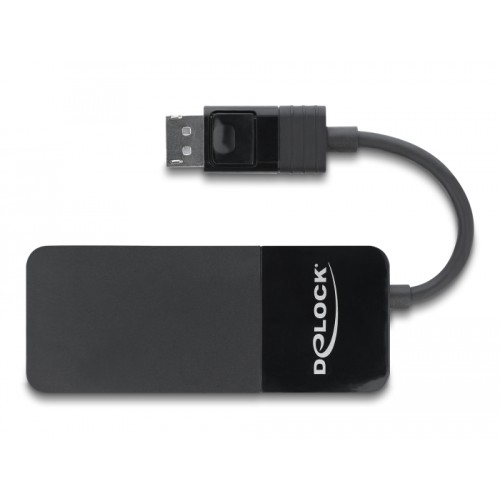

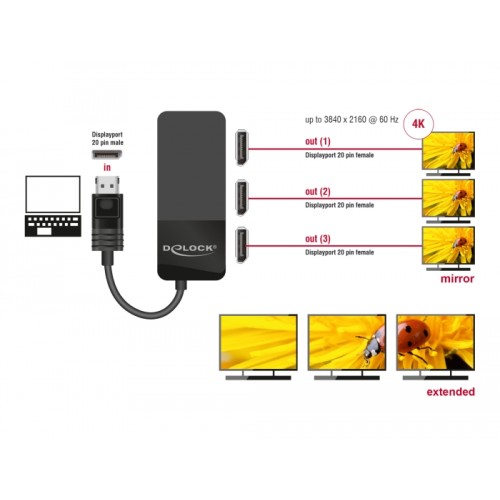

This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to three connected displays. Thereby one DisplayPort connection can be used to operate three DisplayPort monitors.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display.
Dual Mode DP++
The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
High resolution
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
Specification
• Connectors:
Input:
1 x DisplayPort male
1 x USB Type Micro-B female (5 V power supply)
Output:
3 x DisplayPort female
• Chipset: VMM5330
• DisplayPort 1.4 specification
• DisplayPort output supports Dual Mode DP++
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)

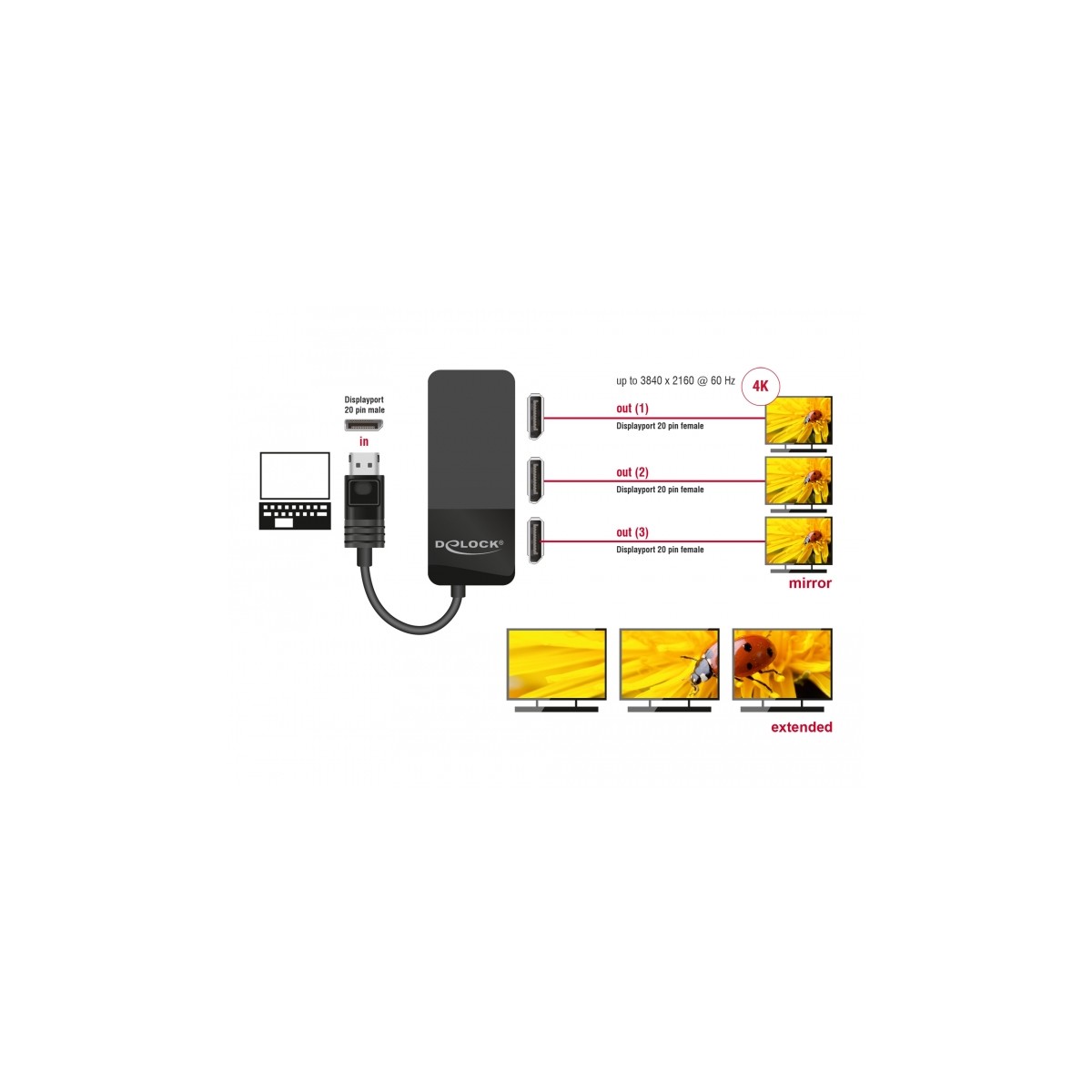

• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
3 displays: up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
2 displays: up to 5120 x 2880 @ 60 Hz
3 displays: up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length without connectors: ca. 12.5 cm
• Dimensions without cable (LxWxH): ca. 105 x 43 x 14 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 2 A
Package content
• DisplayPort Splitter

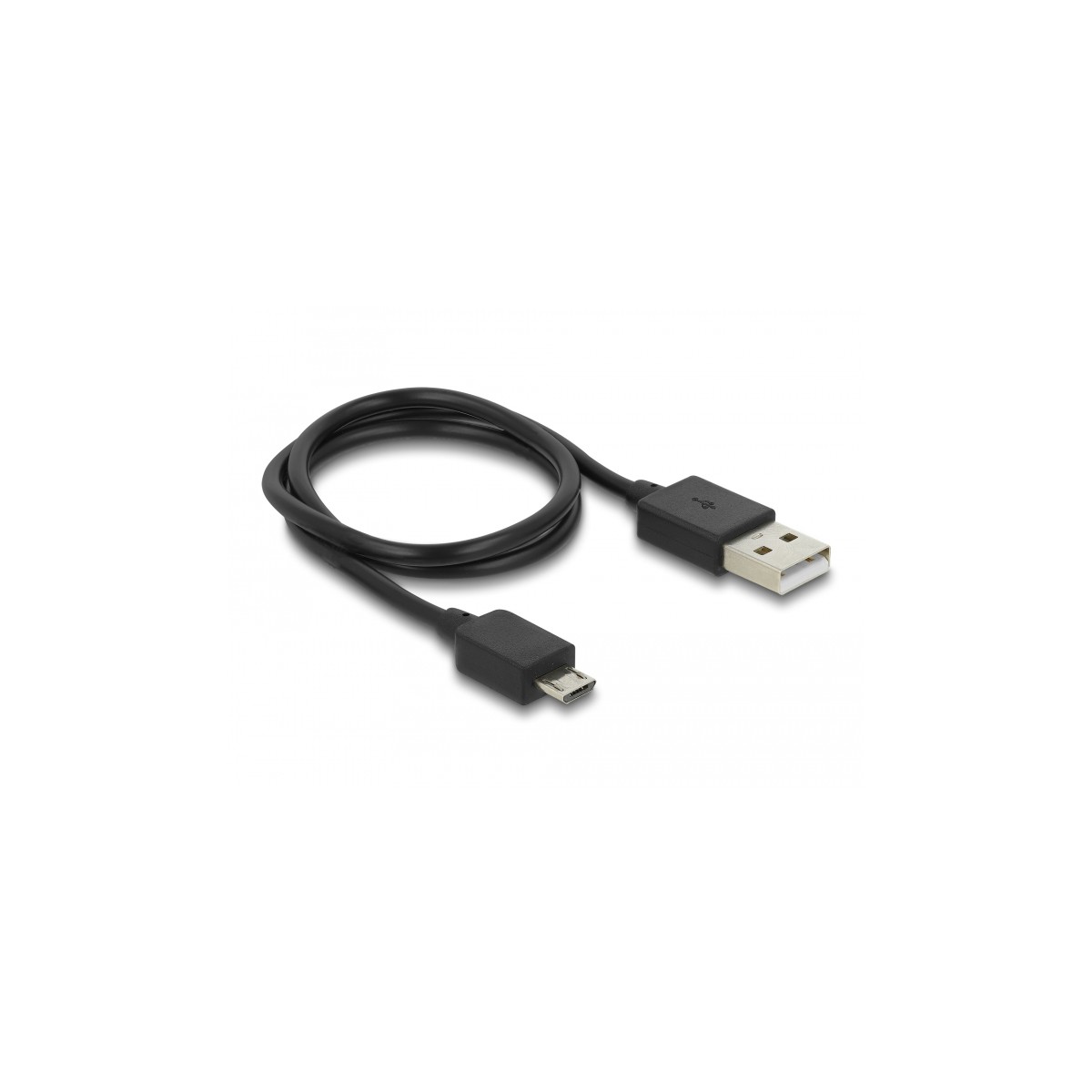

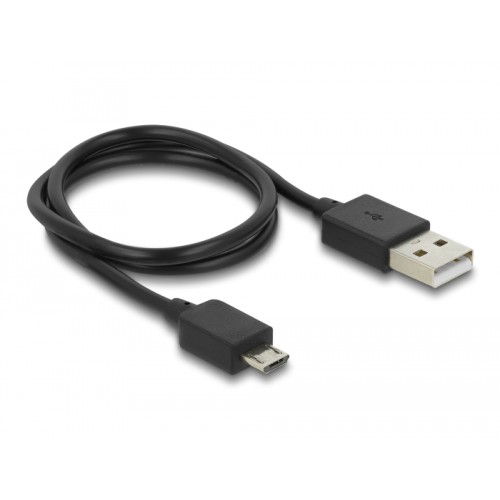

• USB power cable, length: ca. 0.5 m
• User manual
This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to three connected displays. Thereby one DisplayPort connection can be used to operate three DisplayPort monitors.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display.
Dual Mode DP++
The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
High resolution
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
Specification
• Connectors:
Input:
1 x DisplayPort male
1 x USB Type Micro-B female (5 V power supply)
Output:
3 x DisplayPort female
• Chipset: VMM5330
• DisplayPort 1.4 specification
• DisplayPort output supports Dual Mode DP++
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
3 displays: up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
2 displays: up to 5120 x 2880 @ 60 Hz
3 displays: up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length without connectors: ca. 12.5 cm
• Dimensions without cable (LxWxH): ca. 105 x 43 x 14 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 2 A
Package content
• DisplayPort Splitter
• USB power cable, length: ca. 0.5 m
• User manual
