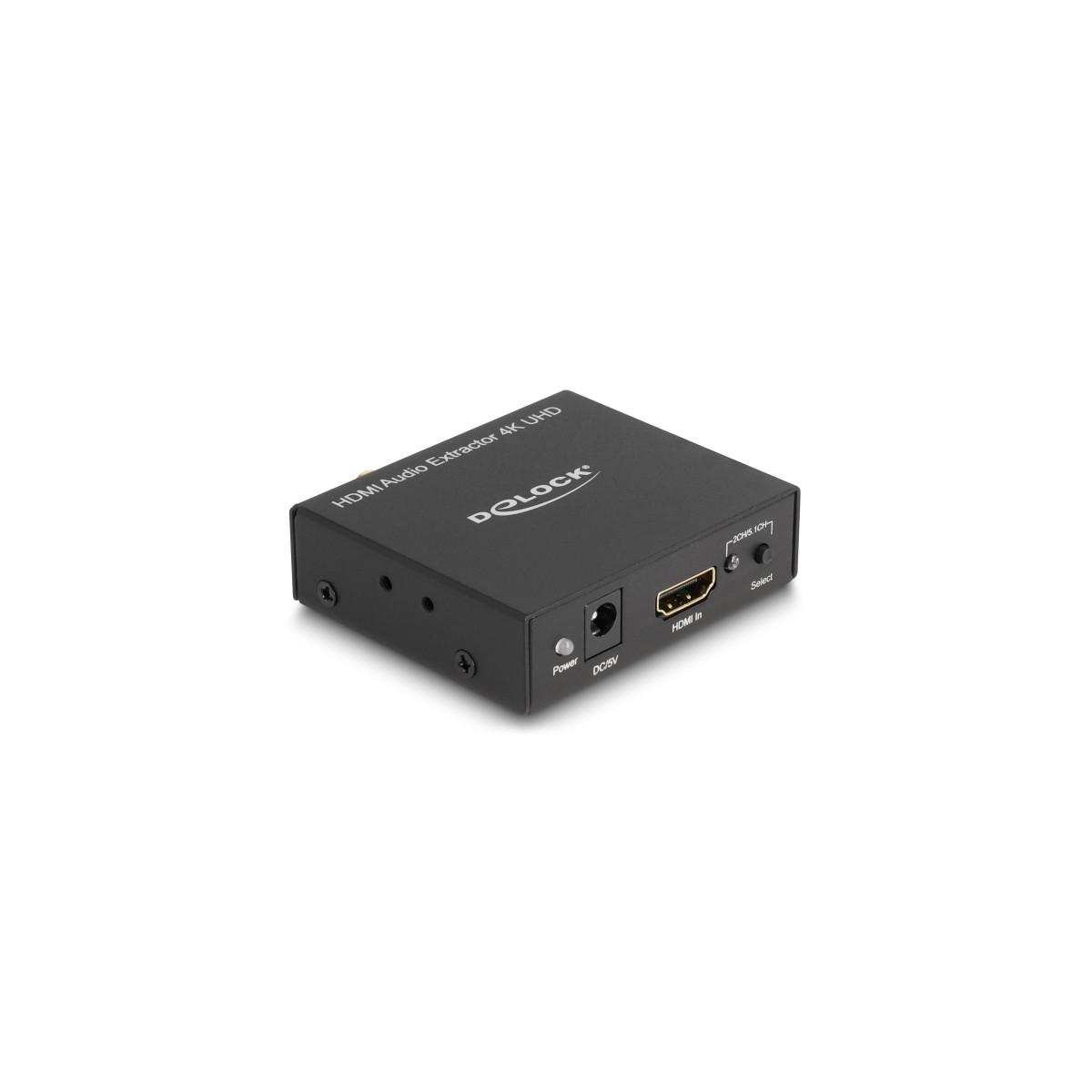

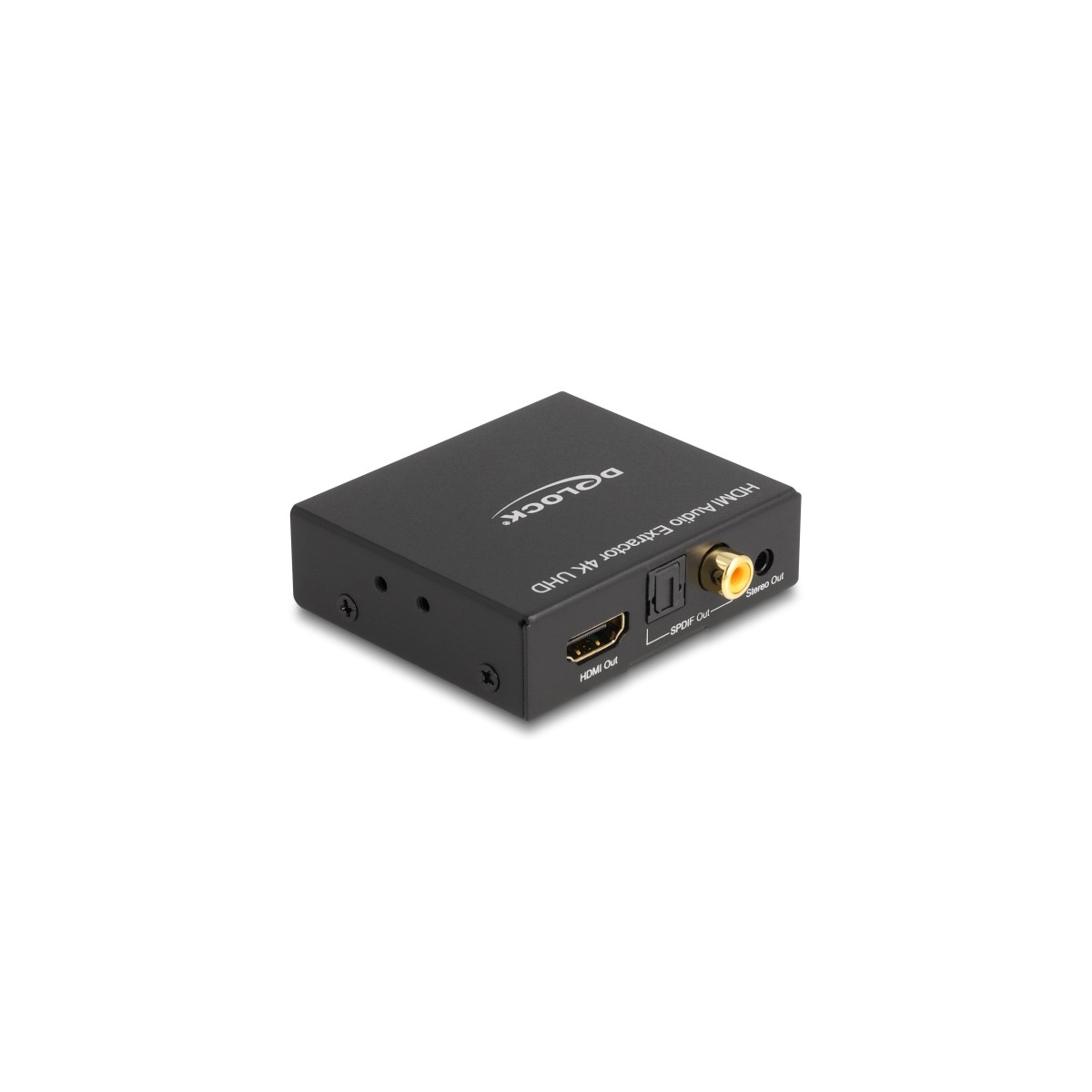

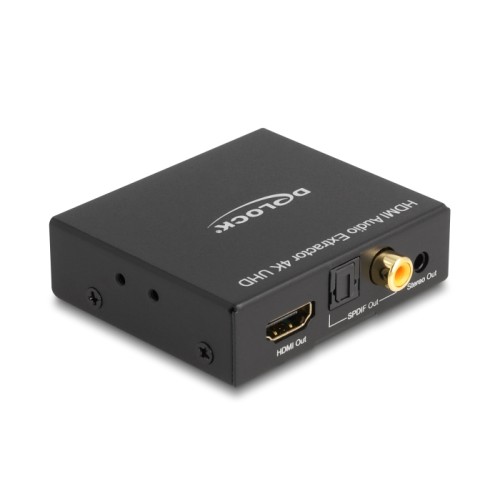

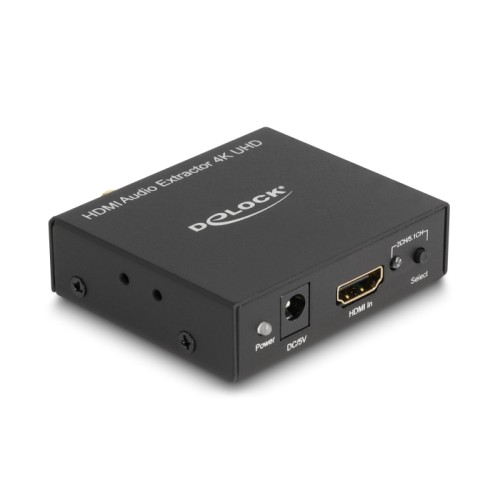

Delock HDMI Audio Extractor 4K 30 Hz
62692
Nuovo
Description
This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Specification
• Connectors:
Input:
1 x HDMI-A 19 pin female
1 x 5 V DC jack 2.1 x 5.5 mm
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
1 x RCA female S/PDIF
• Switchable between stereo and 5.1 channel
• High Speed HDMI, 3D and HDCP 1.4
• Output with HDMI repeater function
• Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz
(12 bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital,
DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz
(depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Chipset: CS4344, 24 bit / 192 kHz
• Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): ca. 71 x 61 x 21 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI-A female

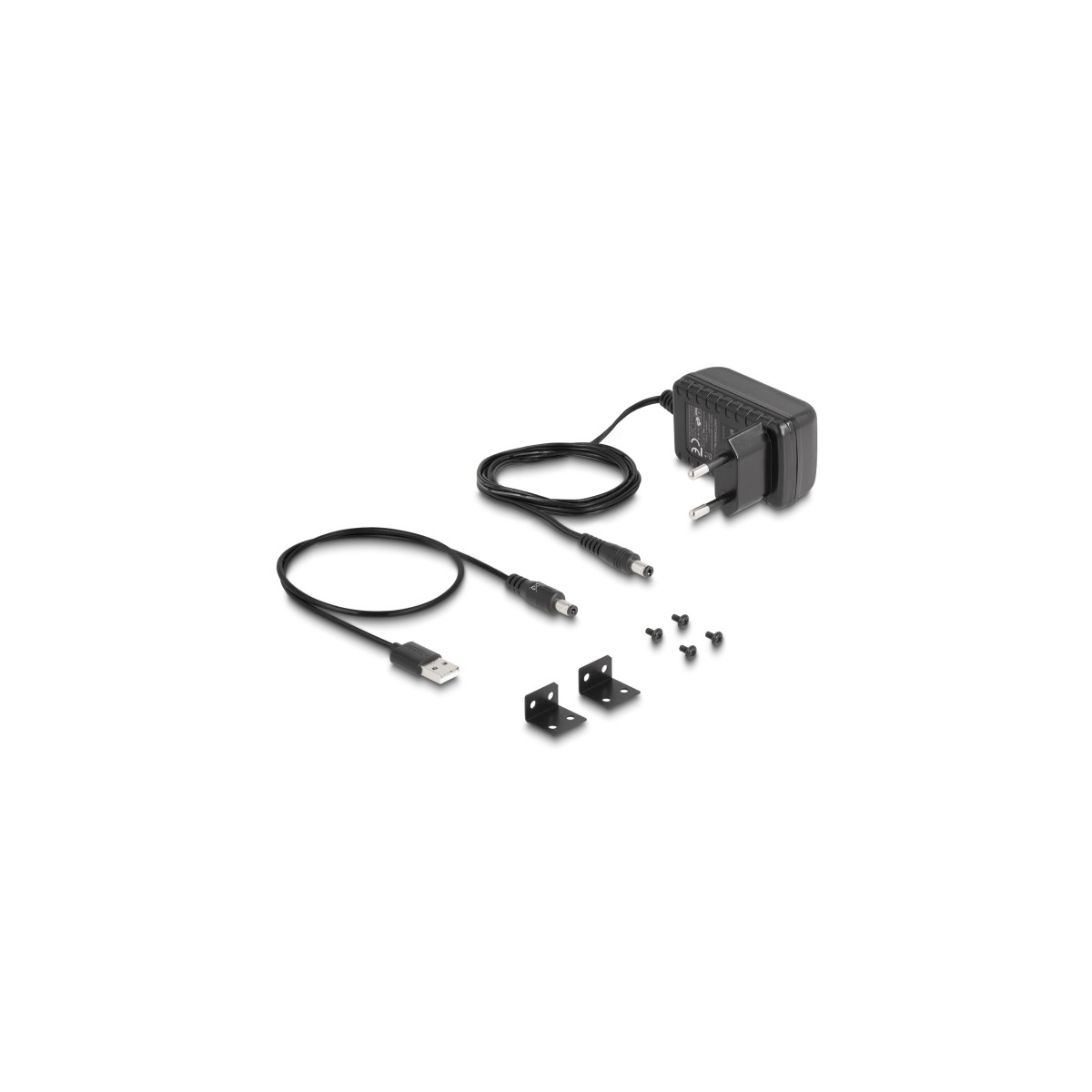

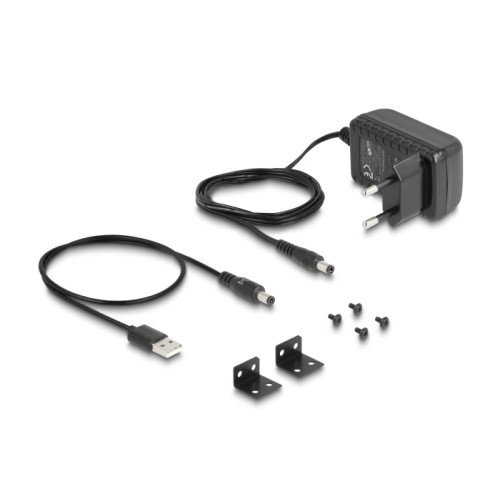

Package content
• HDMI Audio Extractor
• Mounting brackets and screws
• USB power cable, length: ca. 0.5 m
• Power supply
• User manual
This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Specification
• Connectors:
Input:
1 x HDMI-A 19 pin female
1 x 5 V DC jack 2.1 x 5.5 mm
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
1 x RCA female S/PDIF
• Switchable between stereo and 5.1 channel
• High Speed HDMI, 3D and HDCP 1.4
• Output with HDMI repeater function
• Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz
(12 bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital,
DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz
(depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Chipset: CS4344, 24 bit / 192 kHz
• Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): ca. 71 x 61 x 21 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI-A female
Package content
• HDMI Audio Extractor
• Mounting brackets and screws
• USB power cable, length: ca. 0.5 m
• Power supply
• User manual
Nuovo
4043619626922
