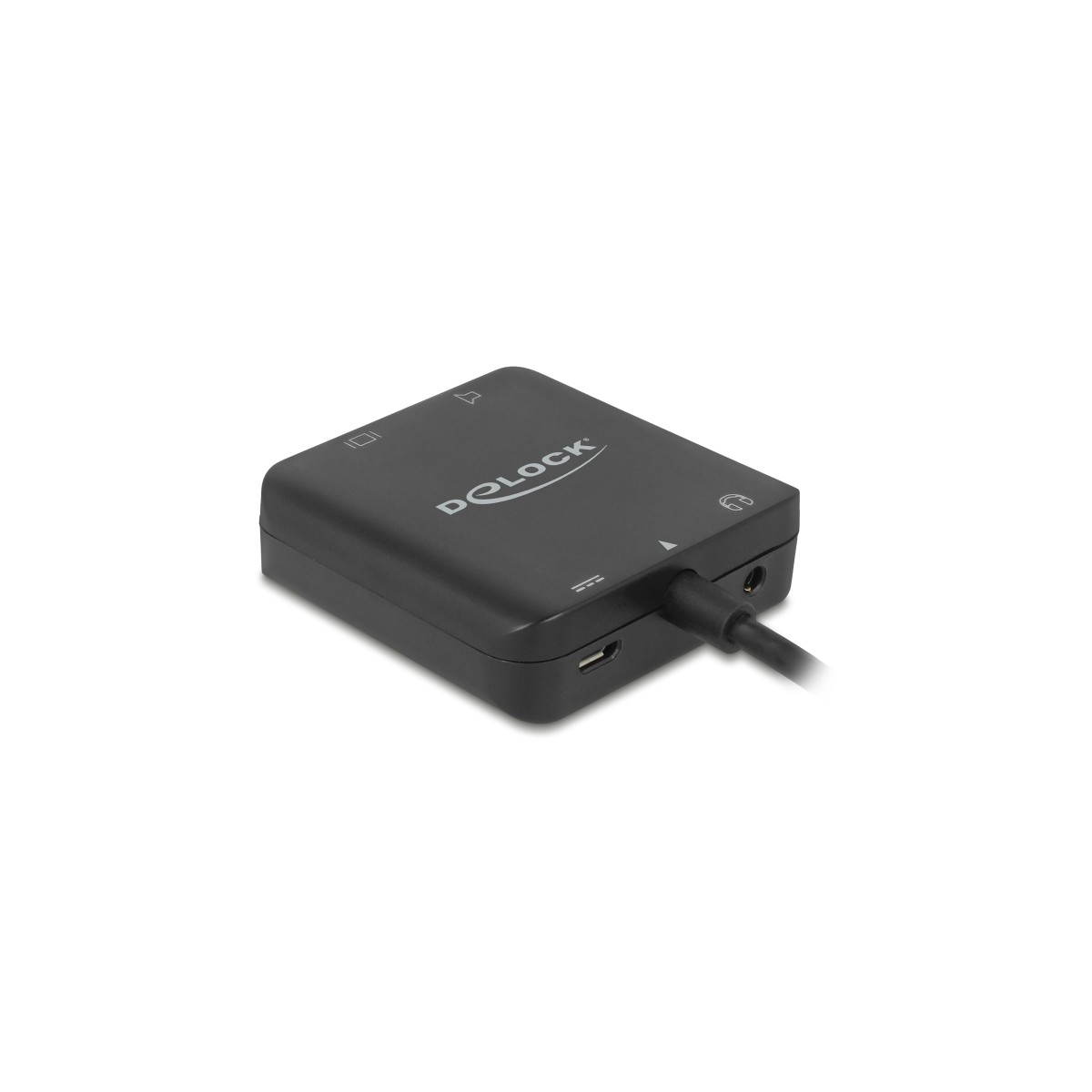

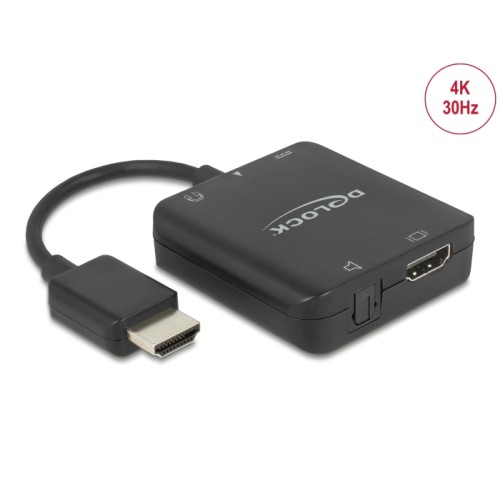

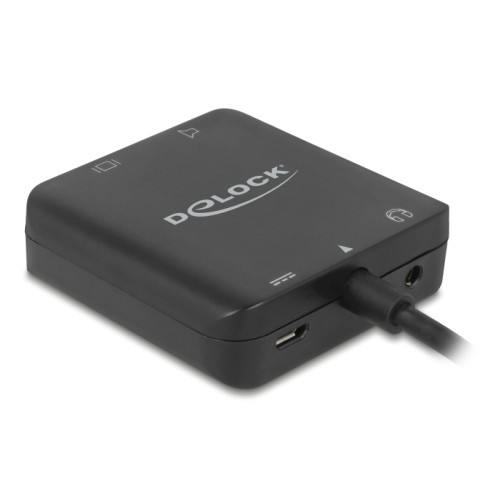

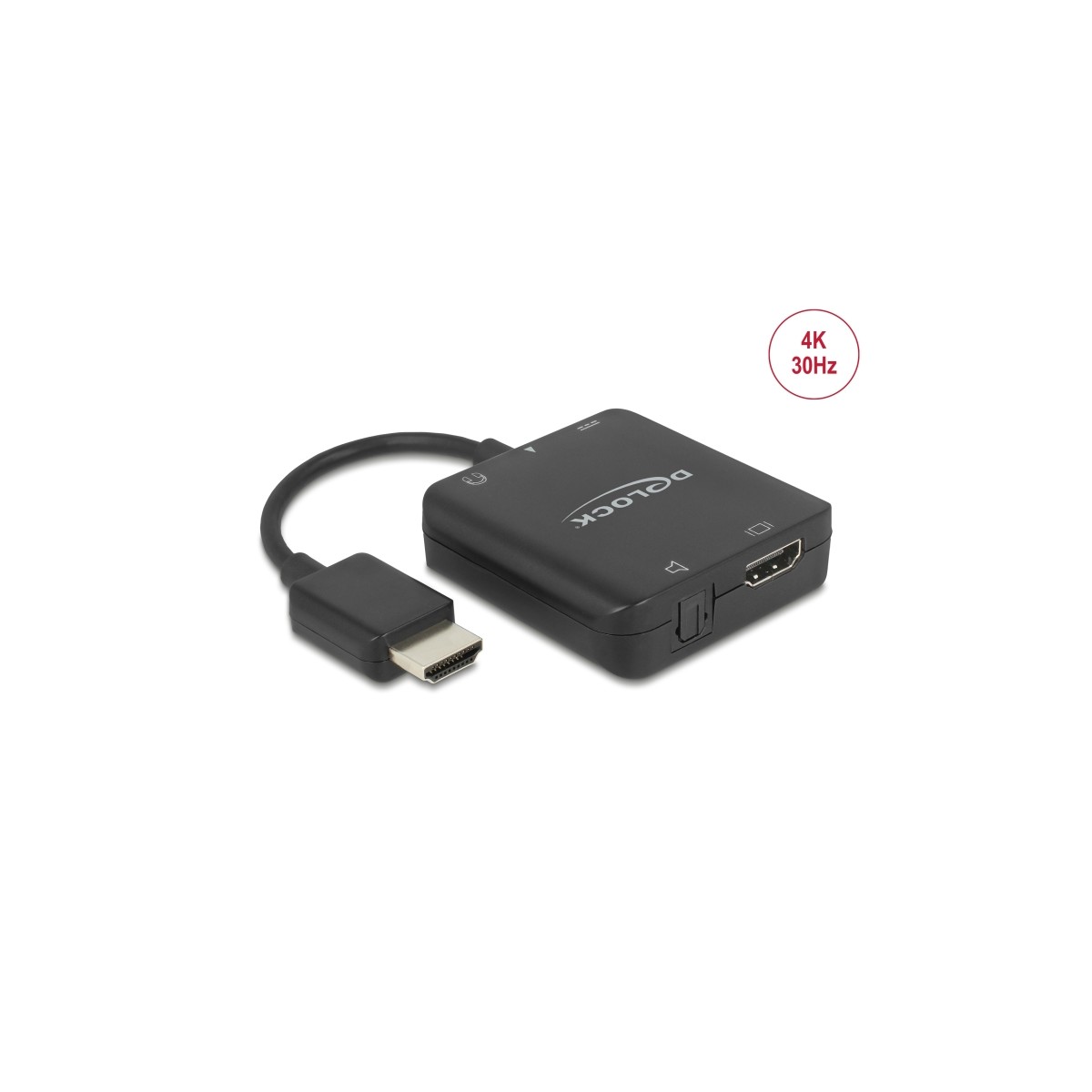

Delock HDMI Audio Extractor 4K 30 Hz compact
62784
Nuovo
Description

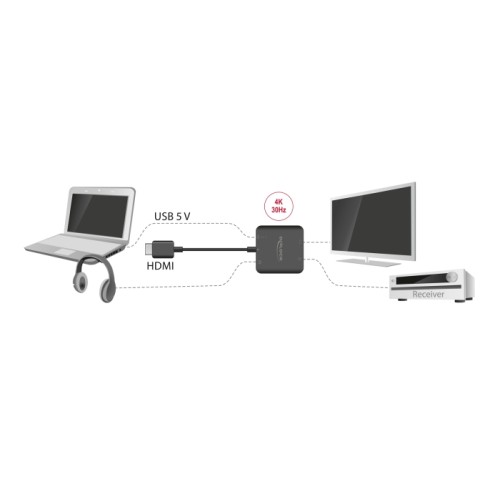

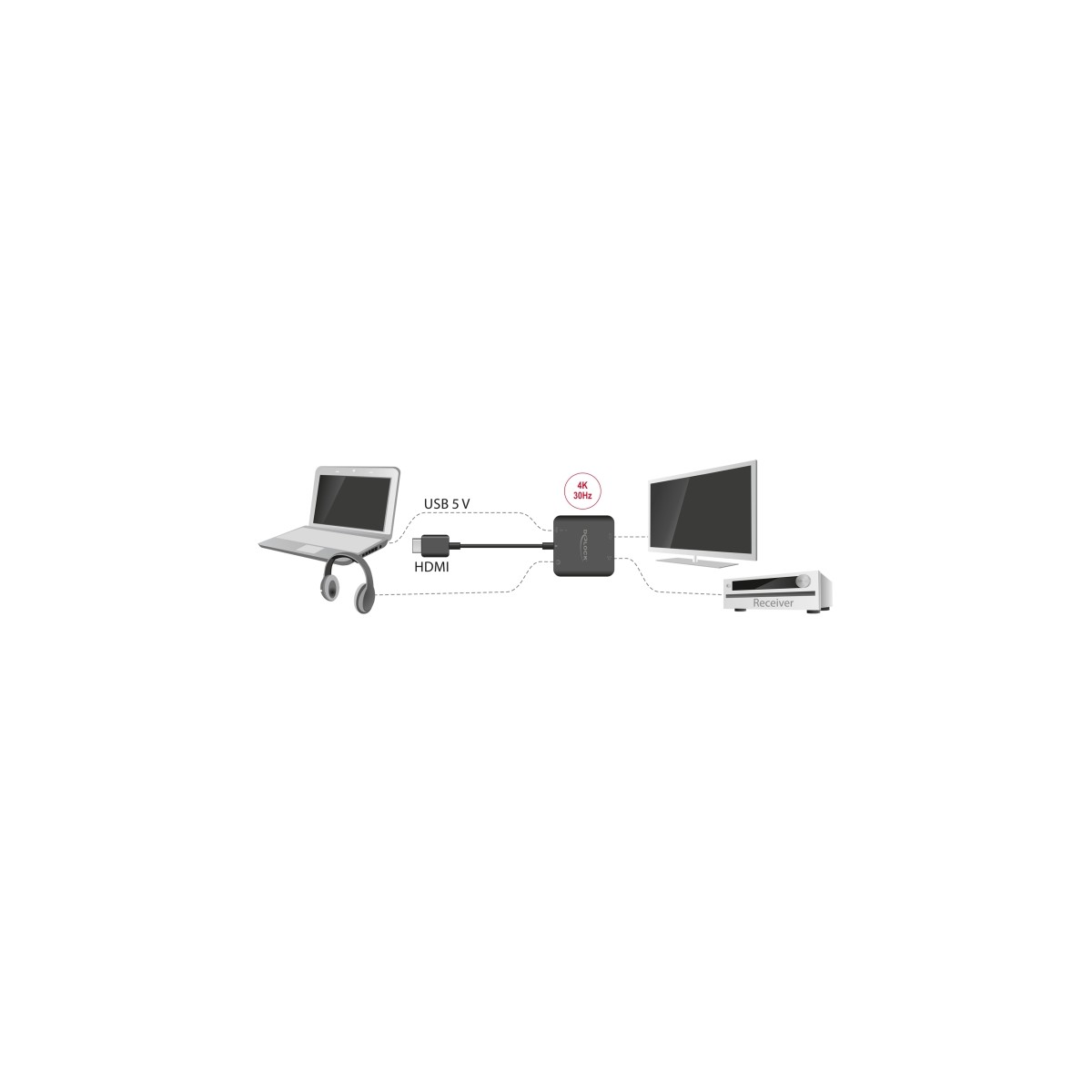

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Specification
• Connectors:
Input:
1 x HDMI-A 19 pin male
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
• High Speed HDMI, 3D and HDCP 1.4
• Automatic switching to stereo (2.0) when using the stereo jack and automatic muting of
the digital output
• Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz (12 bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on
the system and the connected devices)
• HDMI audio routed to the output (pass-through)
• Power consumption: max. 2 W
System requirements
• A free HDMI-A female
• A free USB Type-A female port
Package content
• HDMI Audio Extractor

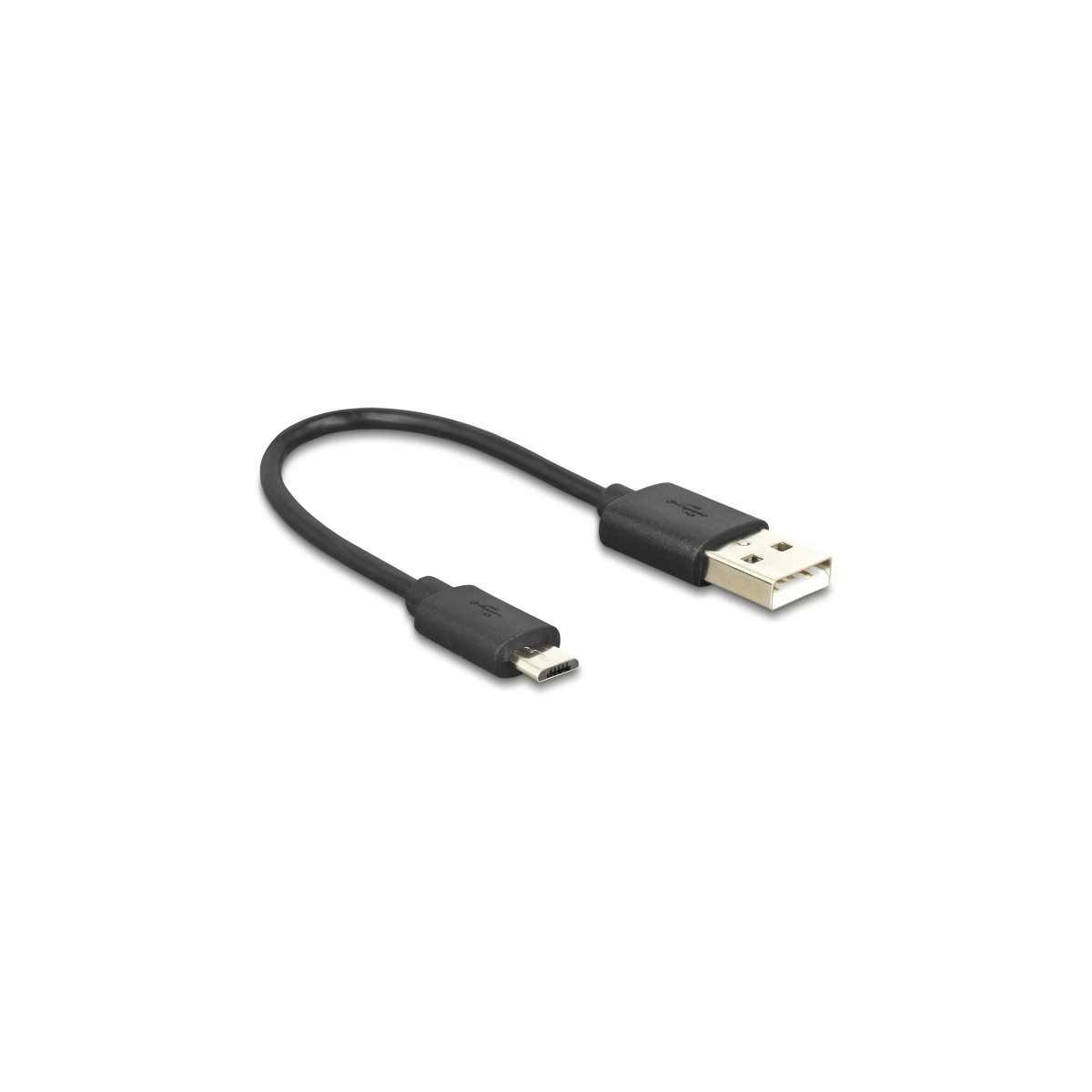

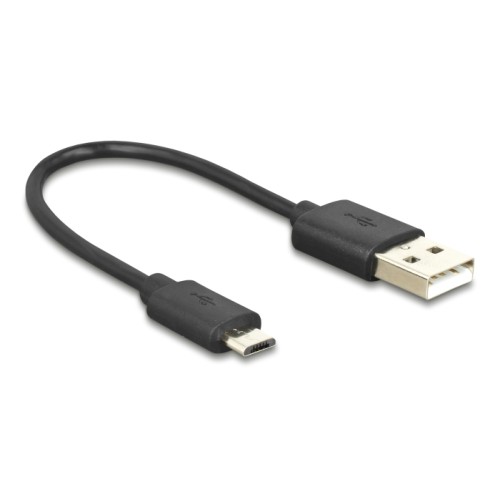

• USB Type-A to Type Micro-B cable, length ca. 15 cm
• User manual
