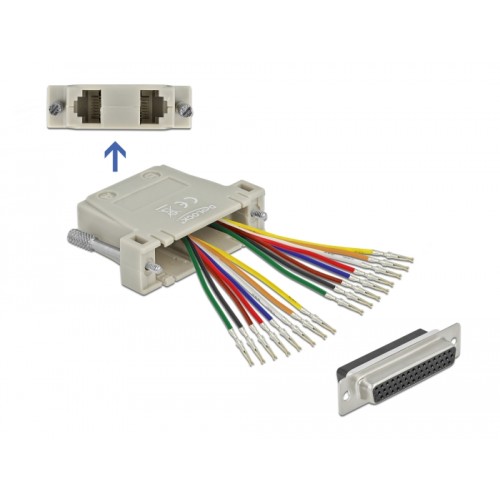

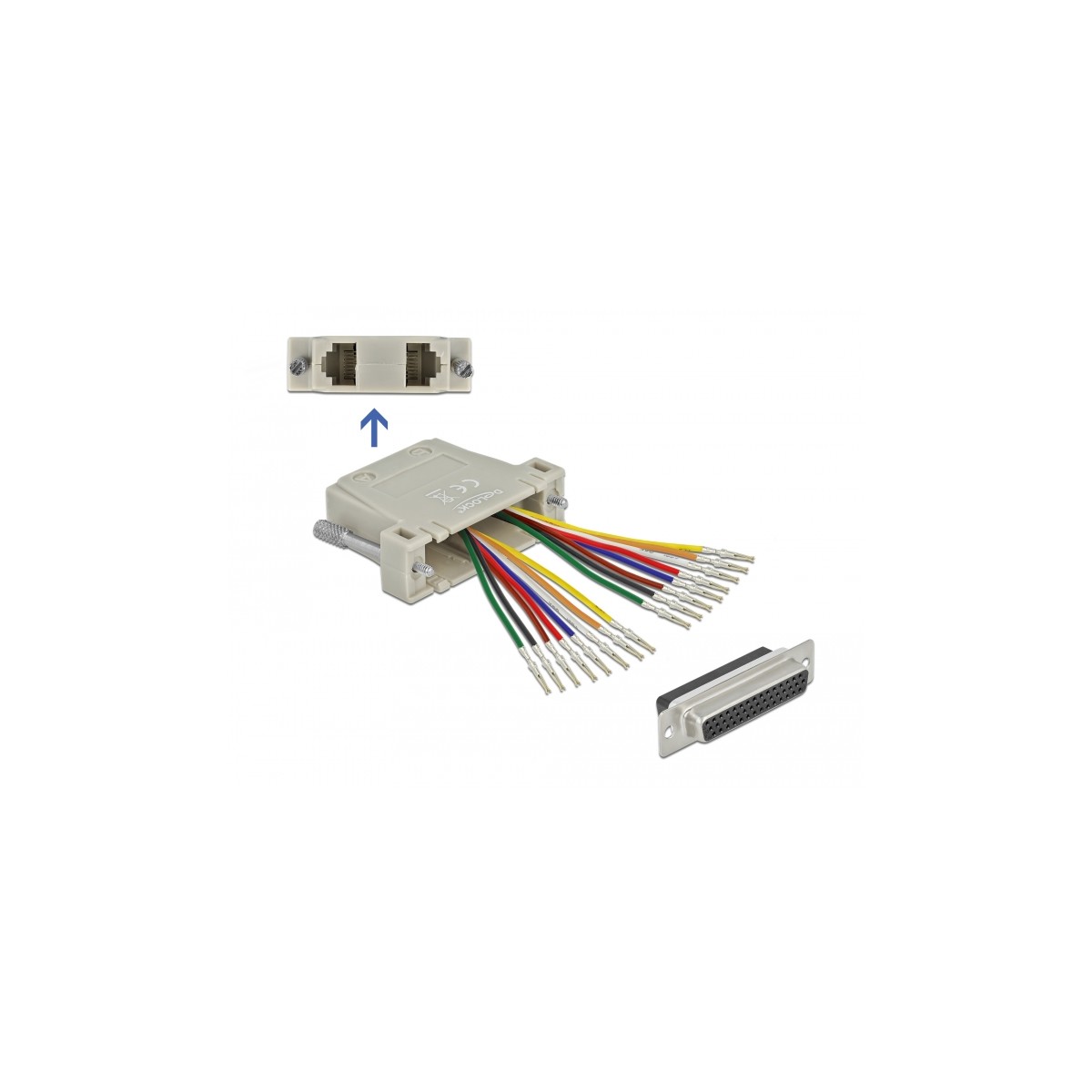

Delock D-Sub HD 44 pin crimp female to 2 x RJ45 female with assembly kit beige
66836
Nuovo
Description
This HD (High Density) adapter by Delock can be used to expand a serial interface by using two optional network cables. Thereby it can be set the pin assignment individually. Just plug the cable end into the desired hole of the connector and let it lock into the housing.
Please Note
Different applications need different pin assignments.
Specification
• Connectors:

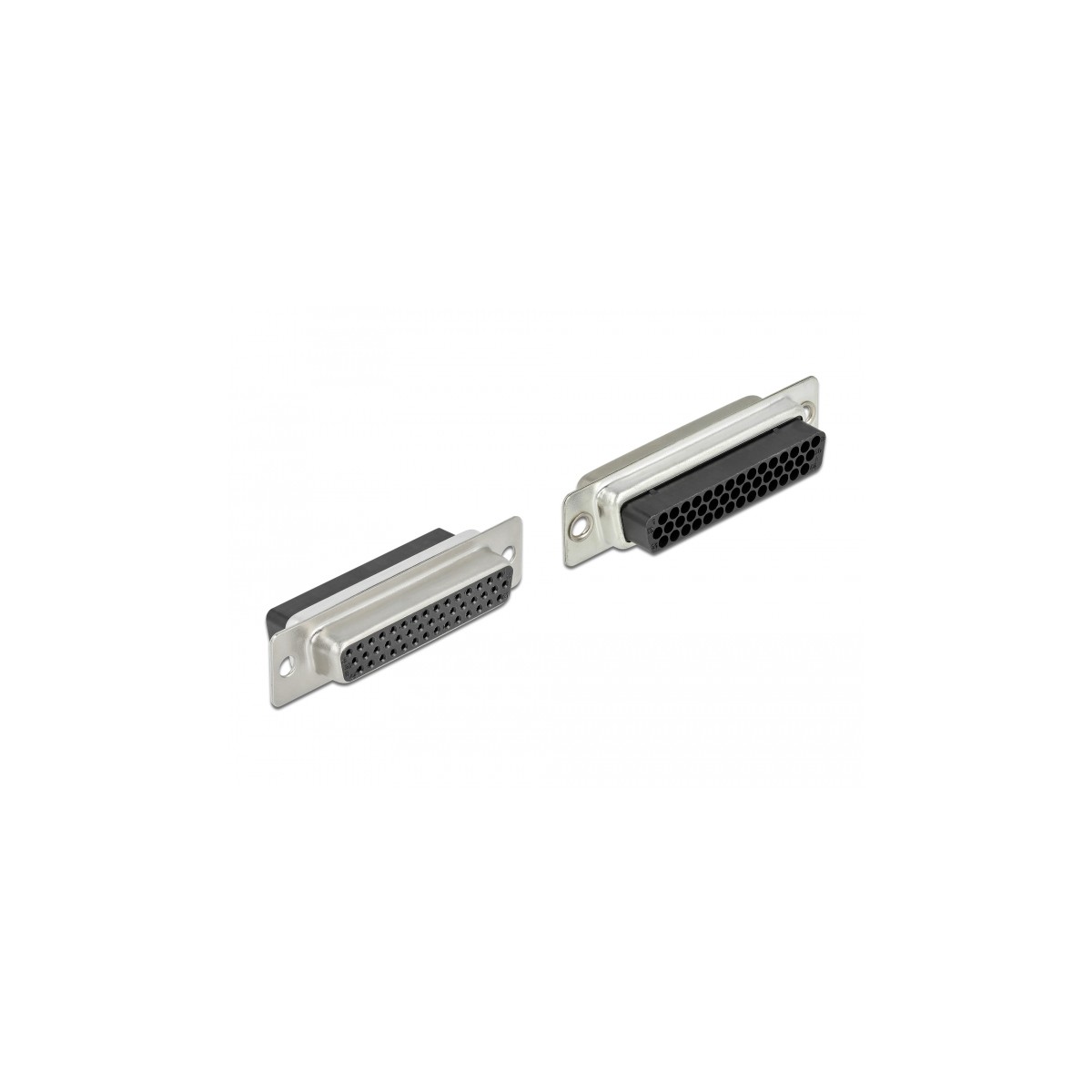

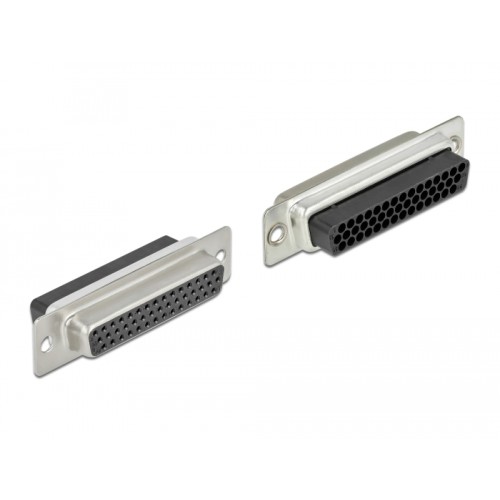

1 x D-Sub HD 44 pin crimp female with screws >
2 x RJ45 jack

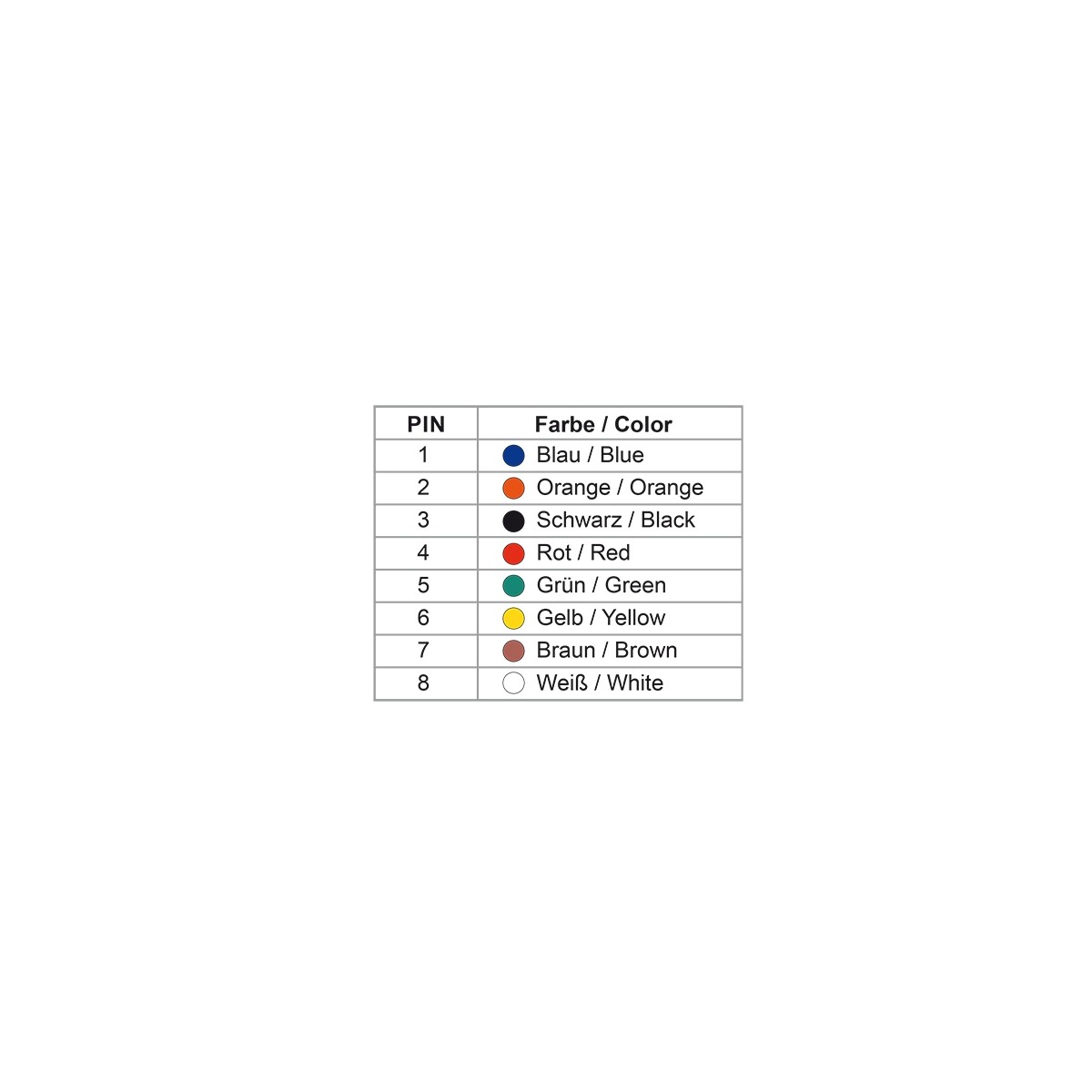

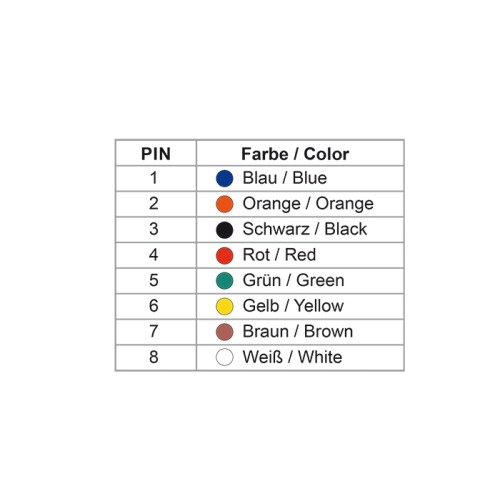

• RJ45 with 8 pins, connection individually assignable
• Colour: beige
• Dimensions (LxWxH): ca. 55 x 53 x 40 mm
System requirements
• A free D-Sub HD 44 pin crimp male and RJ45 male port
Package content
• Adapter
This HD (High Density) adapter by Delock can be used to expand a serial interface by using two optional network cables. Thereby it can be set the pin assignment individually. Just plug the cable end into the desired hole of the connector and let it lock into the housing.
Please Note
Different applications need different pin assignments.
Specification
• Connectors:
1 x D-Sub HD 44 pin crimp female with screws >
2 x RJ45 jack
• RJ45 with 8 pins, connection individually assignable
• Colour: beige
• Dimensions (LxWxH): ca. 55 x 53 x 40 mm
System requirements
• A free D-Sub HD 44 pin crimp male and RJ45 male port
Package content
• Adapter
