Description

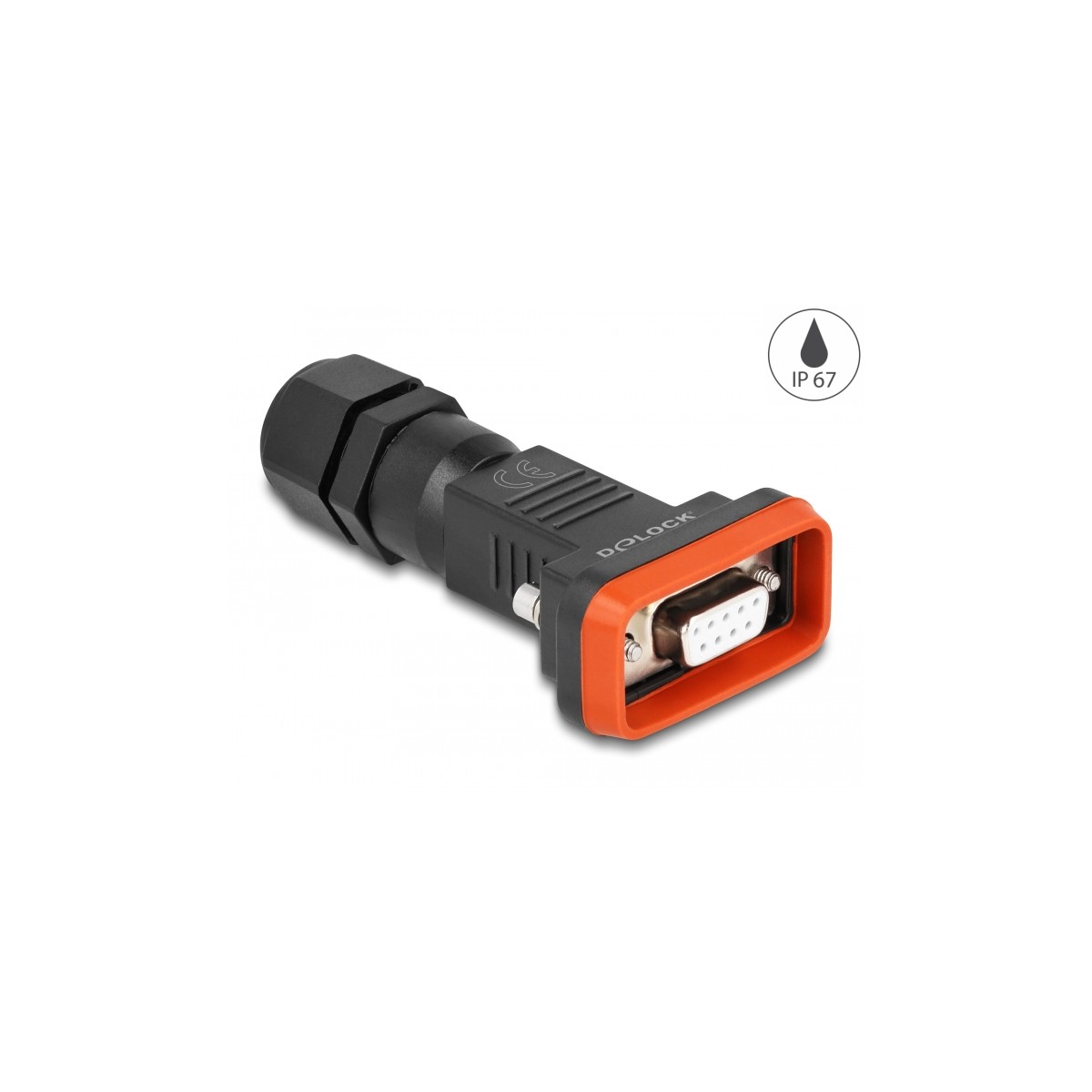

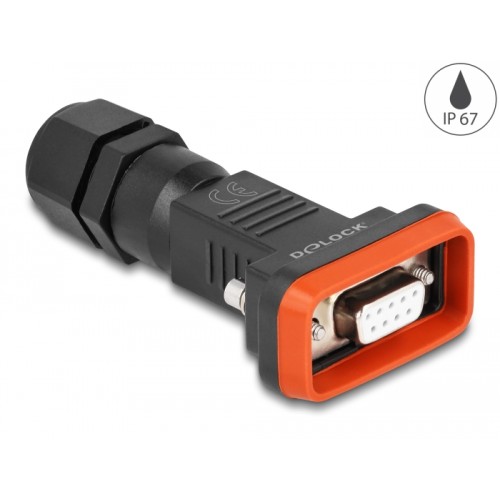

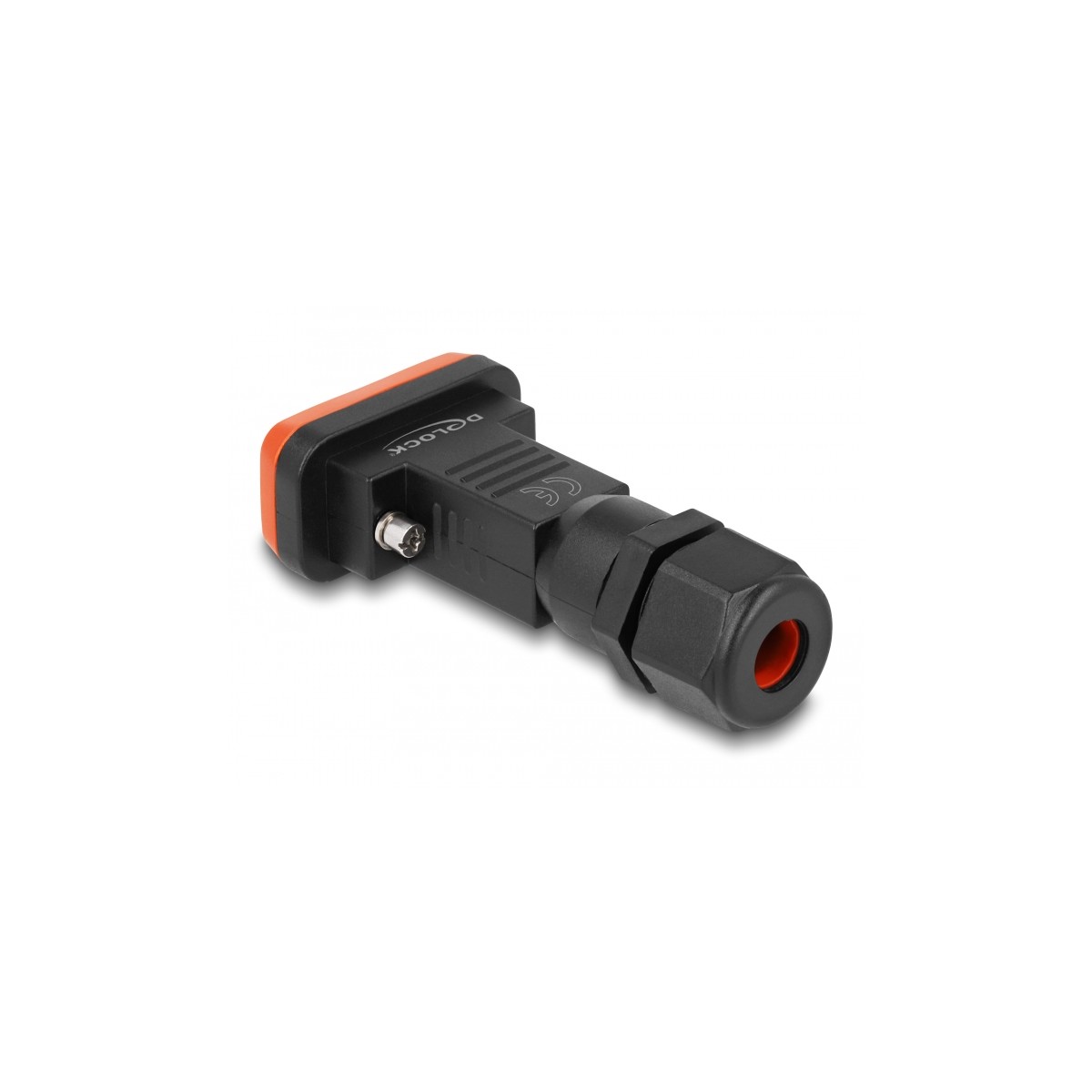

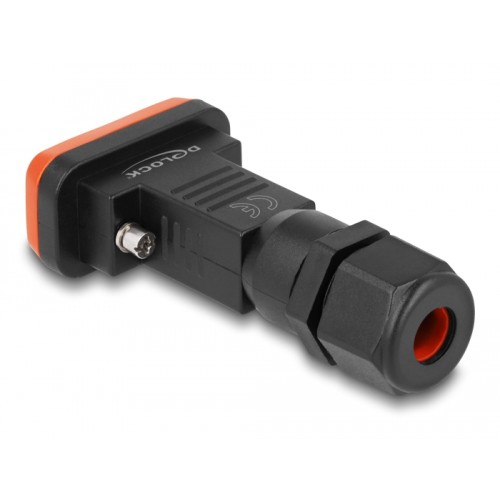

This D-Sub female connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.
Easy installation

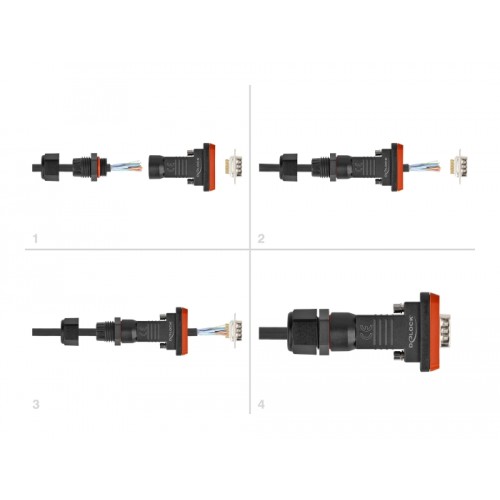

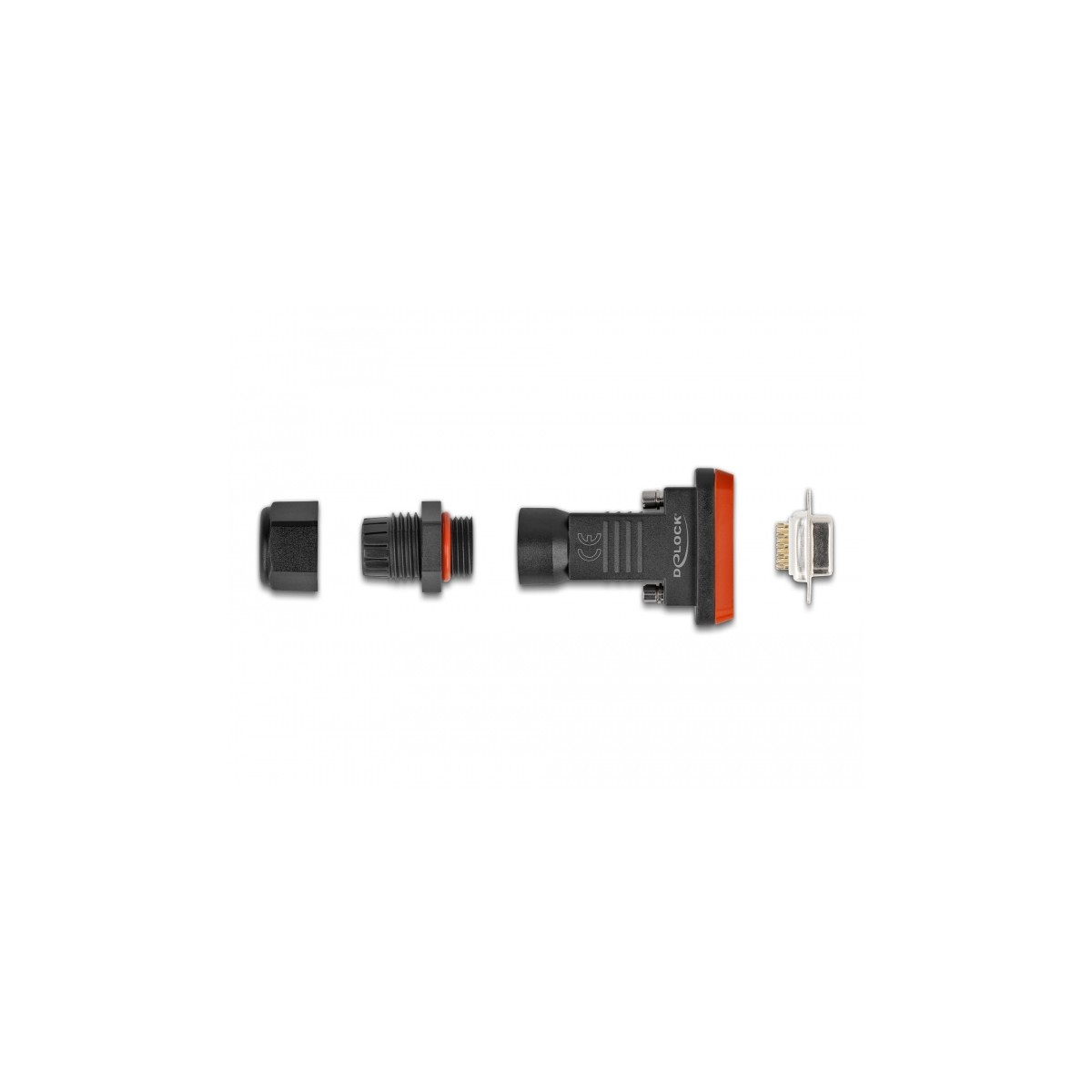

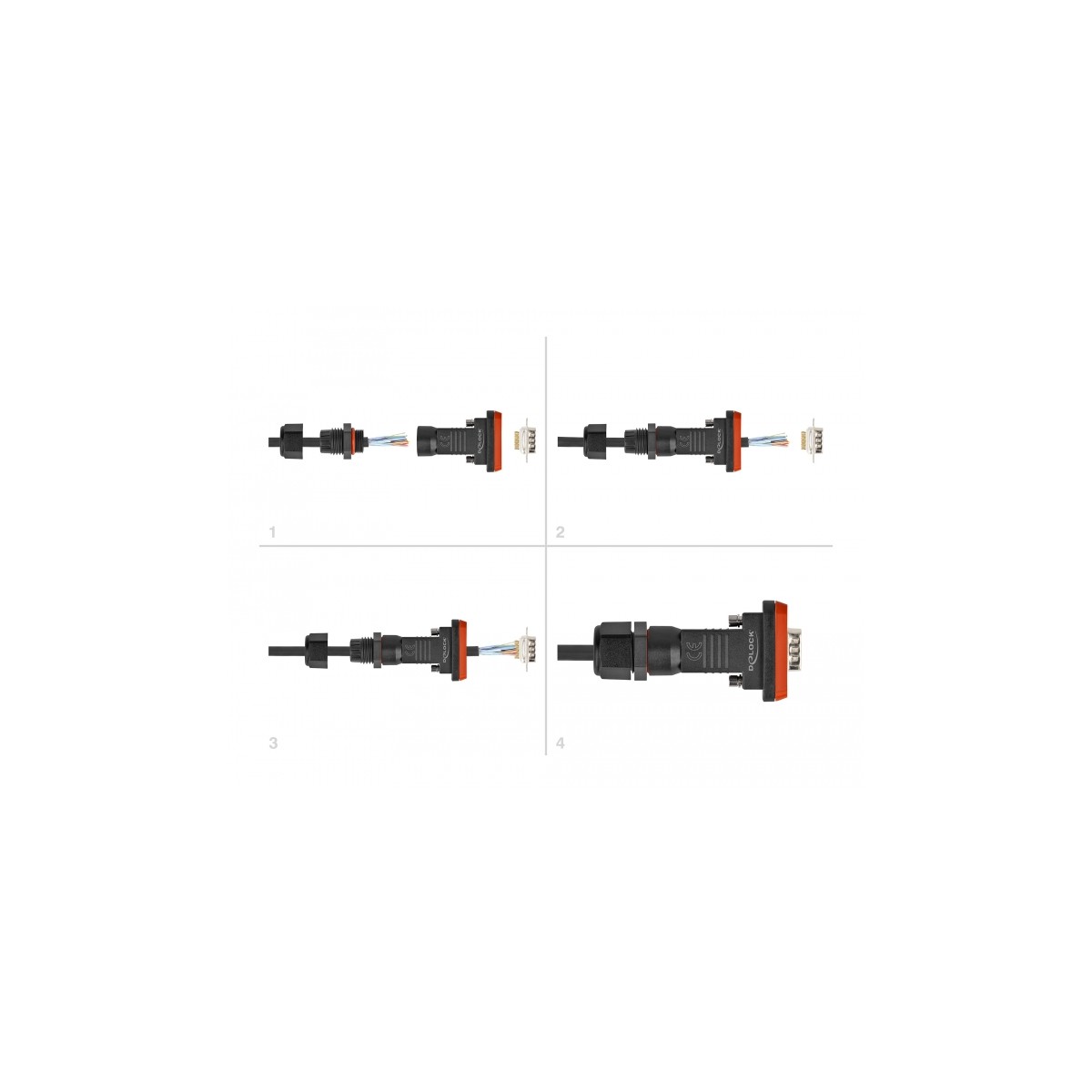

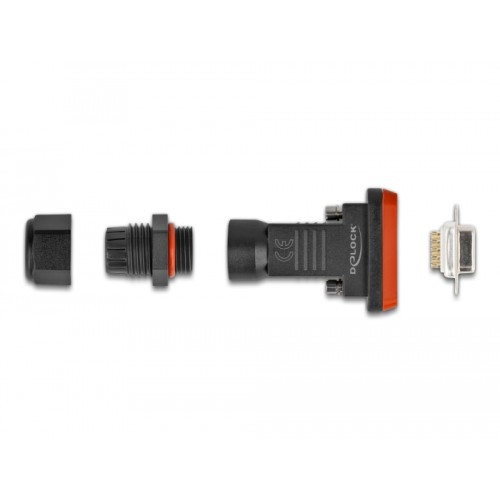

The cable wires can be fed through the housing and connected to the solder contacts of the D-Sub connector. The soldered cable wires are mounted together with the connector to the housing.
Specification
• Connectors:
1 x D-Sub 9 pin female (2 rows)
1 x 9 soldering pin
• Protection class: IP67
• Cable diameter: ca. 4 - 9 mm
• Silicone sealing red
• Operating temperature: -45 °C ~ 105 °C
• Colour: black
• Housing material: PA66
• Dimensions (LxWxH): ca. 80 x 41 x 22 mm
System requirements
Package content
• D-Sub 9 pin female
• Housing
This D-Sub female connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.
Easy installation
The cable wires can be fed through the housing and connected to the solder contacts of the D-Sub connector. The soldered cable wires are mounted together with the connector to the housing.
Specification
• Connectors:
1 x D-Sub 9 pin female (2 rows)
1 x 9 soldering pin
• Protection class: IP67
• Cable diameter: ca. 4 - 9 mm
• Silicone sealing red
• Operating temperature: -45 °C ~ 105 °C
• Colour: black
• Housing material: PA66
• Dimensions (LxWxH): ca. 80 x 41 x 22 mm
System requirements
Package content
• D-Sub 9 pin female
• Housing
