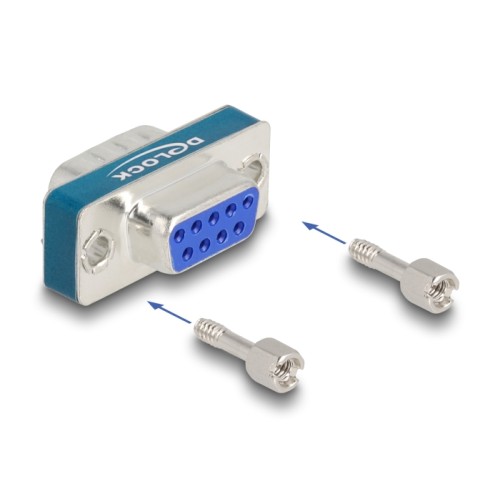

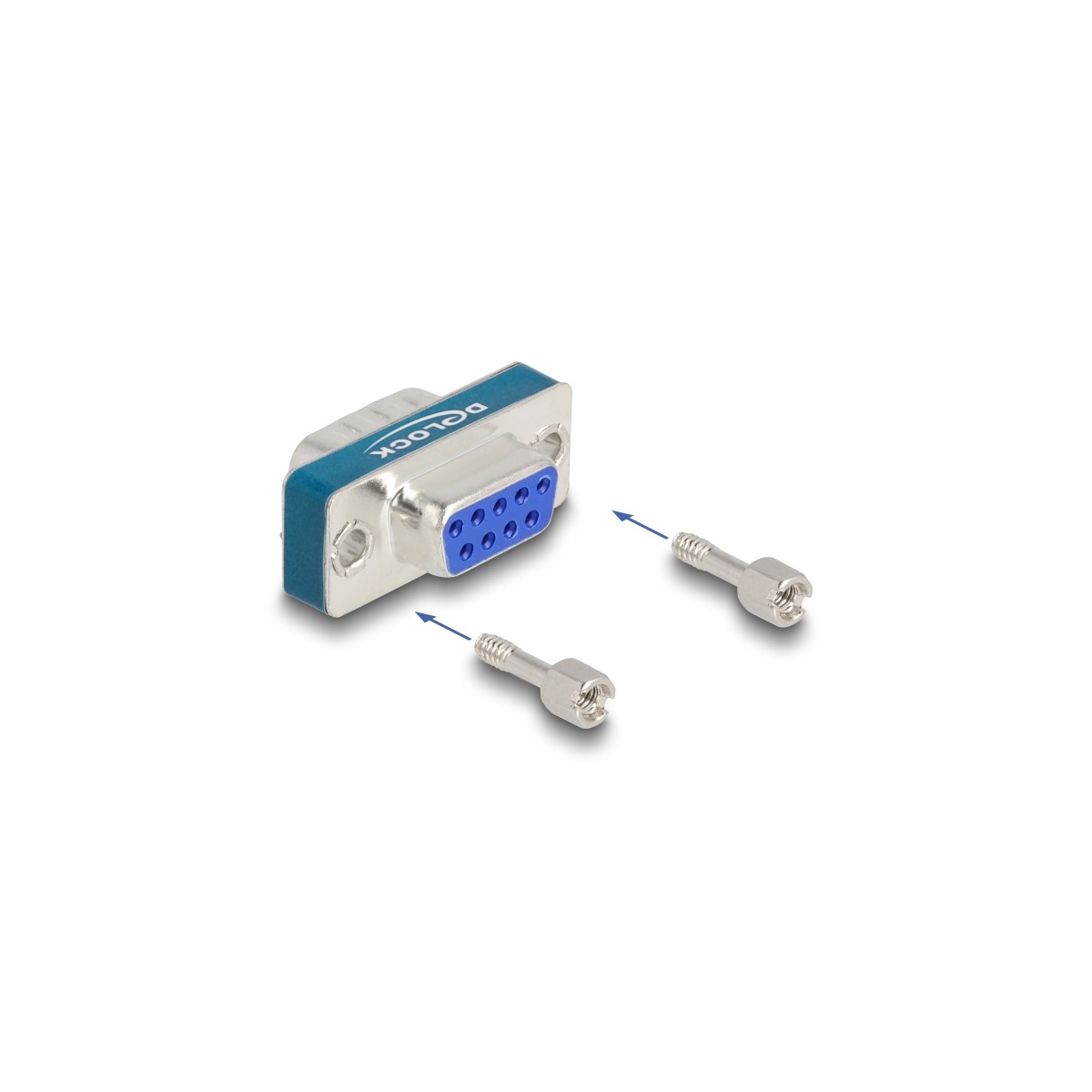

Delock RF/EMI Interference Suppression Filter D-Sub 9 pin male to female with low-pass inductive
66475
Nuovo
Description
The RF/EMI interference suppression filter in the D-Sub adapter by Delock uses integrated broadband filters to prevent interruptions and signal noise, e.g. on Serial RS-232 / RS-485 and digital as well as analogue I/O interfaces.

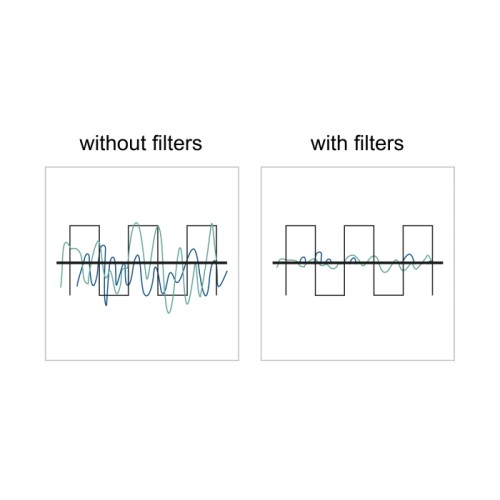

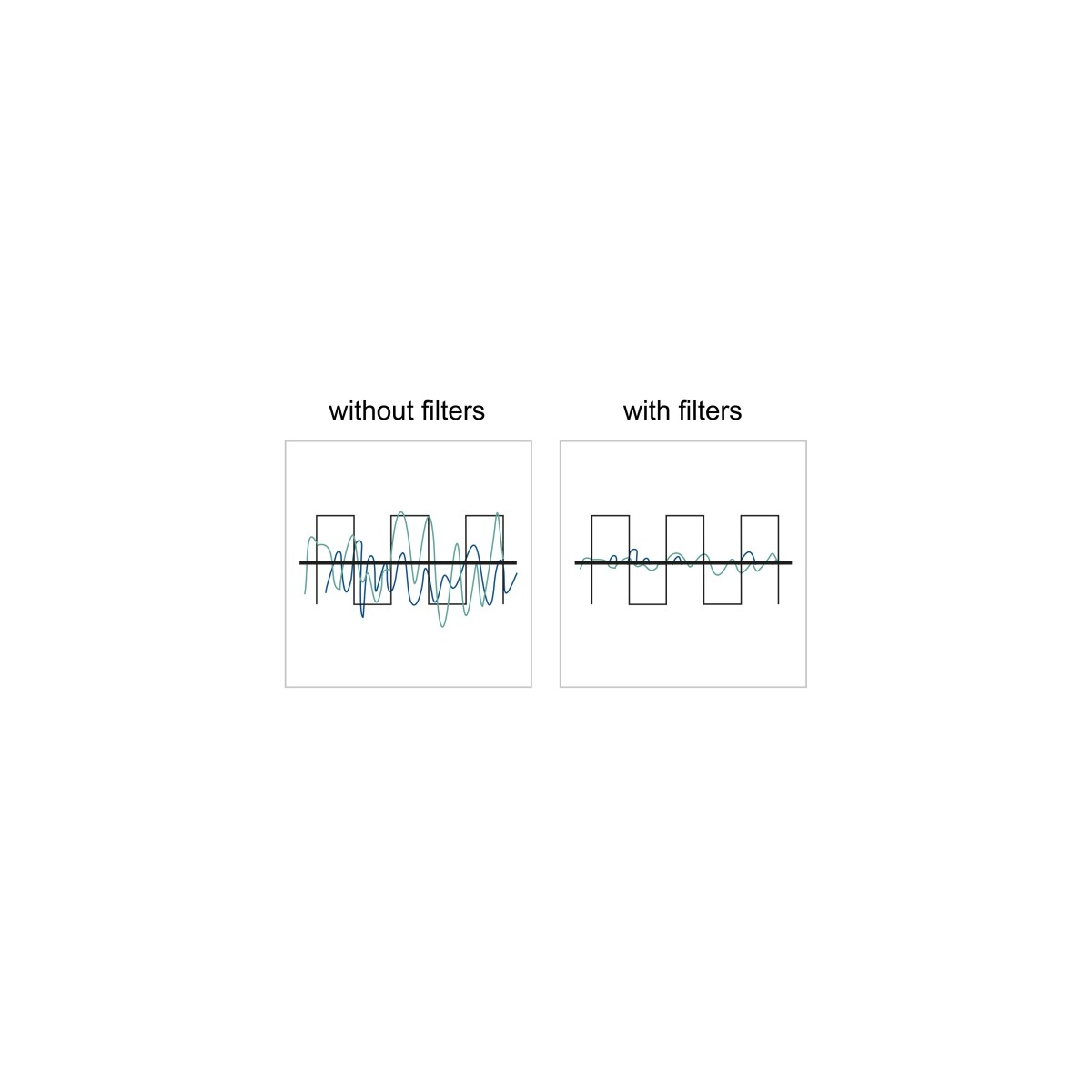

Low-pass broadband filter
The adapter contains nine low-pass broadband filters for RF/EMI shielding of the D-Sub interface.
Please Note
Available in D-Sub 9, 15, 25 and 37 pin versions.
Specification
• Connectors:
1 x D-Sub 9 pin male
1 x D-Sub 9 pin female
• Pin assignment: 1:1
• Contacts: gold plated brass
• Screw type: #4-40 UNC
• Housing material: Steel tin plated

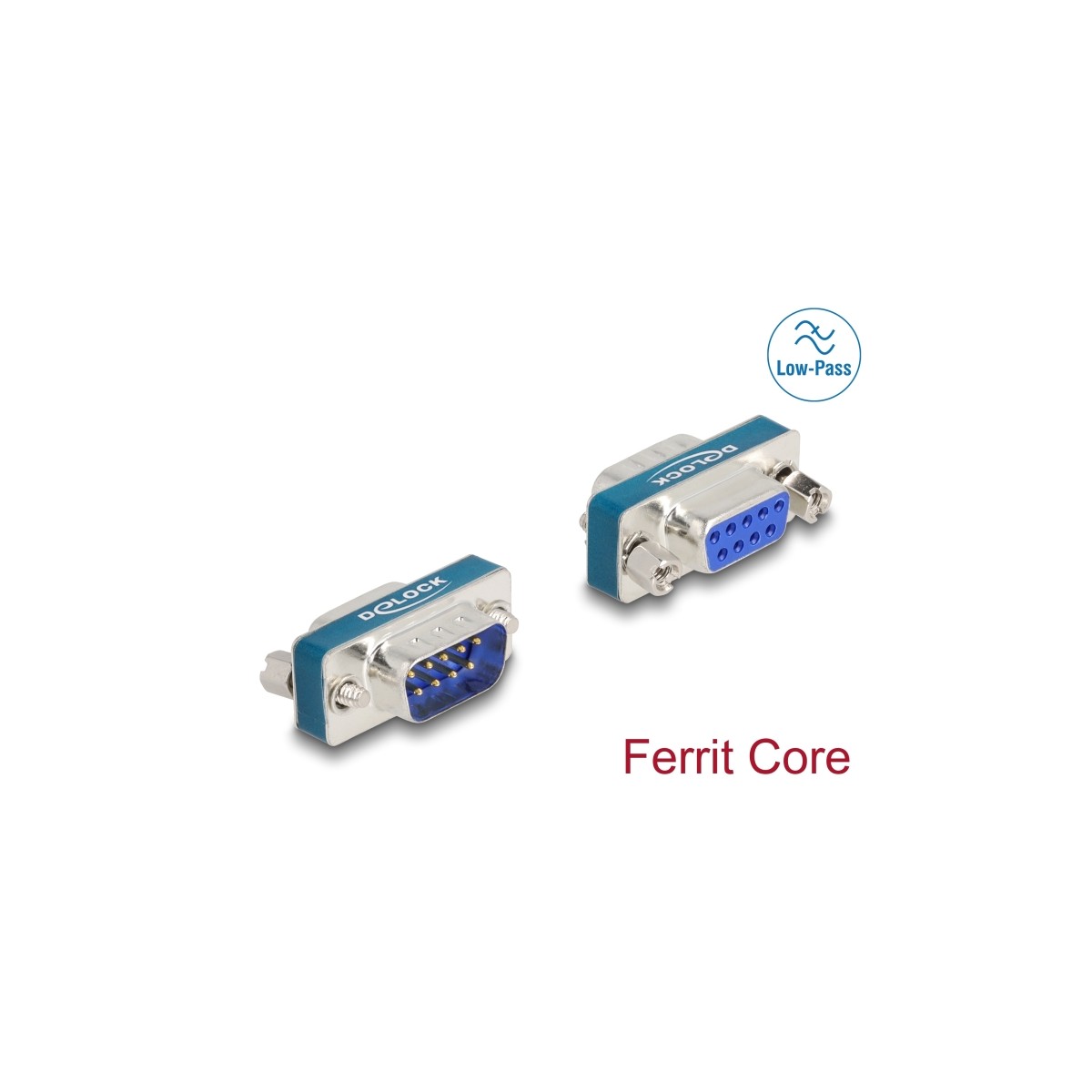

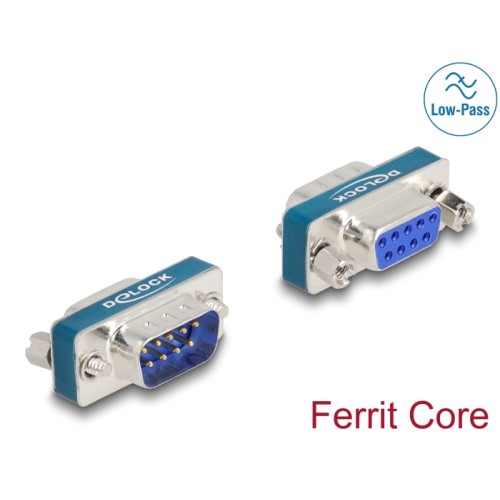

• Low-pass: inductive
• Rated voltage: 150 VAC
• Operating temperature: -55 °C ~ 105 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 31.1 x 17.9 x 12.7 mm
System requirements
• A free D-Sub 9 pin interface
Package content
• RF/EMI filter
The RF/EMI interference suppression filter in the D-Sub adapter by Delock uses integrated broadband filters to prevent interruptions and signal noise, e.g. on Serial RS-232 / RS-485 and digital as well as analogue I/O interfaces.
Low-pass broadband filter
The adapter contains nine low-pass broadband filters for RF/EMI shielding of the D-Sub interface.
Please Note
Available in D-Sub 9, 15, 25 and 37 pin versions.
Specification
• Connectors:
1 x D-Sub 9 pin male
1 x D-Sub 9 pin female
• Pin assignment: 1:1
• Contacts: gold plated brass
• Screw type: #4-40 UNC
• Housing material: Steel tin plated
• Low-pass: inductive
• Rated voltage: 150 VAC
• Operating temperature: -55 °C ~ 105 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 31.1 x 17.9 x 12.7 mm
System requirements
• A free D-Sub 9 pin interface
Package content
• RF/EMI filter
Nuovo
4043619664757
