Description
The OBD-2 standard cable by Delock enables the connection of data logger and diagnostic device etc. to vehicles with on-board diagnostic port. Possible applications include e.g. vehicle monitoring or reading and resetting the fault memory via the bus systems CAN Bus, J1850 Bus as well as K/L-Lines.
Pin assignment
Please Note
The cable is not suitable for the RS-232 computer interface.
Specification
• Connectors:
1 x OBD-2 type B male
1 x serial D-Sub 9 female with screws
• Insulator: PVC
• Cable gauge: 24 AWG
• Cable diameter: ca. 6.5 mm
• Cable type: UL AWM 2464 VW-1 Flame Test
• Colour: black
• Screw type: #4-40 UNC
• Operating temperature: -20 °C ~ 80 °C
• Cable length incl. connectors: ca. 1.15 m
System requirements
Package content
• OBD-2 (type B) cable
The OBD-2 standard cable by Delock enables the connection of data logger and diagnostic device etc. to vehicles with on-board diagnostic port. Possible applications include e.g. vehicle monitoring or reading and resetting the fault memory via the bus systems CAN Bus, J1850 Bus as well as K/L-Lines.

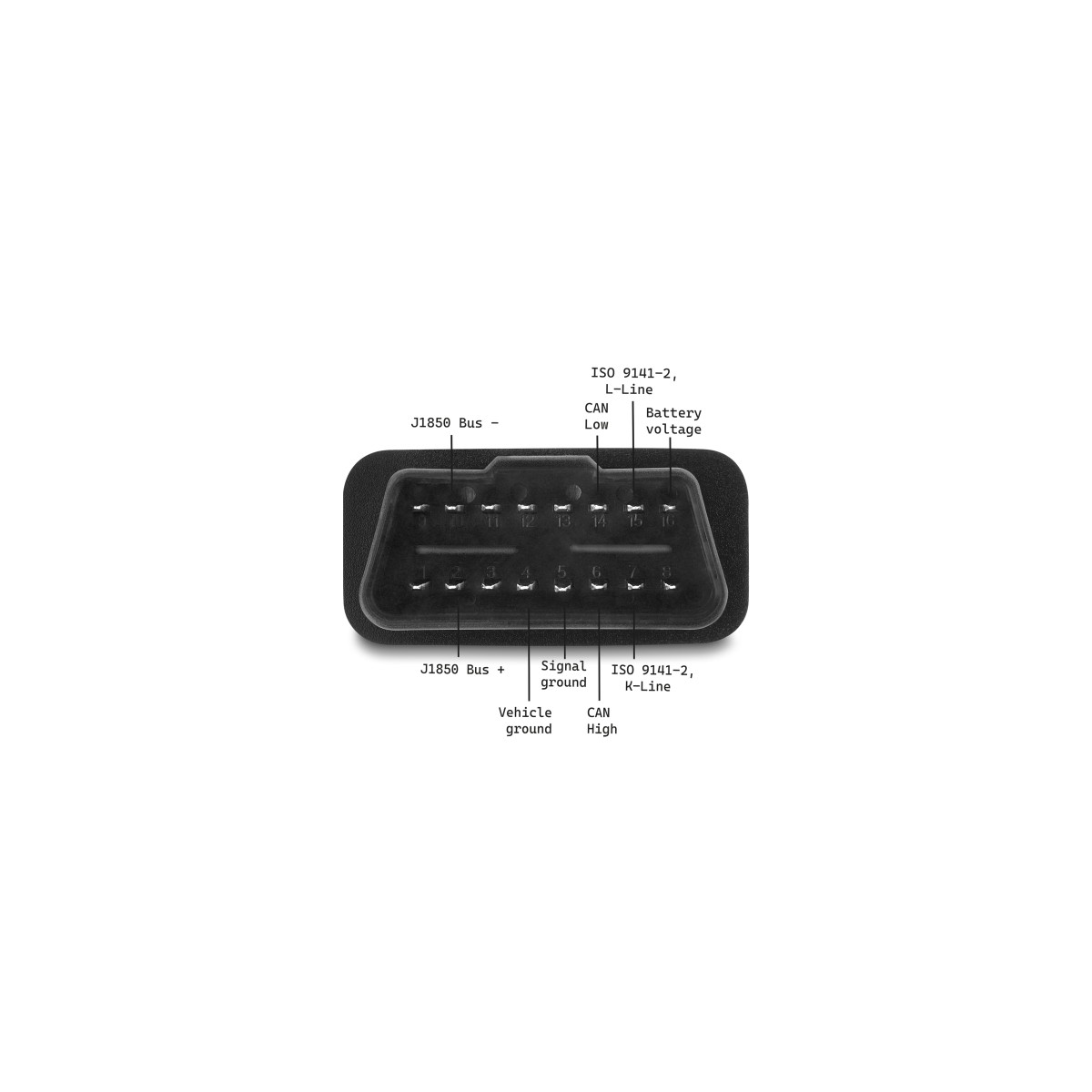

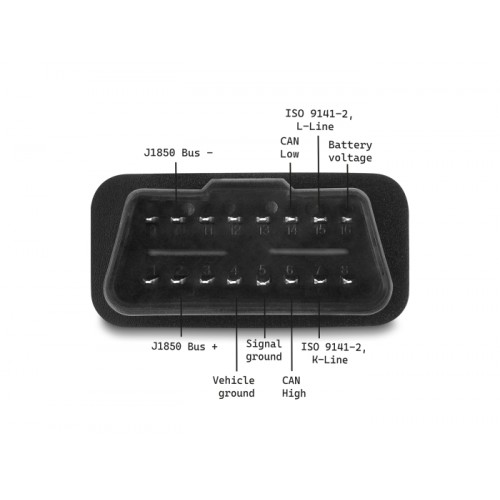

Pin assignment
| Sub-D 9 pin | OBD-II (type B) | SAE J1962 / ISO 15031-3 |
|---|---|---|
| 1 | 5 | Signal ground |
| 2 | 4 | Vehicle ground |
| 3 | 6 | CAN High |
| 5 | 14 | CAN Low |
| 4 | 7 | ISO 9141-2, K-Line |
| 8 | 15 | ISO 9141-2, L-Line |
| 6 | 10 | J1850 Bus - |
| 7 | 2 | J1850 Bus + |
| 9 | 16 | Battery voltage |
Please Note
The cable is not suitable for the RS-232 computer interface.
Specification

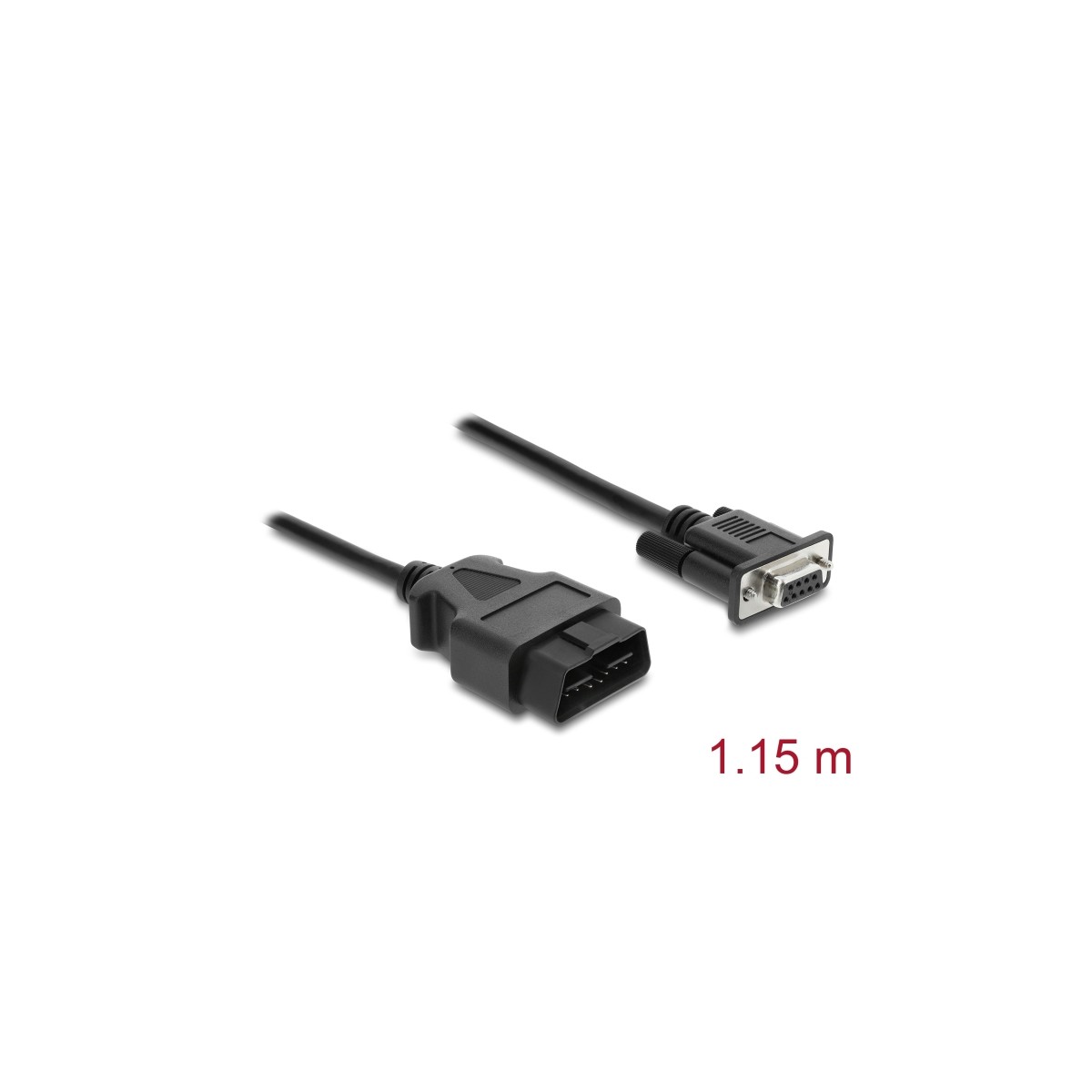

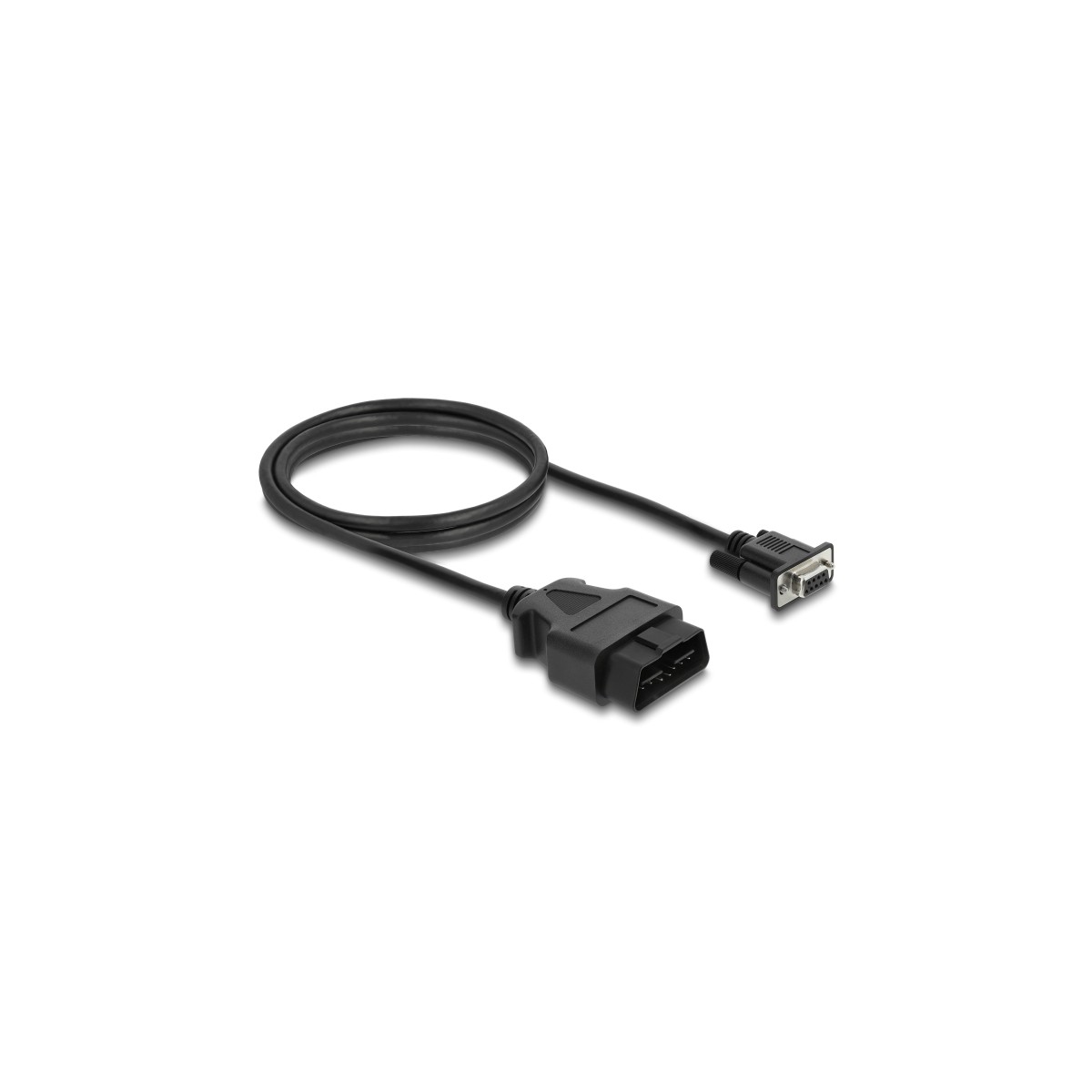

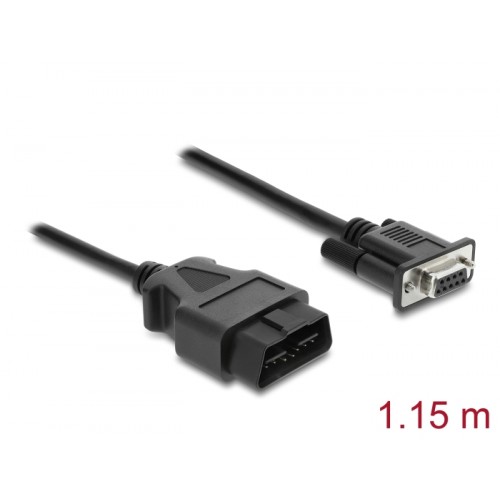

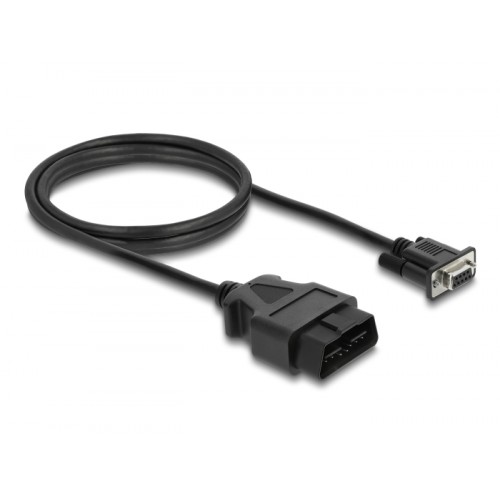

• Connectors:
1 x OBD-2 type B male
1 x serial D-Sub 9 female with screws
• Insulator: PVC
• Cable gauge: 24 AWG
• Cable diameter: ca. 6.5 mm
• Cable type: UL AWM 2464 VW-1 Flame Test
• Colour: black
• Screw type: #4-40 UNC
• Operating temperature: -20 °C ~ 80 °C
• Cable length incl. connectors: ca. 1.15 m
System requirements
Package content
• OBD-2 (type B) cable
4043619643530
