Description
This Keystone holder by Delock can be mounted to a 35 mm DIN rail or wall. With its standardized dimensions, it is suitable for easy snap-in mounting of 8 Keystone modules.

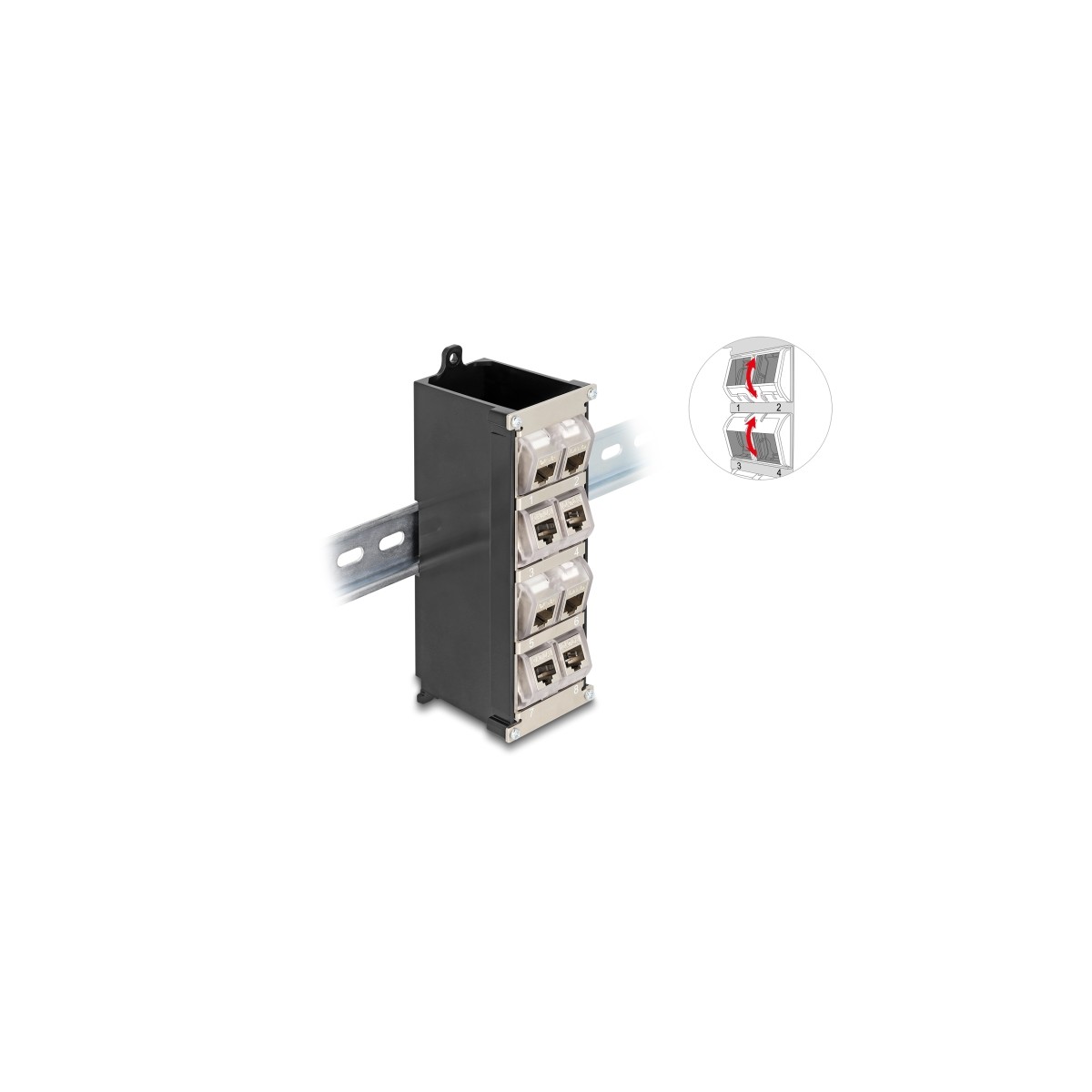

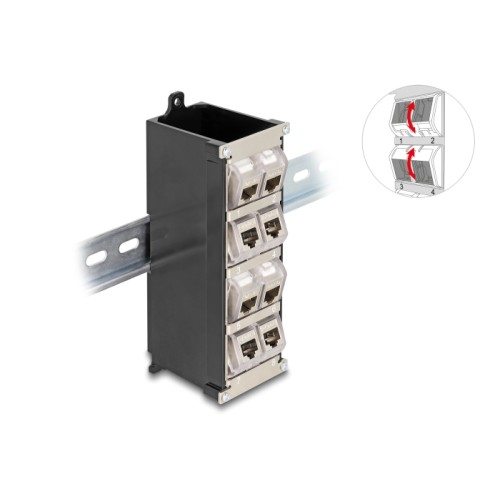

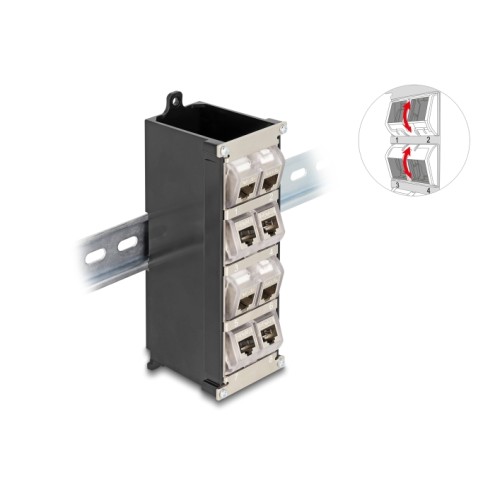

With tiltable Keystone ports
The tiltable Keystone ports allow for an angled and space saving installation of cables e.g. in switch cabinets or distribution panels.
With ground connection
The holder has a grounding connection to allow electrical currents to be discharged easily.
Please Note
Due to the design only keystone modules up to max. 17.5 mm width can be used. Keystone modules are not included in the package content.
Specification

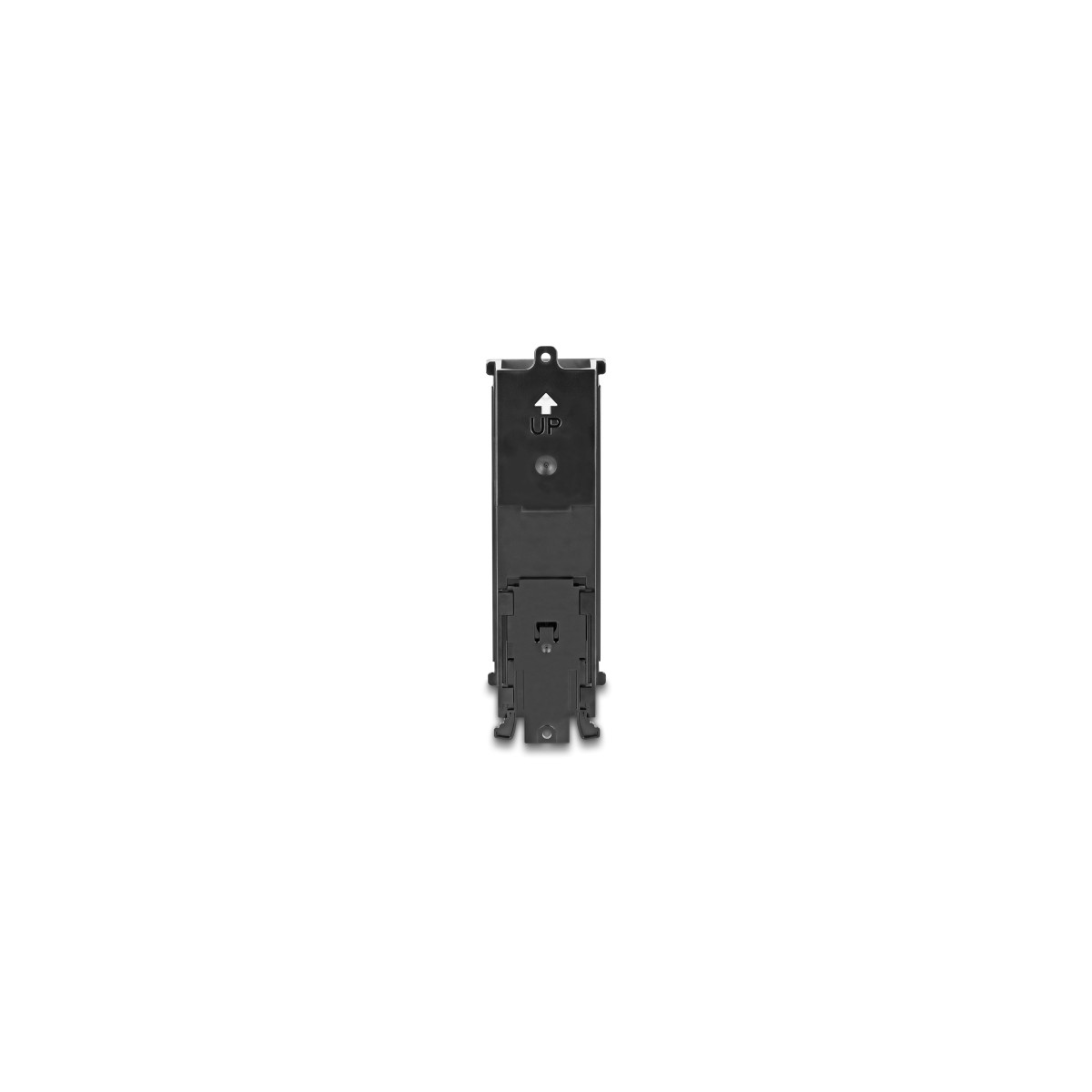

• Mounting for 35 mm DIN rail
• 8 Keystone ports 19.2 x 14.9 mm
• Tiltable bearing 30° of the Keystone modules
• Wall mounting
• 2 x mounting holes
• Mounting hole diameter: ca. 3.8 mm
• Pitch of screw hole: ca. 162.9 mm
• With ground connection
• With port numbering
• Operating temperature: -10 °C ~ 60 °C
• Material: metal / plastic
• Dimensions (LxWxH): ca. 154 x 78 x 55 mm
System requirements

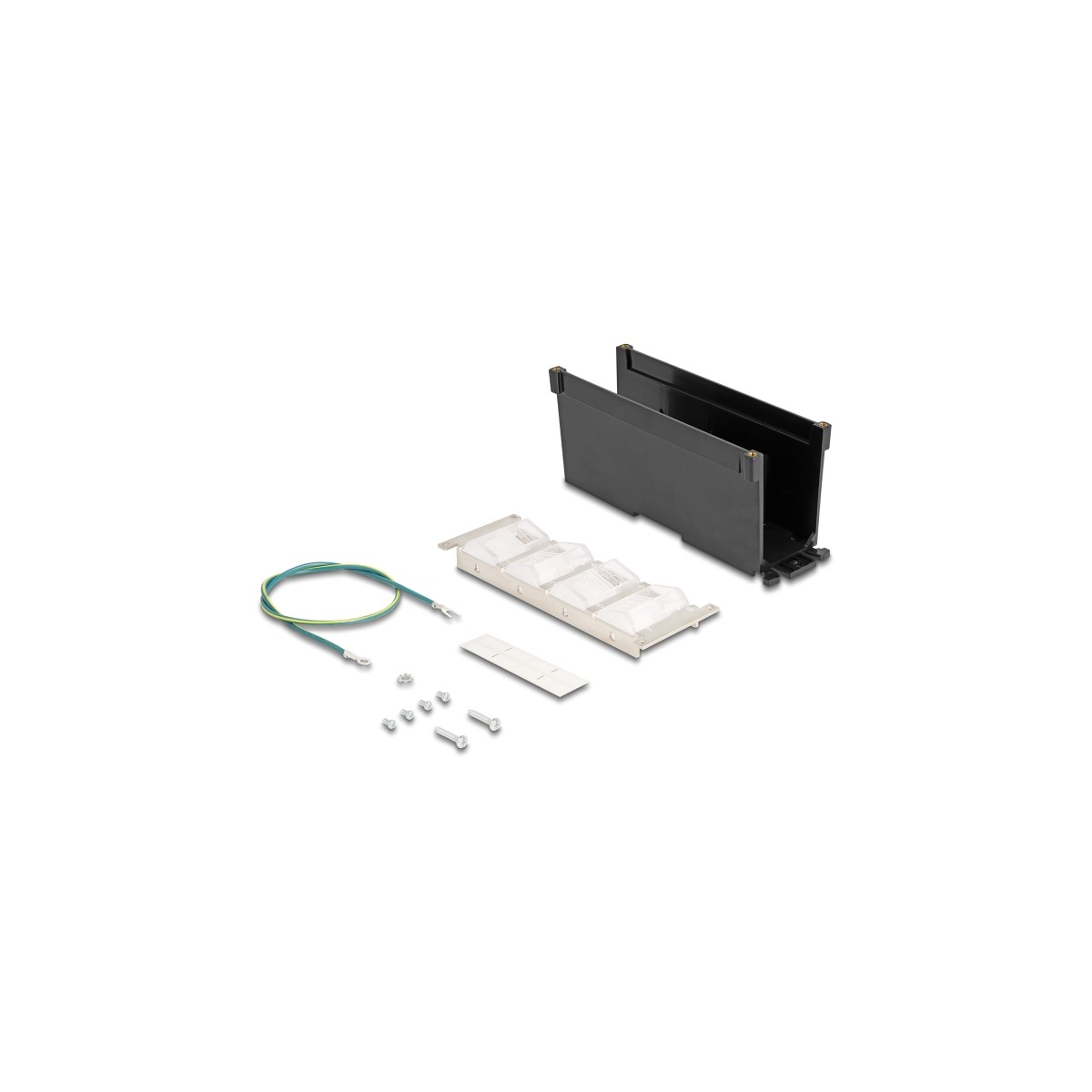

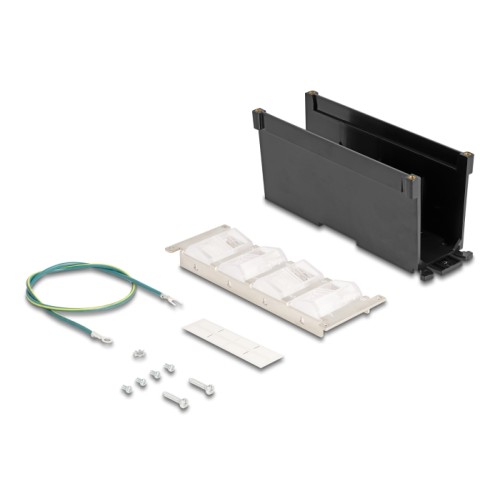

Package content
• Keystone mounting
• Ground wire
• Mounting material
