Description

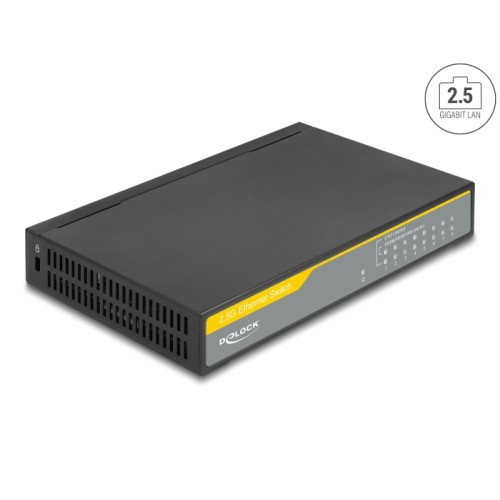

This 2.5 Gigabit Ethernet Switch by Delock can be used to connect different network components.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
Specification

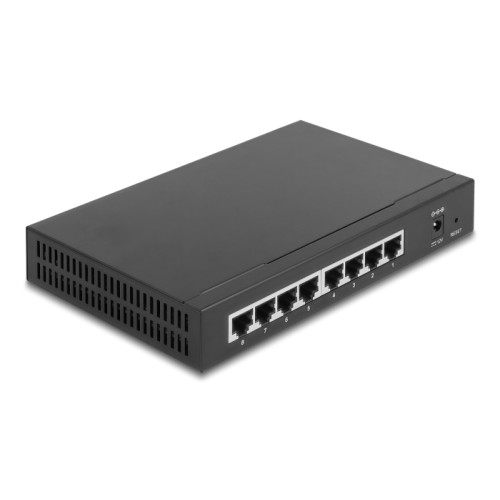

• Connectors:
8 x 2.5 Gigabit LAN RJ45 jack
1 x DC 5.5 x 2.1 mm female
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
2,5 Gigabit Ethernet up to 2500 Mbps
• Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3x
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Bandwidth: 40 Gbps
• Supports 12k Jumbo Frames
• LED indicator for link and activity
• Reset button
• Robust metal housing
• Security lock (Kensington Lock) for security cable
• Removable wall-mount brackets
• Fanless
• Operating temperature: 0 °C ~ 40 °C
• Power consumption: ca. 5 W - 12 W
• Dimensions (LxWxH): ca. 190 x 120 x 30 mm

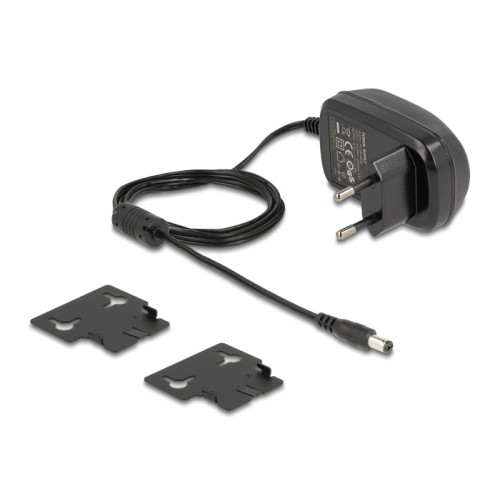

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12.0 V / 1.8 A / 21.6 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
System requirements
• Device with one free RJ45 port
Package content
• Switch
• Wall mounting brackets
• External power supply
• User manual
