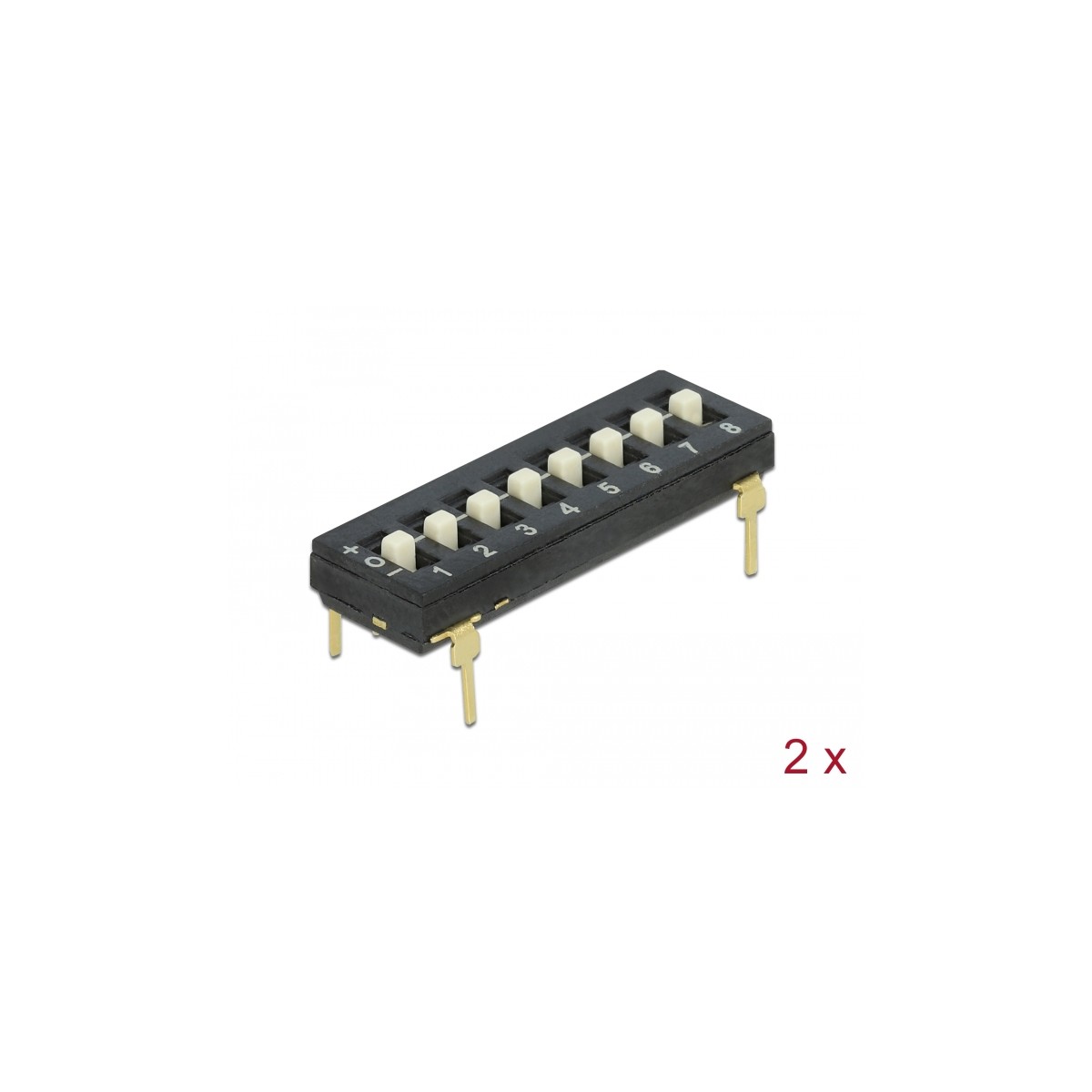

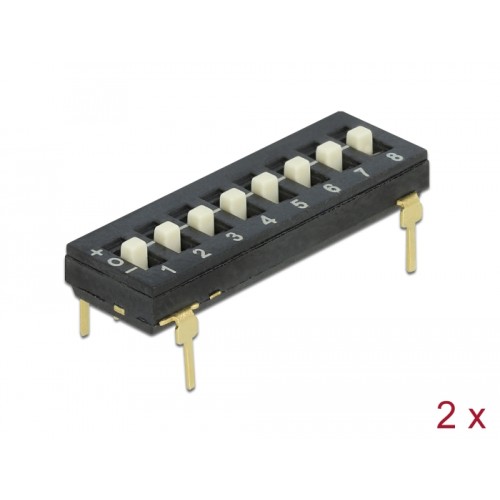

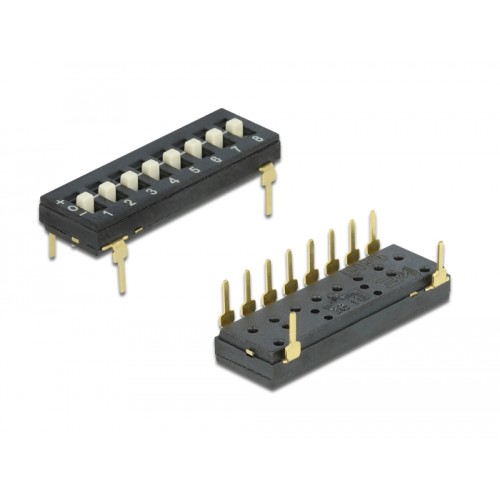

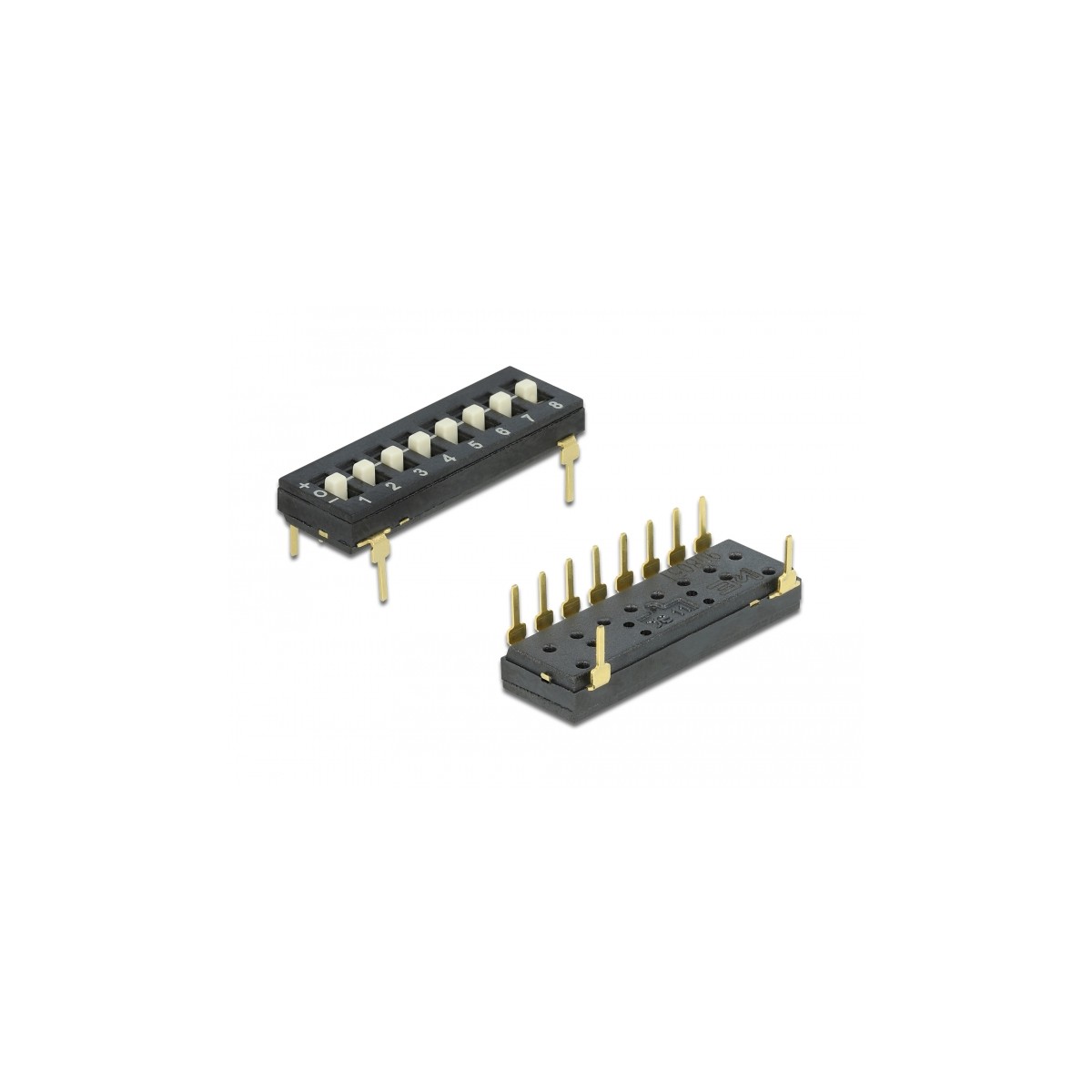

Delock DIP switch Tri-State 8-digit 2.54 mm pitch THT vertical black 2 pieces

Description
This DIP switch by Delock is suitable for the solder mounting on a PCB.

Tri-State circuit
The tri-state switch consists of 8 single switches, each with 3 switching positions (+, 0, -) per position. This allows to set more codings than a standard DIP switch with only 2 switch positions (on / off).

THT Assembly Technology

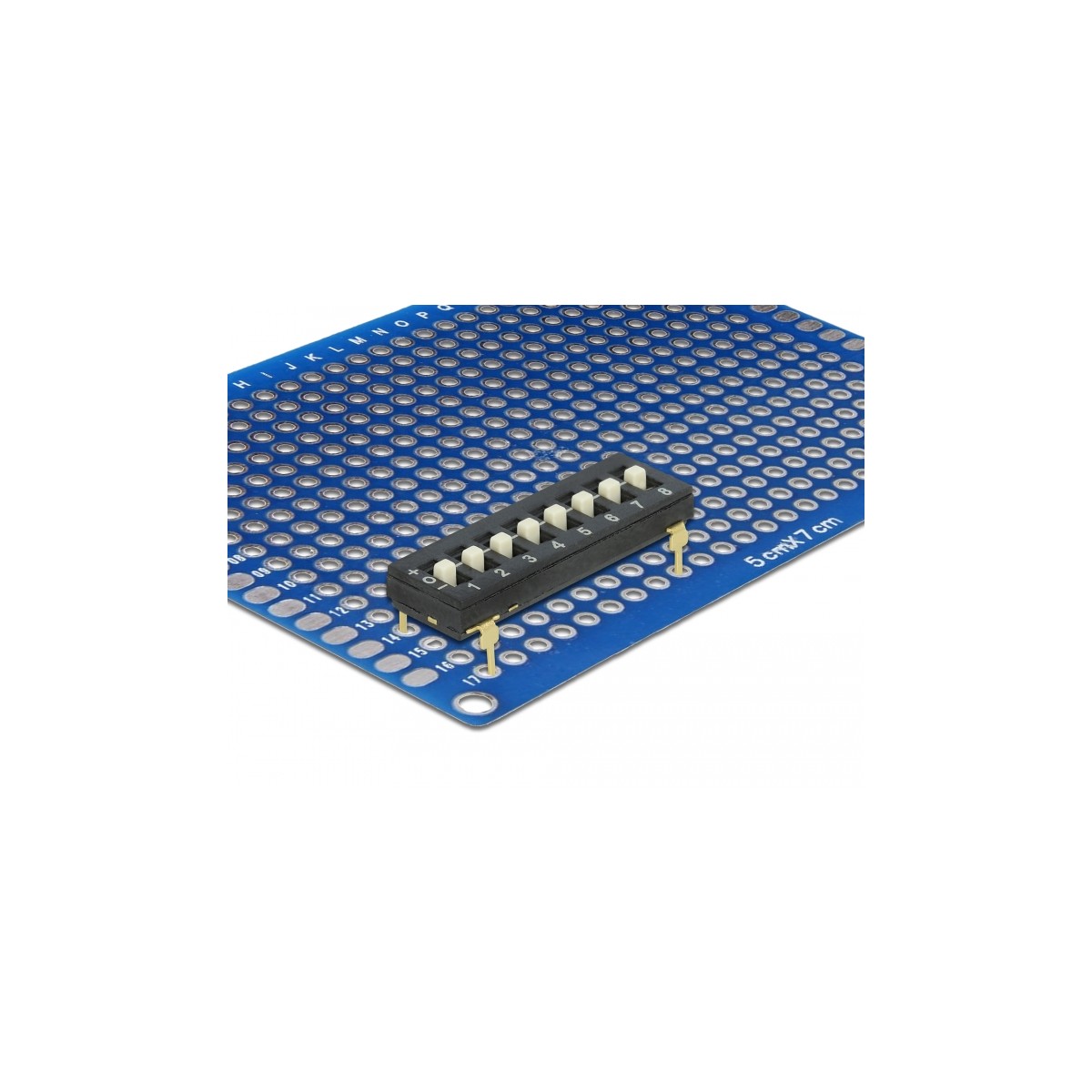

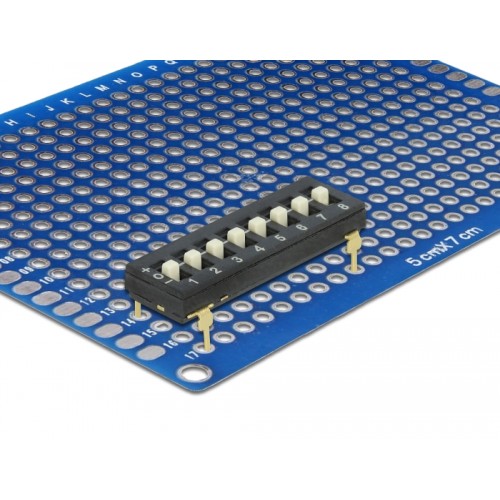

The attached soldering pins on the DIP switch can be inserted through contact holes on a PCB and soldered from the bottom side. The switching rows are used to set configurations and to change parameters.

Multifunctional application
The DIP switch is mainly used in telecommunications, computers and measuring.

Specification
• Connectors:
1 x 10 soldering pin
• Number of positions: 8
• Pitch: 2.54 mm
• Switch positions: 3 (+, 0, -)
• Switching rating: 25 mA, 24 VDC
• Insulation resistance: 1000 MΩ / 500 VDC
• Withstanding voltage: 500 VAC / 1 minute
• Soldering temperature: 250 °C for ca. 3 seconds
• Environmental temperature: -40 °C ~ 85 °C
• Operating temperature: -30 °C ~ 85 °C
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 21.8 x 7.0 x 3.2 mm

System requirements


Package content
• 2 x DIP switch
