Description

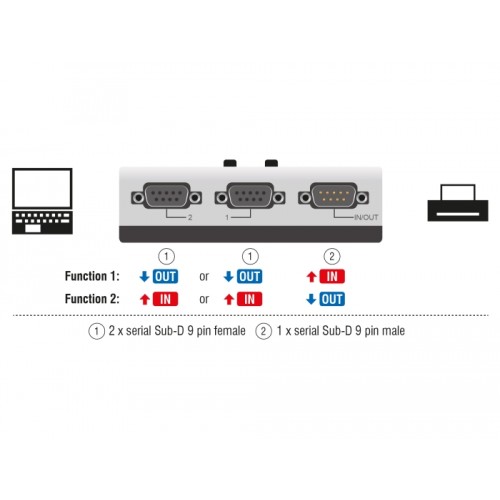

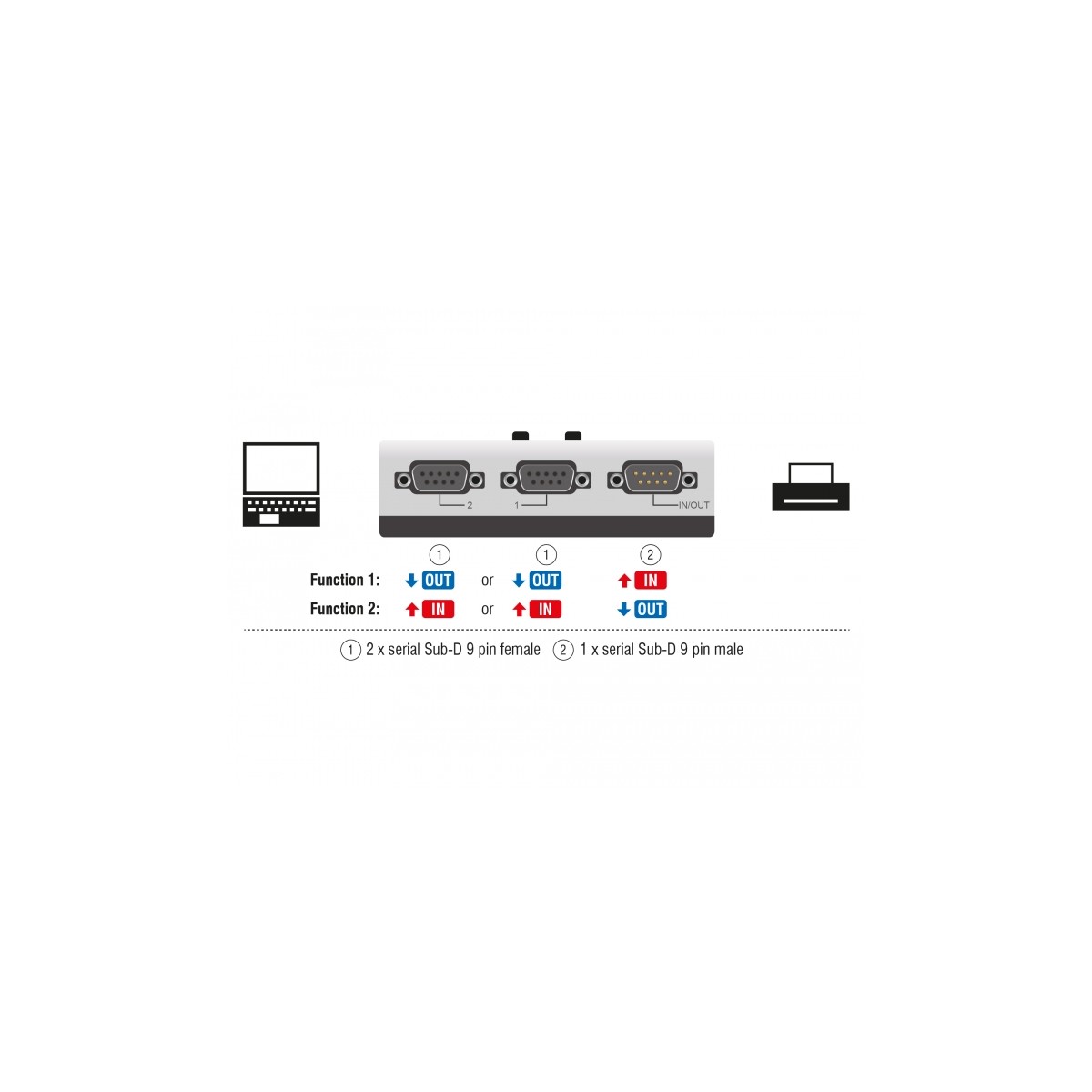

This RS-232 / RS-422 / RS-485 switch by Delock is a manually bidirectional switch for connecting different devices with RS-232 / RS-422 / RS-485 port. This switch offers two different applications.
1. It can be connected to two devices with RS-232 / RS-422 / RS-485 port e.g. computer or modem on one RS-232 / RS-422 / RS-485 port.
2. It can be connected to one device with RS-232 / RS-422 / RS-485 port on two RS-232 / RS-422 / RS-485 lines.
Specification
• Connectors:
2 x serial D-Sub 9 pin female
1 x serial D-Sub 9 pin male
• Serial male and female ports with nuts
• Signals (1:1): TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI
• 2 mechanical buttons
• Plastic housing
• Wallmount option
• No external power supply needed
• Dimensions (LxWxH): ca. 112 x 71 x 30 mm (without button)
• Colour: grey / black
System requirements
• A free D-Sub 9 pin interface
Package content
• Switch
• User manual
This RS-232 / RS-422 / RS-485 switch by Delock is a manually bidirectional switch for connecting different devices with RS-232 / RS-422 / RS-485 port. This switch offers two different applications.
1. It can be connected to two devices with RS-232 / RS-422 / RS-485 port e.g. computer or modem on one RS-232 / RS-422 / RS-485 port.
2. It can be connected to one device with RS-232 / RS-422 / RS-485 port on two RS-232 / RS-422 / RS-485 lines.
Specification
• Connectors:
2 x serial D-Sub 9 pin female
1 x serial D-Sub 9 pin male
• Serial male and female ports with nuts
• Signals (1:1): TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI
• 2 mechanical buttons
• Plastic housing
• Wallmount option
• No external power supply needed
• Dimensions (LxWxH): ca. 112 x 71 x 30 mm (without button)
• Colour: grey / black
System requirements
• A free D-Sub 9 pin interface
Package content
• Switch
• User manual
