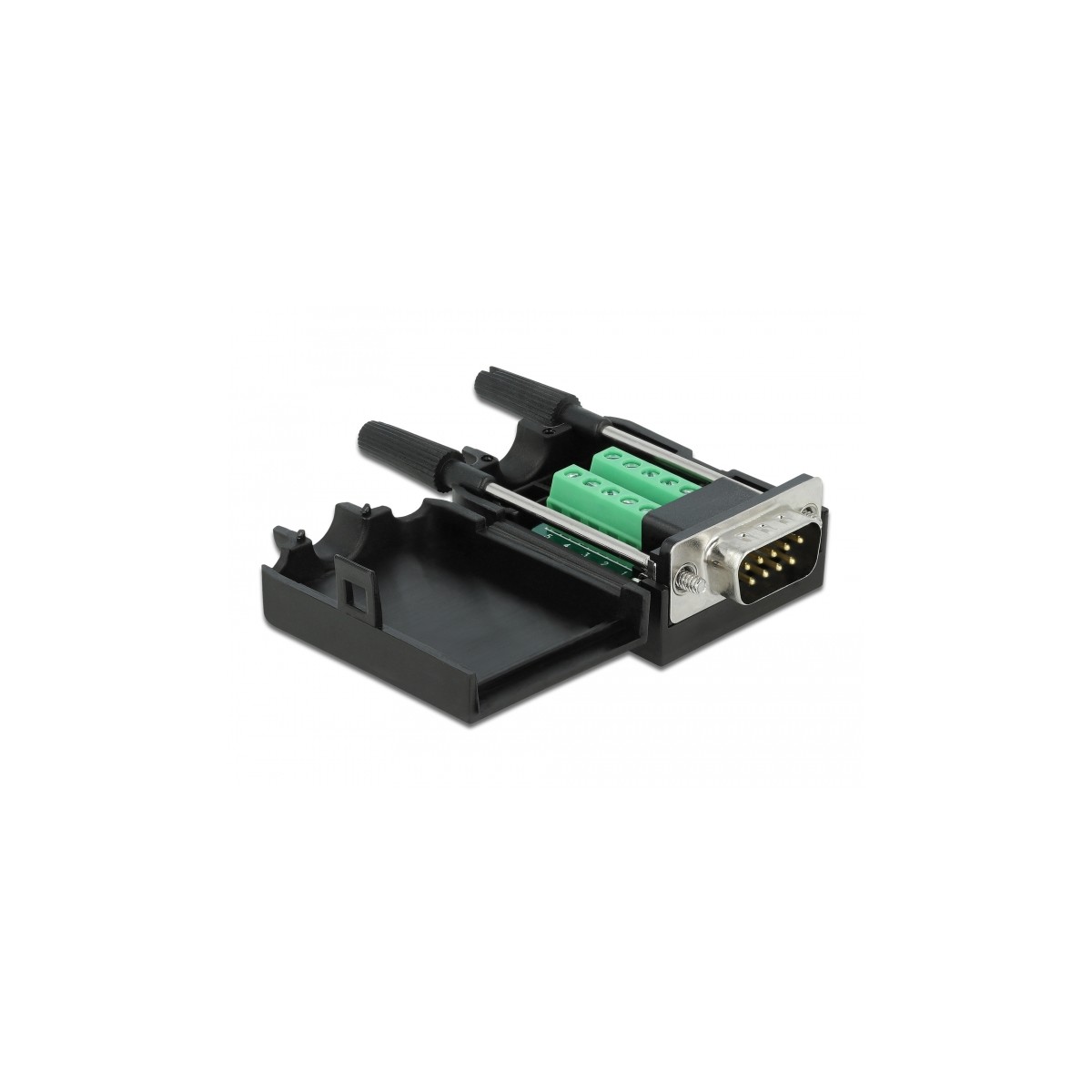

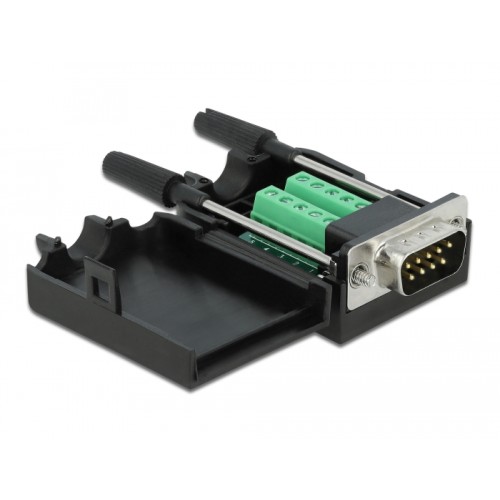

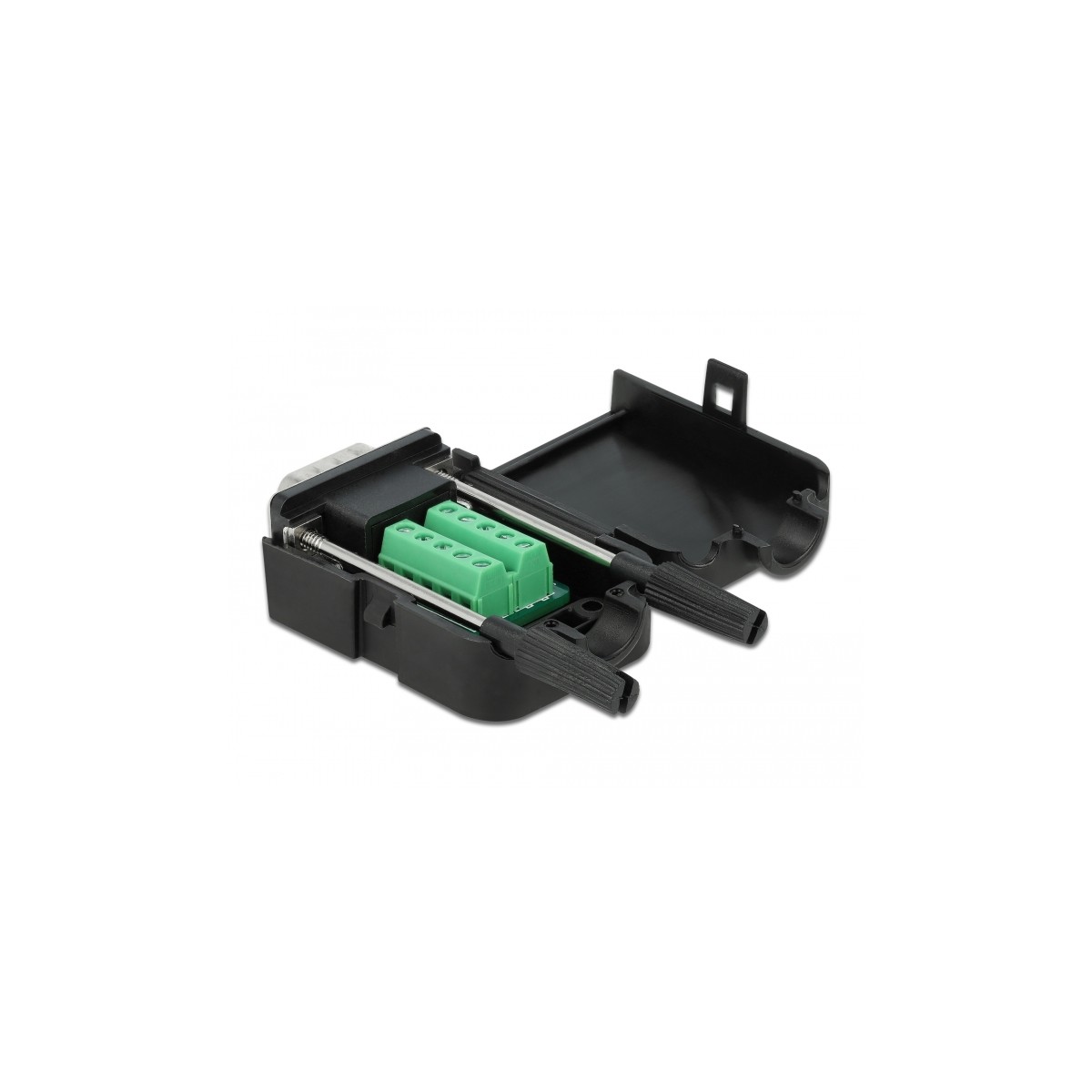

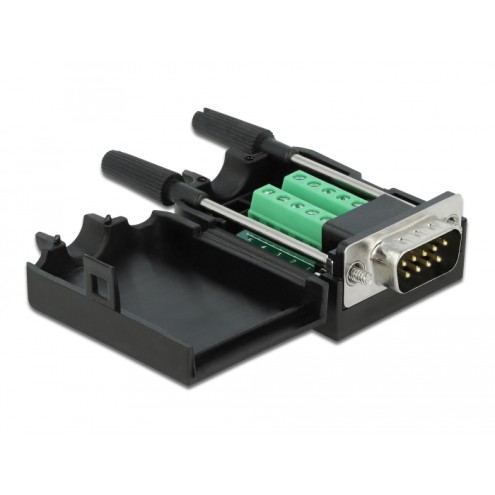

Description
This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.

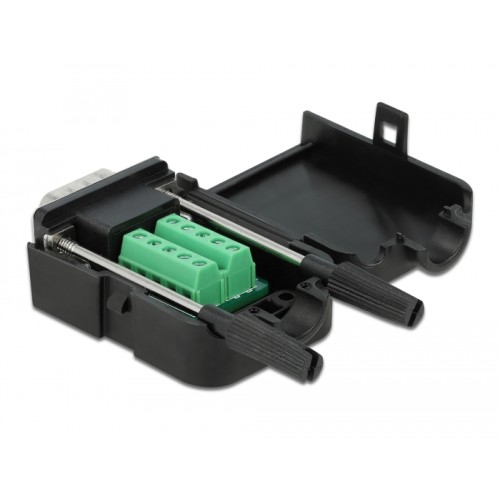

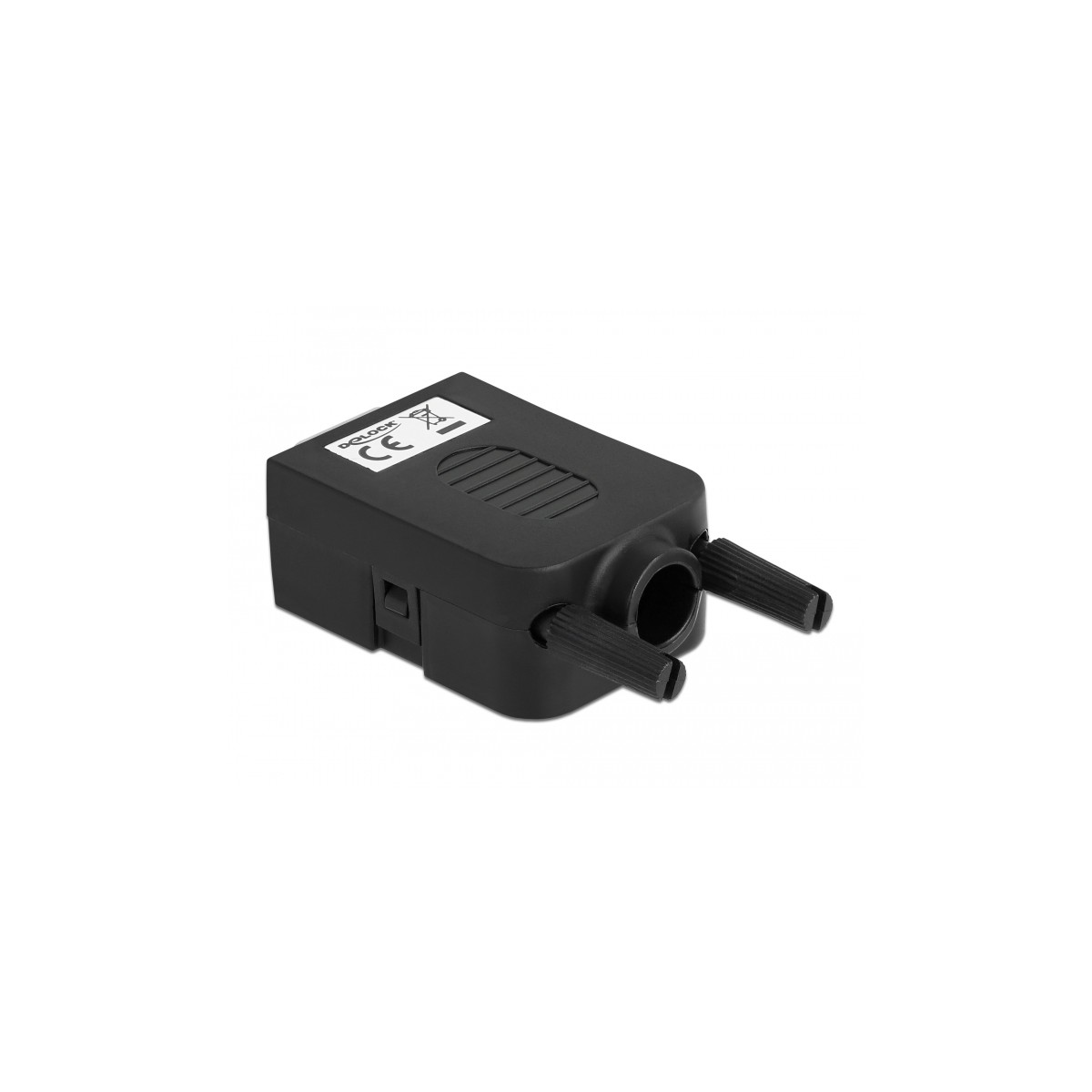

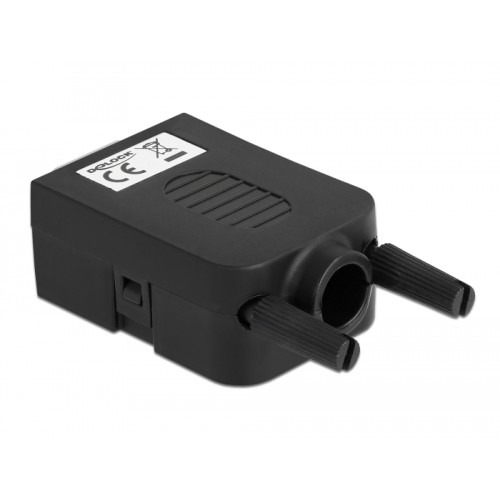

Protection by enclosure
The plastic enclosure protects the PCB from dirt and damage.
Strain relief
The integrated strain relief fixes the cable in the enclosure.
Specification

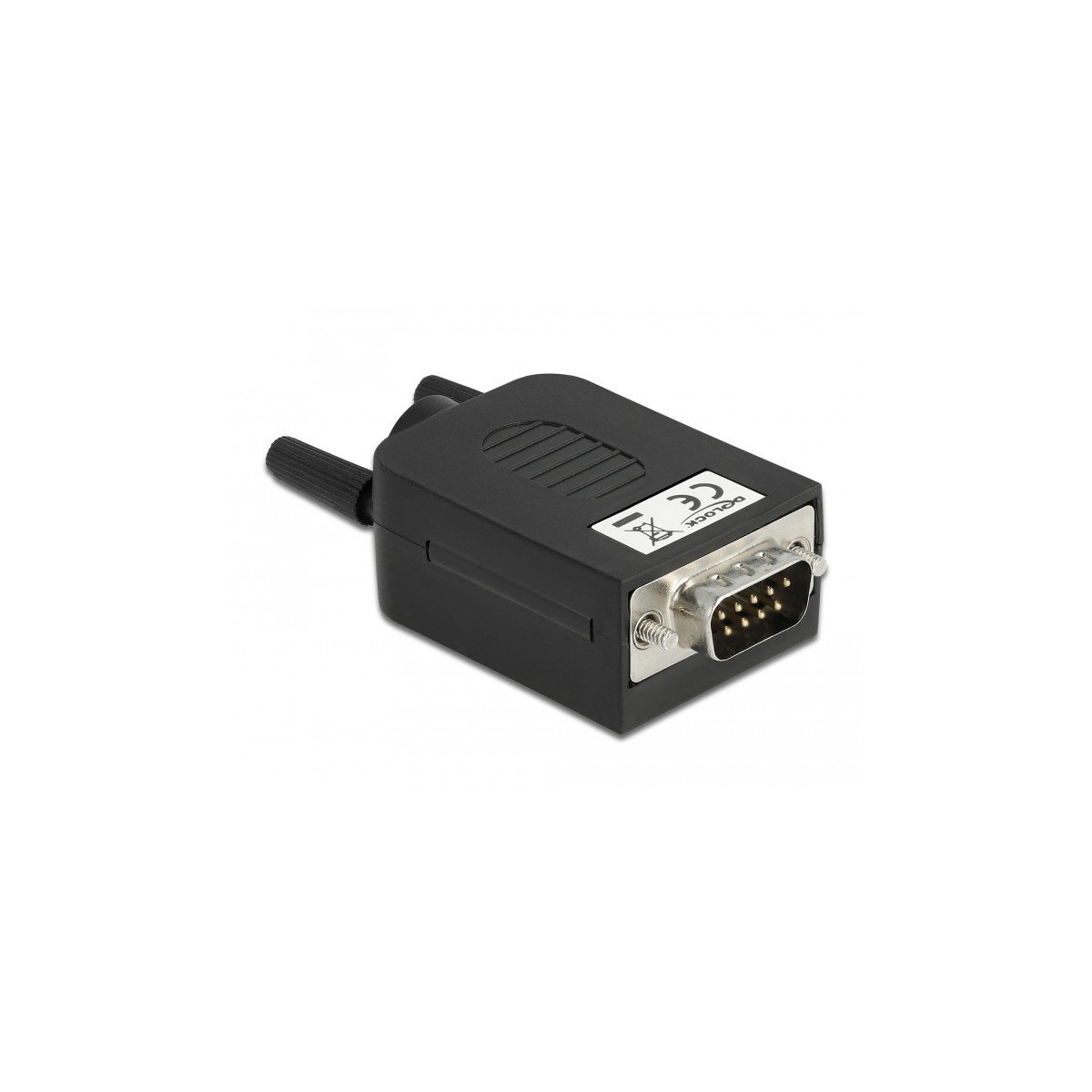

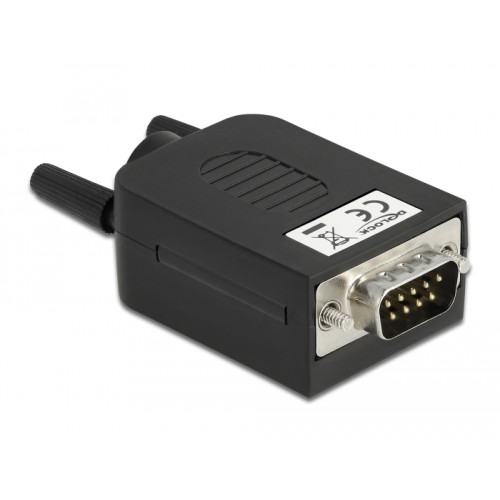

• Connectors:
1 x serial D-Sub 9 male with screws
1 x 10 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 51.8 x 34.4 x 21.0 mm
System requirements
• A free D-Sub 9 pin female

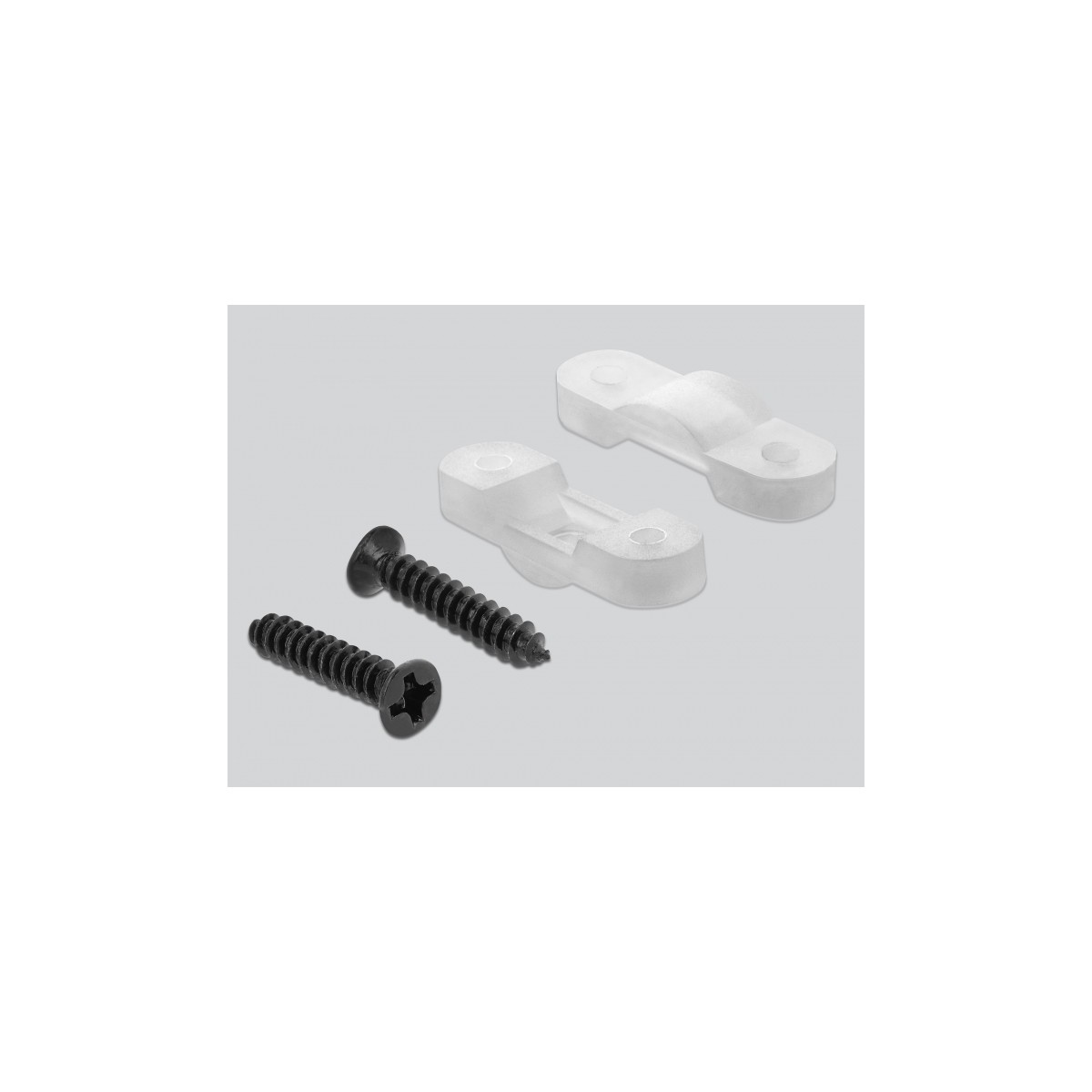

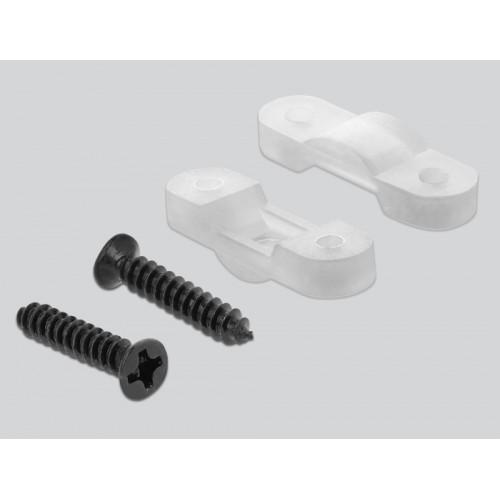

Package content
• Adapter
• 1 x strain relief
• 2 x locking screws
This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.
Protection by enclosure
The plastic enclosure protects the PCB from dirt and damage.
Strain relief
The integrated strain relief fixes the cable in the enclosure.
Specification
• Connectors:
1 x serial D-Sub 9 male with screws
1 x 10 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 51.8 x 34.4 x 21.0 mm
System requirements
• A free D-Sub 9 pin female
Package content
• Adapter
• 1 x strain relief
• 2 x locking screws
